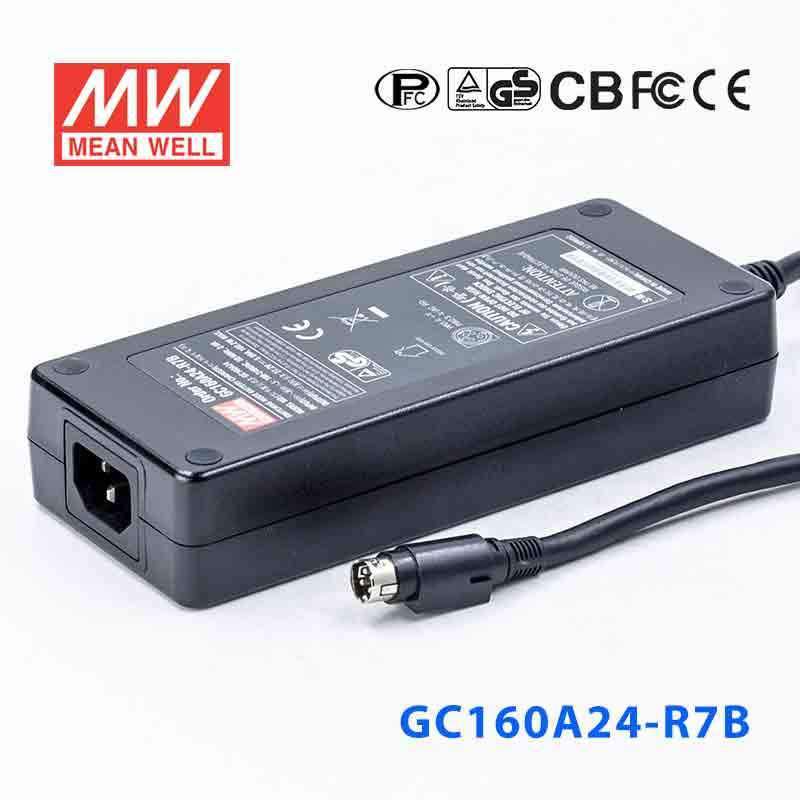

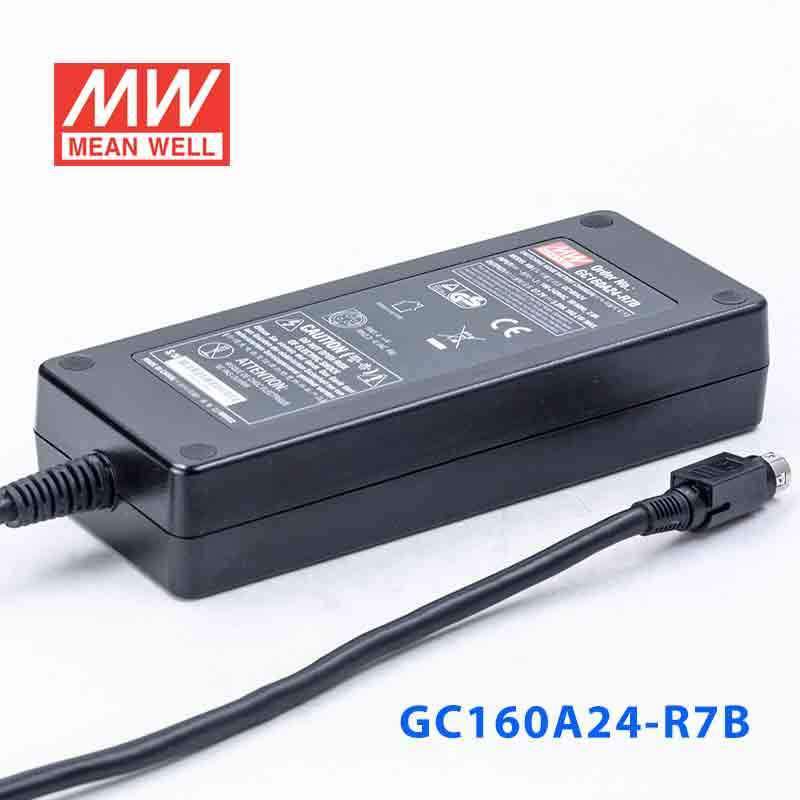

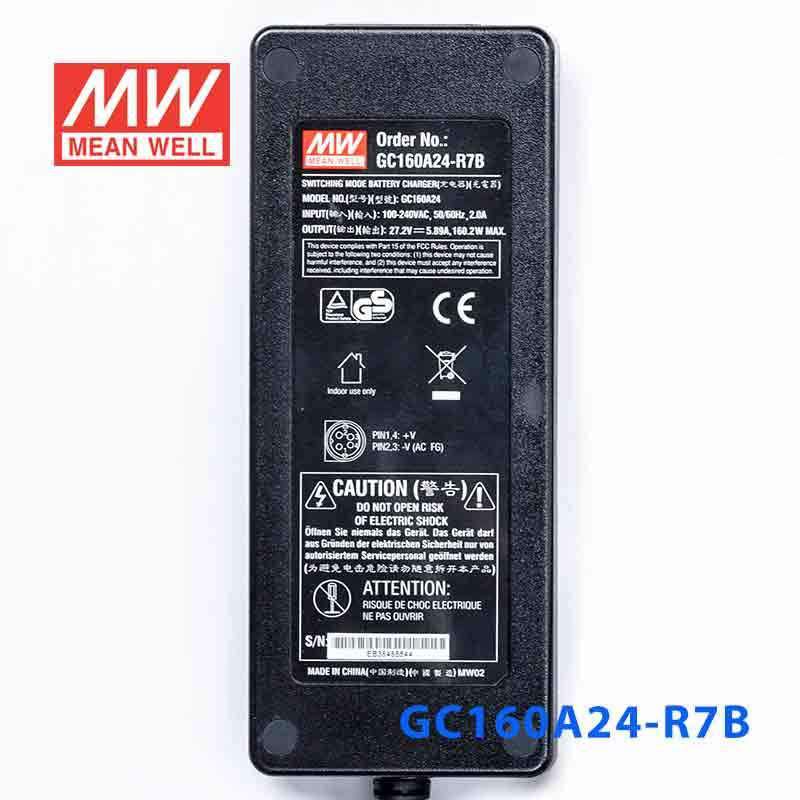

Mean Well GC160A24-R7B Portable Chargers 160.2W 27.2V 5.89A - Green Adaptor

class I power, no load power consumption < 1.0W, 2 stage charging

|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over Temp.
No load power consumption < 1W
High efficiency up to 94%
2 stage charging characteristic
Cooling by free air convection
3 pole AC inlet IEC320-C14
Class I power (with earth pin)
Fully enclosed plastic case

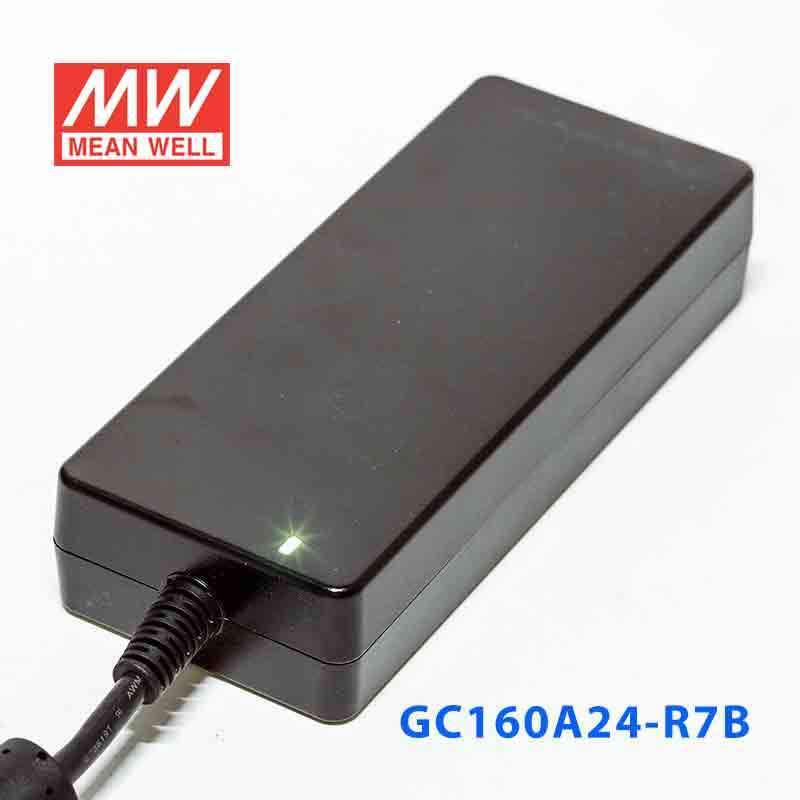

2 color LED indicator for charging status
2 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
Overload protection 90~110% constant current, auto-recovery
Over voltage protection 105%~135% shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C (refer to derating curve)
Safety standards UL1012 (GC120Axx-AD1 only), EN60950-1 approved
EMC standards EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 175x 72x 35 mm
Length of output cable 120cm of UL2464, 18AWGx 4C
Standard DC plug Power DIN 4P with lock type (R7B)

Specifications

  • Brand
    Mean Well
  • Series
    GC Series
  • Power Rating
    160.2 Watt
  • Output Voltage
    27.2 Volt
  • Rated Current
    5.89 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,cUL,EAC,FCC,TUV
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    17.5 cm
  • Width
    7.2 cm
  • Height
    3.5 cm
  • Weight
    0.7 kg
