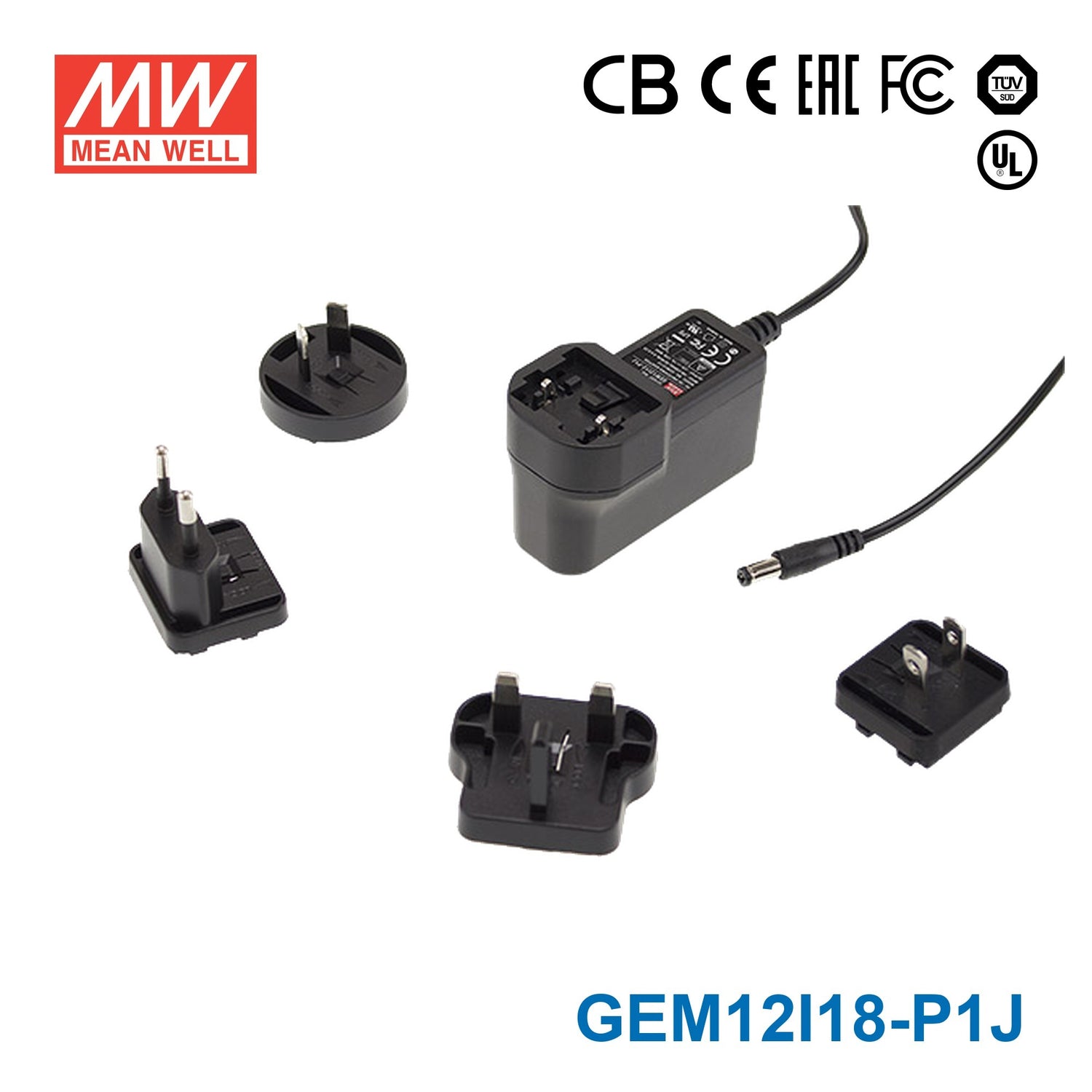

Mean Well GEM12I18-P1J Power Supply 12W 18V

SKU:

GEM12I18-P1J

End of Life, Succeeded by NGE12I18-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GEM12I18 is a 12W Mean Well power converter.

Key Features

✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

12 Watt
Output Voltage

18 Volt
Rated Current

0.66 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

7.39 cm
Width

4.85 cm
Height

3.9 cm
Weight

0.12 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GEM12I18-P1J to power an 18V automation module?

Yes, if the module requires constant-voltage 18V DC and stays within 0.66A and 12W. This supply is intended for fixed-voltage loads rather than constant-current applications.

Is the GEM12I18-P1J suitable for embedded devices that call for 18V input?

It is appropriate for embedded hardware that specifies 18V constant-voltage power. The output rating is 0.66A with 12W total available power, so the connected device must stay within those limits.

Can this 18V adapter be used for low-power industrial peripherals?

It can be used with compact industrial peripherals that need regulated 18V DC rather than a higher-power source. Its constant-voltage design, 12W rating, and 80-264VAC input make it suited to low-power equipment use.

Is the GEM12I18-P1J meant for outdoor installations?

The specs show an operating temperature range of -20°C to +70°C, but no IP rating is provided. Based on the listed data, temperature capability is defined, while outdoor exposure protection is not.

Is this a good choice when I need an 18V constant-voltage supply instead of a constant-current driver?

Yes, this model is explicitly specified as constant voltage. Its rated output is 18V at 0.66A, with 12W total power available for loads designed for that type of supply.

Model	Power	Voltage	Current
Mean Well GEM12I48-P1J Power Supply 12W 48V	12W	48V	0.25A	View
Mean Well GEM12I24-P1J Power Supply 12W 24V	12W	24V	0.5A	View
Mean Well GEM12I15-P1J Power Supply 12W 15V	12W	15V	0.8A	View
Mean Well GEM12I12-P1J Power Supply 12W 12V	12W	12V	1A	View
Mean Well GEM12I09-P1J Power Supply 12W 9V	12W	9V	1.33A	View
Mean Well GEM12I07-P1J Power Supply 12W 7.5V	12W	7.5V	1.6A	View
Mean Well GEM12I05-P1J Power Supply 12W 5V	12W	5V	2.4A	View
