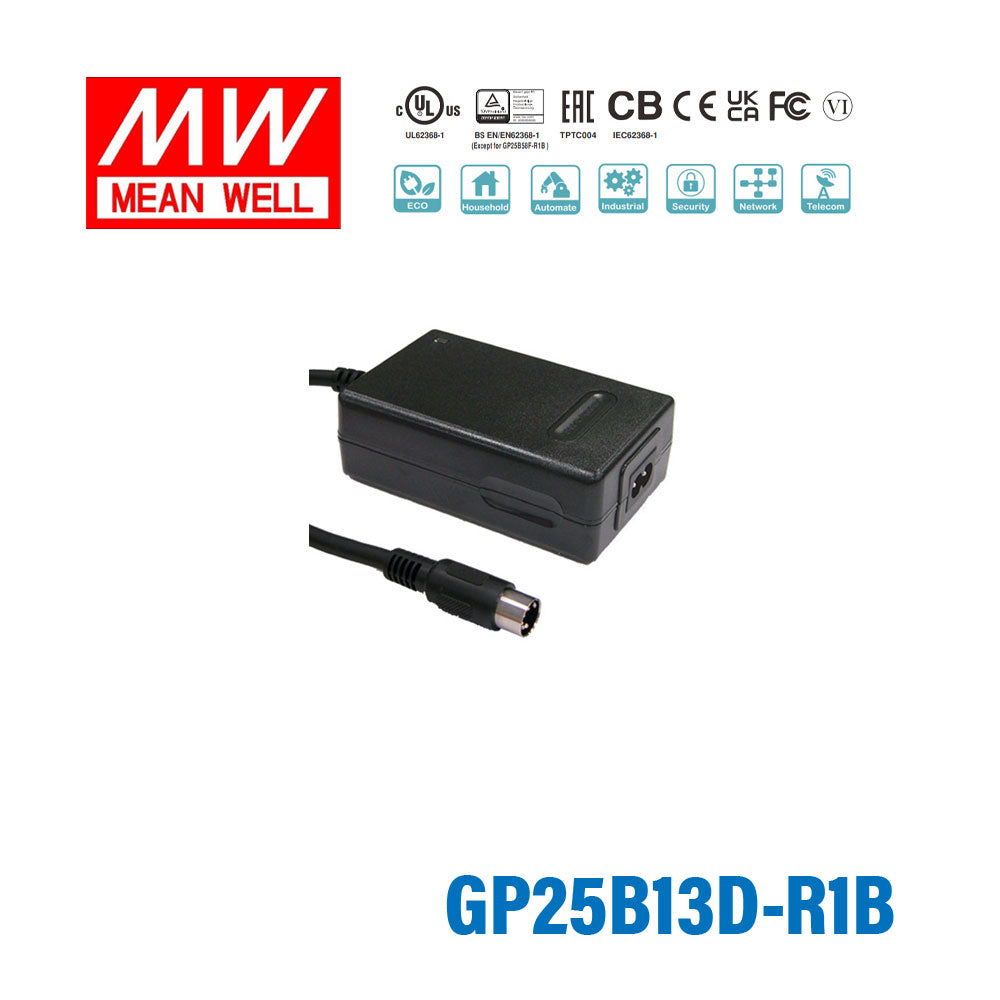

Mean Well GP25B13D-R1B Power Supply 50W 5V 12V -12V
Please Login for Pricing
Description
Description
Features
Universal AC input/Full range| 2 pole AC inlet IEC320-C8, Class II power unit |
| No-load power consumption < 0.3W |
| Energy efficiency Level VI |
| Comply with EISA 2007/DoE |
| Protections: Short circuit/Overload/Over voltage |
| Fully enclosed plastic case |
| -20~+70°C working temperature |
| LED indicator for power on |
| Dual output available(optional) |
| ±16/±48V also available for the video system |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC, 135~370VDC |
| AC inrush current (max.) | Cold start, 30A at 115VAC; 60A at 230VAC |
| Setup, rise, hold up time | 800ms, 50ms, 20ms at 230VAC input |
| Overload protection | 110~160% rated output power, hiccup mode, auto-recovery |
| Over-voltage protection | Clamp by Zener diode(5V only), output short |
| Withstand voltage | I/P-O/P:4242VDC, IP-FG:2121VDC |
| Working temperature | -20~+70°C |
| Safety standards | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25B58F-R1B ), EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Length of output cable | UL2468 18AWG*3C & 20AWG*2C 1530mm |
| Dimension (LxWxH) | 107.5x 67 x 36mm |
| Standard DC plug | DIN 5 Pin |
Specifications
Specifications
-
BrandMean Well
-
SeriesGP Series
-
Power Rating28 Watt
-
Output Voltage5 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length10.75 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.3 kg
