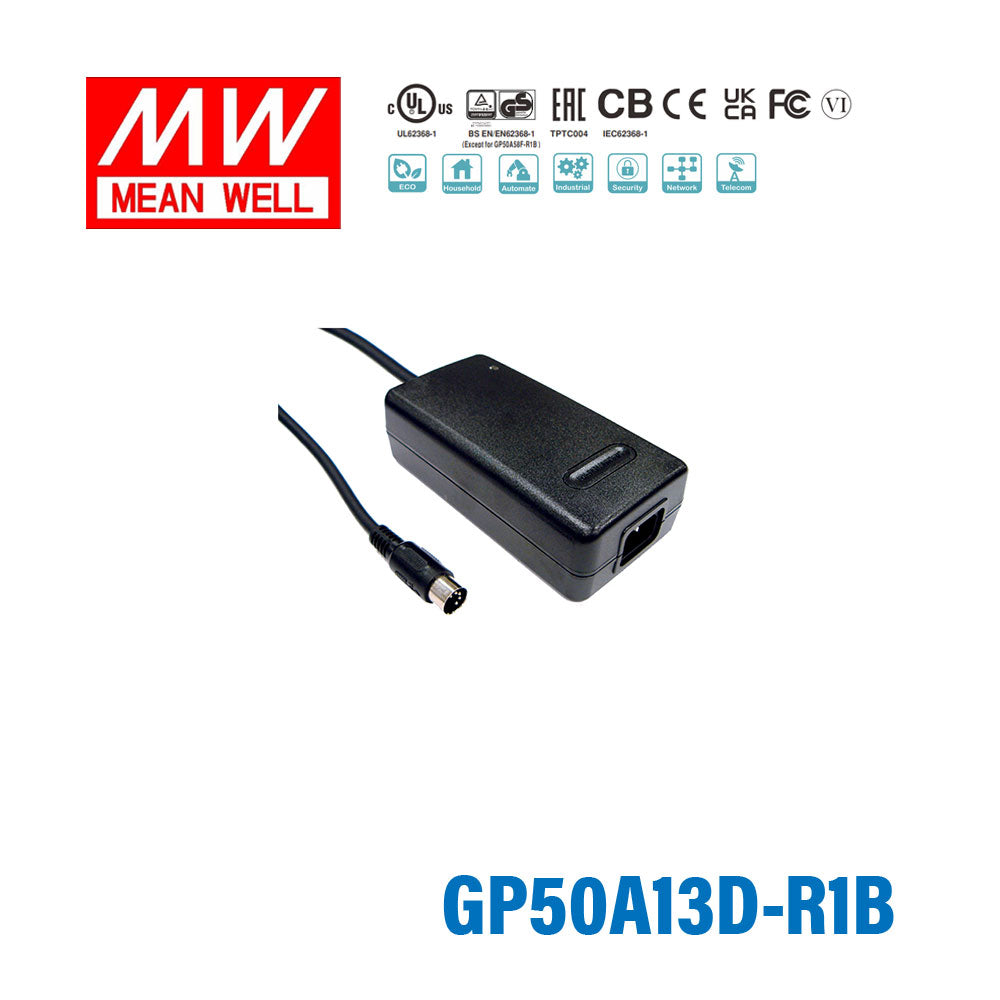

Mean Well GP50A13D-R1B Power Supply 50W 5V 12V -12V


|

Description

Features

 Universal AC input/Full range
3 pole AC inlet IEC320-C14, Class I power unit
No-load power consumption < 0.3W
Energy efficiency Level VI
Comply with EISA 2007/DoE
Protections: Short circuit/Overload/Over voltage
Fully enclosed plastic case
-20~+70°C working temperature
LED indicator for power on
Dual output available(optional)
±16/±48V also available for the video system
3 years warranty

General Specification

AC input voltage range 90~264VAC, 135~370VDC
AC inrush current (max.) Cold start, 30A at 115VAC; 60A at 230VAC
Setup, rise, hold up time 1500ms, 50ms, 20ms at 230VAC input
Overload protection 120~200% rated output power, hiccup mode, auto-recovery
Over-voltage protection Clamp by zener diode, output short
Withstand voltage I/P-O/P:4242VDC, IP-FG:2121VDC
Working temperature -20~+70°C
Safety standards IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable UL2468 18AWG*3C & 20AWG*2C 1530mm
Dimension (LxWxH) 146x 75.5 x 43mm
Standard DC plug DIN 5 Pin

Specifications

  • Brand
    Mean Well
  • Series
    GP
  • Power Rating
    50 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    14.6 cm
  • Width
    7.55 cm
  • Height
    4.3 cm
  • Weight
    0.55 kg
