Mean Well

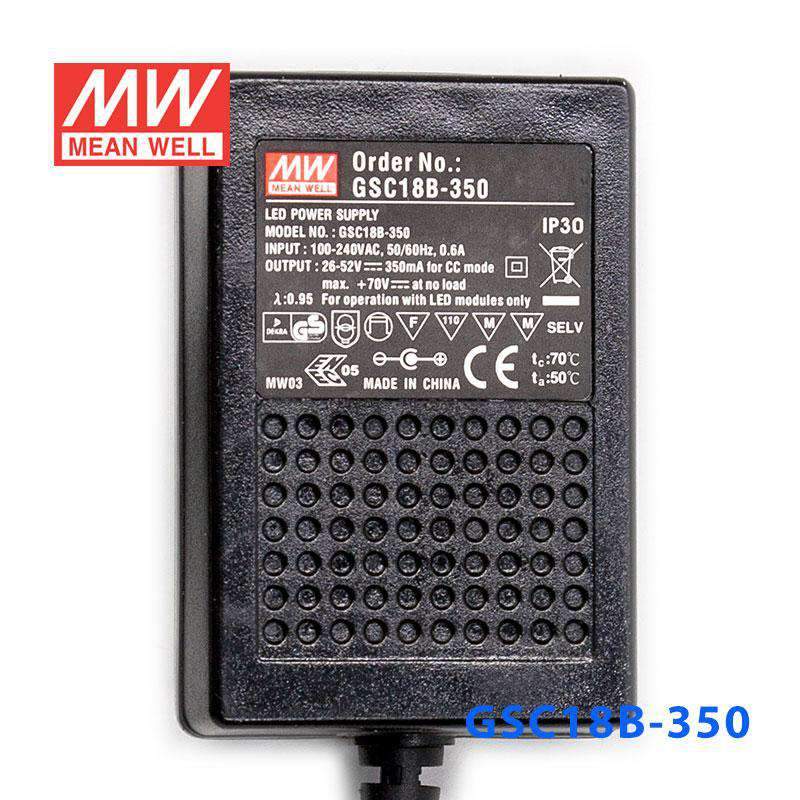

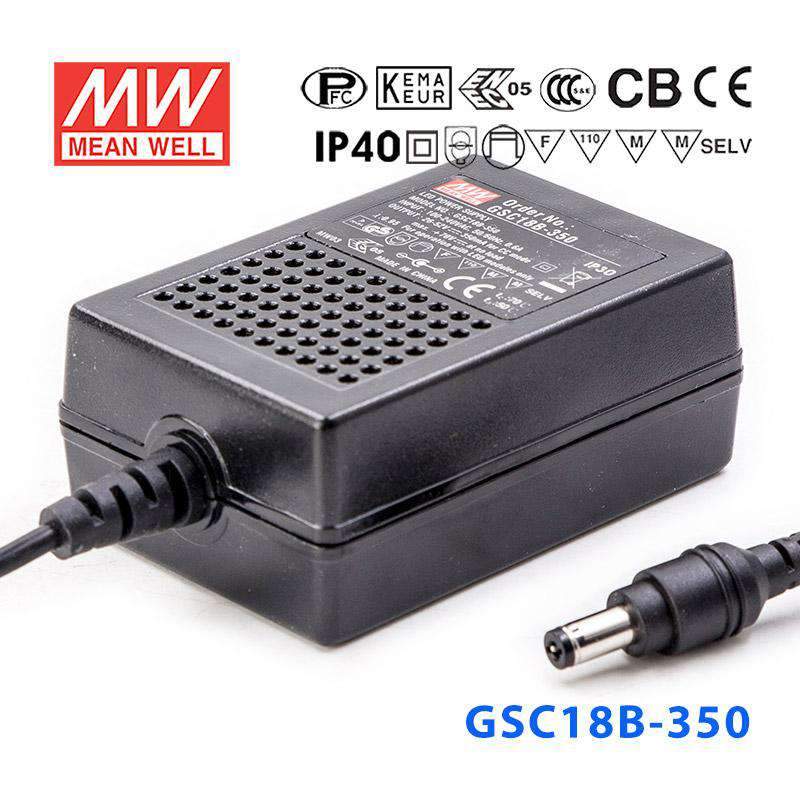

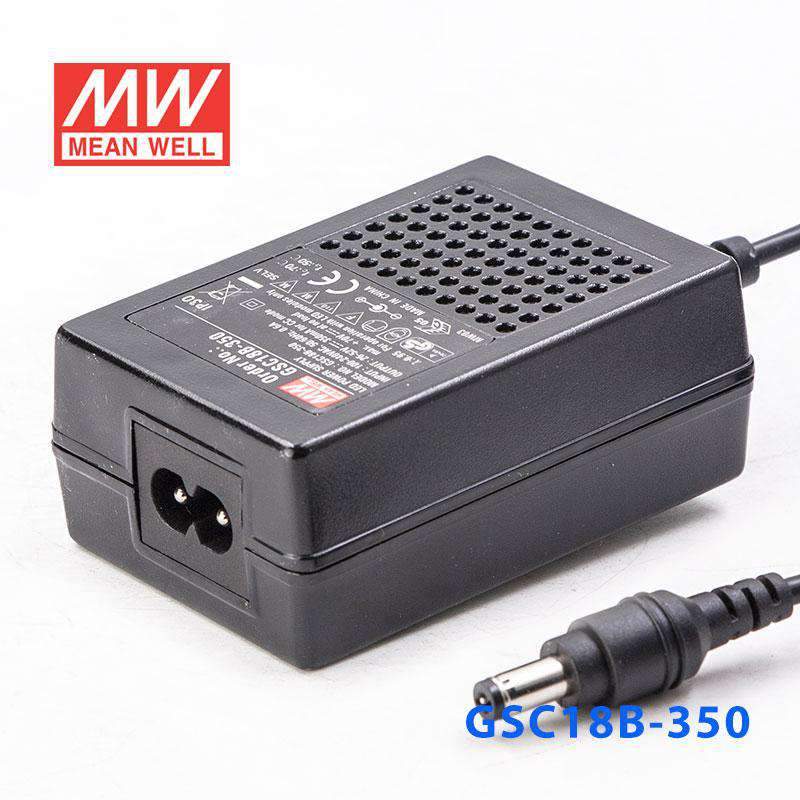

Mean Well GSC18B-350 Power Supply 18W 350A

SKU GSC18B-350

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

GSC18B-350 is the model of this series: rated current 350mA, rated power 18.2W, typical efficiency 89%.

GSC18B series is a 18W external desktop LED power supply with PFC function. The design of this product is based on the “ plug and play ” concept for adaptors. The AC input side exploits the 2-Pin (Class Ⅱ, no FG) international standard inlet IEC320-C8, and the output side is equipped with the highly accepted DC connector (2.1x5.5x11mm) in the market. This product accepts 90~277VAC input and offers various constant current output models with 350mA/500mA/700mA/1050mA/1400mA. The design complies with the lighting requirements of EMI EN55015 and the harmonic current demand per EN61000-3-2 Class C. In addition, the no load power consumption is less than 0.15W, and the setup time is less than 500ms, making GSC18B conform to the ErP regulation required by European Union for lighting systems as well.

Features

Universal AC input / Full range (up to 277VAC)

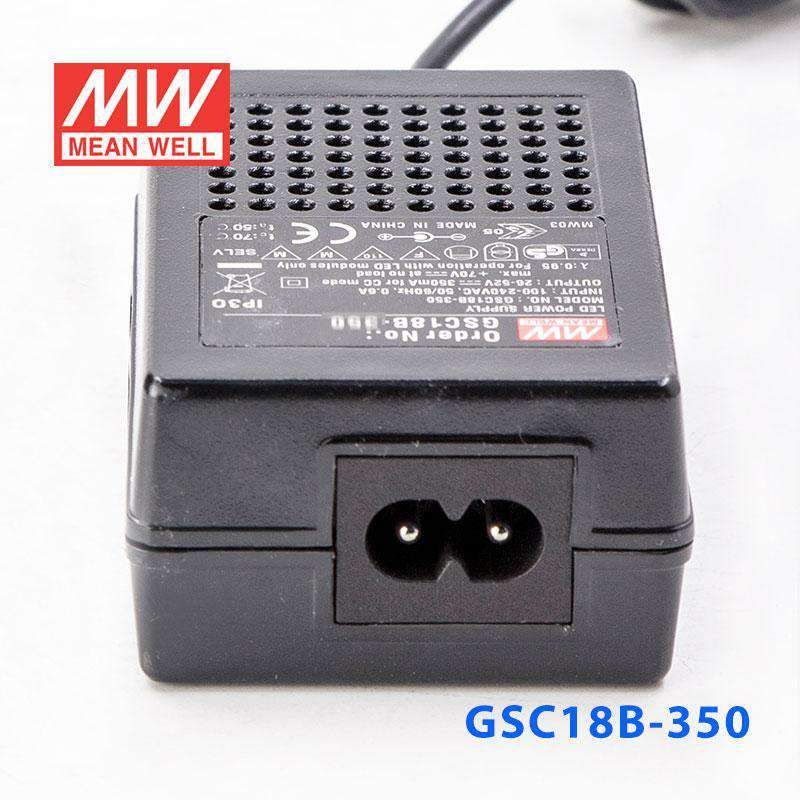

2 pole AC inlet IEC320-C8
Built-in active PFC function
Constant current design
Protections: Short circuit
Cooling by free air convection
Fully isolated plastic case
Class Ⅱ power unit, no FG
No load power consumption<0.15W
Low cost, high reliability
100% full load burn-in test
3 years warranty

Specifications

GSC18B-350Specifications from the official datasheet (2020-10-30 edition)

OUTPUT

RATED CURRENT: 350mA
OPERATING VOLTAGE RANGE^Note.4: 26 ~ 52V
CURRENT ACCURACY^Note.3: ±8.0%
RATED POWER: 18.2W
RIPPLE & NOISE (max.)^Note.2: 4.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 70V
SETUP TIME: 500ms / 230VAC 1000ms / 115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 277VAC 127 ~ 392VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.92/230VAC, PF>0.91/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: Total harmonic distortion will be lower than 20% when output loading is 75% or higher
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.): COLD START 17A(twidth=110μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Dekra GS/ENEC EN61347-1, EN61347-2-13 listed, EN62384, GB19510.1, GB19510.14, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (≧50% load) ; EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 338.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 191g ; 60pcs / 12.5kg / CARTON

CONNECTOR

PLUG: 2.1ψ * 5.5ψ * 11mm, tuning fork type, center positive for stock
CABLE: See page 4 ; Other type available by customer requested

Certifications & ratings

Marked features: SELV, IP40

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Please see "AC input voltage drop vs. output current characteristics" table.
4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
5. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.

Technical drawings

GSC18B-350 Power Factor Characteristic — Power Factor Characteristic

GSC18B-350 EFFICIENCY vs LOAD (GSC18B-350) — EFFICIENCY vs LOAD (GSC18B-350)

GSC18B-350 Mechanical Specification — Mechanical Specification

Typical applications

Indoor LED lighting
Office lighting
Commercial lighting
Indoor LED decorative lighting

Downloads

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

EMC Certificate (GSC18B)(EN) PDF Download

CB Certificate (GSC18B)(EN) PDF Download

ENEC Certificate (GSC18B)(EN) PDF Download

Test reports1

Test Report(GSC18B-350)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download
