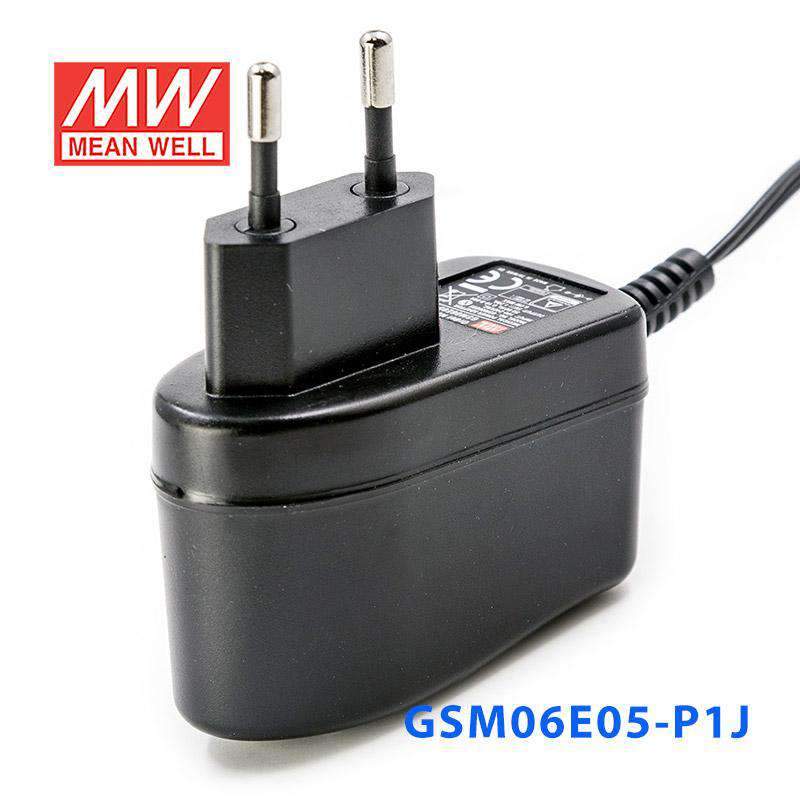

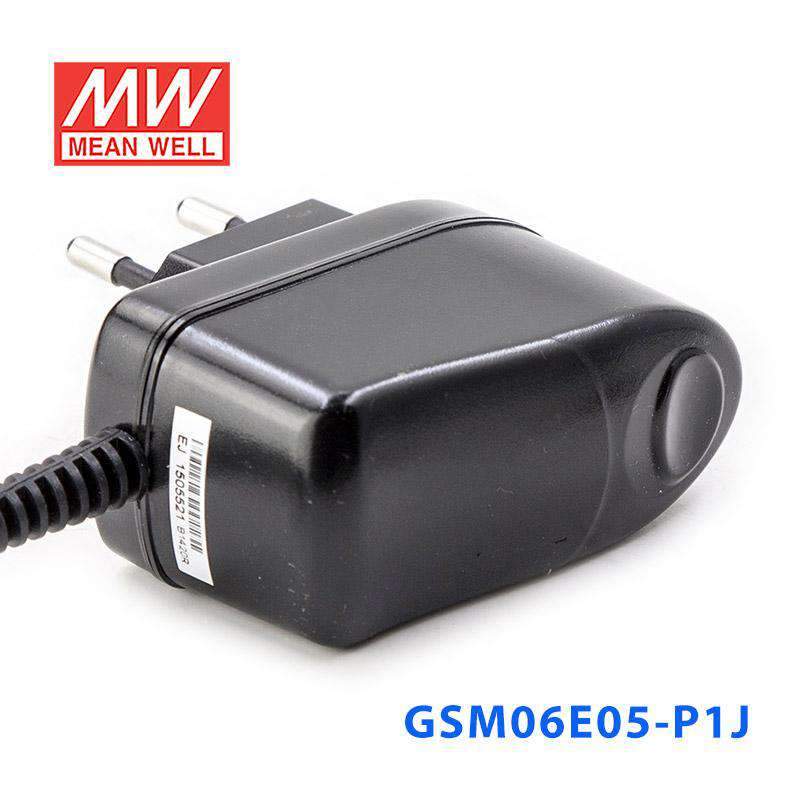

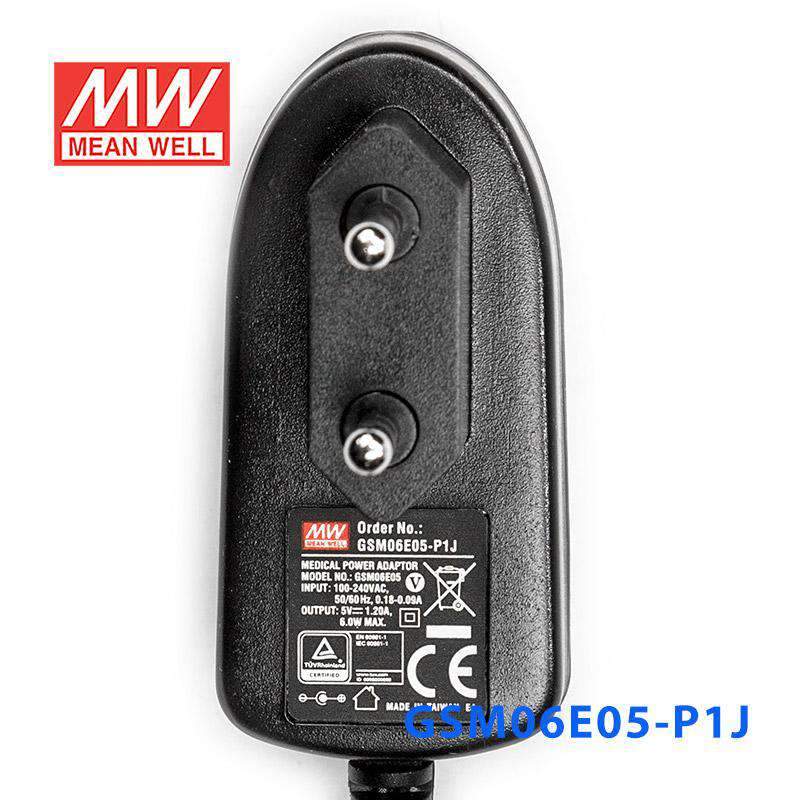

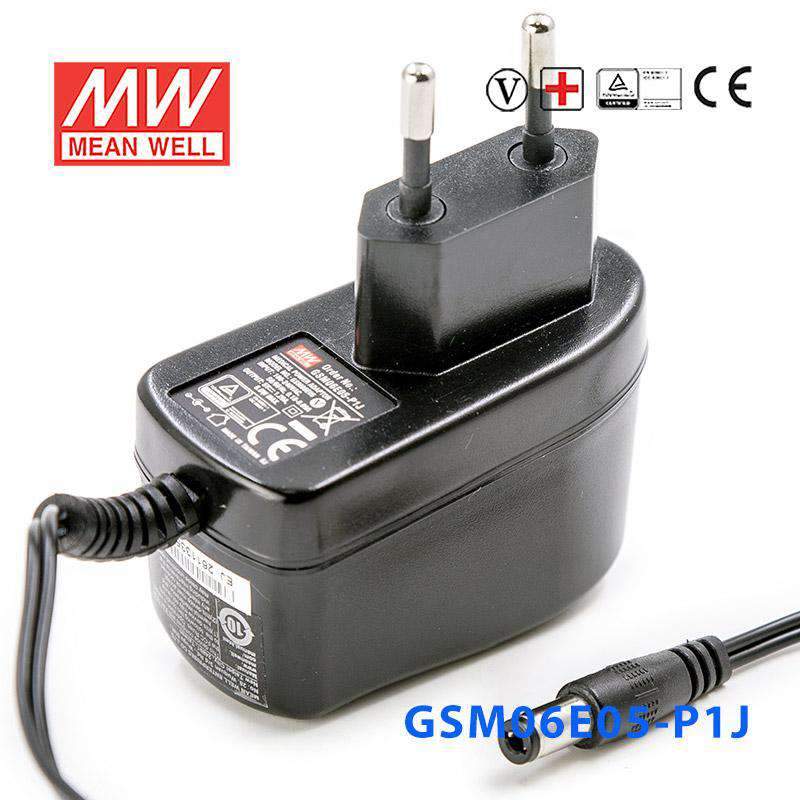

Mean Well GSM06E05-P1J Power Supply 06W 5V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| 2 pole EURO plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.3W |
| High efficiency up to 82% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Energy efficiency Level V |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 30A at 230VAC |
| Overload protection | >105% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 5656VAC |
| Working temperature | 0~+50°C (refer to output derating curve ) |
| Safety standards | TUV EN60601-1,EN60601-1-11 approved |
| EMC standards | EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2 |
| Length of output cable | 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V |
| Dimension (LxWxH) | 32x 66x 42.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current1.2 Ampere
-
Input Voltage85V~264V
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length6.6 cm
-
Width4.25 cm
-
Height3.2 cm
-
Weight0.1 kg
