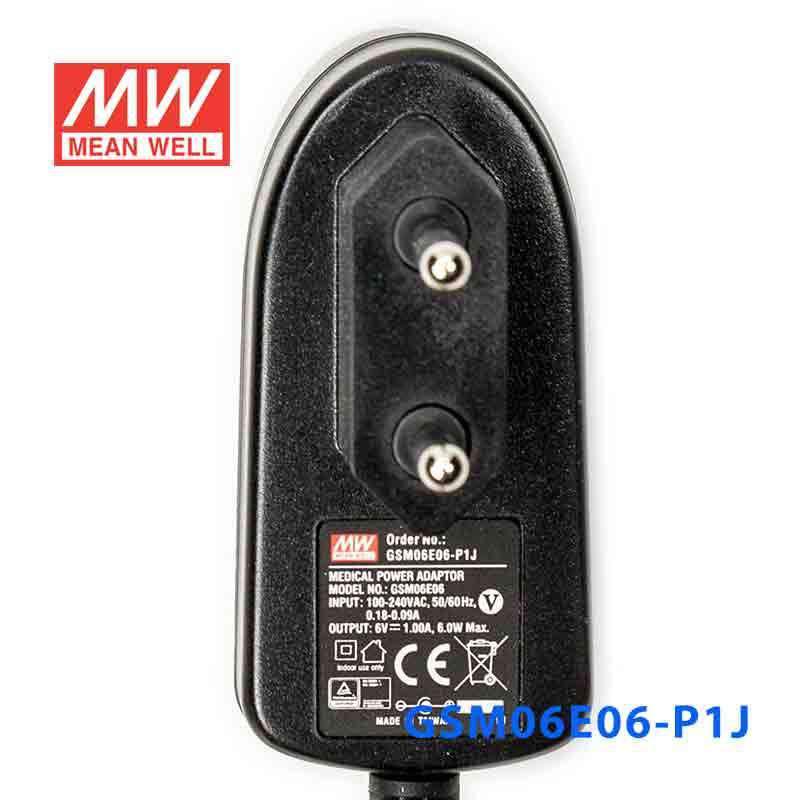

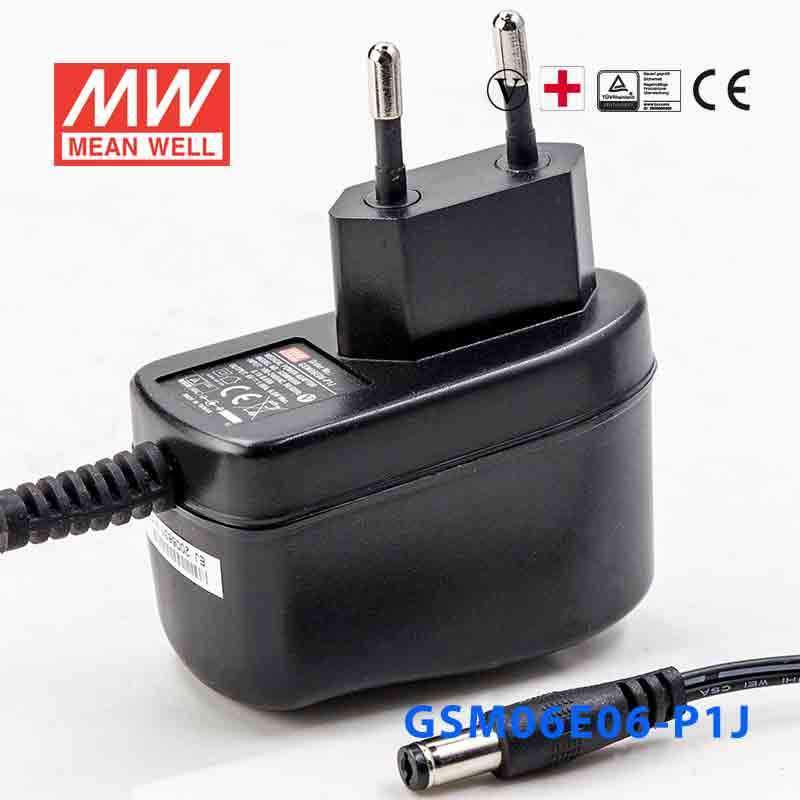

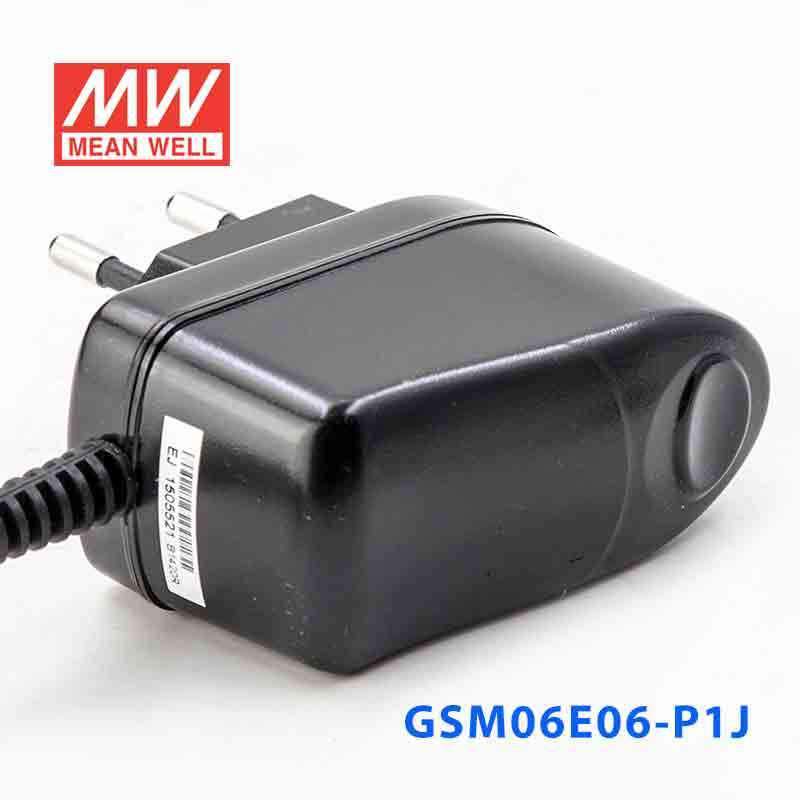

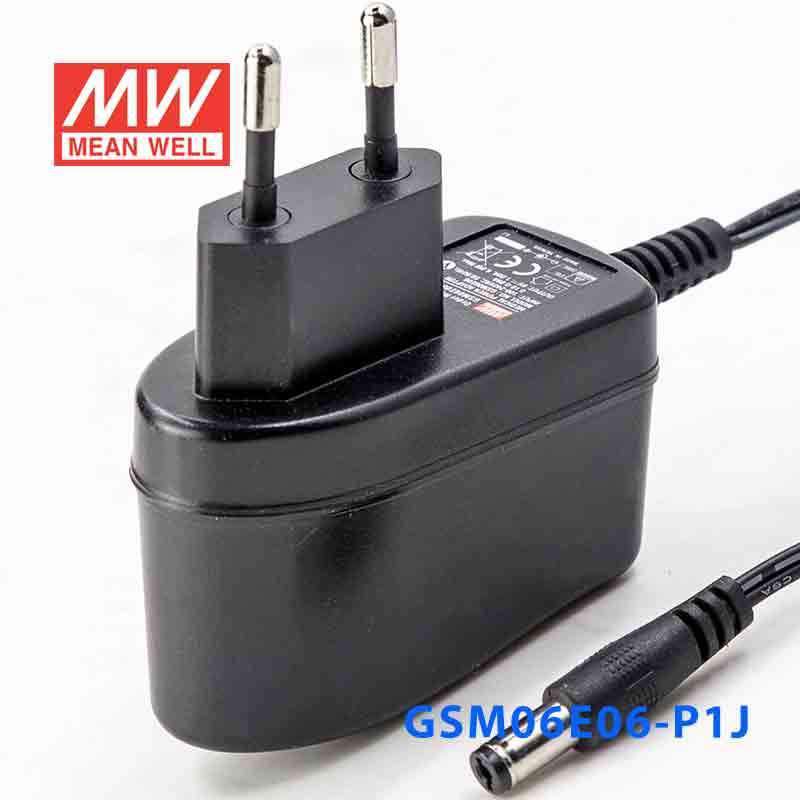

Mean Well GSM06E06-P1J Power Supply 06W 6V

SKU:
GSM06E06-P1J

Model
|

Description

Features

Universal AC input / Full range
2 pole EURO plug
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.3W
High efficiency up to 82%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Energy efficiency Level V
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Overload protection >105% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 5656VAC
Working temperature 0~+50°C (refer to output derating curve )
Safety standards TUV EN60601-1,EN60601-1-11 approved
EMC standards EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2
Length of output cable 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V
Dimension (LxWxH) 32x 66x 42.5 mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    6 Watt
  • Output Voltage
    6 Volt
  • Rated Current
    1 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CE,EAC,TUV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~50°C
  • Warranty
    3 Year
  • Length
    6.6 cm
  • Width
    4.25 cm
  • Height
    3.2 cm
  • Weight
    0.1 kg
