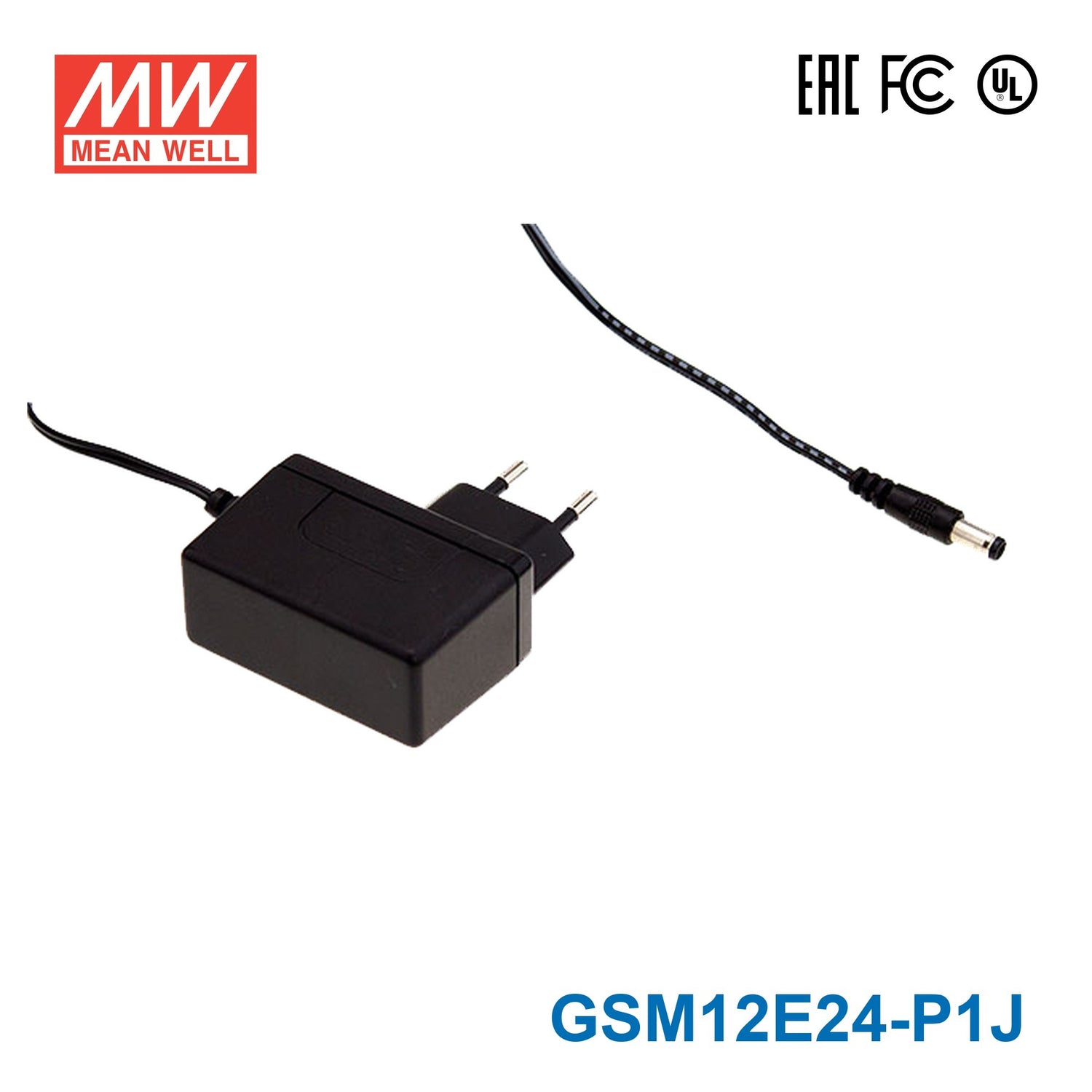

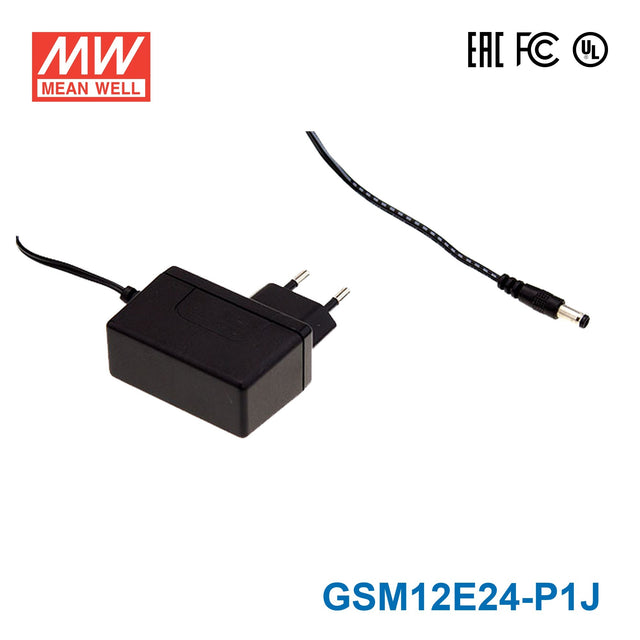

Mean Well GSM12E24-P1J Power Supply 12W 24V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Energy efficiency level VI |
| Medical safety approved (2 x MOPP) |
| Extremely low leakage current |
| No load power consumption < 0.075W(<0.1W for 18V/48V) |
| High efficiency up to 87% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| Overload protection | 110%~200% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 5656VDC |
| Working temperature | -20~+70°C |
| Safety standards | TUV EN60601-1,EN60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3 |
| Length of output cable | 100cm of UL2468, 18AWG for 5~7.5V; 120cm of UL2468, 22AWG for 9V; 180cm of UL2468, 24AWG for 12V~48V |
| Dimension (LxWxH) | 62.2 x 27.4 x 39.7mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
| packing | 90pcs/10Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating12 Watt
-
Output Voltage24 Volt
-
Rated Current0.5 Ampere
-
Input Voltage80V~264V
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length6.22 cm
-
Width3.97 cm
-
Height2.74 cm
-
Weight0.1 kg
