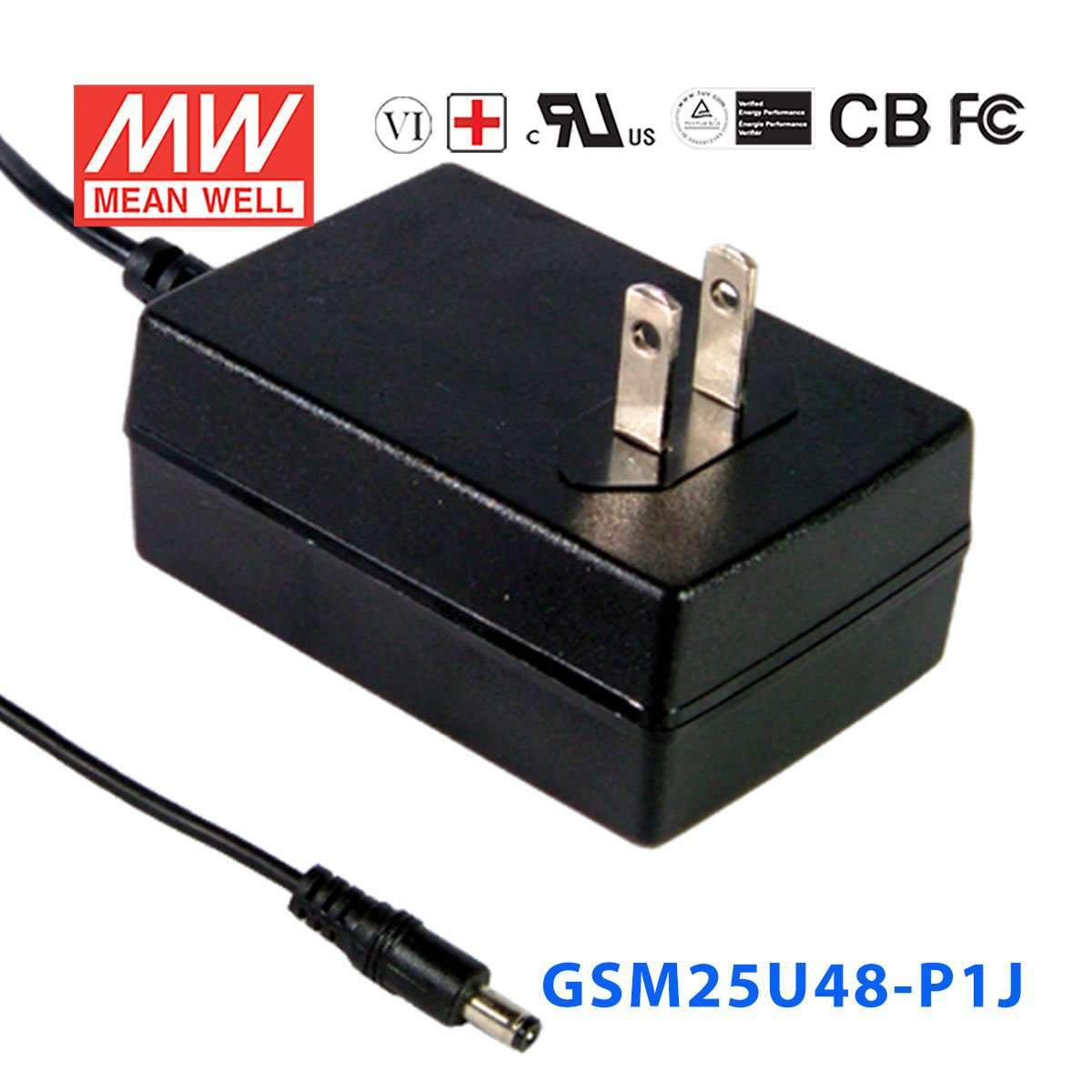

Mean Well GSM25U48-P1J Power Supply 25W 48V

SKU:
GSM25U48-P1J

|

Description

Features

Universal AC input / Full range
2 pole USA plug
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.1W
High efficiency up to 88%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
LED indicator for power on
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 80~264VAC ; 113~370VDC
AC inrush current (max.) Cold start, 55A at 230VAC
Overload protection 105%~170% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 4KVAC
Working temperature -25~+60°C (refer to output derating curve )
Safety standards ANSI/AAMI ES60601-1,ES60601-1-11 approved
EMC standards FCC part 15 class B
Length of output cable 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 16AWG for 12V;180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH) 79x 54x 33mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    25 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    0.52 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~60°C
  • Warranty
    3 Year
  • Length
    7.9 cm
  • Width
    5.4 cm
  • Height
    3.3 cm
  • Weight
    0.22 kg
