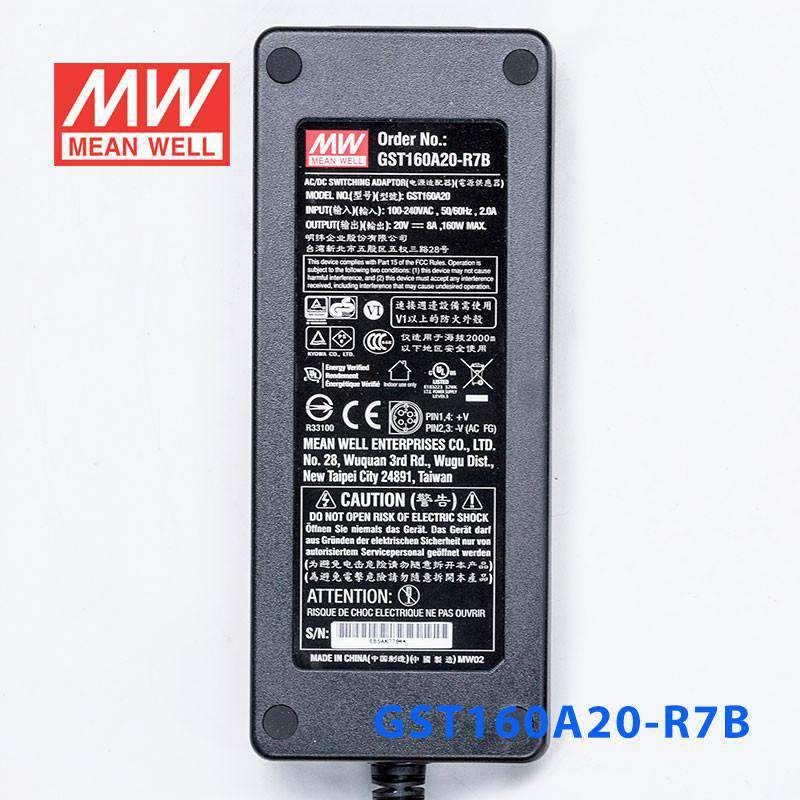

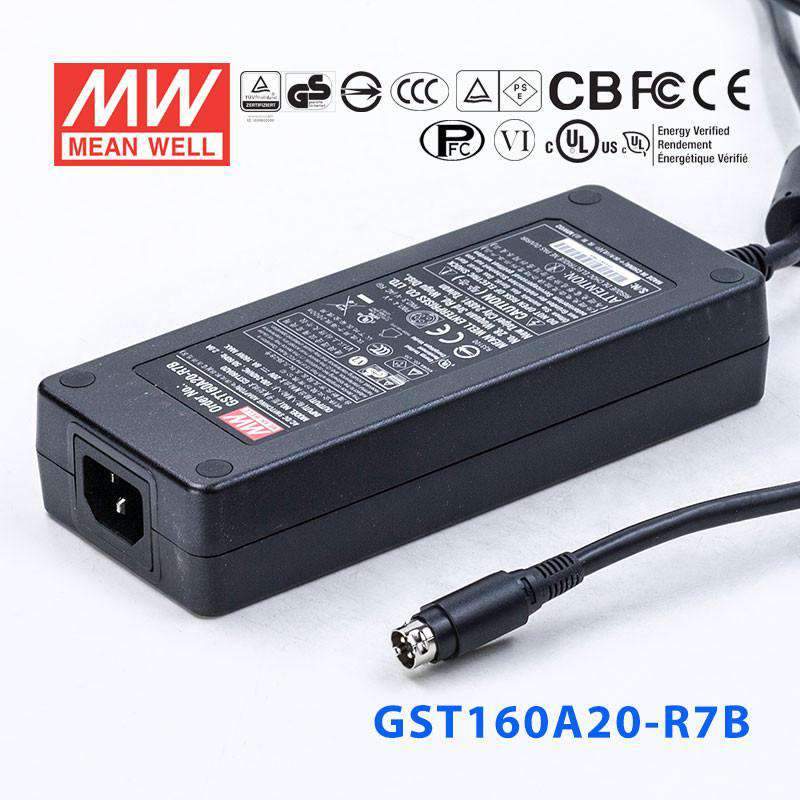

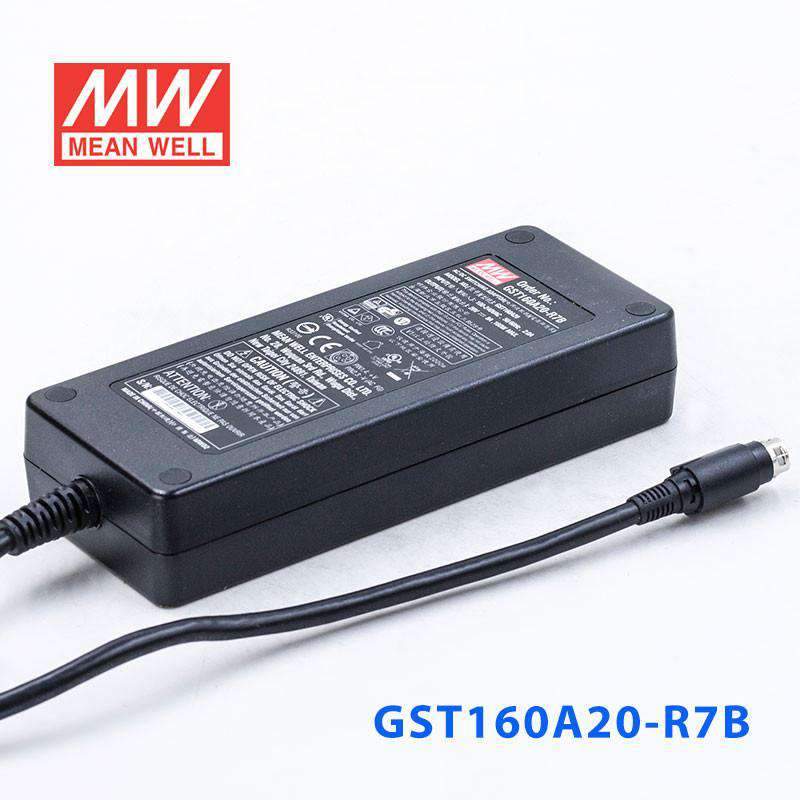

Mean Well GST160A20-R7B Power Supply 160W 20V

SKU:
GST160A20-R7B

|

Description

Features

Universal AC input / Full range
No load power consumption < 0.15W
Energy efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant

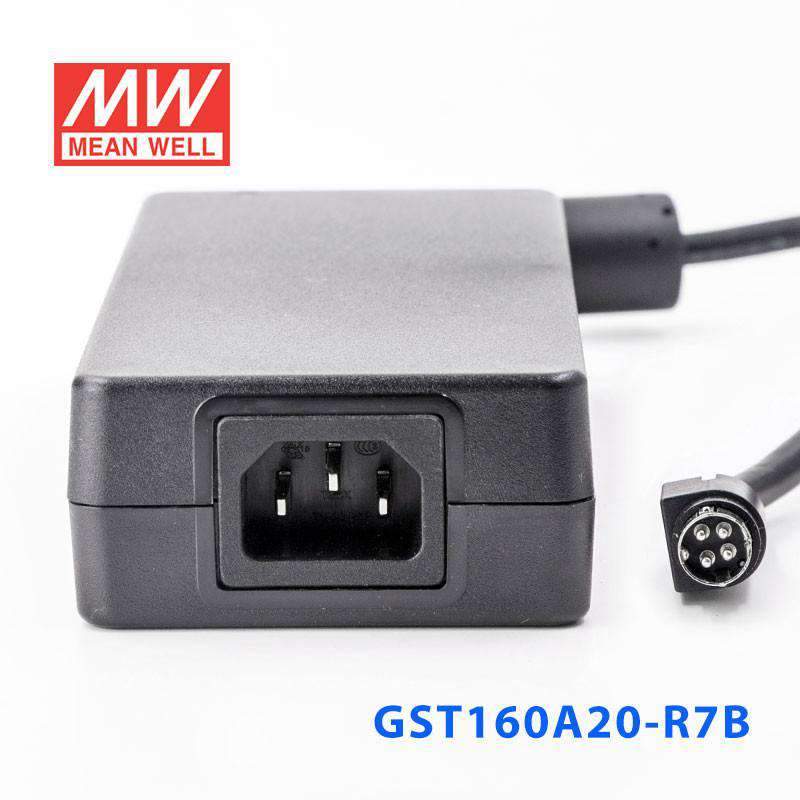

3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit / Overload / Over voltage / Over temp.
Fully enclosed plastic case

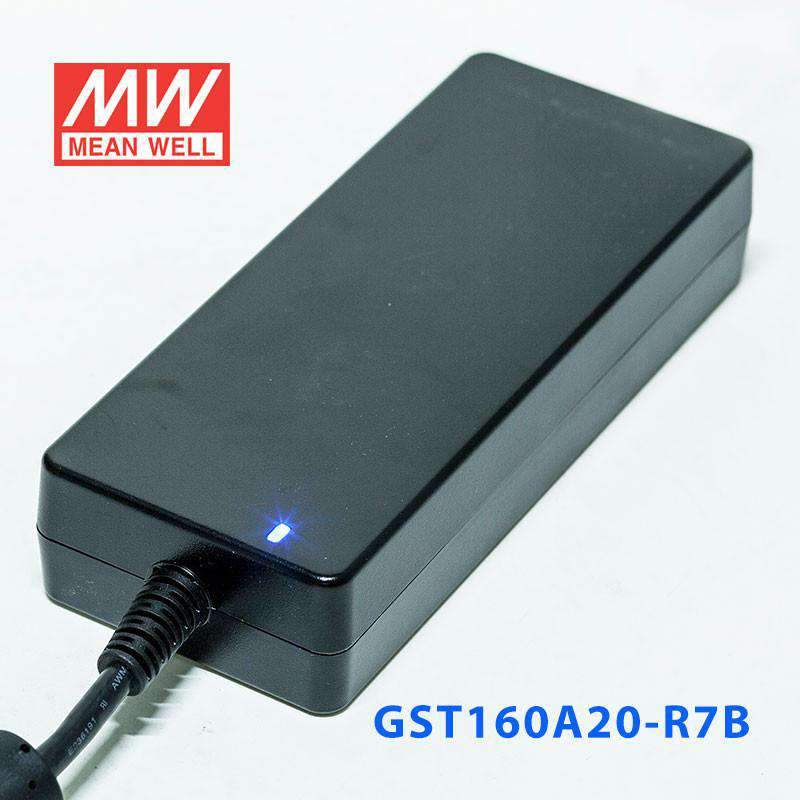

LED indicator for power on
Built-in active PFC function
Fanless design
3 years warranty


General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 120A at 230VAC
Overload protection Range 105%~135% rated output power
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 105%~135% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Hold up time 20ms at full load
Withstand voltage I/P-O/P: 3kVAC, 1 minute
Working temperature -30~+70°C
Safety standards UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B, CNS13438, GB9254
Length of output cable 120cm of UL2464, 18AWGx4C
Dimension (LxWxH) 175x 72x 35 mm
Standard DC plug R7B: Power DIN 4P with lock type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    160 Watt
  • Output Voltage
    20 Volt
  • Rated Current
    8 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    17.5 cm
  • Width
    7.2 cm
  • Height
    3.5 cm
  • Weight
    0.66 kg
