Description
Description
Features
Universal AC input / Full range |
No load power consumption < 0.075W |
Energy Efficiency Level VI |
Meet EISA 2007 (Energy Independence and Security Act) |
NRCan compliant for A/U type |

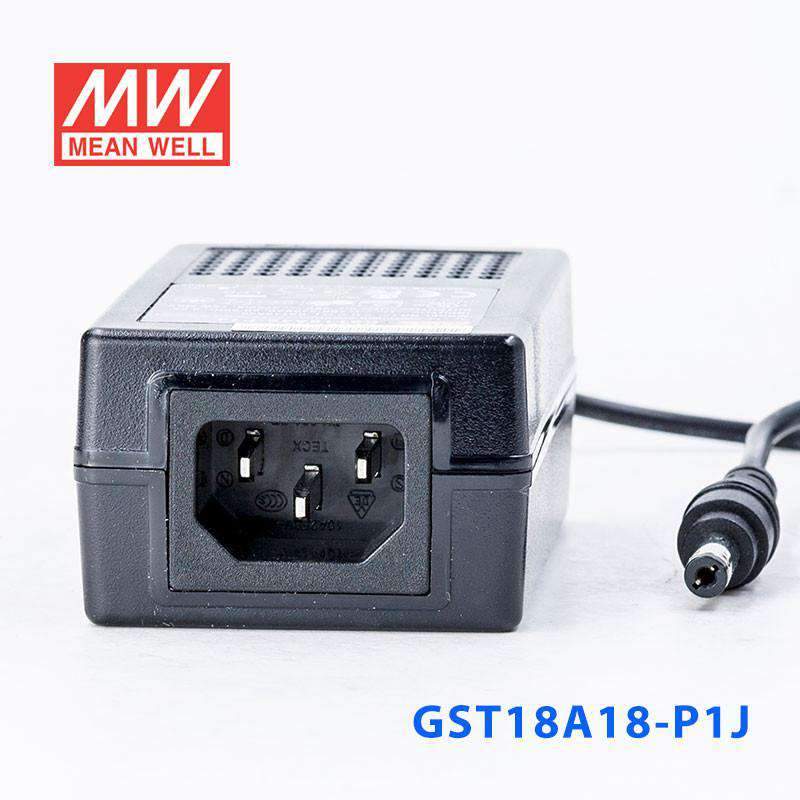

2 pole USA / EURO plug or IEC320-C14/C8 |
Class I power (with earth pin) only |
Protections: Short circuit / Overload / Over voltage |
Fully enclosed plastic case |

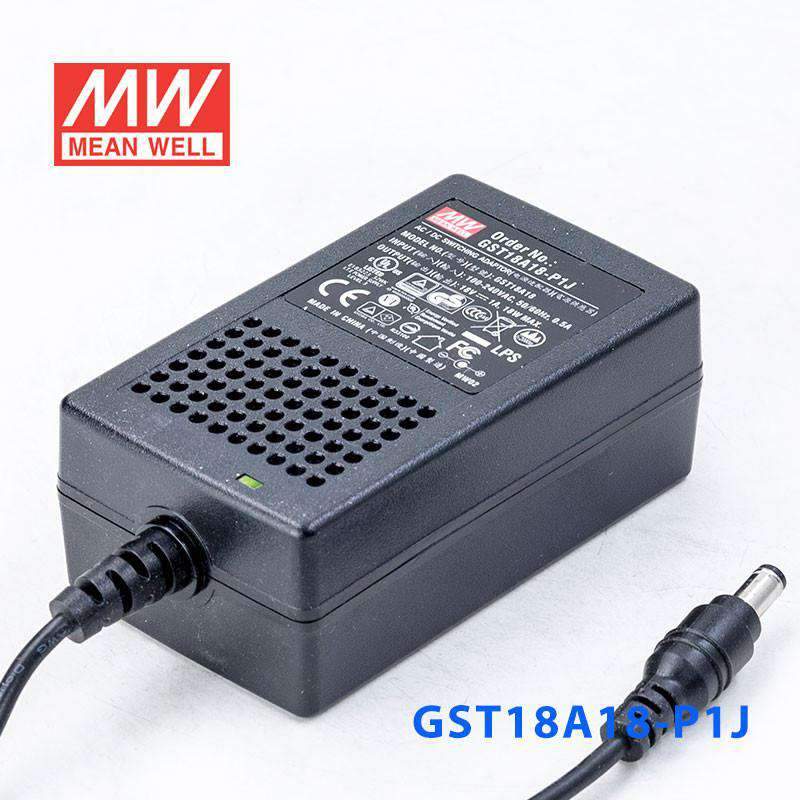

LED indicator for power on |
Pass LPS |

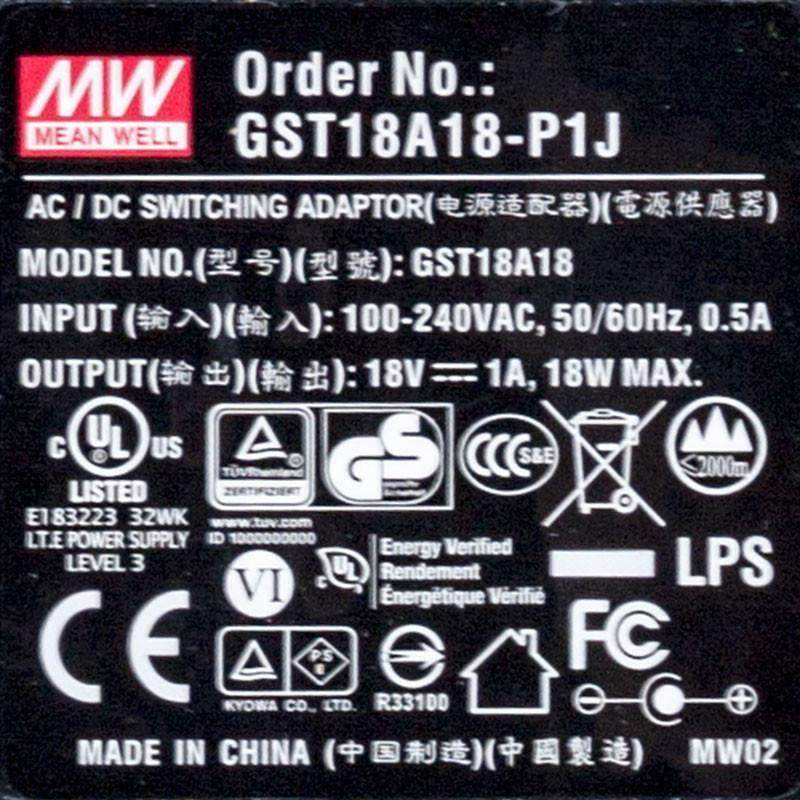

Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM |
3 years warranty |
General Specification
AC input voltage range | 85~264VAC |
AC inrush current (max.) | Cold start, 65A at 230VAC |
Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
Over voltage protection | 110%~140% rated output voltage, clamp by zener diode |
Withstand voltage | I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute |
Working temperature | -30~+70°C (refer to output derating curve ) |
Safety standards | UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
Length of output cable | 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V |
Dimension (LxWxH) | 93x 54x 36 mm |
Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating18 Watt
-
Output Voltage18 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.3 cm
-
Width5.4 cm
-
Height3.6 cm
-
Weight0.21 kg
