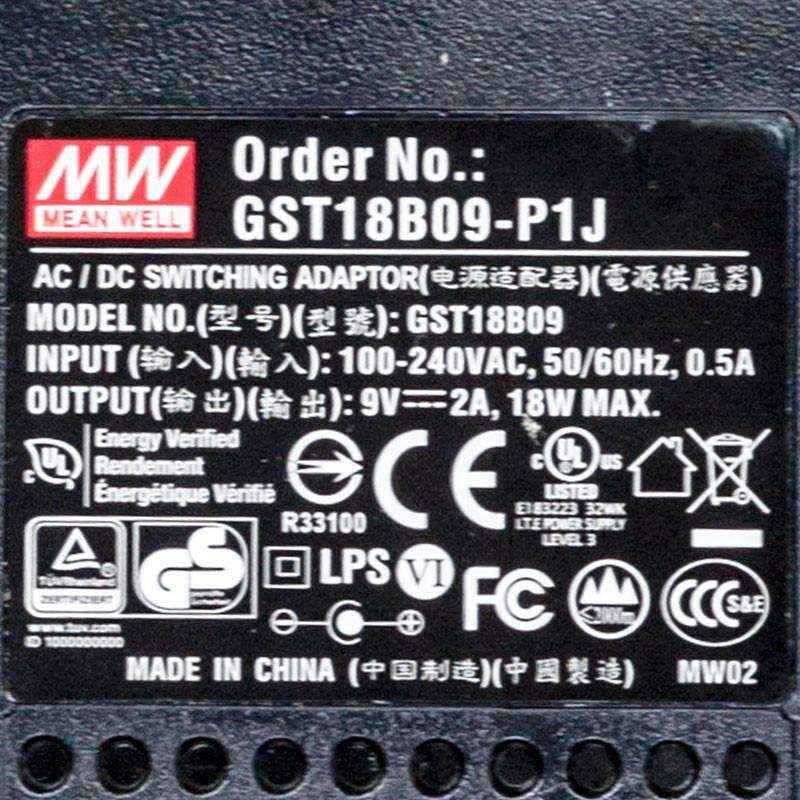

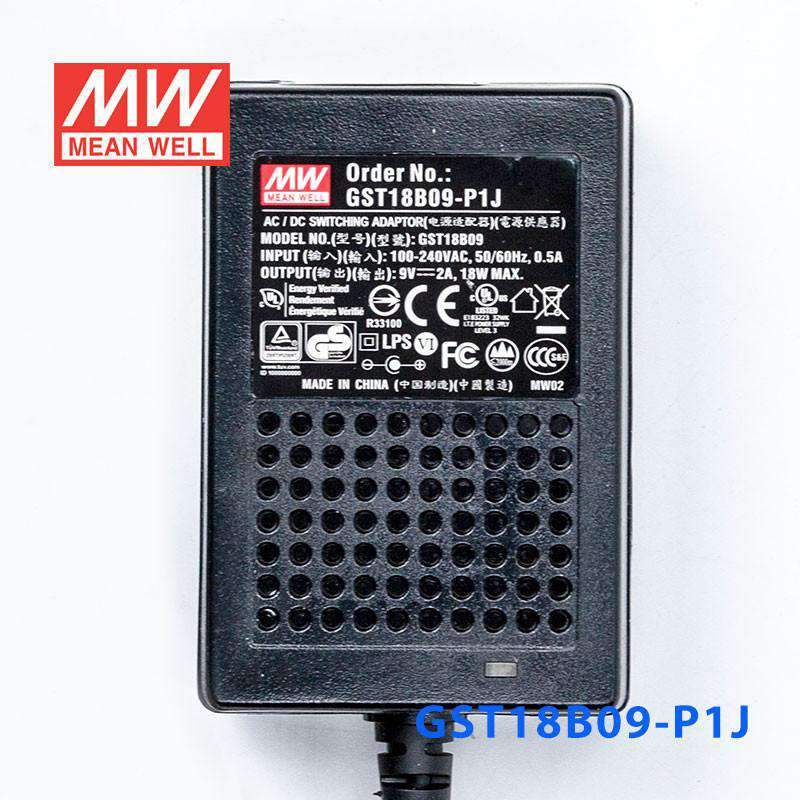

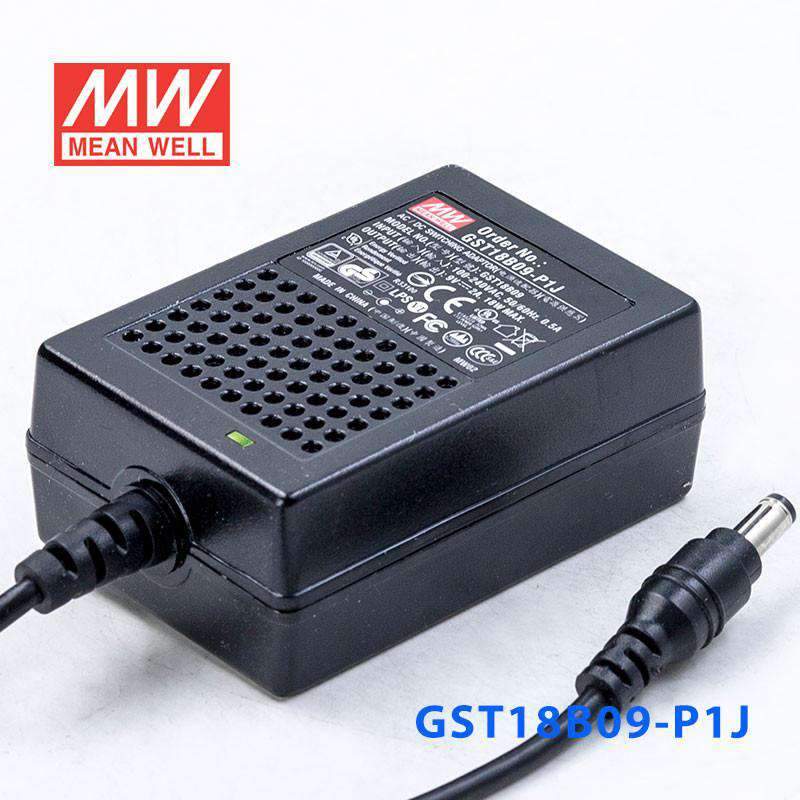

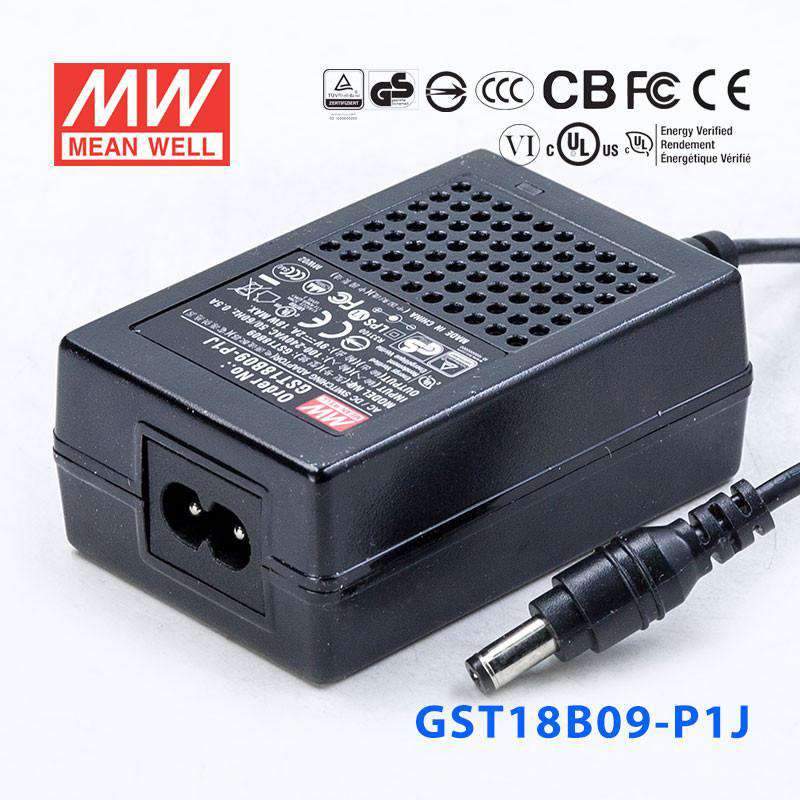

Mean Well GST18B09-P1J Power Supply 18W 9V


|

Description

Features

Universal AC input / Full range
No load power consumption < 0.075W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant for A/U type

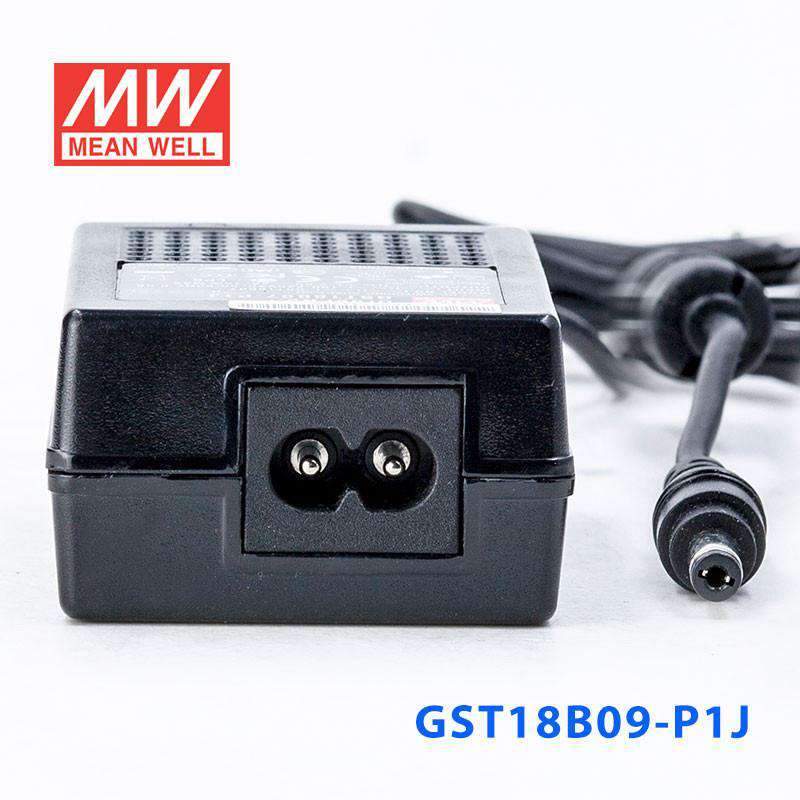

2 pole USA / EURO plug or IEC320-C14/C8
Class I power (with earth pin) only
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
LED indicator for power on
Pass LPS
Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM
3 years warranty


General Specification

AC input voltage range 85~264VAC
AC inrush current (max.) Cold start, 65A at 230VAC
Overload protection 110%~150% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 110%~140% rated output voltage, clamp by zener diode
Withstand voltage I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute
Working temperature -30~+70°C (refer to output derating curve )
Safety standards UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH) 93x 54x 36 mm
Standard DC plug P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    18 Watt
  • Output Voltage
    9 Volt
  • Rated Current
    2 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    7.9 cm
  • Width
    5.4 cm
  • Height
    3.3 cm
  • Weight
    0.19 kg
