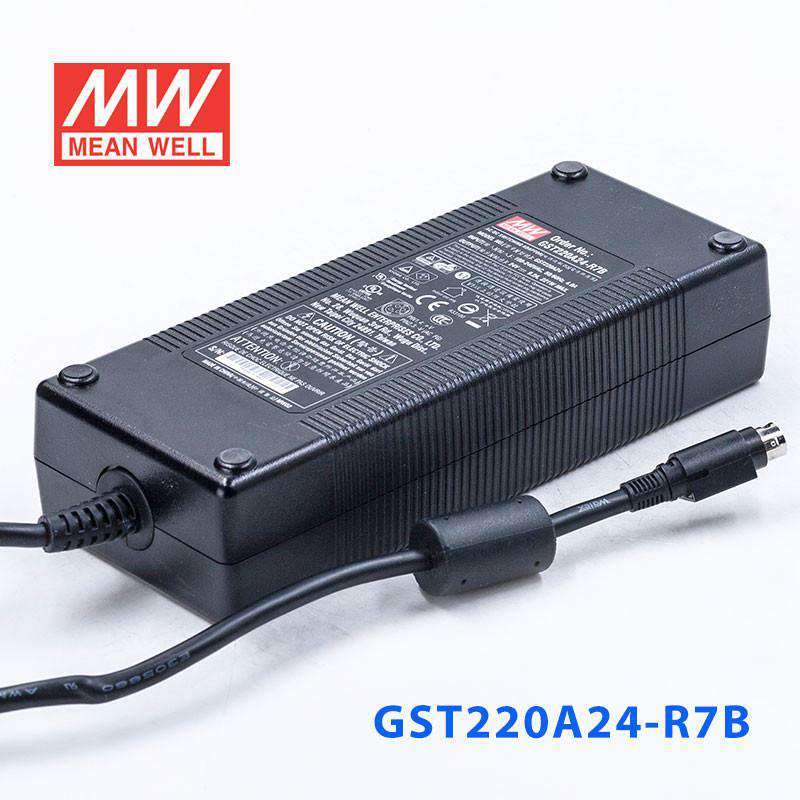

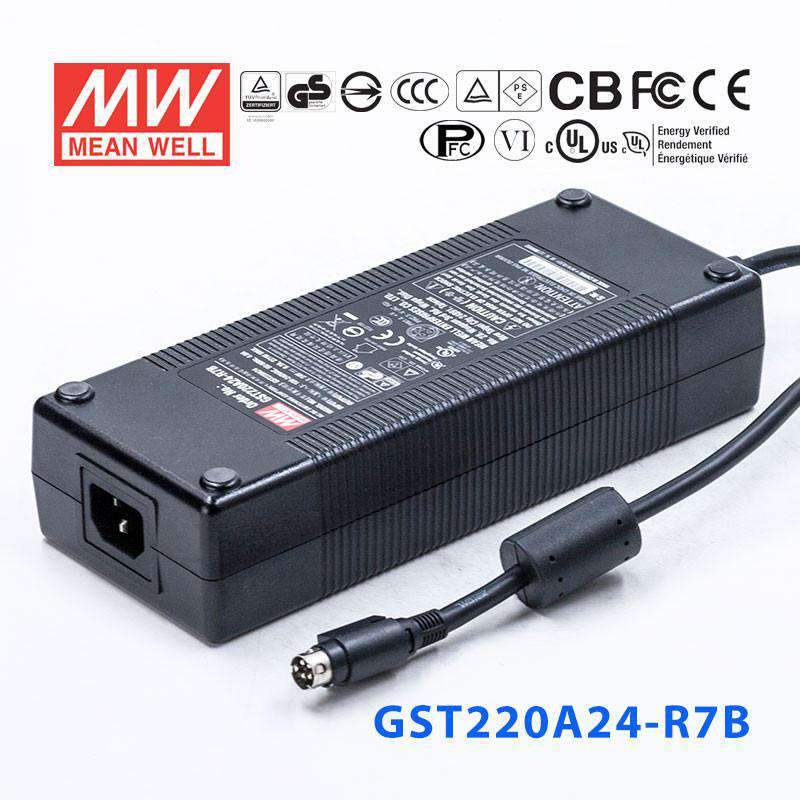

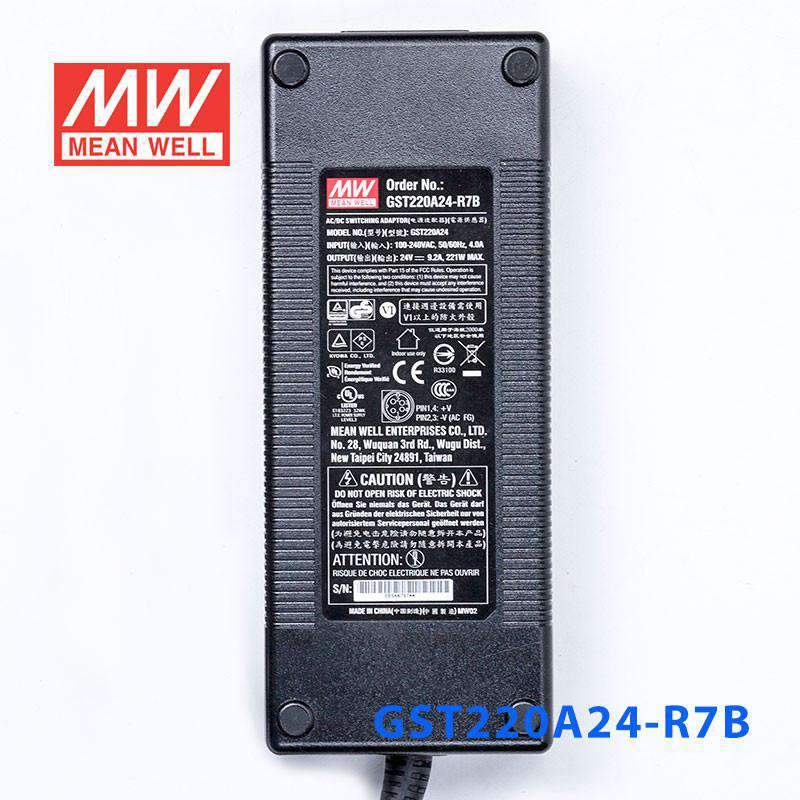

Mean Well GST220A24-R7B Power Supply 220W 24V


|

Description

Features

Universal AC input / Full range

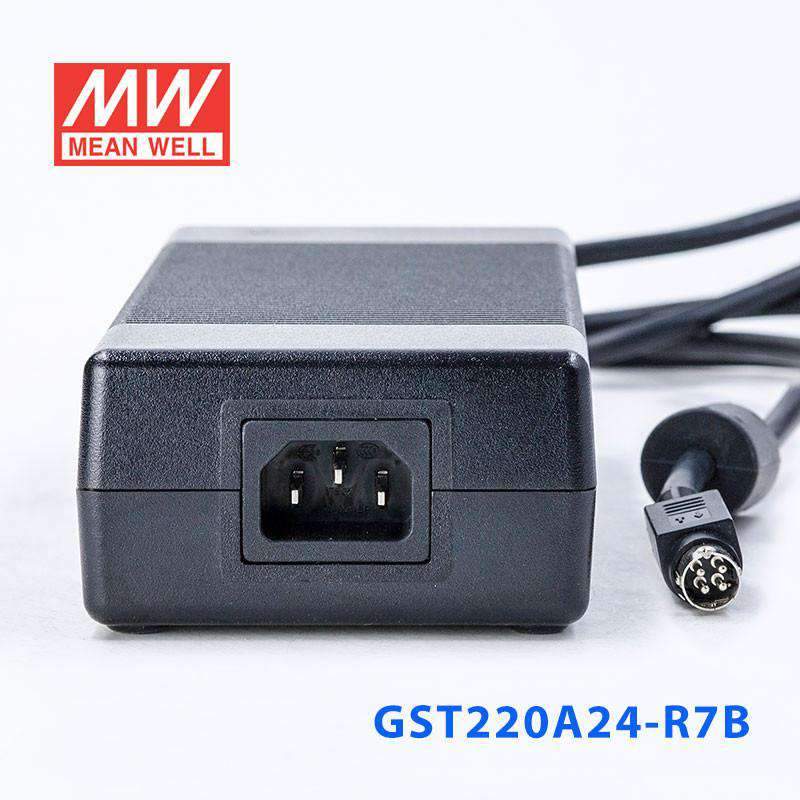

3 pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption < 0.15W
Energy efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
Protections: Short circuit / Overload / Over voltage / Over temp.
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case

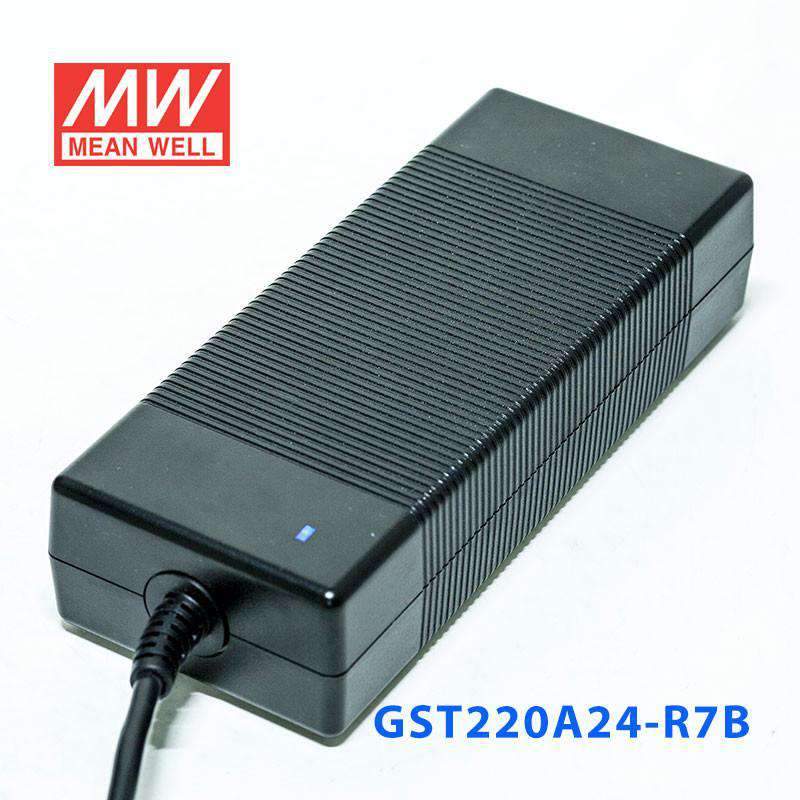

LED indicator for power on
Various DC plug quick adapter accessories are available
3 years warranty


General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start 95A / 115VAC 120A / 230VAC
Overload protection Range 105%~135% rated output power
Overload protection Type Hiccup mode, auto-recovery
Over-voltage protection Range 105%~135% rated output voltage
Over-voltage protection Type Shut down o/p voltage, re-power on to recover
Hold up time 20ms / 230VAC 20ms / 115VAC at full load
Withstand voltage I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
Working temperature -30~+70°C
Safety standards UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B, CNS13438, GB9254
Length of output cable 120cm of UL2464, 18AWGx4C
Dimension (LxWxH) 210 x 85 x 46mm
Standard DC plug R7B: Power DIN 4P with lock type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    221 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    9.2 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    21 cm
  • Width
    8.5 cm
  • Height
    4.6 cm
  • Weight
    1.1 kg
