Can I use the GST280A12-C6P for a 12V industrial control cabinet?

Yes, this model is a constant-voltage 12V supply rated for 252W. It is suitable for larger 12V control loads as long as the total draw stays within 21A.

Is the GST280A12-C6P suitable for powering multiple 12V automation components?

It can support grouped 12V automation devices when the combined load remains under 252W. With 21A available at 12V, it is better suited to higher-current 12V systems than smaller plug-in adapters.

Can this power supply run a 12V embedded PC, display, or industrial peripheral setup?

Yes, if the equipment is designed for constant 12V DC input. The unit provides up to 21A, which makes it practical for 12V embedded or control assemblies with higher aggregate power demand.

Is GST280A12-C6P a good fit for 12V test benches or production fixtures?

It can be used for 12V fixtures and bench systems that need a stable constant-voltage source. The 252W rating gives more headroom for heavier 12V loads than lower-power desktop supplies.

Can I use the GST280A12-C6P in outdoor or temperature-variable locations?

Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is listed in the provided specs, so outdoor or weather-exposed use is not confirmed here.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

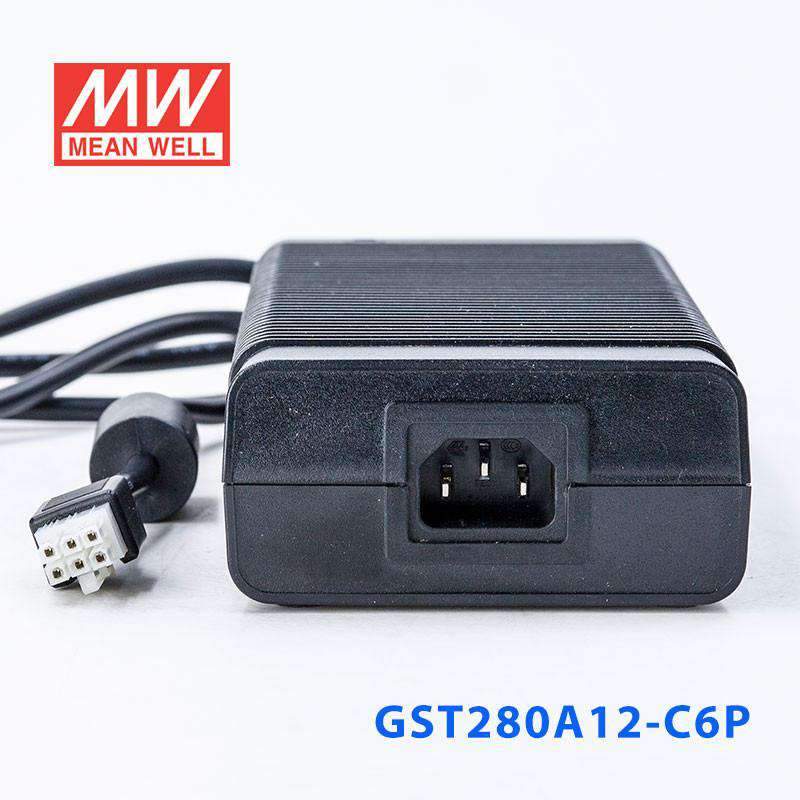

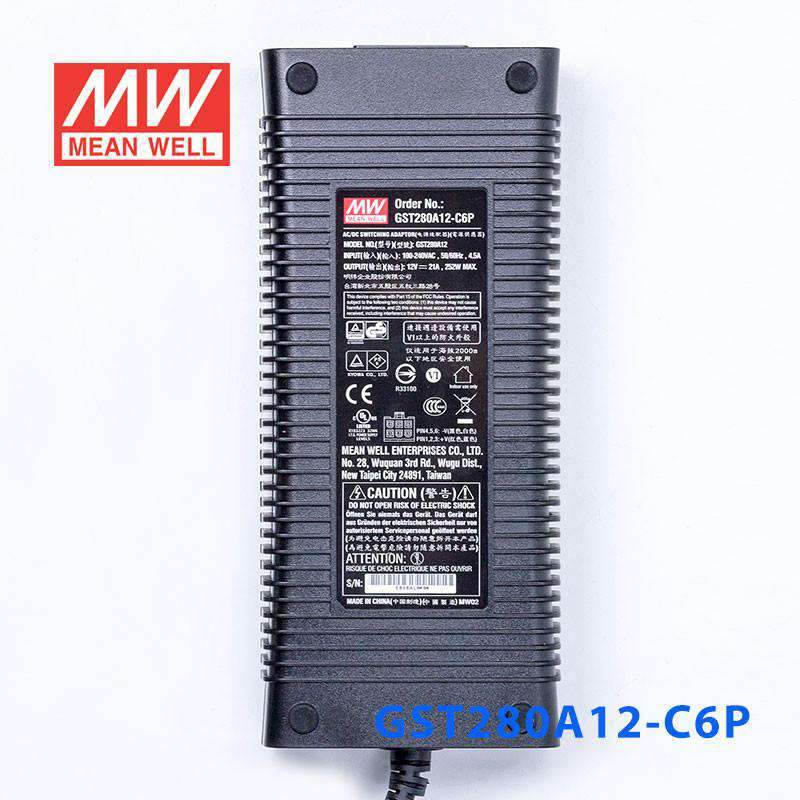

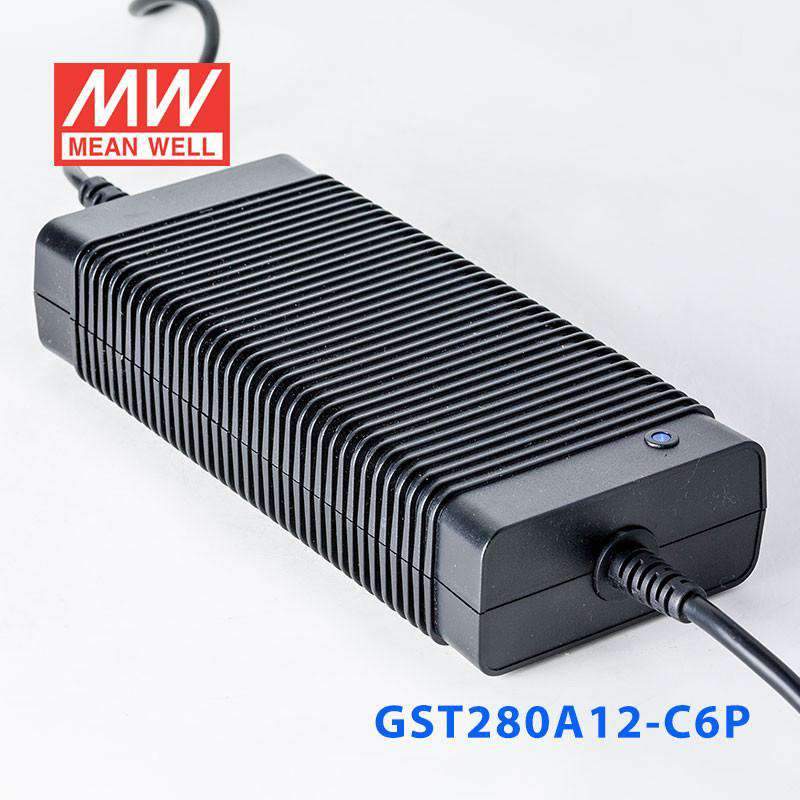

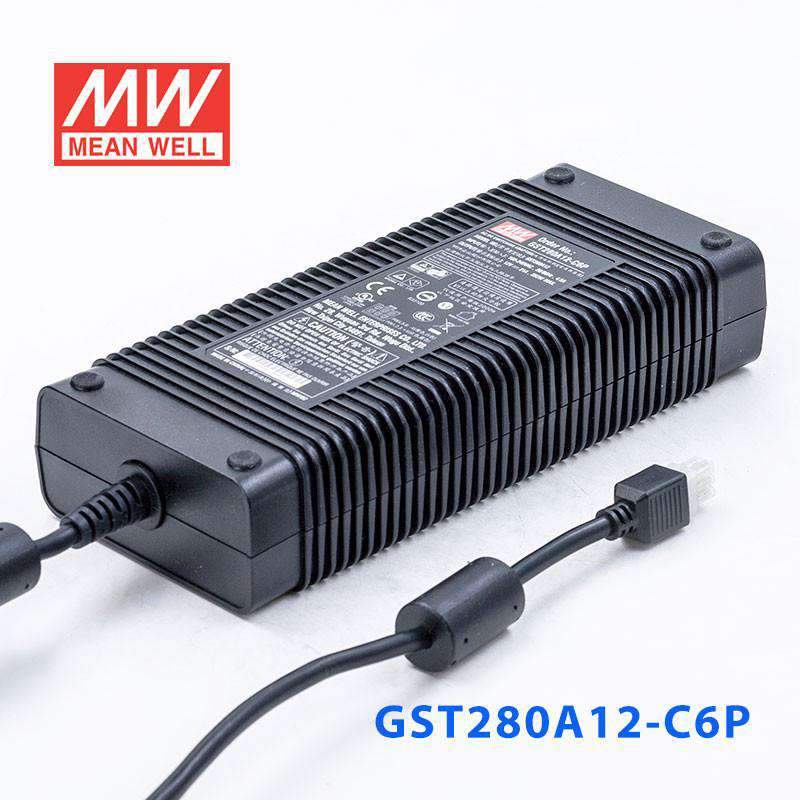

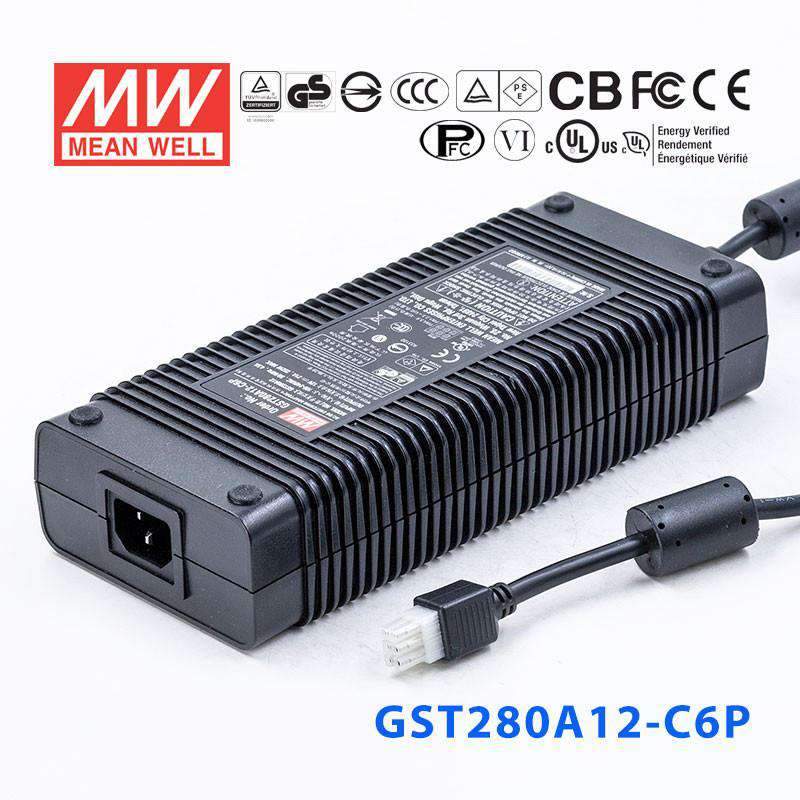

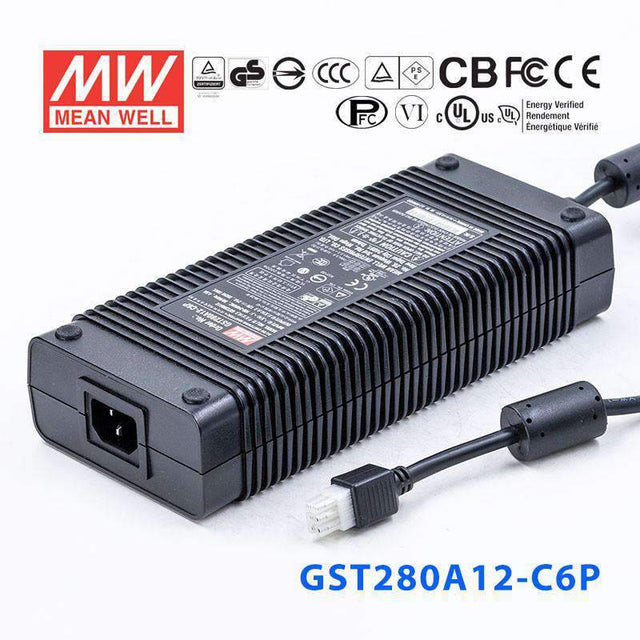

Mean Well GST280A12-C6P Power Supply 252W 12V 21A

SKU:

GST280A12-C6P

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

C6P: MOLEX 6 pin connector

Key Features

✓Universal AC input / Full range
✓No load power consumption < 0.5W
✓Energy Efficiency Level VI
✓Meet EISA 2007 (Energy Independence and Security Act)
✓NRCan compliant
✓MEPS compliant
✓3 pole AC inlet IEC320-C14
✓Class I power (with earth pin) only
✓Protections: Short circuit /Overload / Over voltage/Over temperature
✓Fully enclosed plastic case
✓LED indicator for power on
✓Built-in active PFC function
✓Fanless design
✓3 years warranty
