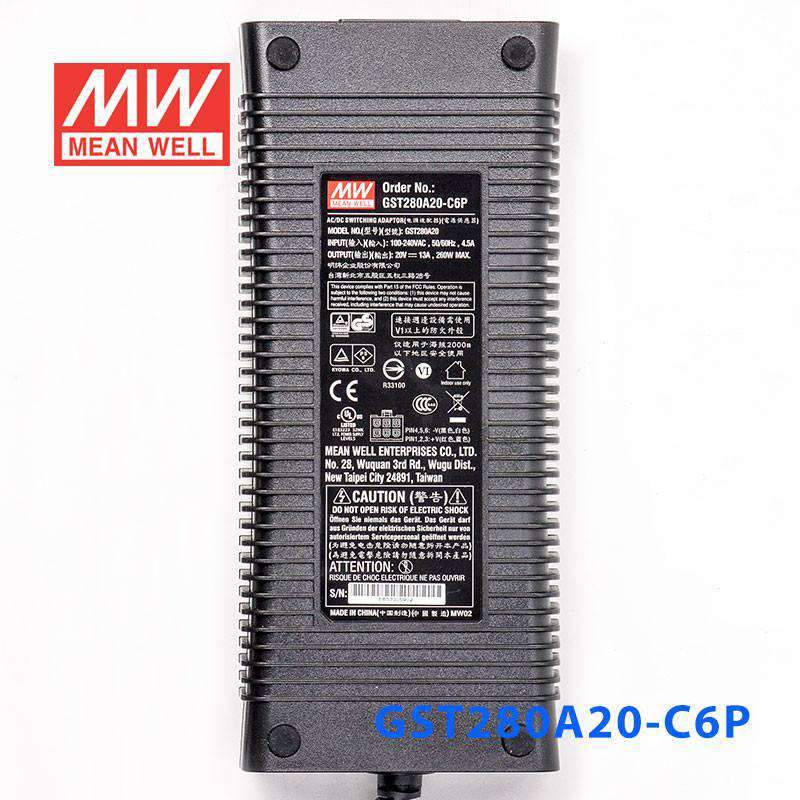

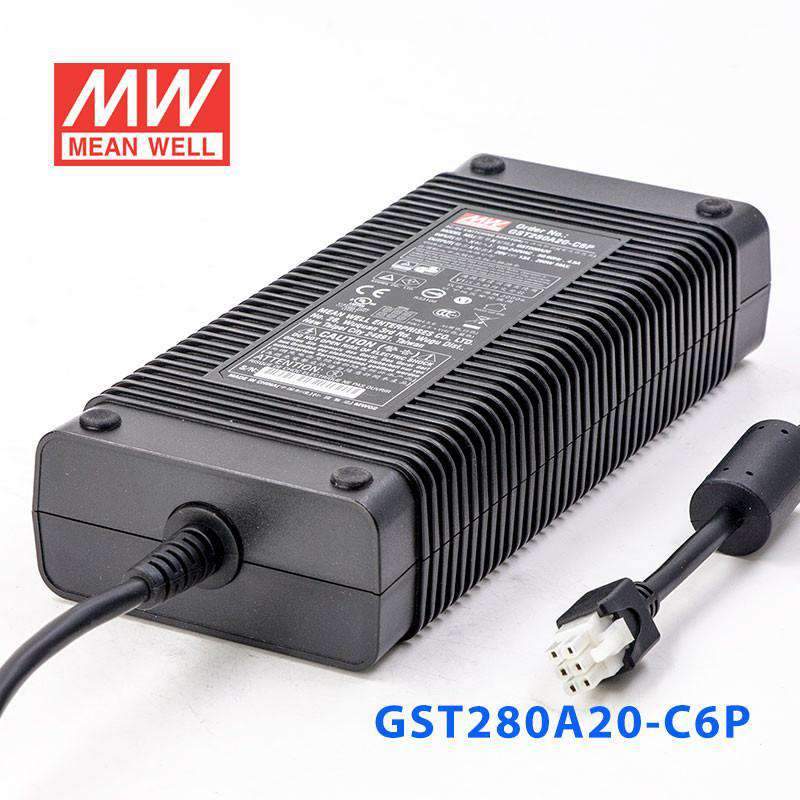

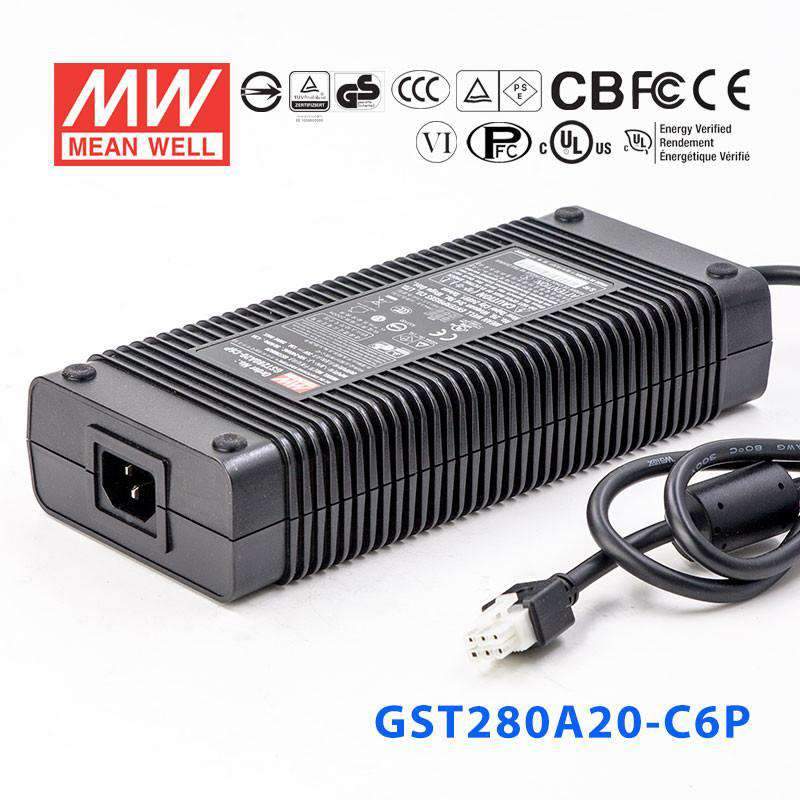

Mean Well GST280A18-C6P Power Supply 260W 20V

SKU:
GST280A20-C6P

|

Description

Features

Universal AC input / Full range
No load power consumption < 0.5W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant

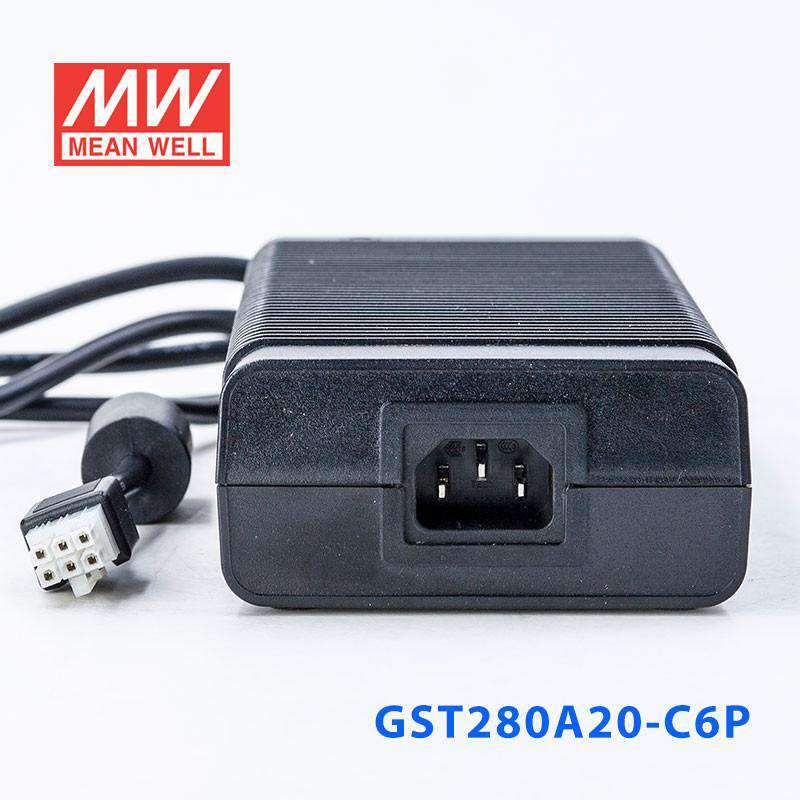

3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit /Overload / Over voltage/Over temperature
Fully enclosed plastic case

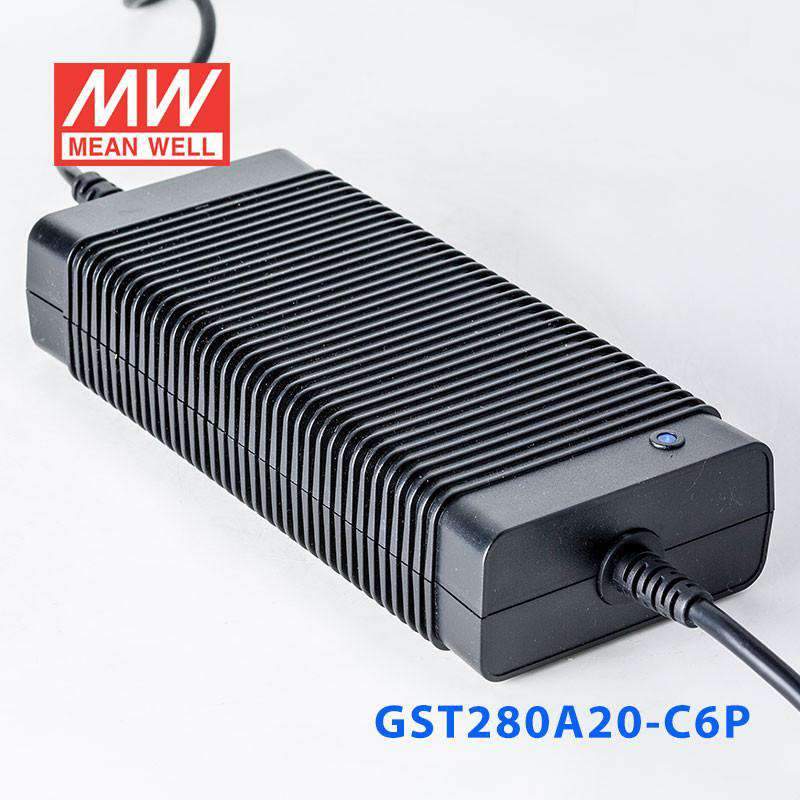

LED indicator for power on
Built-in active PFC function
Fanless design
3 years warranty


General Specification

AC input voltage range 85~264VAC 120~370VDC
AC inrush current (max.) Cold start, 120A at 230VAC
Overload protection 105%~135% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT
Working temperature -30~+70°C (refer to output derating curve )
Safety standards UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 100cm of UL2464, 16AWGx4C
Dimension (LxWxH) 220x 95x 46 mm
Standard DC plug

C6P: MOLEX 6 pin connector

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    260 Watt
  • Output Voltage
    20 Volt
  • Rated Current
    13 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    22 cm
  • Width
    9.5 cm
  • Height
    4.6 cm
  • Weight
    1.25 kg

File Downloads

::specification::
