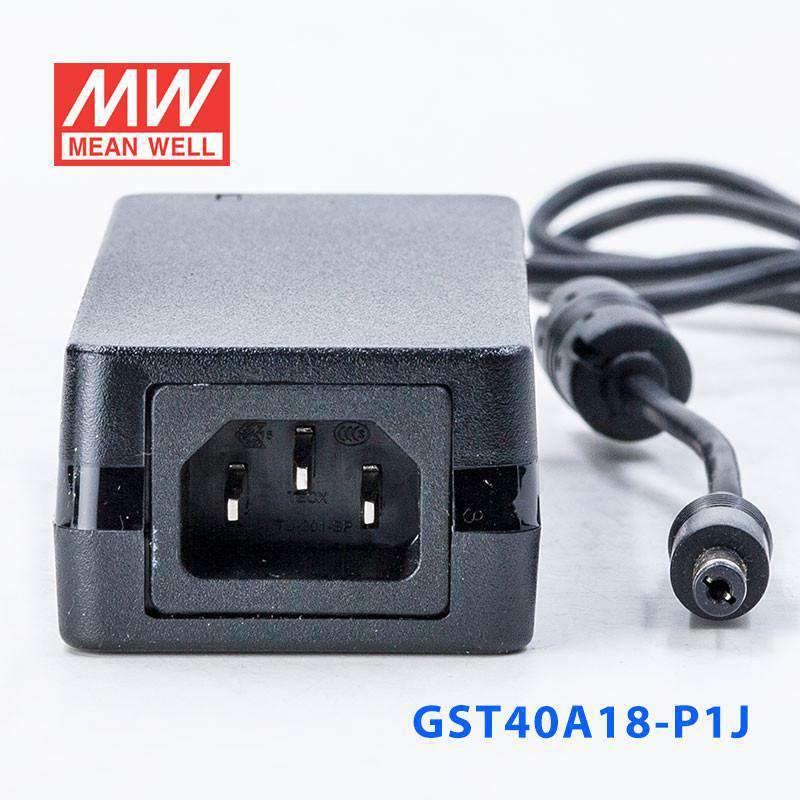

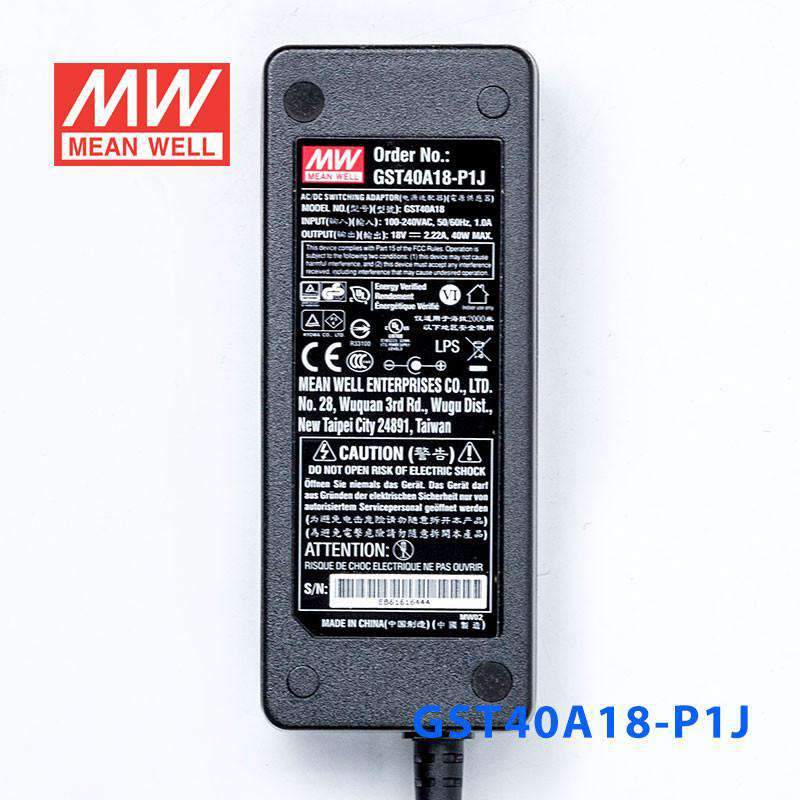

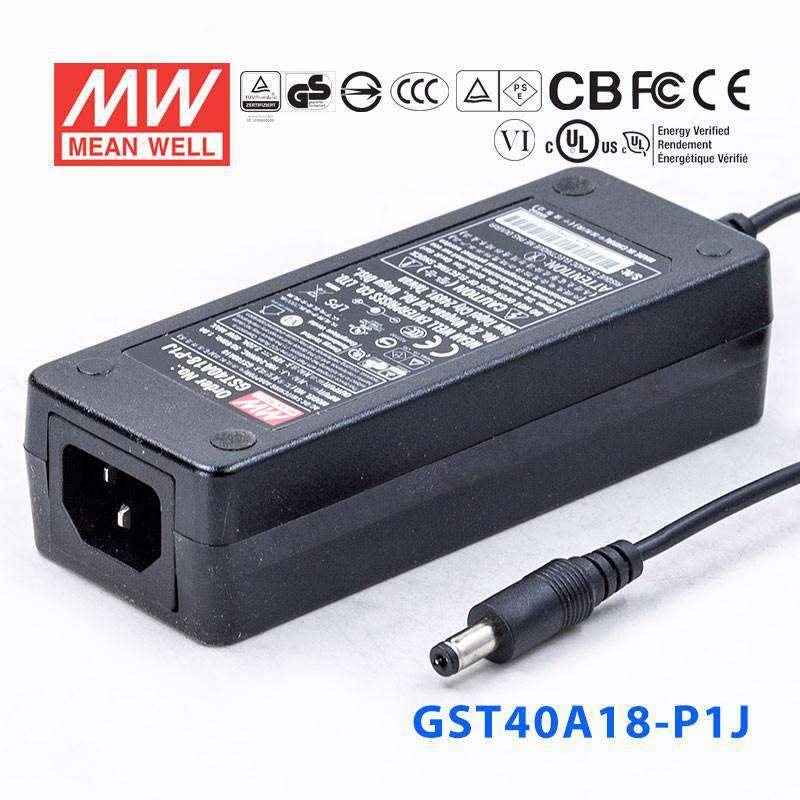

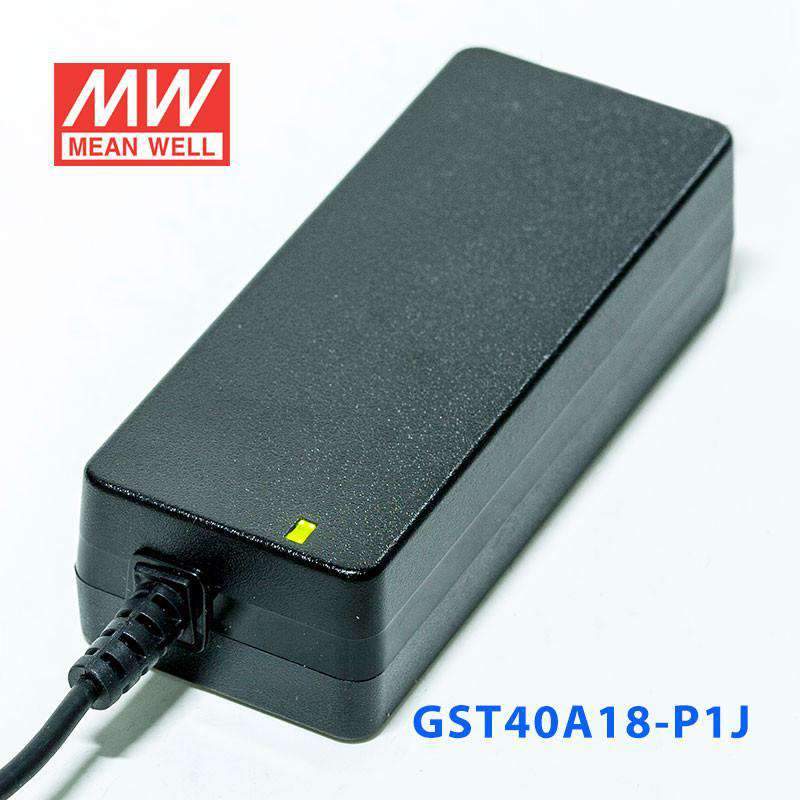

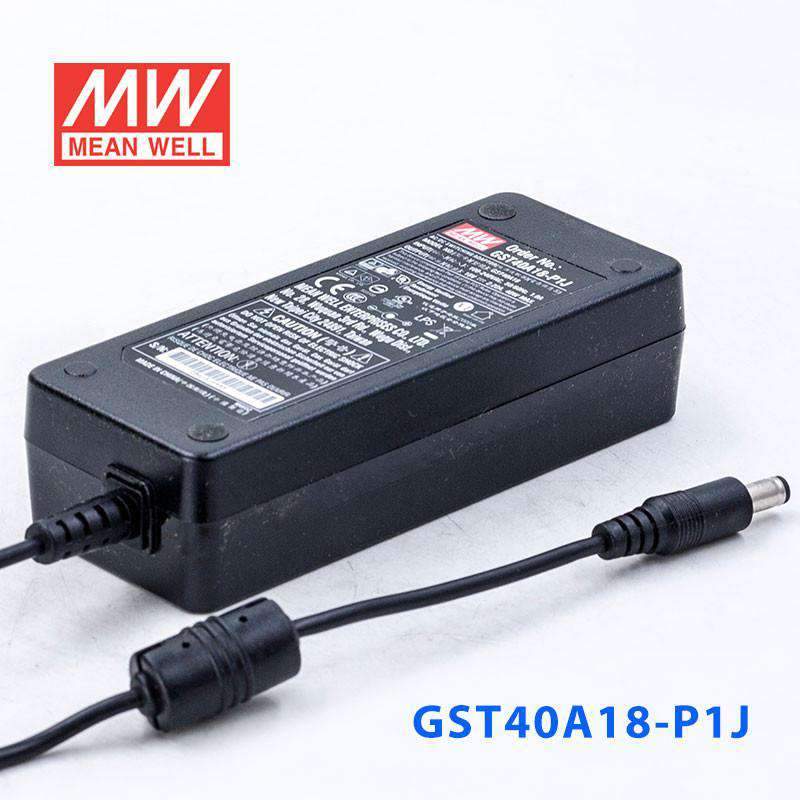

Mean Well GST40A18-P1J Power Supply 40W 18V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Energy efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC / 1.0A |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection Range | 105%~150% rated output power |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms at 230VAC input |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, CNS13438, GB9254, FCC part15 class B |
| Length of output cable | 100cm of UL1185, 16AWG for 5~15V; 180cm of UL1185, 18AWG for 18~48V |
| Dimension (LxWxH) | 125x 50x 31.5 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x11mmL, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating40 Watt
-
Output Voltage18 Volt
-
Rated Current2.22 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.28 kg
