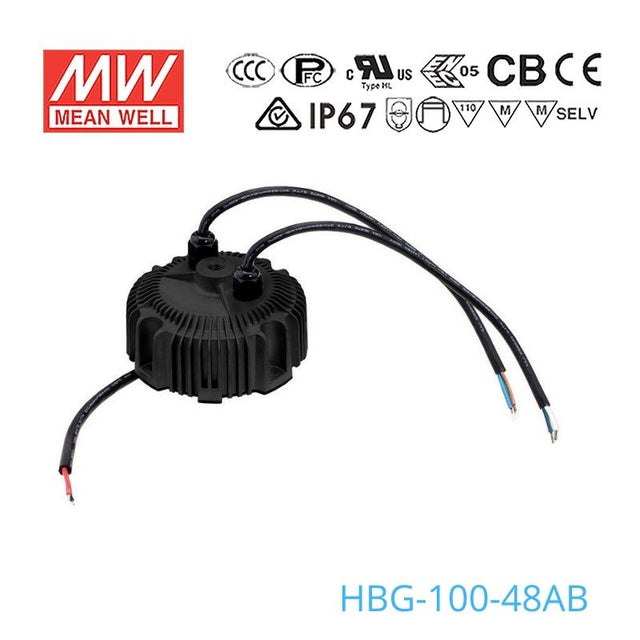

Mean Well HBG-100-48AB Power Supply 100W 48V - Adjustable and Dimmable

circular shape, for high/low bay light, metal case for 100W+
SKU:
HBG-100-48AB

Model
|

Description

Features

Constant current mode output
Circular plastic housing with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~305VAC   127~431VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range 65%~100% rated current
Over current protection 95 ~ 108%; Constant current limiting
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+85°C
Safety standards UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection SJTW 18AWG/SVT 18AWG
Dimension (DxH) φ130x66.5
Packing 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

Specifications

  • Brand
    Mean Well
  • Series
    HBG Series
  • Power Rating
    96 Watt
  • Output Voltage
    49 Volt
  • Rated Current
    2 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    13 cm
  • Width
    13 cm
  • Height
    6.65 cm
  • Weight
    1.18 kg
