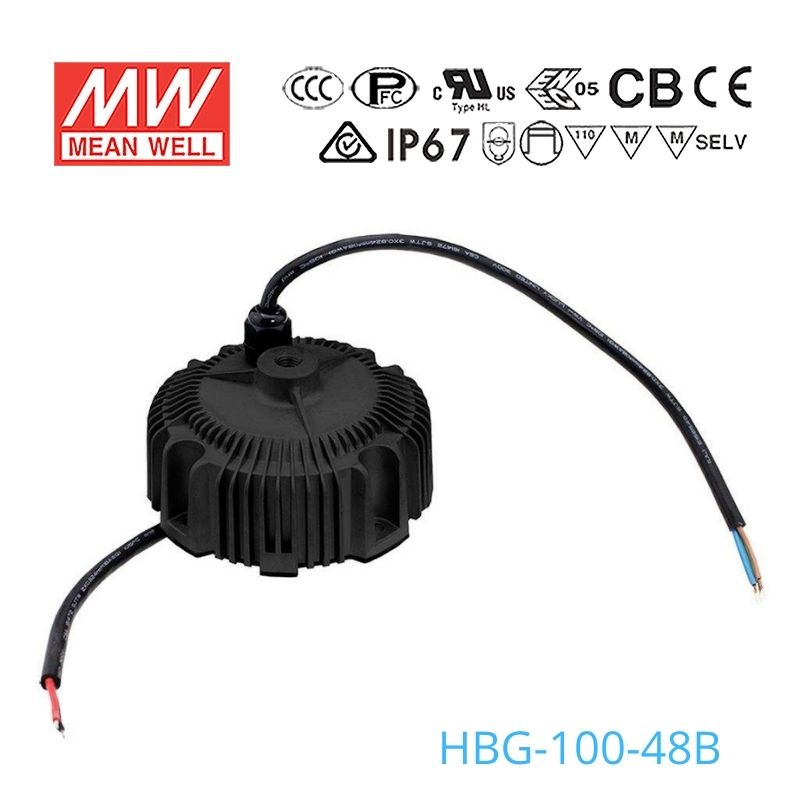

Mean Well HBG-100-48B Power Supply 100W 48V - Dimmable
Please Login for Pricing
Description
Description
Features
| Constant current mode output |
| Circular plastic housing with class II design |
| Built-in active PFC function |
| Class 2 power unit |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | φ130x66.5 |
| Packing | 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type) |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage49 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length13 cm
-
Width13 cm
-
Height6.65 cm
-
Weight1.18 kg
