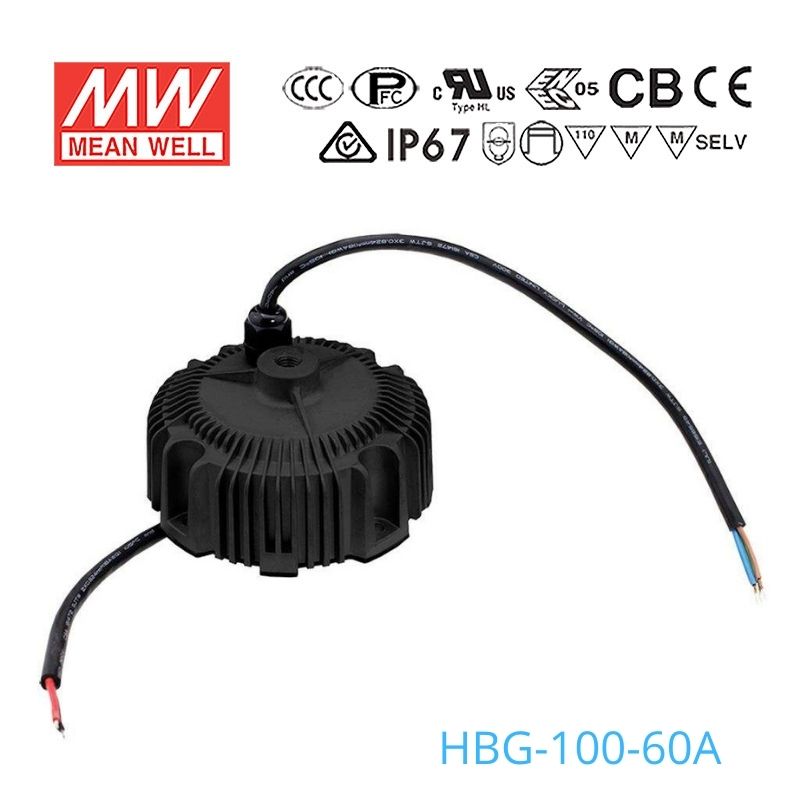

Mean Well HBG-100-60A Power Supply 100W 60V - Adjustable
Please Login for Pricing
Description
Description
Features
| Constant current mode output |
| Circular plastic housing with class II design |
| Built-in active PFC function |
| Class 2 power unit |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | φ130x66.5 |
| Packing | 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type) |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage62 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length13 cm
-
Width13 cm
-
Height6.65 cm
-
Weight1.18 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-100-60A for LED downlights that need a constant current driver?
Yes, this model is a constant current LED driver with a 36-60V CC output range and 96W power. It is a better fit for downlights that are designed for constant current operation, not constant voltage power. You still need the downlight's driver requirements to fall within the 36-60V range.
Is the HBG-100-60A suitable for powering LED signage modules?
It can be suitable for signage modules only if the modules are designed for a constant current driver and operate within the 36-60V CC range. This is not a constant voltage power supply, so it should not be matched to signage modules that expect fixed voltage input. Its 96W rating also needs to match the total load.
Can this LED driver run a small LED array?
Yes, it can run a small LED array when the array is built for constant current operation and the total forward voltage stays within 36-60V. The driver is rated for 96W and has a nominal output voltage of 62V. It is not the right choice for arrays that require constant voltage instead of constant current.
Can I use the HBG-100-60A for high bay or low bay LED lights?
Yes, this model is specifically described for high or low bay light use and has a circular shape with a metal case for 100W+ designs. Its constant current operation and 36-60V CC range need to match the light engine requirements. The 96W rating should also align with the fixture load.
How do I know if my LEDs are compatible with the HBG-100-60A?
The main check is whether your LEDs or LED module require a constant current driver and operate within the 36-60V CC output range. The number of LEDs depends on the forward voltage of each LED, so there is no single LED count that applies to every setup. You should also keep the total load within the 96W rating.
Can the HBG-100-60A be used in wet or harsh environments?
It has an IP65 water-resistant rating, so it is better suited to environments where moisture resistance is needed than a non-rated driver. The operating temperature range is -40°C to +85°C, which supports demanding conditions. Final suitability still depends on the full enclosure and fixture design.
How does the HBG-100-60A compare with other HBG-100 60V models?
Within the HBG-100 60V group, HBG-100-60, HBG-100-60A, HBG-100-60AB, HBG-100-60B, and HBG-100-60DA are all listed at 1.6mA, 36-60V, and 96W. The HBG-100-60E is also part of the same series, but no matching current, voltage range, or wattage details were provided here. In the HBG-100P 60V group, HBG-100P-60A, HBG-100P-60B, and HBG-100P-60DA are also listed at 1.6mA, 36-60V, and 96W.
