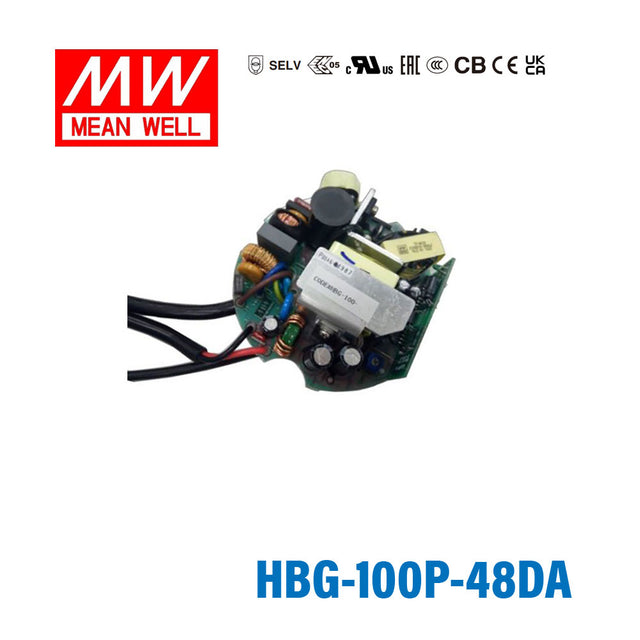

Mean Well HBG-100P-48DA Power Supply 100W 48V PCB Type - DALI
Please Login for Pricing
Description
Description
Features
| Constant current mode output |
| Circular shape PCB type design with class II design |
| Built-in active PFC function |
| Class 2 power unit |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~295VAC 127~417VDC |
| AC inrush current (max.) | Cold start, 45A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | Hiccup mode, auto recovery |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70°C |
| Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-3-3 |
| Connection | UL1015 18AWG |
| Dimension (DxH) | φ99x26 |
| Packing | 45pcs/10.4Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating96 Watt
-
Output Voltage49 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length13 cm
-
Width13 cm
-
Height6.65 cm
-
Weight1.18 kg
