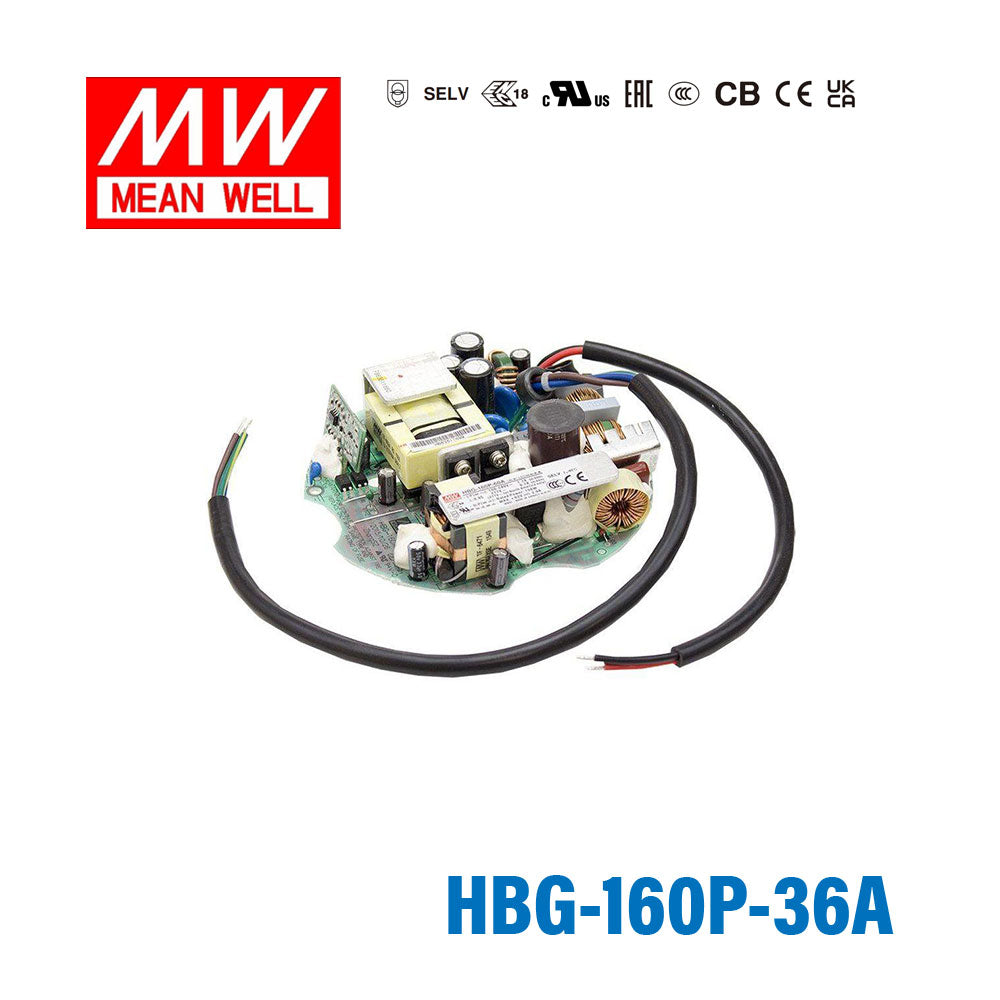

Mean Well HBG-160P-36A Power Supply 160W 36V PCB Type - Adjustable
Please Login for Pricing
Description
Description
Features
| Constant Voltage + Constant current mode output |
| Circular plastic housing with class I design |
| Built-in active PFC function |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~417VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | φ151.68x66.5mm |
| Packing | 1.53Kg; 8pcs/13.8Kg/1.37CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
