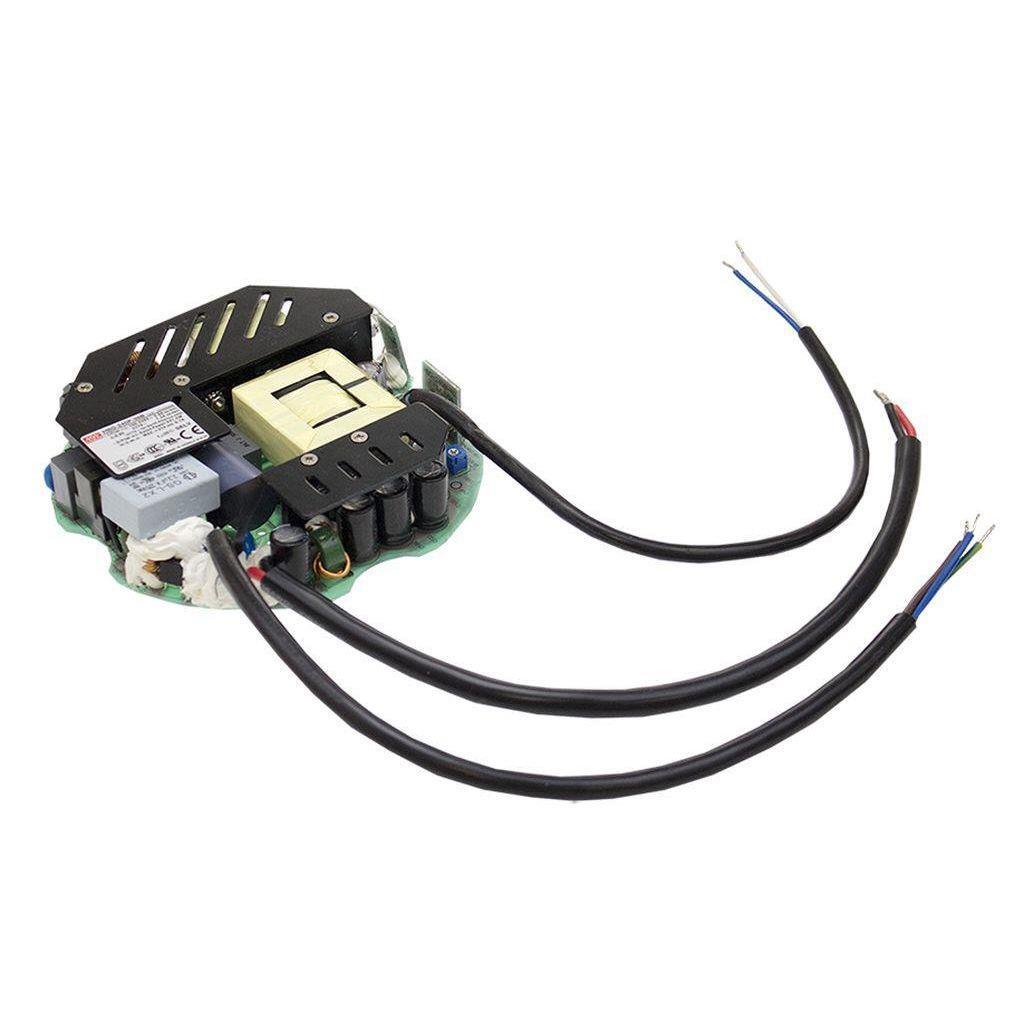

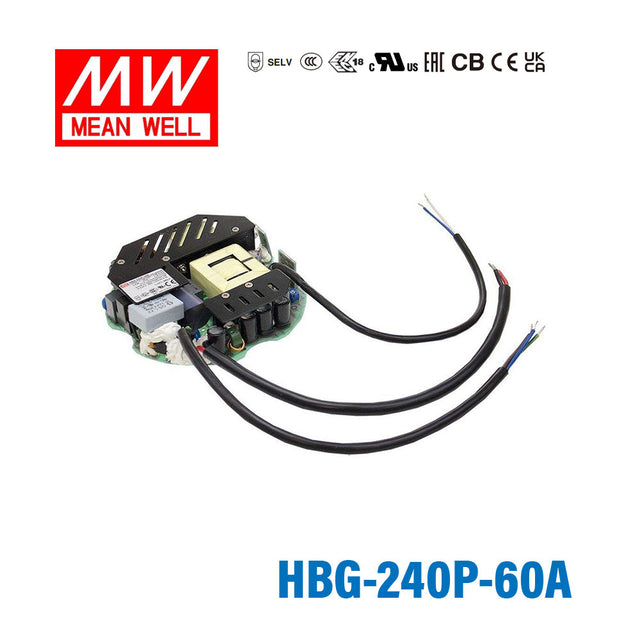

Mean Well HBG-240P-60A Power Supply 240PW 60V PCB Type - Adjustable

circular shape, for high/low bay light, PCB design
SKU:
HBG-240P-60A

|

Description

Features

Constant current mode output
Circular shape PCB type design with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~295VAC   127~417VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range 65%~100% rated current
Over current protection Hiccup mode, auto recovery
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70°C
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards EN55015, EN61000-3-2 Class C, EN61000-3-3
Connection UL1015 18AWG
Dimension (DxH) φ99x26
Packing 45pcs/10.4Kg

Specifications

  • Brand
    Mean Well
  • Series
    HBGP Series
  • Power Rating
    240 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~75°C
  • Warranty
    5 Year
  • Length
    19.15 cm
  • Width
    19.15 cm
  • Height
    6.9 cm
  • Weight
    2.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8423515554091, "variants" :[{ "context":"default", "variant_id": 45634726887723, "sku":"HBG-240P-60A", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

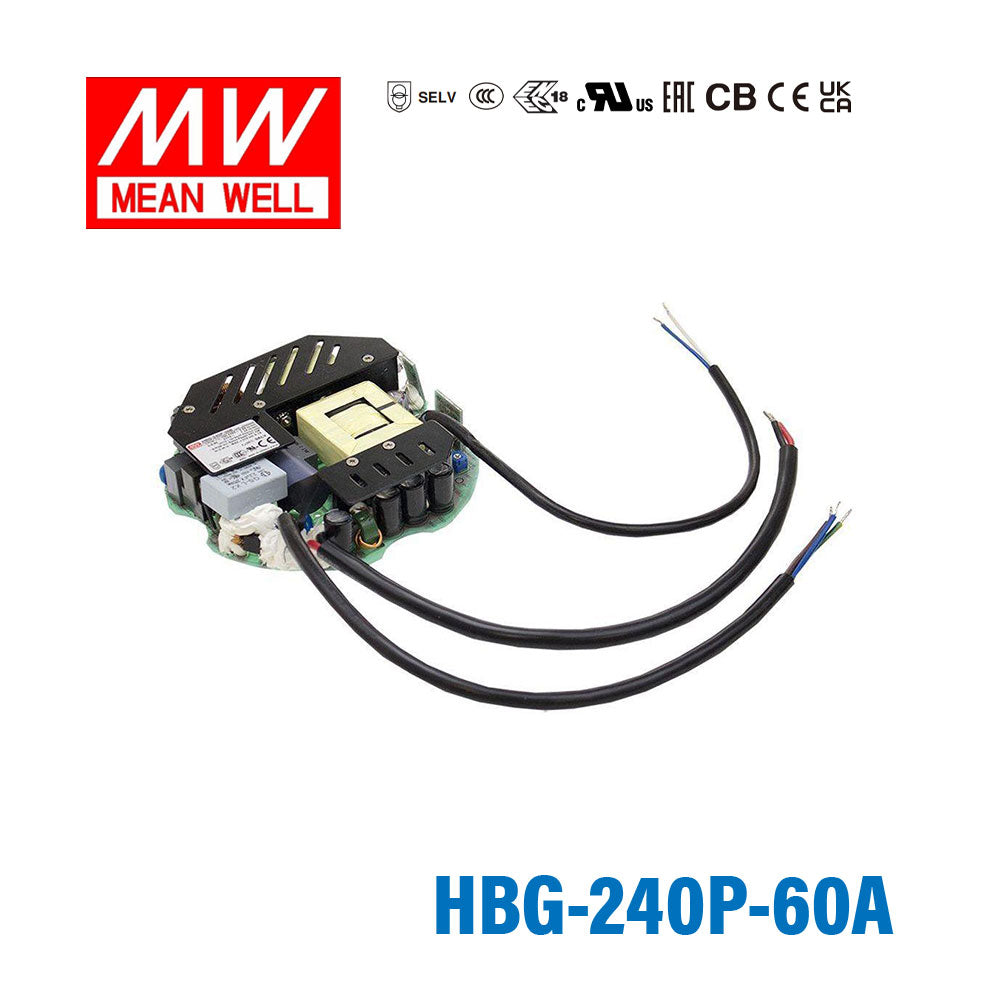

Mean Well HBG-240P-60A Power Supply 240PW 60V PCB Type - Adjustable
