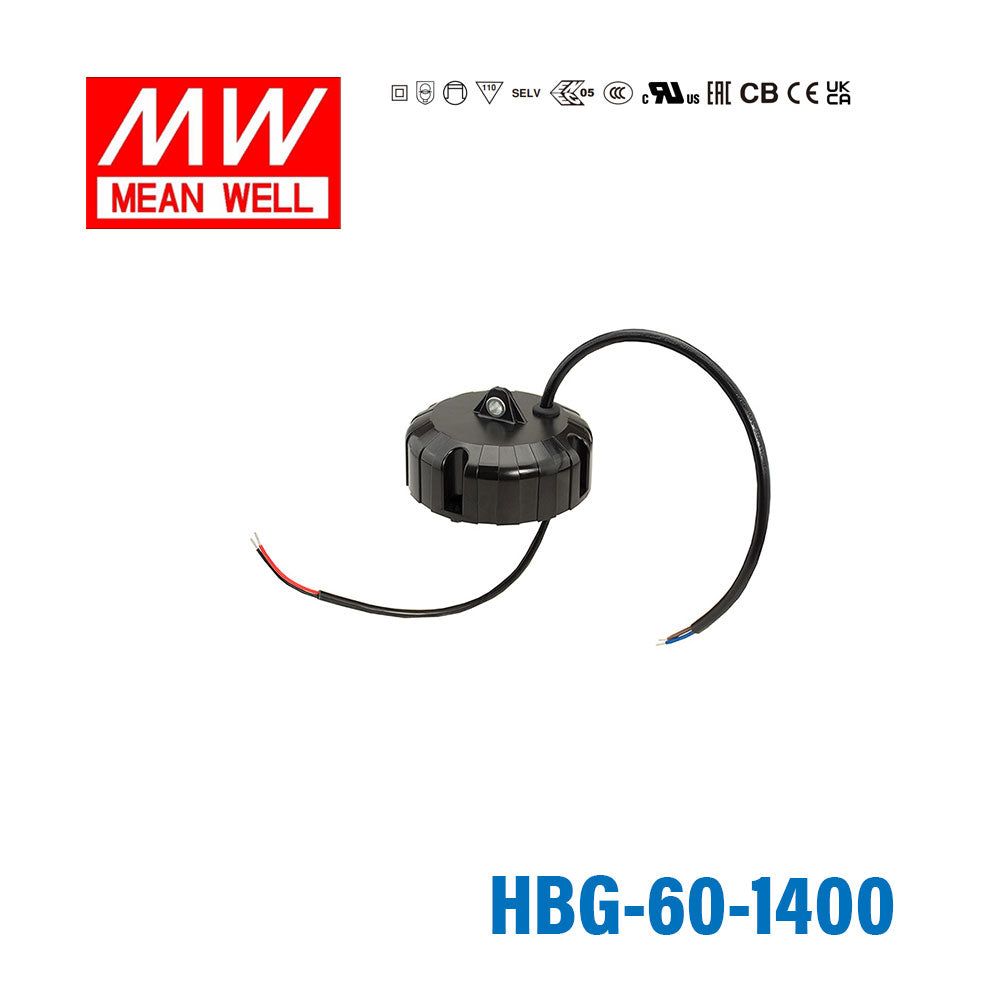

Mean Well HBG-60-1400 Power Supply 60W 1400mA

circular shape, for high/low bay light, metal case for 100W+

|

Description

Features

Constant current mode output
Circular plastic housing with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~295VAC   127~417VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range 65%~100% rated current
Over current protection Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+85°C
Safety standards UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection SJTW 18AWG/SVT 18AWG
Dimension (DxH) φ110x60.5
Packing 20pcs/11Kg

Specifications

  • Brand
    Mean Well
  • Series
    HBG Series
  • Power Rating
    60.2 Watt
  • Output Voltage
    50 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    90V~295V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    11 cm
  • Width
    11 cm
  • Height
    6.05 cm
  • Weight
    0.5 kg

File Downloads

::specification::
