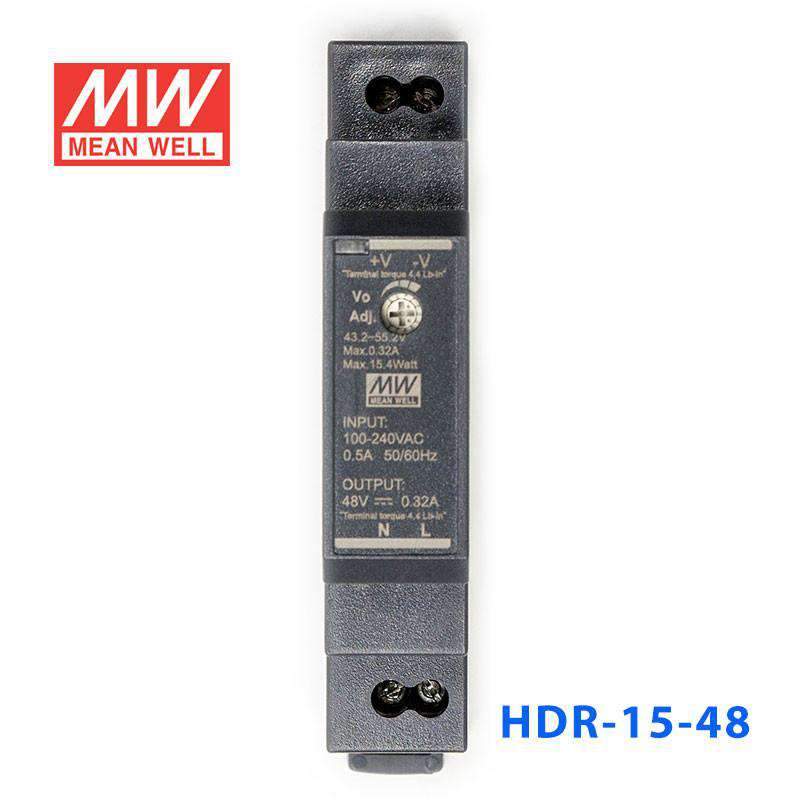

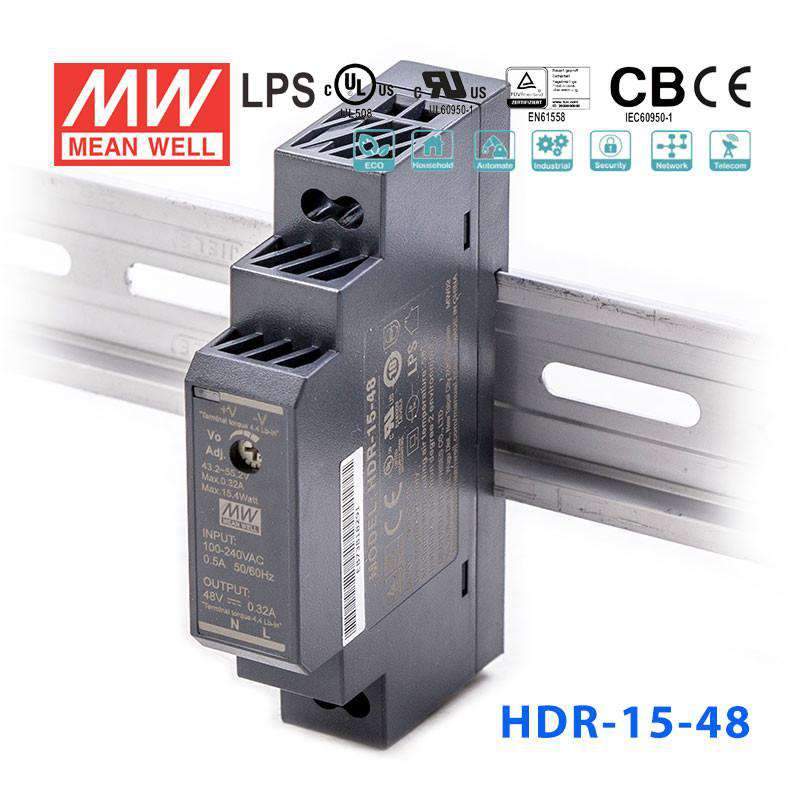

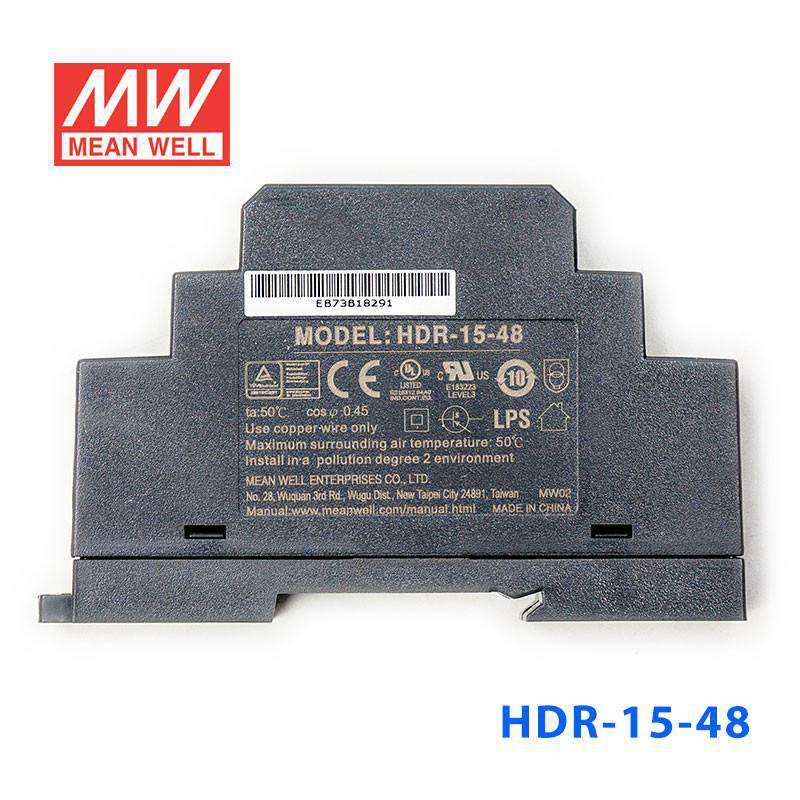

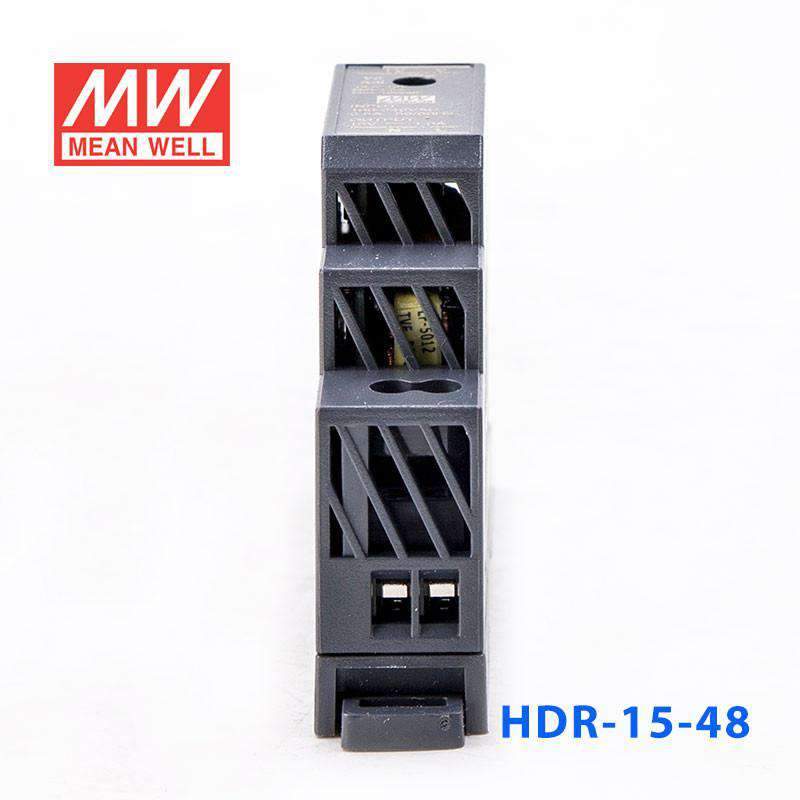

Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption

|

Description

Features

Universal AC input / Full range

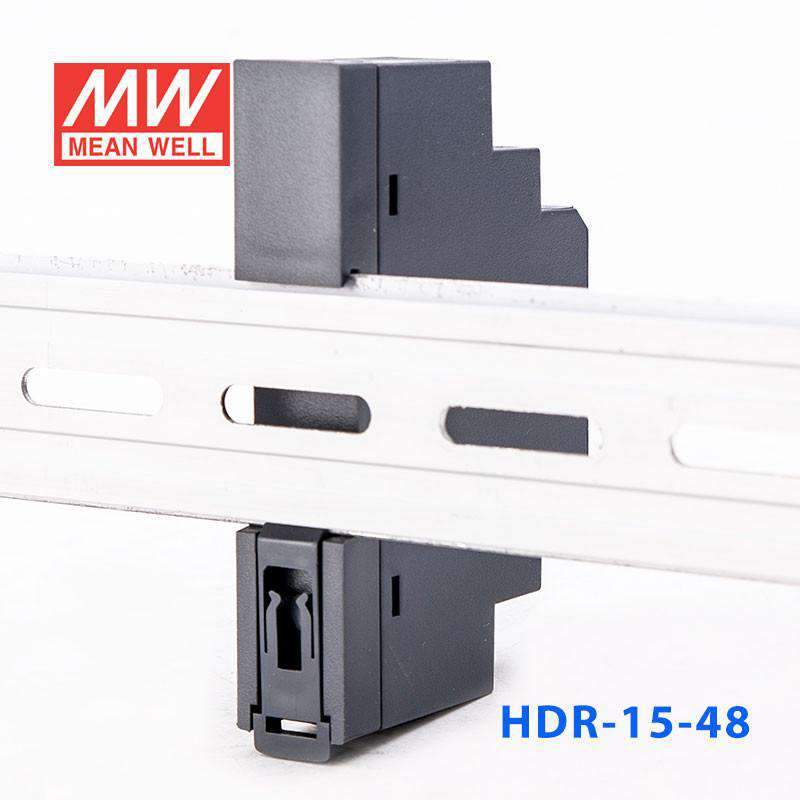

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 17.5mm(1SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 25A at 115VAC, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 2000ms, 80ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 2 poles screw DIN terminal
Dimension (LxWxH) 17.5x90x54.5
Packing 160pcs / 13.5kg

Specifications

  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    15.4 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    0.32 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    1.75 cm
  • Weight
    0.08 kg
