Mean Well

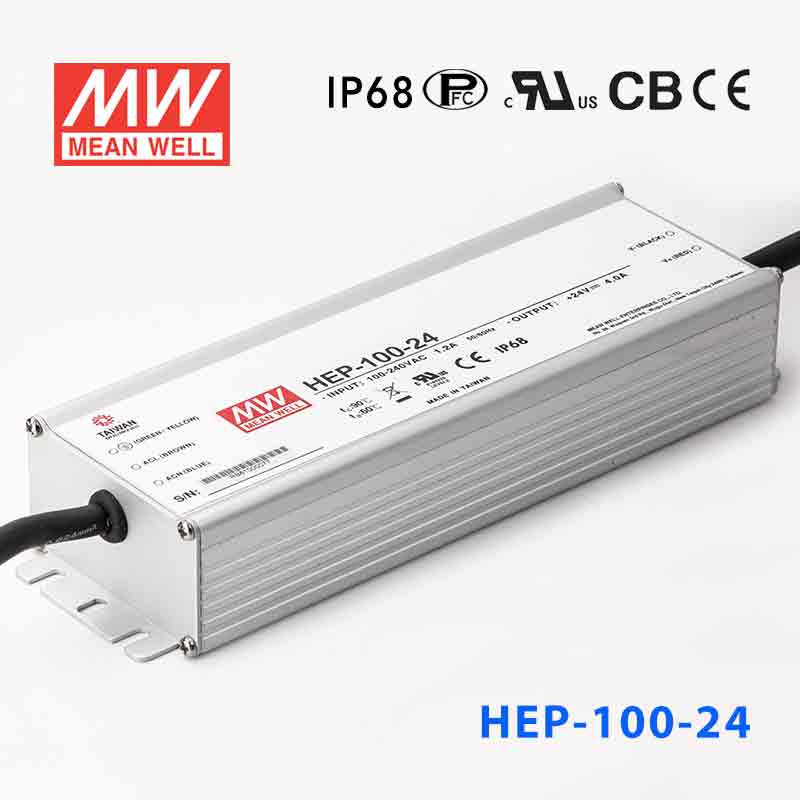

Mean Well HEP-100-24 Power Supply 96W 24V 4A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-100-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 15 in this family

HEP-100-24
Available to order
|

Overview

HEP-100-24 is the 24V output model of this series: rated current 4A, rated power 96W, typical efficiency 93%.

HEP-100 is a 100W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 93%, enabling HEP-100 perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 93%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Operating altitude up to 5000 meters (Note.9)
  • 6 years warranty

Specifications

HEP-100-24Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
4A
RATED POWER
96W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.5
22 ~ 27V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer for A type only
CURRENT ADJ. RANGE
2.5 ~ 4A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.7
1200ms,50ms/115VAC 500ms,50ms/230VAC at full load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.91/277VAC at full load
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 60A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVERLOAD
105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 34V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6,9
UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-100 Blank type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
1970.2K hrs min. Telcordia SR-332 (Bellcore) ; 164.8Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A type only.
  6. 6. Safety and EMC design refer to BS EN/EN60598-1, CNS15233, GB7000.1, FCC part18.
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-100-24 Block Diagram
Block Diagram
HEP-100-24 Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-100-24 for 24V PLC I/O, relays, and industrial sensors?

Yes, if the total 24V DC load stays within 4A and 96W. This is a constant-voltage 24V supply, which is a common requirement for PLC-related control loads and industrial sensing circuits.

Is this suitable for 24V building automation or control panels?

It can be used for 24V building automation controllers, relays, and field devices when the combined demand does not exceed 96W or 4A. The 90-264VAC input (277VAC operational) also supports a wide AC input range for facility power systems.

Can the HEP-100-24 power 24V embedded or edge-computing equipment in industrial environments?

Yes, if the equipment is designed for 24V DC input and draws no more than 4A total. The -55°C to +70°C operating range (with derating per the derating curve) and 10G vibration resistance support use in harsh industrial locations.

Is this model a fit for outdoor automation enclosures?

Yes, this version is rated IP68 and operates from -55°C to +70°C, which makes it suitable for harsh indoor areas and outdoor enclosures where stronger ingress protection is needed. It is intended for demanding environments rather than protected indoor-only spaces.

How does the HEP-100-24 compare with the other HEP-100 output options?

In the HEP-100 series, the 12V models are 100.08W and 8.34A, the 15V models are 100.05W and 6.67A, the 24V models are 96W and 4A, the 36V models are 95.4W and 2.65A, the 48V models are 96W and 2A, and the 54V models are 95.58W and 1.77A. The selection comes down to which output voltage your load requires and how much current it needs at that voltage.
