Mean Well

Mean Well HEP-150-15A Power Supply 150W 15V 10A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-150-15A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 12 in this family

HEP-150-15A
Available to order
|

Overview

HEP-150-15A is the 15V output model of this series: rated current 10A, rated power 150W, typical efficiency 92%.

HEP-150 is a 150W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 94%, enabling HEP-150 perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 94%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Operating altitude up to 5000 meters (Note.9)
  • 6 years warranty

Specifications

HEP-150-15ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
10A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.5
13.5 ~ 17V
CURRENT ADJ. RANGE
6 ~ 10A
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.5%
SETUP, RISE TIMENote.7
1000ms,50ms/115VAC 500ms,50ms/230VAC at full load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.)
92%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 65A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVERLOAD
105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
18 ~ 21V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6,9
UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
1967.4K hrs min. Telcordia SR-332 (Bellcore) ; 164.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm (L*W*H)
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A type only.
  6. 6. Safety and EMC design refer to BS EN/EN60598-1, CNS15233, GB7000.1, FCC part18.
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

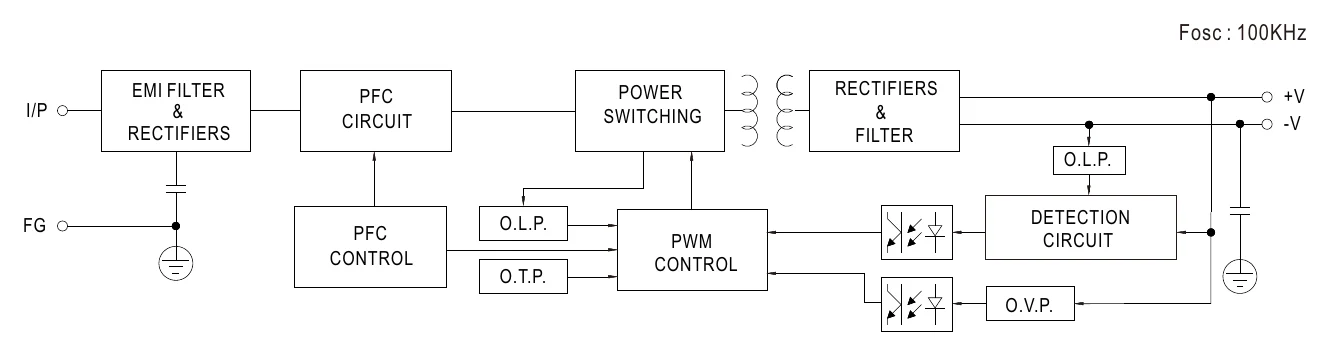

HEP-150-15A Block Diagram
Block Diagram

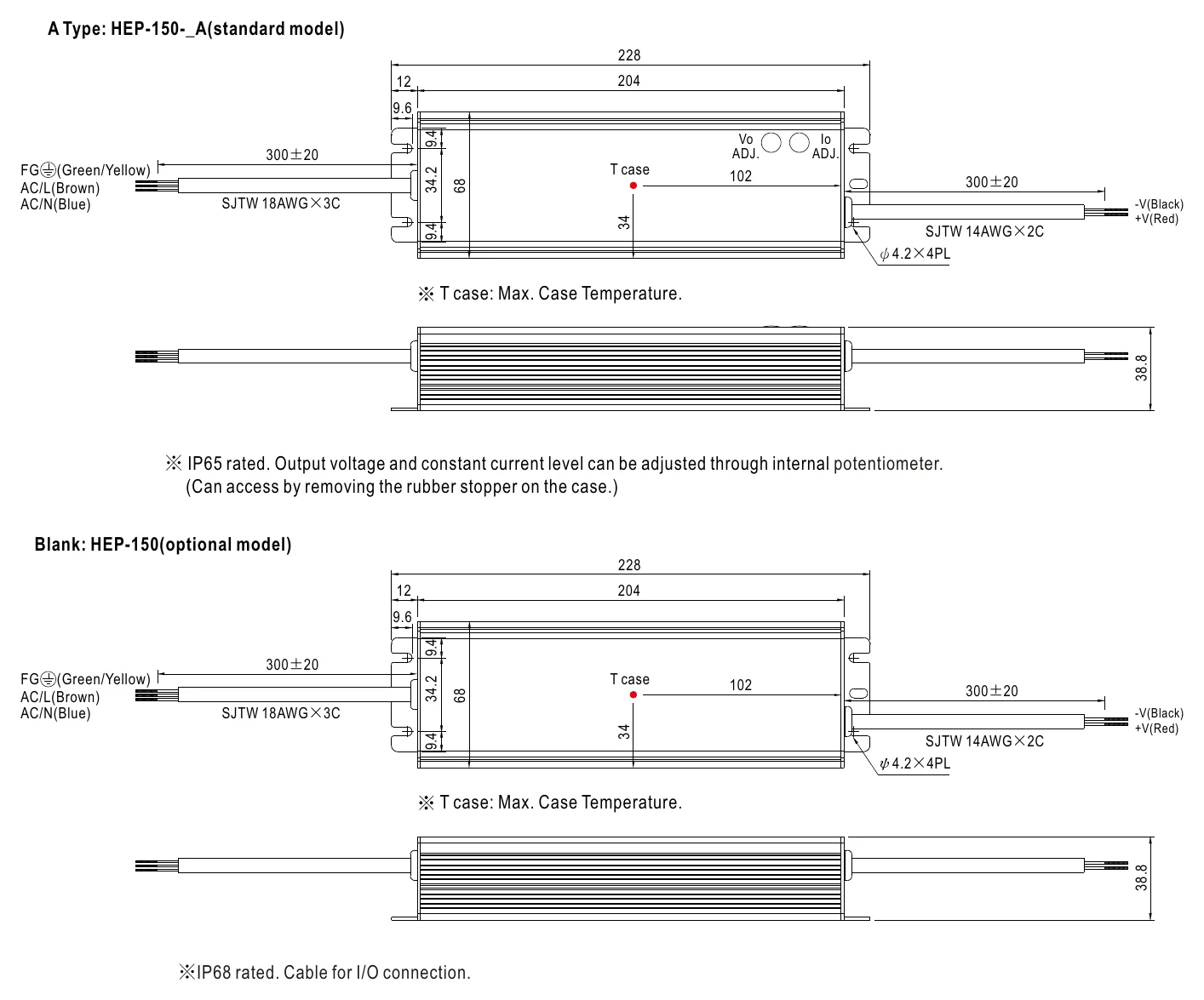

HEP-150-15A Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can the HEP-150-15A be used for 15V factory control panels or OEM equipment?

Yes, for applications that need constant voltage 15V and stay within 150W and 10A. Its 90-264VAC input (277VAC operational), IP65 rating, and -55°C to +70°C operating range fit demanding industrial and OEM environments.

Is this power supply a fit for 15V embedded controllers or communications hardware?

It can be used for 15V embedded or communications hardware that requires up to 10A from a constant voltage source. The 10G vibration resistance and IP65 water-resistant design are useful where reliability in harsher conditions matters.

Can I use the HEP-150-15A for 15V LED or low-voltage electronic loads?

Yes, if the load is designed for constant voltage 15V and does not exceed 150W or 10A. This model is better suited to harsher locations than a standard indoor supply because it is IP65 water-resistant and built for -55°C to +70°C operation.

Is the HEP-150-15A good for outdoor installations?

It is suitable for many outdoor or industrial locations because it has an IP65 water-resistant enclosure and operates from -55°C to +70°C. IP65 indicates resistance to dust and water exposure, but it is not the same as an IP68-rated version.

What is the difference between the HEP-150-15A and HEP-150-15, and how do they compare with the rest of the 150 series?

HEP-150-15A and HEP-150-15 share the same electrical rating at 150W, 15V, and 10A; the HEP-150-15A is rated IP65, while the HEP-150-15 (blank type) is IP68. The rest of the 150-size family includes HEP-150-12 and HEP-150-12A at 150W, 12V, 12.5A; HEP-150-24 and HEP-150-24A at 151.2W, 24V, 6.3A; HEP-150-36 and HEP-150-36A at 151.2W, 36V, 4.2A; HEP-150-48 and HEP-150-48A at 153.6W, 48V, 3.2A; and HEP-150-54 and HEP-150-54A at 151.2W, 54V, 2.8A.
