Over 15 years experience of providing support of MEAN WELL Power Supplies

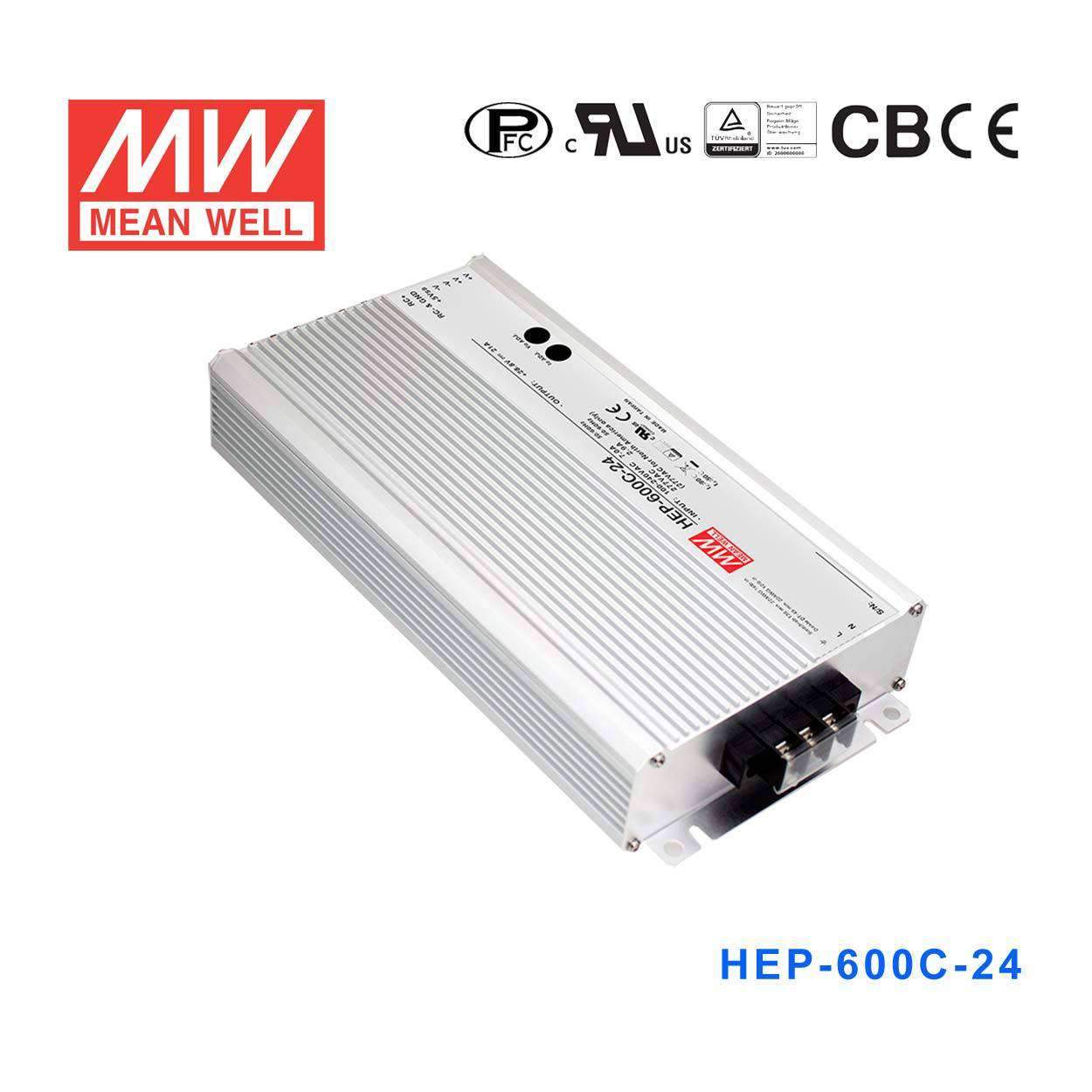

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HEP-600C-24 Battery Chargers 600W 28.8V 21A - 3 Stage W/PFC
Please Login for Pricing
Description
Description
The HEP-600C is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP-C Series
-
Power Rating600 Watt
-
Output Voltage28.8 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length28 cm
-
Width14.4 cm
-
Height4.85 cm
-
Weight3.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well HEP-600C-24?
The HEP-600C-24 is a 600W battery charger with a nominal 28.8V output and 21A rated current. It is designed for higher-power DC charging applications that need a regulated 3-stage charging profile. The output current is adjustable within the specified range.
What kinds of applications is the HEP-600C-24 suited for?
This model is aimed at industrial and commercial battery charging applications that need a sealed, high-power charger with active PFC. Its 600W capacity, 28.8V output, and rugged construction make it a fit for demanding B2B environments where durability and stable charging performance matter. It is also suitable where fanless operation is preferred.
Can the HEP-600C-24 operate in harsh environments?
Yes. The HEP-600C-24 is specified for operation from -40°C to +70°C, subject to the output derating curve. It also uses an aluminum case with heat-conducted potting material and has passed a 10G vibration test, which supports use in tougher industrial environments.
What input range does the HEP-600C-24 support?
This charger supports a wide AC input range of 85 to 264VAC and also accepts 120 to 370VDC. It also includes built-in active power factor correction, which is beneficial in installations where power quality and compliance are important. The universal input range makes it suitable for use across varied supply conditions.
How efficient is the Mean Well HEP-600C-24?
The HEP-600C-24 is rated for efficiency up to 96%. High efficiency helps reduce wasted energy and lowers heat generation during operation. That supports reliable performance in enclosed or thermally demanding environments.
What protection features are included in the HEP-600C-24?
This model includes protection against short circuit, over current, over voltage, and over temperature. The over-current protection operates with constant-current limiting and auto-recovery within the stated range. These features help protect both the charger and the broader system during abnormal conditions.
What warranty does the HEP-600C-24 come with?
The Mean Well HEP-600C-24 includes a 6-year warranty. That extended warranty period is a strong indicator that the unit is intended for long-service industrial and commercial use. It can be a useful differentiator for buyers comparing lifecycle value across charger options.
Other HEP-600C Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | |
|---|---|---|---|---|---|
| Mean Well HEP-600C-48 Battery Chargers 600W 57.6V 10.5A - 3 Stage W/PFC | 600W | Lead Acid Battery | 48V | — | View |
| Mean Well HEP-600C-12 Battery Chargers 600W 14.4V 35A - 3 Stage W/PFC | 600W | Lead Acid Battery | 12V | — | View |
