Mean Well

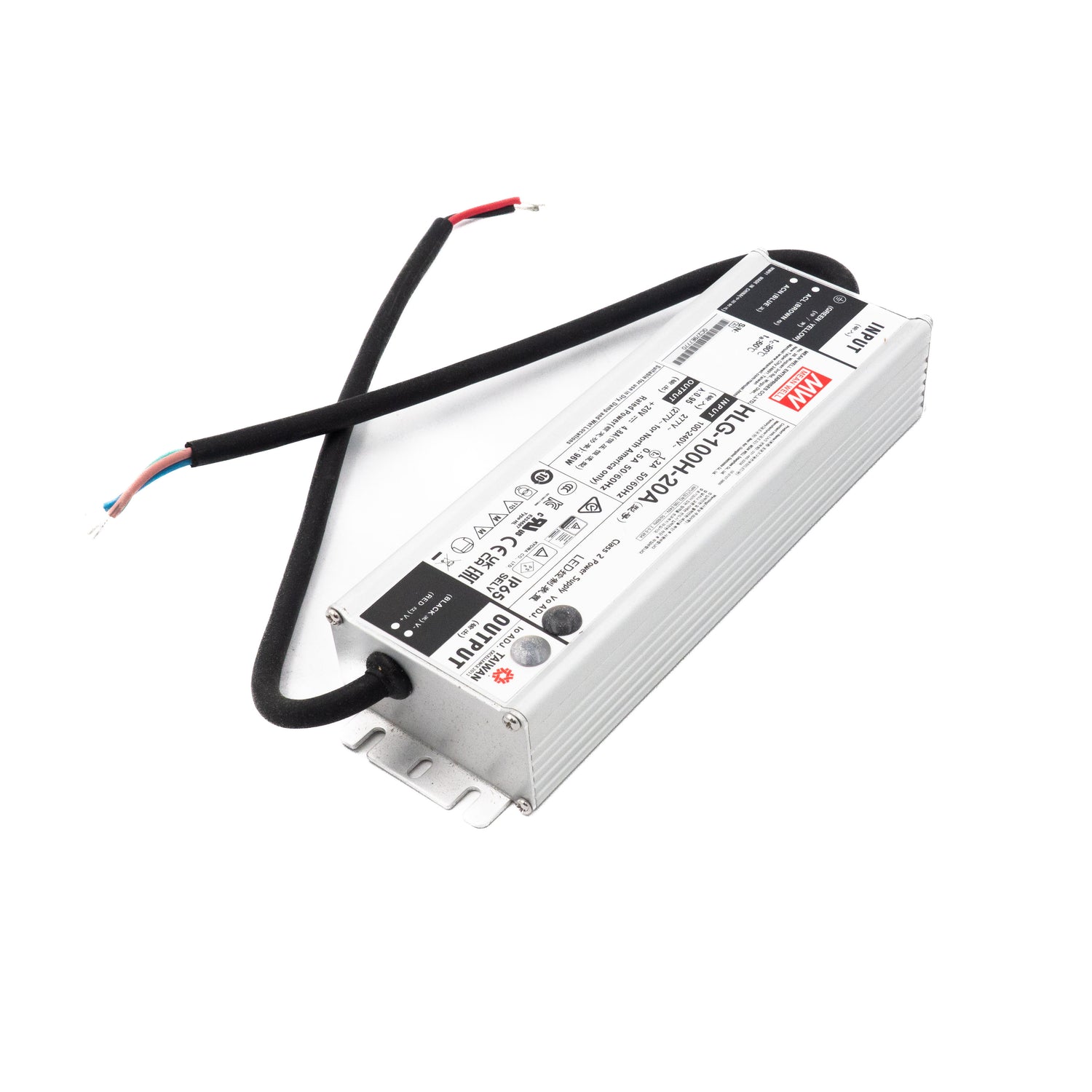

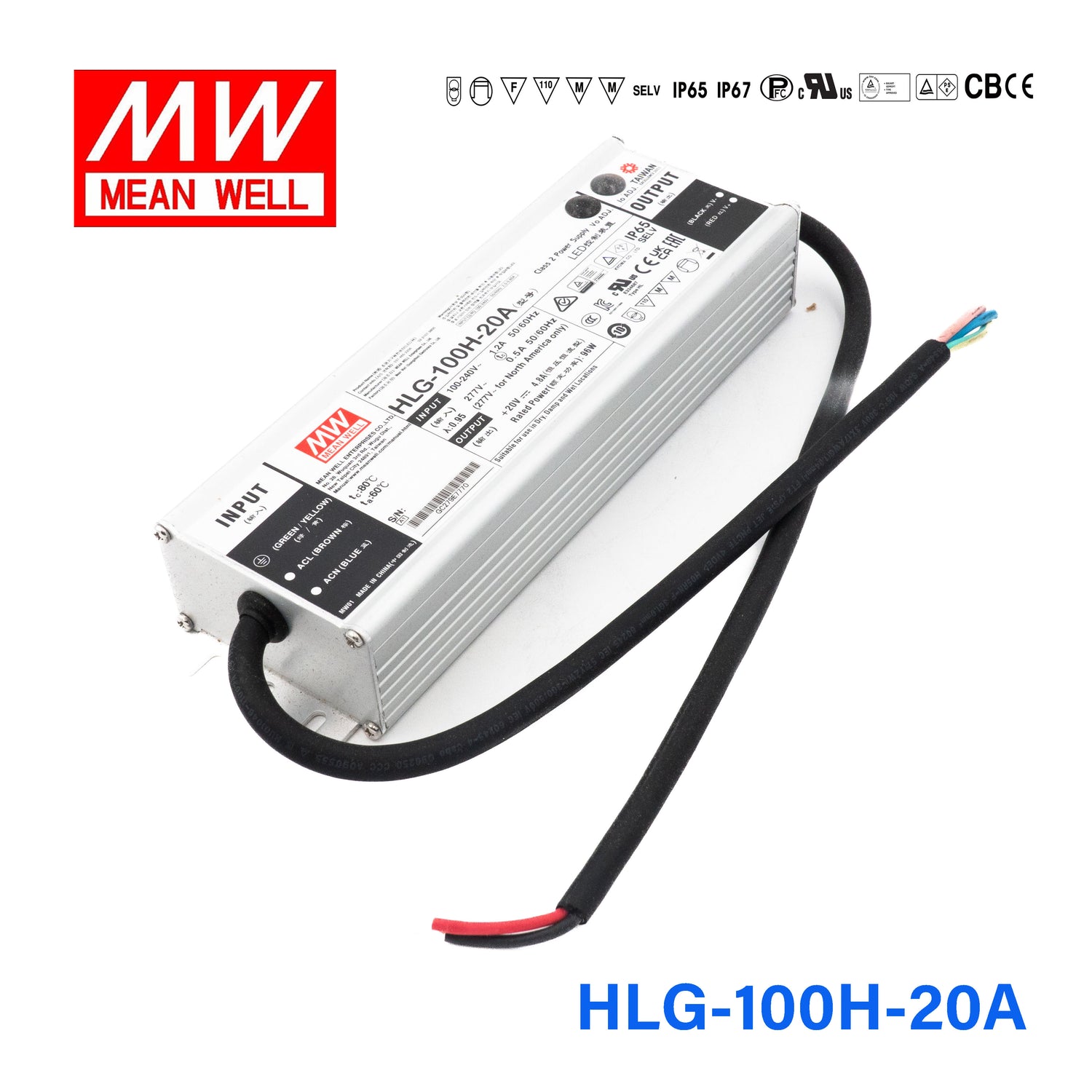

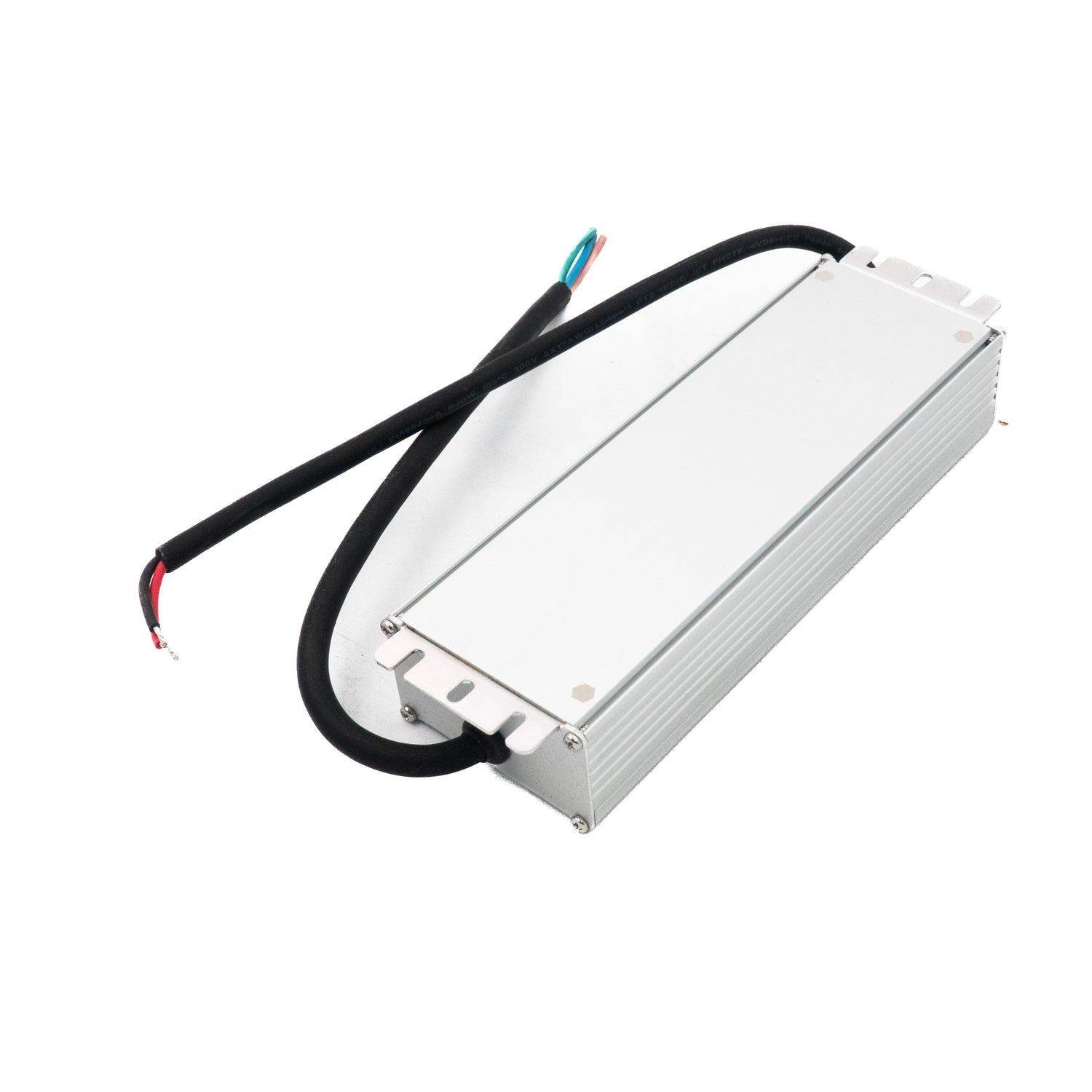

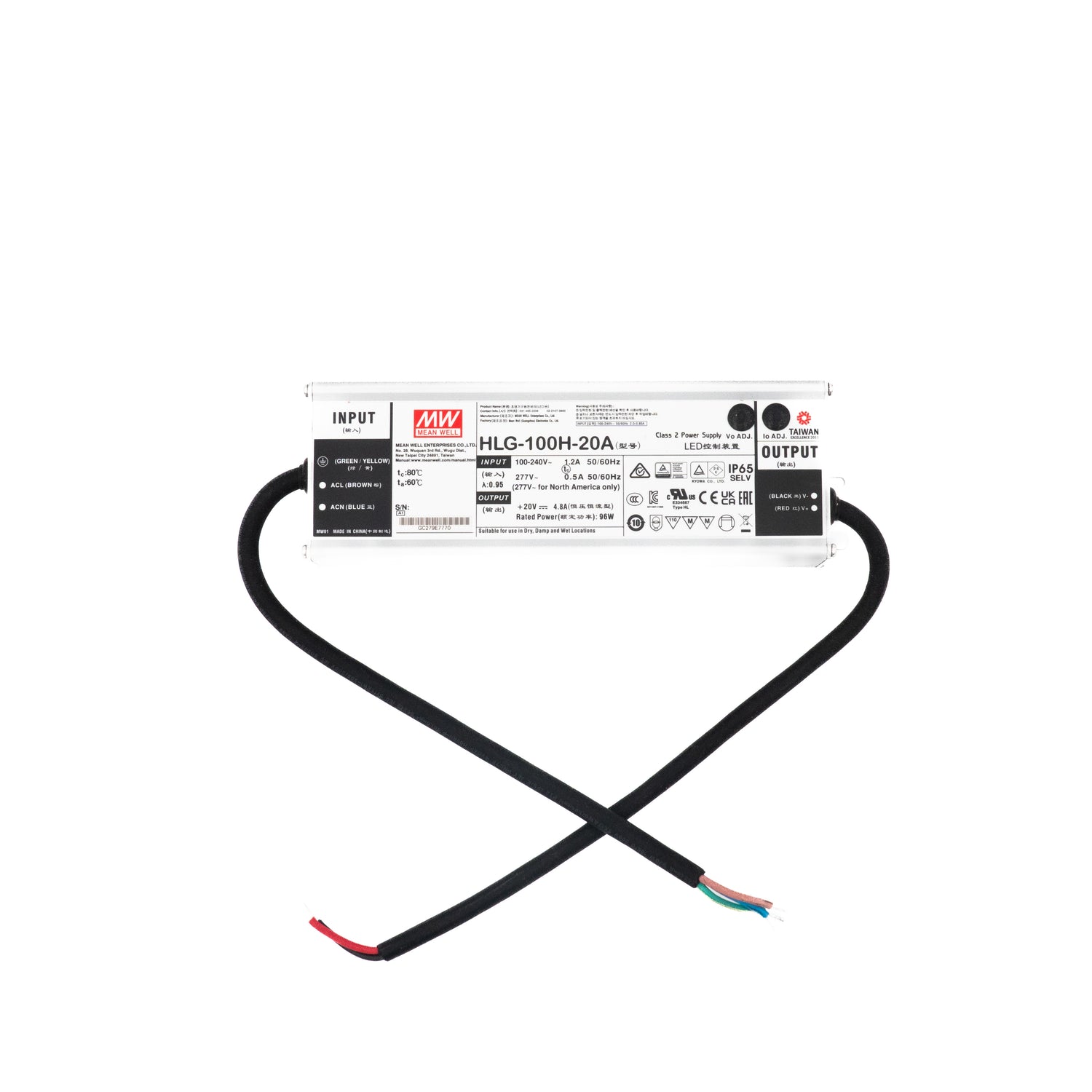

Mean Well HLG-100H-20A Power Supply 100W 20V - Adjustable 4.8A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-100H-20A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 24 in this family

HLG-100H-20A
Available to order
|

Overview

HLG-100H-20A is the 20V output model of this series: rated current 4.8A, rated power 96W, typical efficiency 93%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • Class 2 power unit
  • IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-100H-20ASpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
20V
CONSTANT CURRENT REGIONNote.4
10 ~ 20V
RATED CURRENT
4.8A
RATED POWER
96W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 17 ~ 22V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 3 ~ 4.8A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
23 ~ 27V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP65, J61347-1, J61347-2-13, KC61347-1,KC61347-2-13,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A (this model)
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-100H-20A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-100H-20A Illustration (page 5)
Illustration (page 5)
HLG-100H-20A STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-100H-20A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-100H-20A MECHANICAL SPECIFICATION ※A-Type
MECHANICAL SPECIFICATION ※A-Type
HLG-100H-20A ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-100H-20A Dimensions (mm)
Dimensions (mm)
HLG-100H-20A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-100H-20A to power 20V LED strip lighting in a covered outdoor area?

Yes. The HLG-100H-20A delivers 20V at up to 4.8A (96W rated power), and the HLG-100H series' IP65/IP67 metal-housing design suits covered patios, canopies, or soffits. For fully exposed rain installations, confirm the IP rating of this A-type first.

Is the adjustable output on the HLG-100H-20A useful for fine-tuning LED brightness?

Yes. The built-in potentiometers let you trim the output voltage (17-22V) and current (3-4.8A), which is helpful when you need to reduce brightness slightly or match the driver output to a specific LED load. Lowering the current setting reduces the drive level without an external dimmer.

Can the HLG-100H-20A drive 20V LED modules for commercial signage?

Yes. At 96W and 20V output, it can power 20V channel letters, light boxes, or cabinet sign modules. The adjustable output is an added benefit for matching the driver precisely to the module string voltage. Its wide 90-305VAC input handles most commercial mains supplies worldwide.

How many meters of 20V LED strip can the HLG-100H-20A handle?

Divide 96W by your strip's power consumption per meter. For instance, a strip rated at 14W/m would allow about 6.8 meters (96W / 14W per meter). Always check your strip's rated power per meter and keep total load at or below 96W for reliable operation.

Is the HLG-100H-20A suitable for a damp basement or garage installation?

Yes. The series' metal housing with IP65/IP67 ingress protection is designed for indoor and outdoor applications, which is more than sufficient for damp indoor environments like basements or garages. For locations with direct rain, wash-down or potential standing water, confirm the exact IP rating of this A-type.
