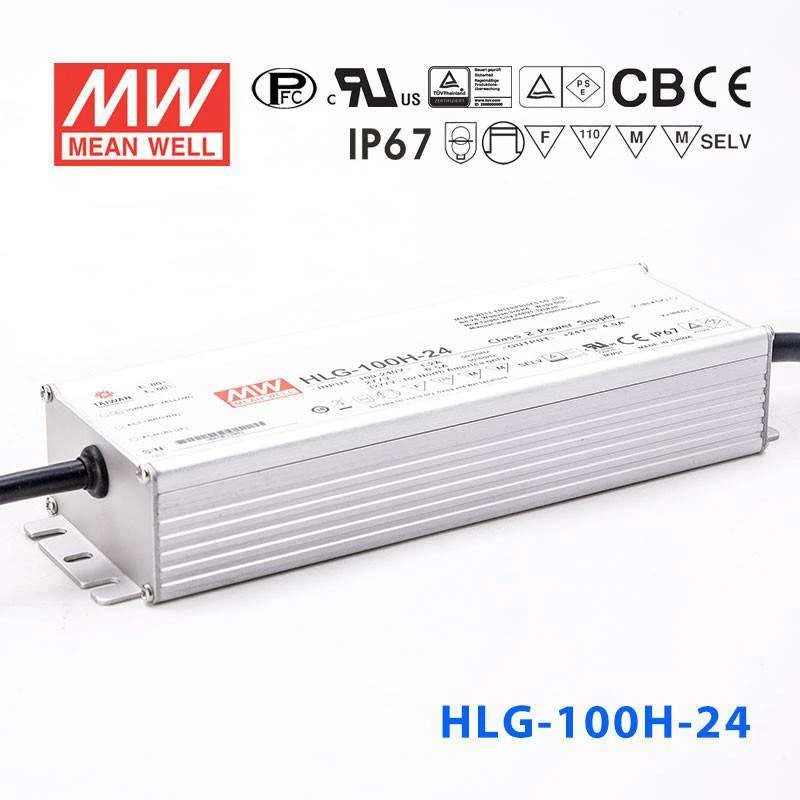

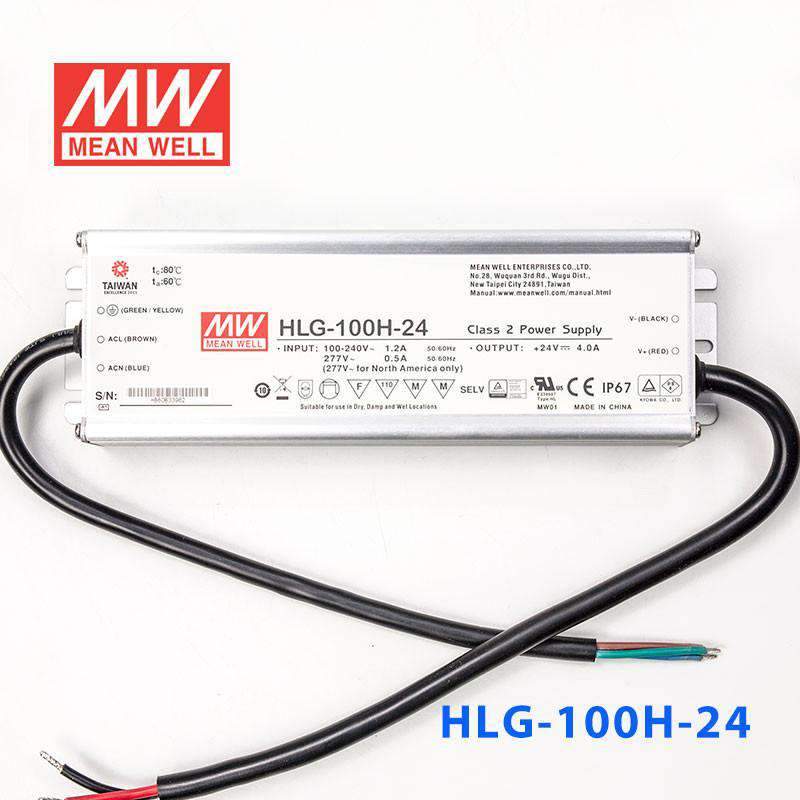

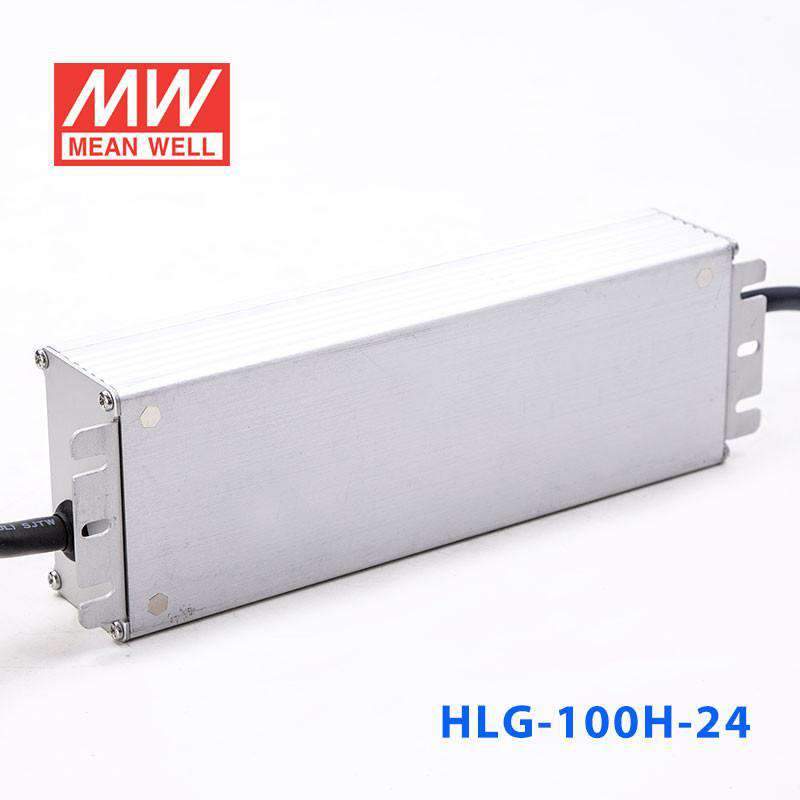

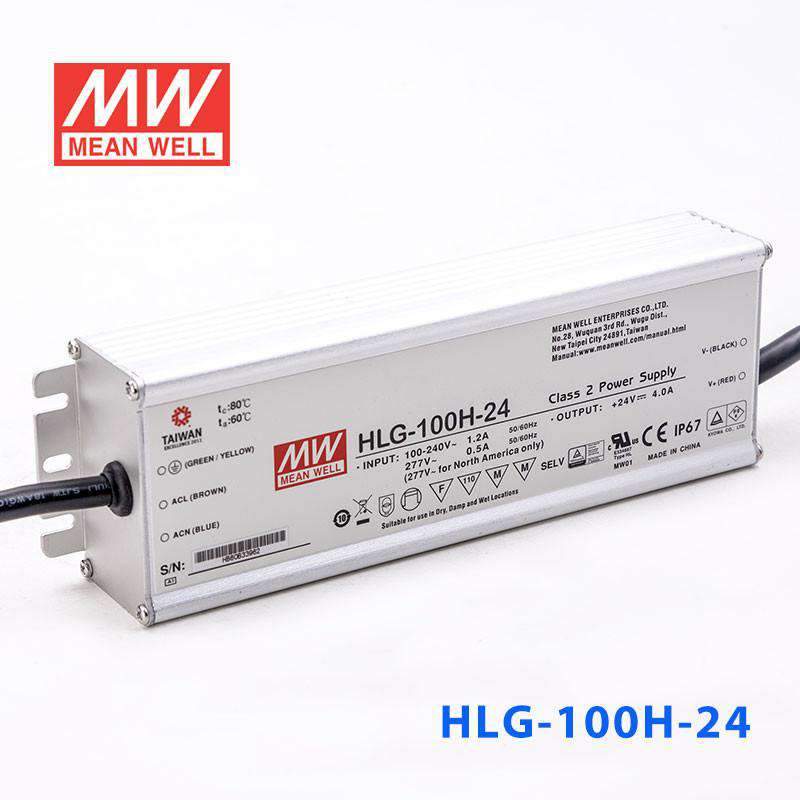

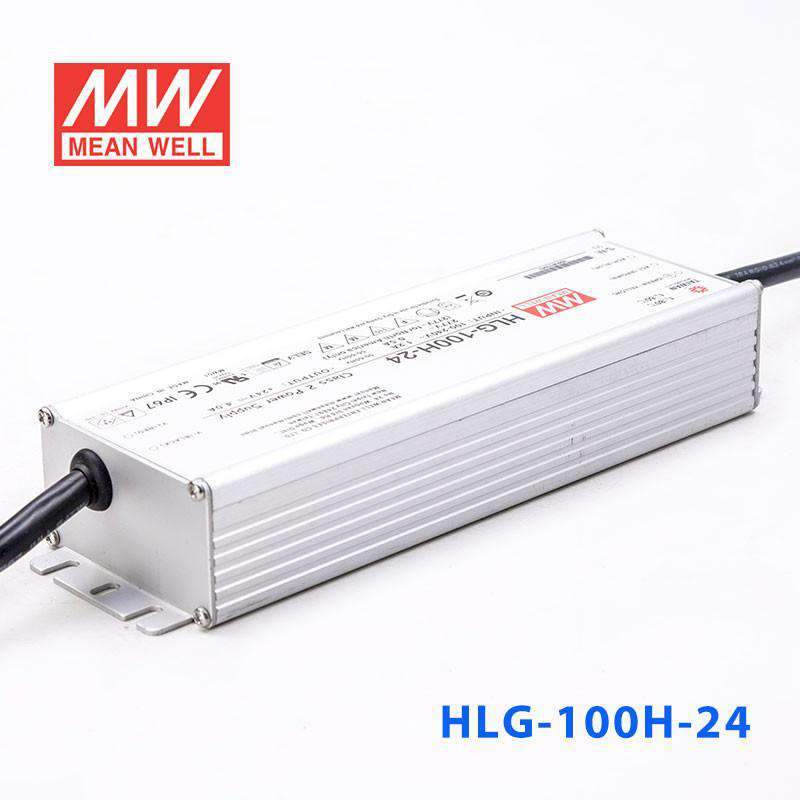

Mean Well HLG-100H-24 100W 24V Power Supply | Auckland Distributor

The HLG-100H is a 100W Mean Well AC-DC LED driver (input: 90~305VAC, output: 24V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 24V
✓ Rated output current: 4A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-100H-24 to power 24V LED strip lighting outdoors?

Yes. The HLG-100H-24 delivers 24V at up to 4A (100W) and has an IP67 waterproof rating, making it suitable for outdoor 24V LED strip runs exposed to rain, snow, or washdown. Its -40°C to +80°C operating range covers most climates.

Is the HLG-100H-24 a good driver for 24V LED channel-letter signage?

Yes. 24V is one of the most common voltages for channel-letter LED modules, and the HLG-100H-24 provides 100W at that voltage. Its IP67 enclosure and wide 90-305VAC input make it a reliable choice for outdoor sign cabinets worldwide.

Can I power 24V constant-voltage LED panels with the HLG-100H-24?

The HLG-100H-24 operates in constant-current mode with a CC voltage range of 12-24V. It is designed for LED loads that regulate via current rather than voltage. Verify that your LED panels are compatible with constant-current drive before using this supply.

How many meters of 24V LED strip can the HLG-100H-24 power?

Divide the 100W maximum by the strip's rated power per meter. For example, a 24V strip consuming 14.4W/m would allow roughly 6.9 meters (100W / 14.4W per meter). Check your strip's rated power per meter and ensure the total draw does not exceed 100W.

Can the HLG-100H-24 be used in freezing outdoor conditions?

Yes. It is rated for operation down to -40°C, so it handles sub-zero winter environments without issue. The IP67 waterproof casing also protects against ice, snow, and condensation buildup.

How does the HLG-100H-24 compare to other voltage options in the HLG-100H series?

The HLG-100H series offers the same 100W power in voltages from 20V to 54V. The -24 model outputs 24V at 4A, while the -20 gives 20V at 4.8A and the -36 gives 36V at 2.65A, for example. All share the same physical dimensions (220 x 68 x 38.8 mm) and the same IP67/IP65 ratings depending on suffix. Choose the voltage that matches your LED load.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-100H-24A Power Supply 100W 24V - Adjustable 4A	100W	24V	4A	IP65	View
Mean Well HLG-100H-48B Power Supply 100W 48V - Dimmable 2A	100W	48V	2A	IP67	View
Mean Well HLG-100H-48 Power Supply 100W 48V 2A	100W	48V	2A	IP67	View
