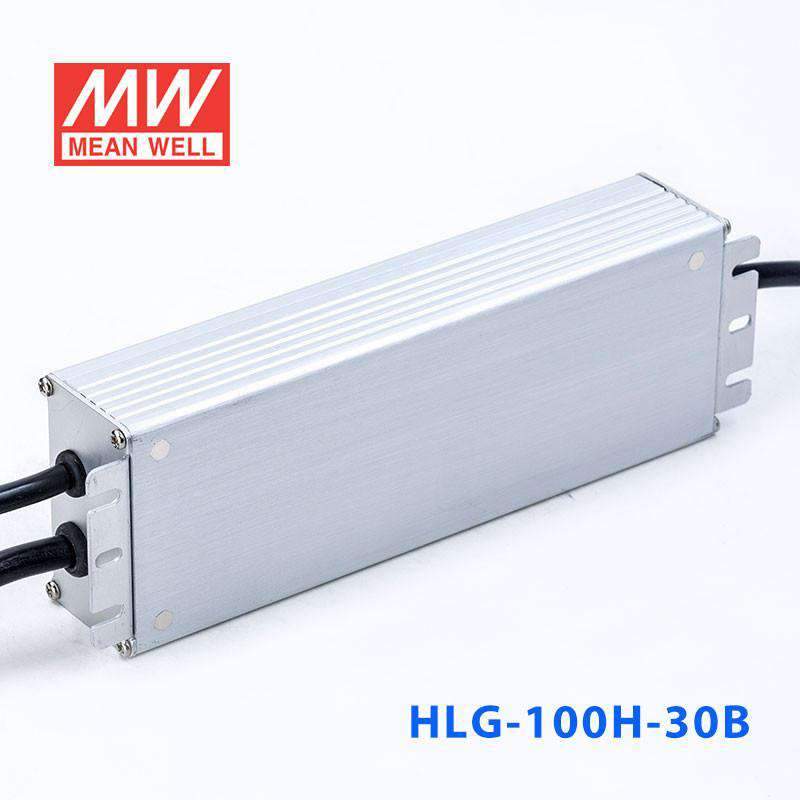

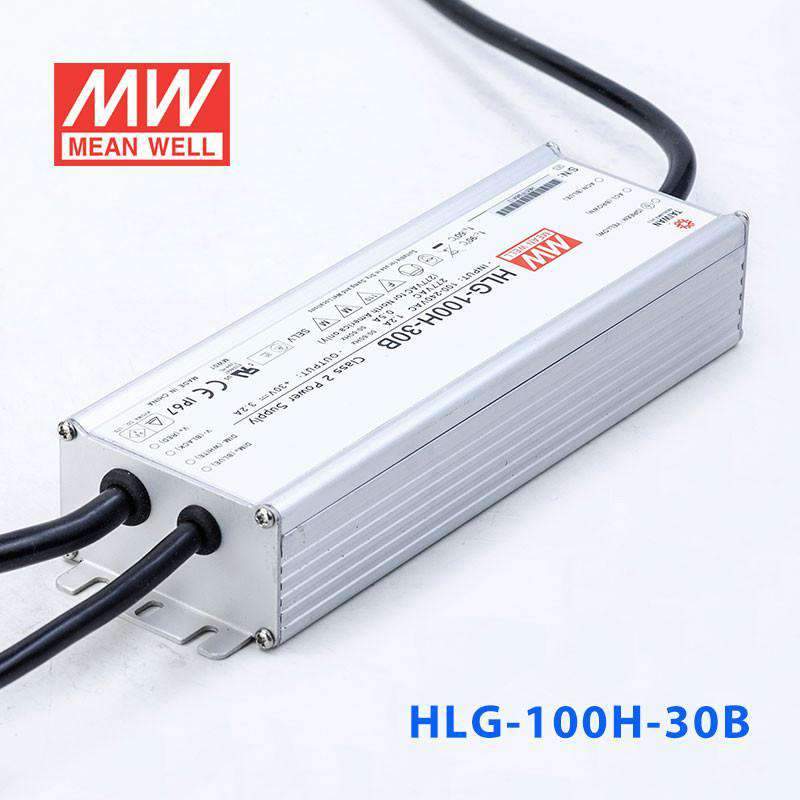

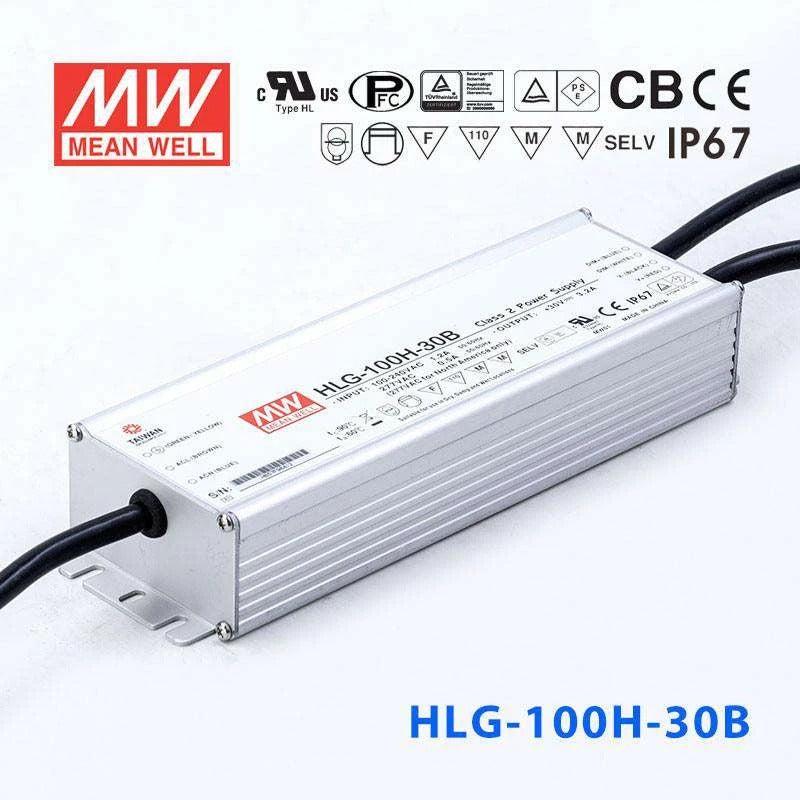

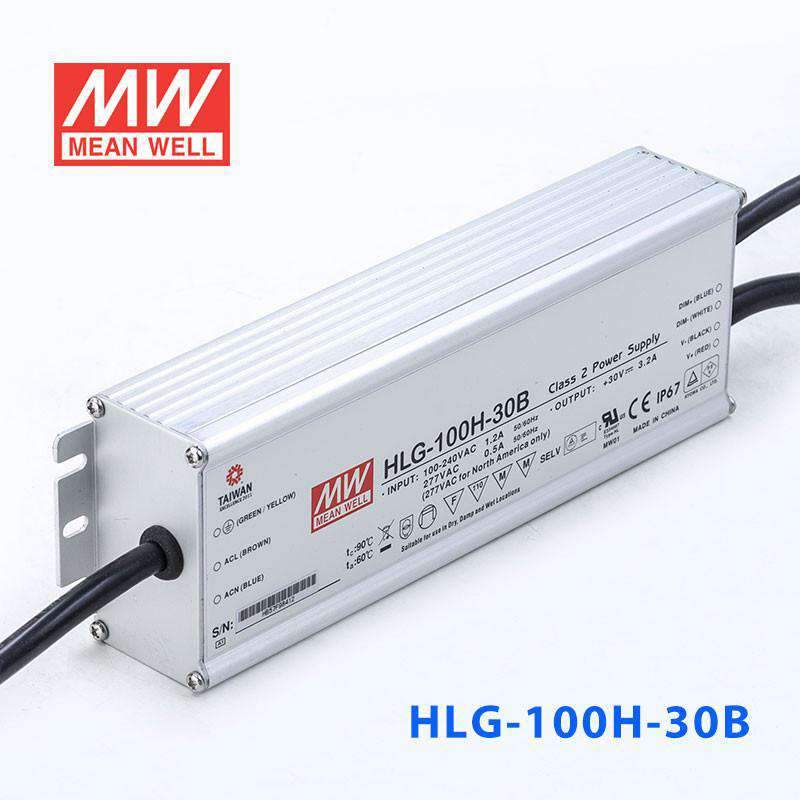

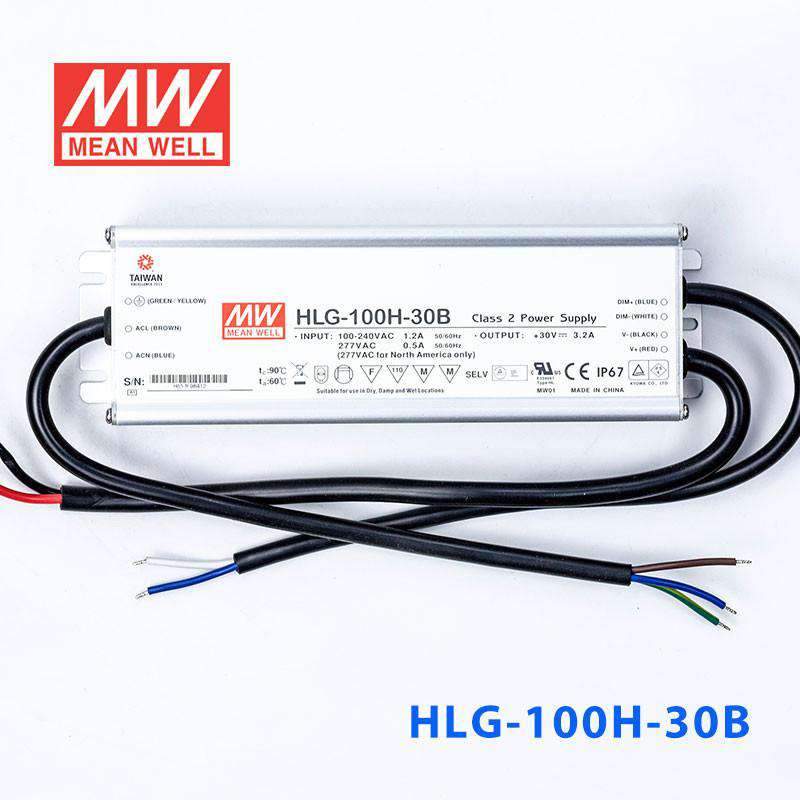

Mean Well HLG-100H-30B Power Supply - 100W 30V - Dimmable

Name: Mean Well HLG-100H-30B Power Supply 100W 30V - Dimmable 3.2A
Brand: Mean Well
SKU: HLG-100H-30B
Price: 160.03 NZD
Availability: InStock
Rating: 4.9 (21 reviews)

Overview

HLG-100H-30B is the 30V output model of this series: rated current 3.2A, rated power 96W, typical efficiency 93%.

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-100H-30BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 15 ~ 30V
RATED CURRENT: 3.2A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 27 ~ 33V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 2 ~ 3.2A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent; GB19510.1,GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(except for B,AB and D-type) , KC61347-1,KC61347-2-13 (except for AB,D-type), EAC TP TC 004 approved ; design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to EN55015, EN55032 Class B, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.12Kg; 12pcs/14.4Kg/0.8CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8.To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly Tc point (or TMP, per DLC), is about 80℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-100H-30B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-100H-30B DIMMING OPERATION — DIMMING OPERATION

HLG-100H-30B Illustration (page 5) — Illustration (page 5)

HLG-100H-30B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-100H-30B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-100H-30B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-100H-30B ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-100H-30B Dimensions (mm) — Dimensions (mm)

HLG-100H-30B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

Datasheet1

HLG-100H-30B datasheethlg_100h_spec.pdf · 2019-12-10 edition PDF Download

Certificates4

UL Certificate (HLG-100H)(EN) PDF Download

TUV Certificate (HLG-100H)(EN) PDF Download

EMC Certificate (HLG-100H)(EN) PDF Download

PSE Certificate (HLG-100H)(EN) PDF Download

Test reports1

Test Report (HLG-100H-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-100H-30B for outdoor dimmable 30V LED landscape lighting?

Yes. The HLG-100H-30B delivers 30V at up to 3.2A (100W) with dimming capability, and its IP67 waterproof rating makes it ideal for fully exposed outdoor landscape lighting. It can be buried in underground junction boxes or mounted in unprotected locations.

Is the HLG-100H-30B a good choice for dimmable 30V LED flood lights?

It works well for 30V LED flood lights up to 100W total. The dimming input allows you to reduce output for curfew hours or ambient control, and the IP67 waterproof rating means the driver can be mounted near the fixtures in exposed outdoor conditions.

Can I use the HLG-100H-30B to power dimmable 30V LED signage in a car wash environment?

The IP67 waterproof rating makes the HLG-100H-30B one of the better choices for wet environments like car washes. It can withstand temporary immersion and direct water exposure. Combined with its dimming input and 100W at 30V, it can drive LED signage in these harsh conditions.

What is the maximum 30V LED strip length the HLG-100H-30B can power?

The HLG-100H-30B provides 100W at 30V. For a strip rated at 12W per meter, the maximum length would be approximately 8.3 meters (100W / 12W per meter). Always verify your strip's rated power per meter and ensure total consumption stays at or below 100W.

How does the HLG-100H-30B handle extreme cold weather installations?

The HLG-100H-30B is rated for operation from -40°C to +80°C, so it handles extreme cold well. The IP67-sealed aluminium housing prevents moisture ingress from freeze-thaw cycles, and the wide 90-305VAC input tolerance accommodates voltage fluctuations common in remote cold-climate locations.
