Mean Well

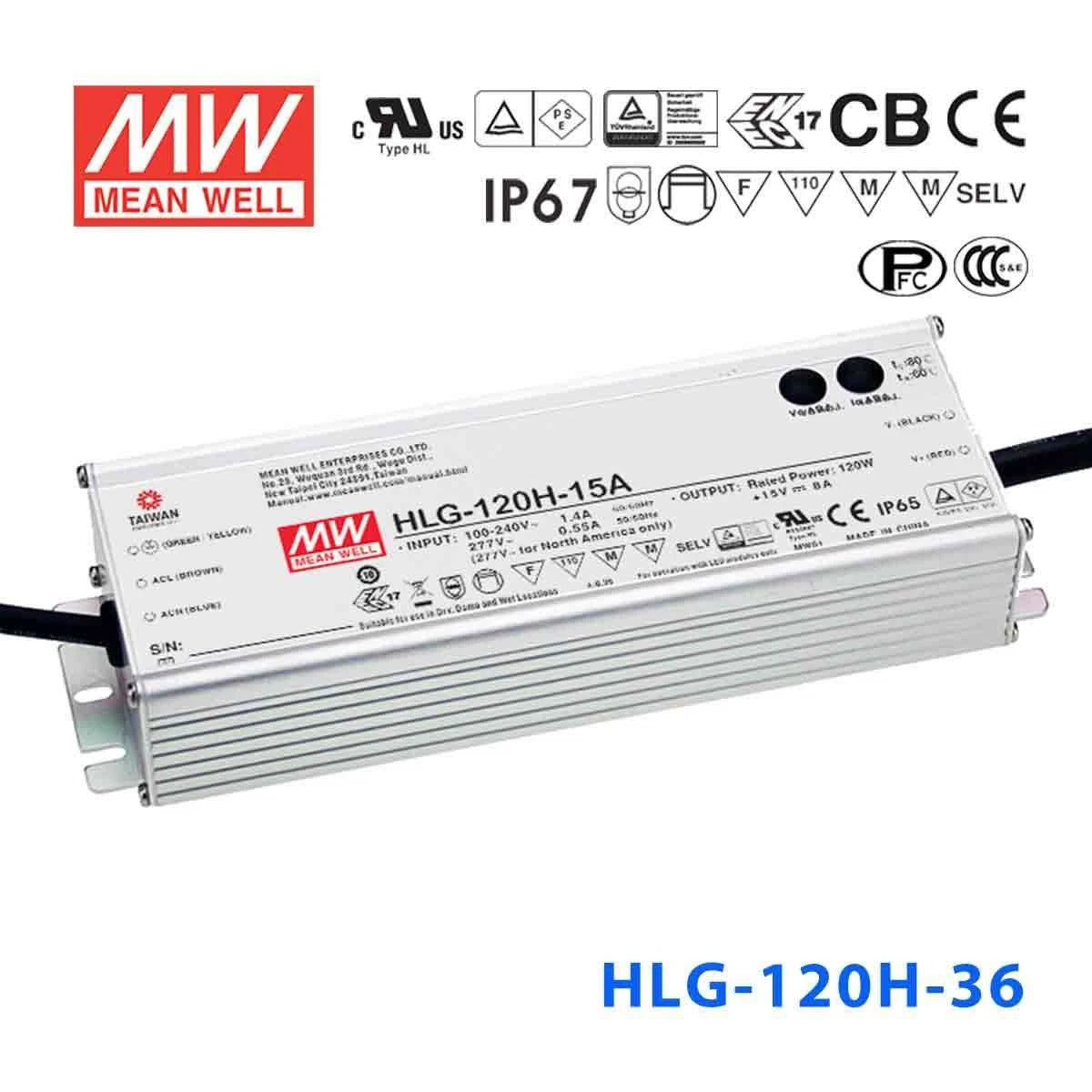

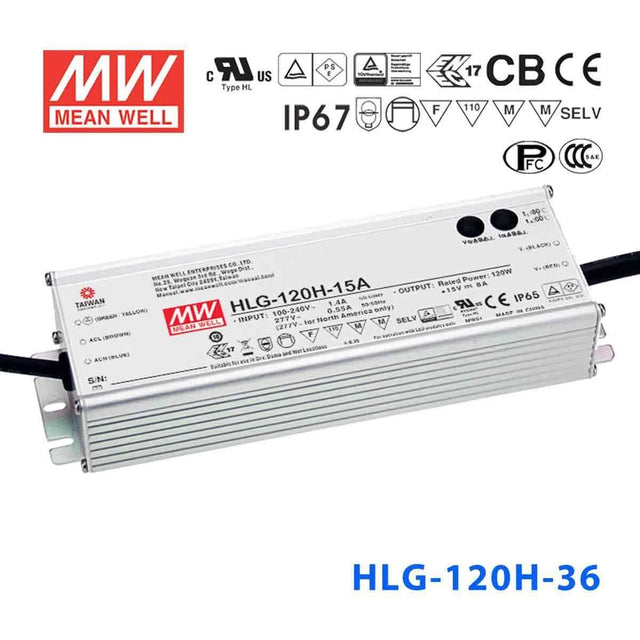

Mean Well HLG-120H-36 Power Supply 120W 36V 3.4A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-120H-36
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 24 in this family

HLG-120H-36
Available to order
|

Overview

HLG-120H-36 is the 36V output model of this series: rated current 3.4A, rated power 122.4W, typical efficiency 93%. Type Blank: Io and Vo fixed (IP67).

HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-120H-36Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.4
18 ~ 36V
RATED CURRENT
3.4A
RATED POWER
122.4W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
33 ~ 40V
CURRENT ADJ. RANGE
1.7 ~ 3.4A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.)
12ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
41 ~ 46V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type”HL”) , CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP67, J61347-1, J61347-2-13 ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004 , KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2185.8K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank (this model)
Io and Vo fixed; IP67
A
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-120H-36 BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-120H-36 Illustration (page 5)
Illustration (page 5)
HLG-120H-36 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-120H-36 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-120H-36 MECHANICAL SPECIFICATION ※Blank/D-Type
MECHANICAL SPECIFICATION ※Blank/D-Type
HLG-120H-36 ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-120H-36 Dimensions (mm)
Dimensions (mm)
HLG-120H-36 WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-120H-36 to power 36V LED strip lighting outdoors?

Yes. The HLG-120H-36 outputs 36V at up to 3.4A (122.4W) and carries an IP67 waterproof rating, so it can be mounted in locations exposed to rain, snow, or irrigation spray. Its metal housing and -40°C to +80°C case temperature (Tcase) rating handle harsh outdoor conditions year-round.

Is the HLG-120H-36 suitable for powering 36V LED modules in channel-letter signs?

Yes. With 122.4W at 36V, the HLG-120H-36 can drive a substantial array of 36V LED sign modules for channel letters, cabinet signs, or monument signage. The IP67 waterproof enclosure and wide 90-305VAC input make it practical for exposed outdoor sign installations across different mains voltages.

Can the HLG-120H-36 power a 36V LED high-bay or industrial fixture?

Yes. At 122.4W and 36V constant-current output (up to 3.4A), the HLG-120H-36 is well matched to medium-wattage 36V LED high-bay lights or industrial luminaires. The IP67 rating and wide case temperature range allow installation in factories, warehouses, or covered loading docks.

How many meters of 36V LED strip can the HLG-120H-36 drive?

That depends on the strip's power draw per meter. The HLG-120H-36 delivers up to 122.4W at 36V. For example, a strip rated at 15W/m would allow about 8 meters (122.4W / 15W per meter = 8.2m). Always check your strip's rated power per meter and keep total load at or below 122.4W.

Can the HLG-120H-36 handle freezing temperatures in an unheated outdoor enclosure?

Yes. It is rated for a case temperature (Tcase) of -40°C to +80°C, so it will start and run reliably in sub-zero conditions. The IP67 waterproof rating also protects against water ingress from ice melt or direct precipitation.

What are the differences between the HLG-120H-36, 36A, 36AB, and 36B variants?

All four share the same 122.4W / 36V / 3.4A core specs and CC voltage range of 18-36V. The base HLG-120H-36 has fixed output and IP67 waterproof rating. The -36A adds output voltage/current adjustment via built-in potentiometer (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -36B offers dimming input only and retains IP67 waterproof rating.
