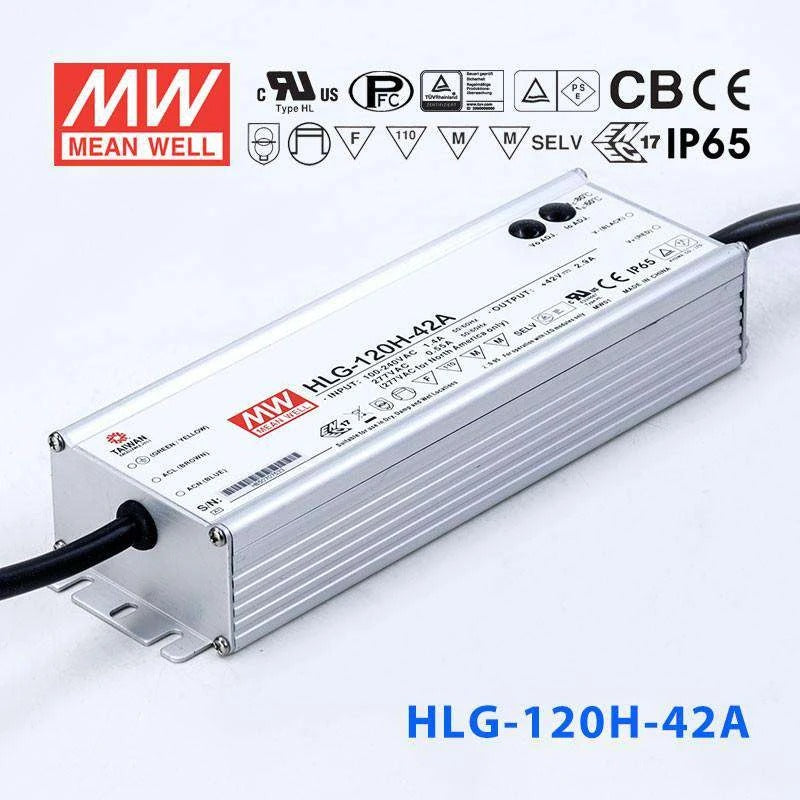

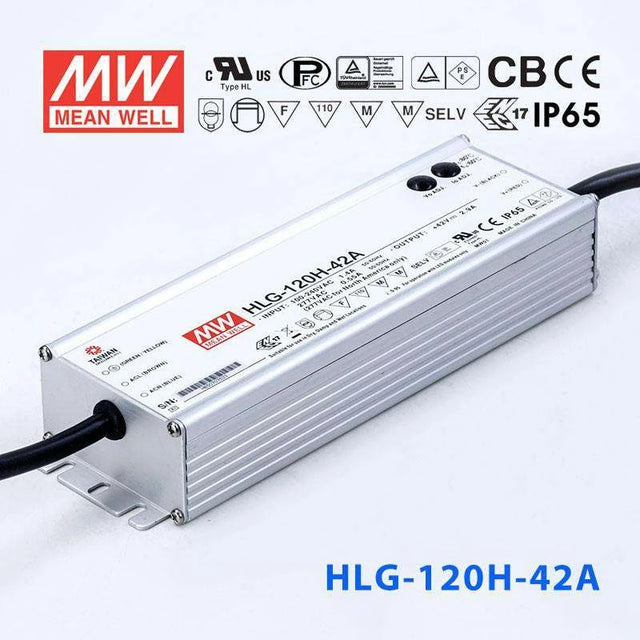

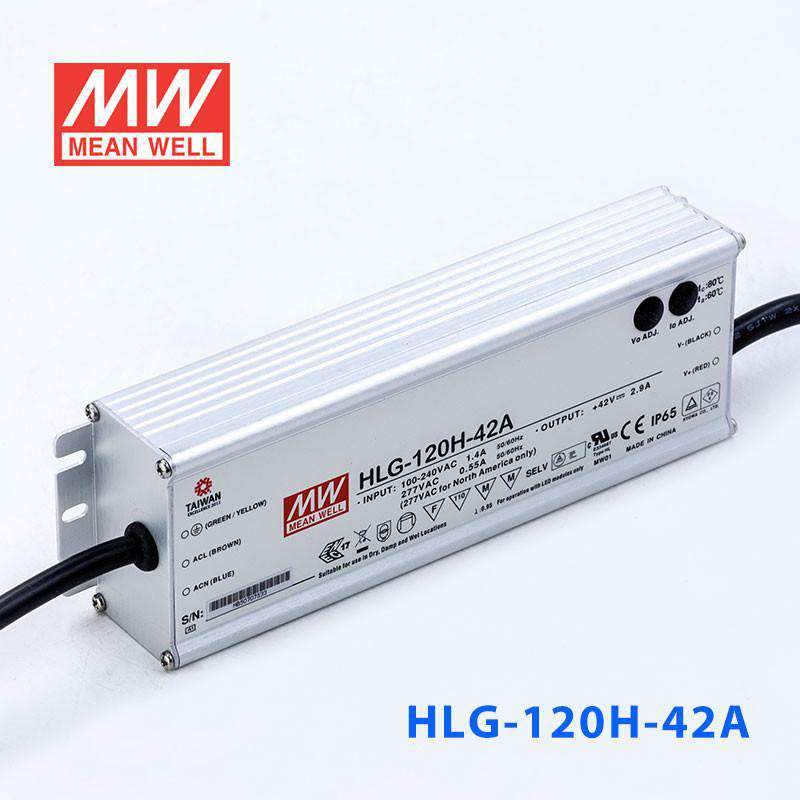

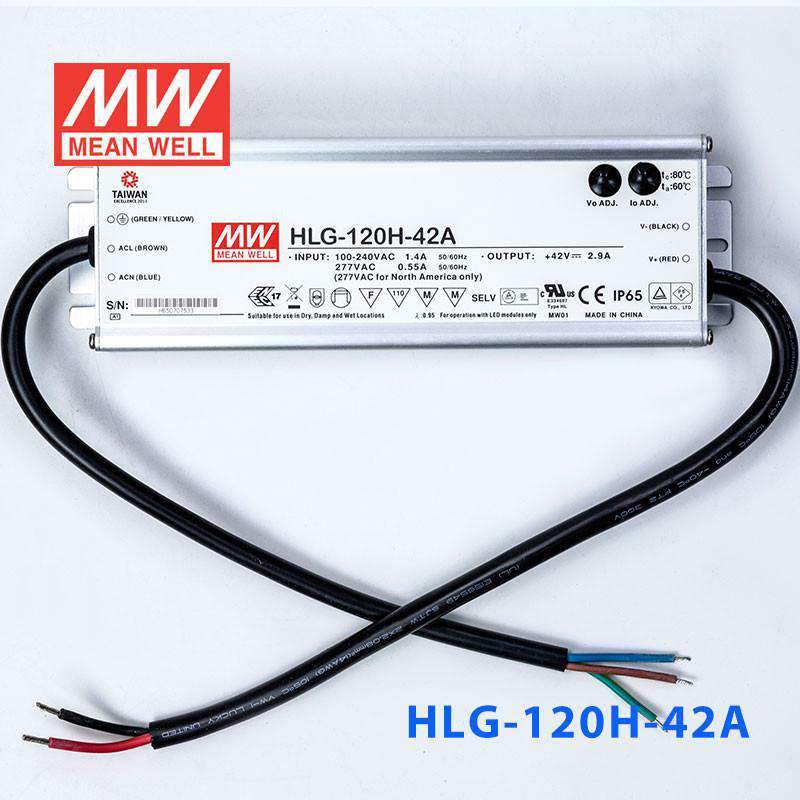

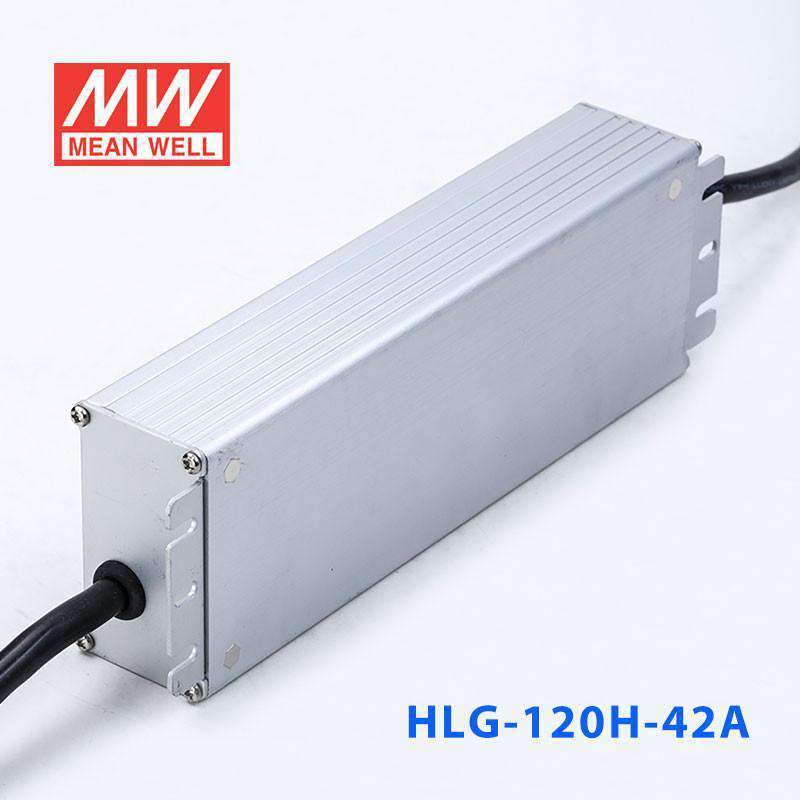

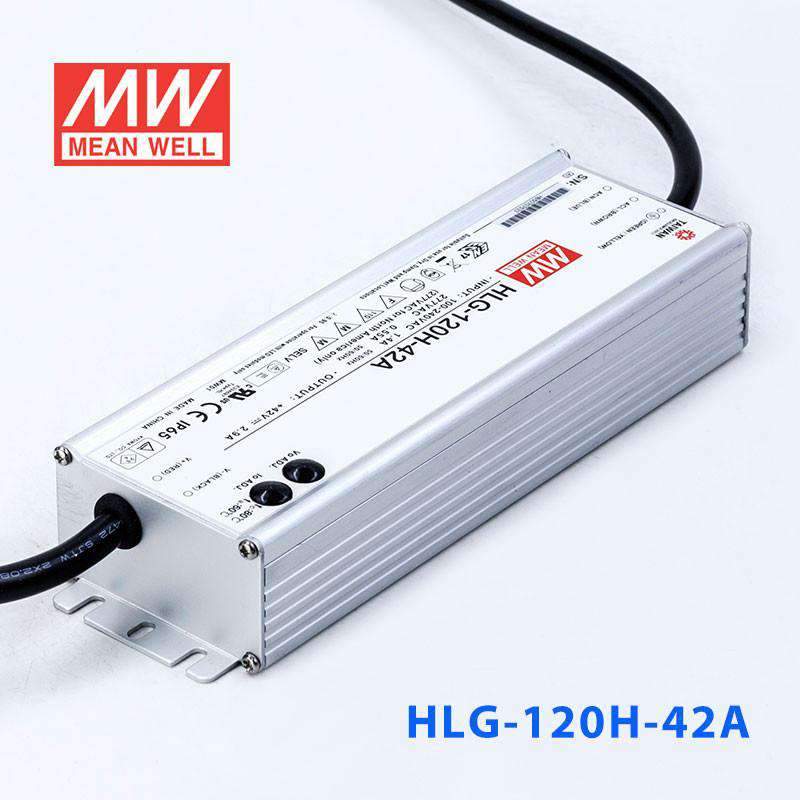

Mean Well HLG-120H-42A Power Supply 120W 42V - Adjustable 2.9A
4.9 (21 reviews)Notify me when it's back in stock
Mean Well HLG-120H-42A Power Supply 120W 42V - Adjustable 2.9A
Log in to see priceThe HLG-120H is a 120W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 42V
- ✓ Rated output current: 2.9A
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating120 Watt
-
Output Voltage42 Volt
-
Rated Current2.9 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length22 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.12 kg
::specification::
Frequently Asked Questions
Can I use the HLG-120H-42A to fine-tune the voltage for a 42V LED panel array?
Yes. The HLG-120H-42A includes a built-in potentiometer that lets you adjust the output voltage and current within the 21-42V CC range. This is useful when you need to match the driver precisely to a specific 42V LED panel or module string for optimal brightness and efficiency.
Is the HLG-120H-42A suitable for indoor commercial 42V LED troffer installations?
Yes. At 120W and 42V with adjustable output, the HLG-120H-42A can drive 42V LED troffers and panel lights in office or retail ceilings. The IP65 water-resistant rating handles above-ceiling environments where dust and occasional condensation are present.
Can the HLG-120H-42A power 42V LED modules in a large backlit sign or display?
Yes. With 120W at 42V, the HLG-120H-42A provides enough power for a substantial array of 42V LED sign modules. The adjustable output allows you to dial in the exact operating point, and the 90-305VAC input accommodates most commercial mains supplies worldwide.
How many meters of 42V LED strip can the HLG-120H-42A drive?
Divide 120W by your strip's power consumption per meter. For example, a 42V strip rated at 12W/m allows up to 10 meters (120W / 12W per meter = 10m). Always check your strip's rated power per meter and keep total load at or below 120W.
Is the HLG-120H-42A appropriate for a covered parking structure or carport?
Yes. The IP65 rating protects against dust and low-pressure water jets from any direction, which is sufficient for sheltered outdoor or semi-enclosed environments like parking garages, carports, and covered walkways. For fully exposed outdoor locations with heavy rain, an IP67-rated variant such as the HLG-120H-42 or HLG-120H-42B is recommended.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-120H Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-120H-48A Power Supply 120W 48V - Adjustable 2.5A | 120W | 48V | 2.5A | IP65 | View |
