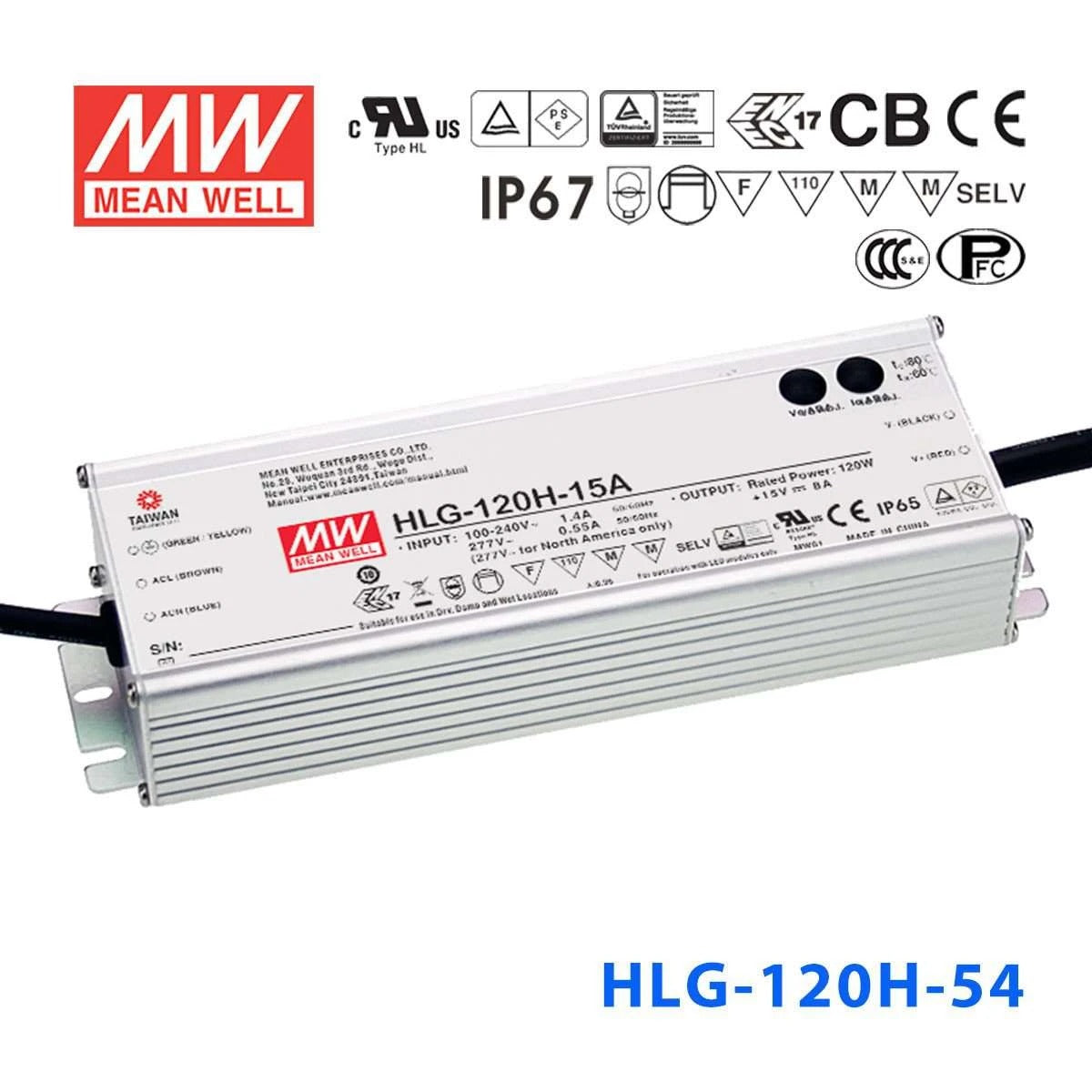

Mean Well HLG-120H-54 Power Supply 120W 54V - Auckland Distributor

The HLG-120H is a 120W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 2.3A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-120H-54 to power 54V LED fixtures outdoors?

Yes. The HLG-120H-54 outputs 54V at up to 2.3A (120W) and is IP67 waterproof, making it suitable for outdoor LED fixtures, street-light retrofits, or facade lighting that operates at 54V. Its aluminium casing resists corrosion in exposed environments.

Is the HLG-120H-54 a good driver for high-voltage LED panel arrays?

Yes. The 54V output is well matched to LED panels and COB modules that use higher forward voltages. With 120W capacity and a CC voltage range of 27-54V, it can drive series-connected LED arrays as long as the total load does not exceed 120W.

Can I run 54V LED grow lights from the HLG-120H-54?

Yes, provided the grow light requires 54V input and draws 120W or less. The constant-current operation mode and CC range of 27-54V ensure stable output even if the LED forward voltage shifts with temperature changes during long grow cycles.

How many meters of 54V LED strip can the HLG-120H-54 handle?

Divide 120W by your strip's power consumption per meter. For example, a 54V strip rated at 10W/m could run up to 12 meters (120W / 10W per meter = 12m). Always check your strip's rated power per meter and keep total load at or below 120W.

Can the HLG-120H-54 be installed in a fully exposed outdoor location?

Yes. Its IP67 waterproof rating protects against dust and temporary submersion. Combined with a -40°C to +80°C operating range, it can be permanently mounted outdoors on walls, poles, or inside open junction boxes without additional weatherproofing.

What are the differences between the HLG-120H-54, 54A, 54AB, and 54B models?

All four share the same 120W / 54V / 2.3A core specs. The base HLG-120H-54 has no output adjustment and is IP67 waterproof. The -54A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -54AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -54B adds dimming input only and retains IP67.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-120H-48A Power Supply 120W 48V - Adjustable 2.5A	120W	48V	2.5A	IP65	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
