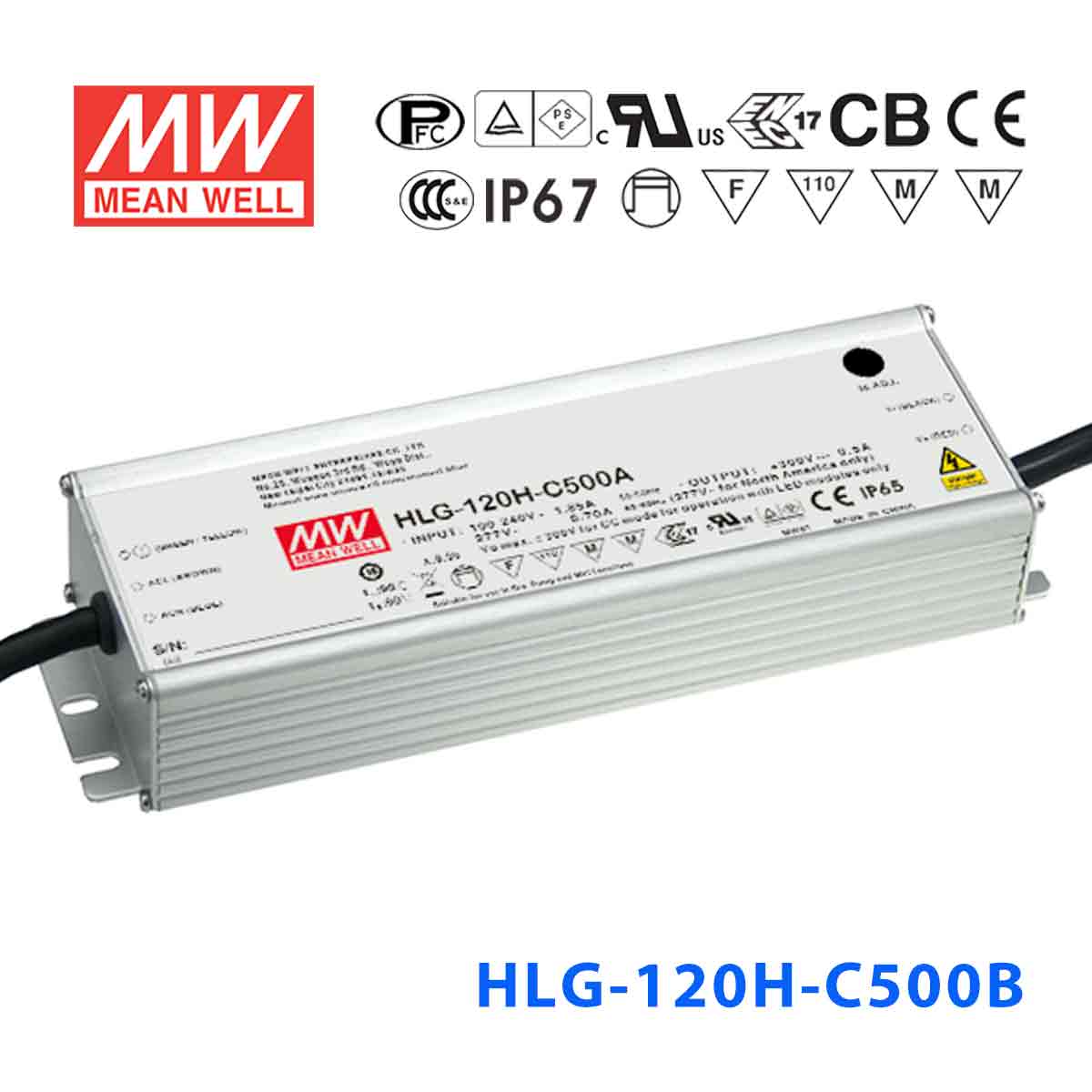

Mean Well HLG-120H-C500AB Power Supply 150W 500mA - Adjustable and Dimmable

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-120H-C500AB

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

HLG-120H-C500AB

HLG-120H-C500A 500mA Adjustable Backorder

HLG-120H-C500B 500mA Dimmable Backorder

HLG-120H-C500AB 500mA Adjustable and Dimmable Backorder

HLG-185H-C500A 500mA Adjustable Backorder

HLG-185H-C500B 500mA Dimmable Backorder

HLG-185H-C500AB 500mA Adjustable and Dimmable Backorder

Product variants

Available to order

Overview

HLG-120H-C500AB is the model of this series: rated current 500mA, rated power 150W, typical efficiency 94%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠ design
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-120H-C500ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER: 150W
CONSTANT CURRENT REGION^Note.2: 150V ~ 300V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 250 ~ 500mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 335 ~ 355V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.04Kg; 12pcs/13.5Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C500AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-120H-C500AB DIMMING OPERATION — DIMMING OPERATION

HLG-120H-C500AB Illustration (page 5) — Illustration (page 5)

HLG-120H-C500AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-120H-C500AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-120H-C500AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-120H-C500AB Dimensions (mm) — Dimensions (mm)

HLG-120H-C500AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Datasheet1

HLG-120H-C500AB datasheetHLG-120H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate(HLG-120H-C)(EN) PDF Download

CB Certificate(HLG-120H-C)(EN) PDF Download

EMC Certificate(HLG-120H-C)(EN) PDF Download

ENEC Certificate(HLG-120H-C)(EN) PDF Download

PSE Certificate(HLG-120H-C)(EN) PDF Download

Test reports1

Test Report(HLG-120H-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-120H-C500AB for dimmable commercial LED ceiling fixtures?

Yes. The HLG-120H-C500AB delivers 500mA constant current at up to 150W with a CC voltage range of 150-300V. The AB suffix means it includes both output current adjustment and a 1-10V/PWM dimming input, giving you full control over brightness from a wall dimmer or building management system.

Is the HLG-120H-C500AB suitable for driving LED modules in illuminated signage with dimming?

Yes. At 500mA and up to 300V, it can power series-connected LED strings used in channel letters or lightbox signs. The dimming input lets you reduce sign brightness for nighttime operation or energy savings, and the adjustable output lets you fine-tune current to match the exact LED modules installed.

Can the HLG-120H-C500AB power high-voltage LED arrays in architectural lighting?

Yes. With 150W at 500mA constant current and a voltage range of 150-300V, it is appropriate for architectural accent lighting, cove lighting, or facade illumination using high-voltage LED modules. The series' IP65/IP67 rating allows installation in sheltered outdoor or damp indoor locations, and the dimming capability supports dynamic lighting scenes.

What dimming options does the HLG-120H-C500AB support?

The HLG-120H-C500AB has a 3-in-1 dimming input that accepts 1-10VDC, a 10V PWM signal (100Hz-3KHz) or a resistance between DIM+ and DIM-. This works with 1-10V dimming controllers, building automation systems, and 1-10V wall dimmers. It also includes a potentiometer for adjusting the baseline output current, so you can set both the maximum output level and the dimming range.

Can the HLG-120H-C500AB be installed in a damp or humid environment?

Yes. The series' IP65/IP67 rating means the enclosure is dust-tight and protected against water jets. This covers damp indoor locations like bathrooms, kitchens, or basements, as well as sheltered outdoor areas. Working humidity is rated 10-95% RH non-condensing, so avoid locations where condensation forms on the driver.

What is the difference between the HLG-120H-C500A, C500AB, and C500B?

All three models share the same 150W, 500mA, 150-300V constant current output. The C500A has output adjustment only (potentiometer). The C500AB has both output adjustment and a 3-in-1 dimming input (1-10V, PWM or resistance). The C500B has dimming input only, without output adjustment. Select based on whether you need adjustability, dimming, or both.
