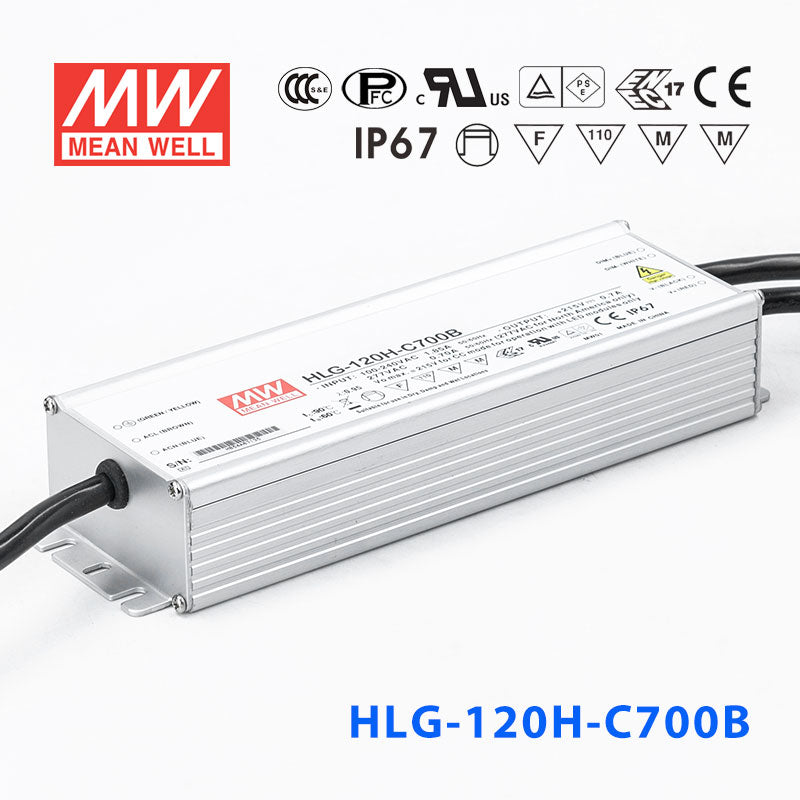

Mean Well HLG-120H-C700AB Power Supply 150.5W 700mA - Adjustable an...
Log in to see priceOverview
HLG-120H-C700AB is the model of this series: rated current 700mA, rated power 150.5W, typical efficiency 94%.
HLG-120H-C Series is a 150W AC/DC LED Driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Current Mode output
- Metal Housing with ClassⅠDesign
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations

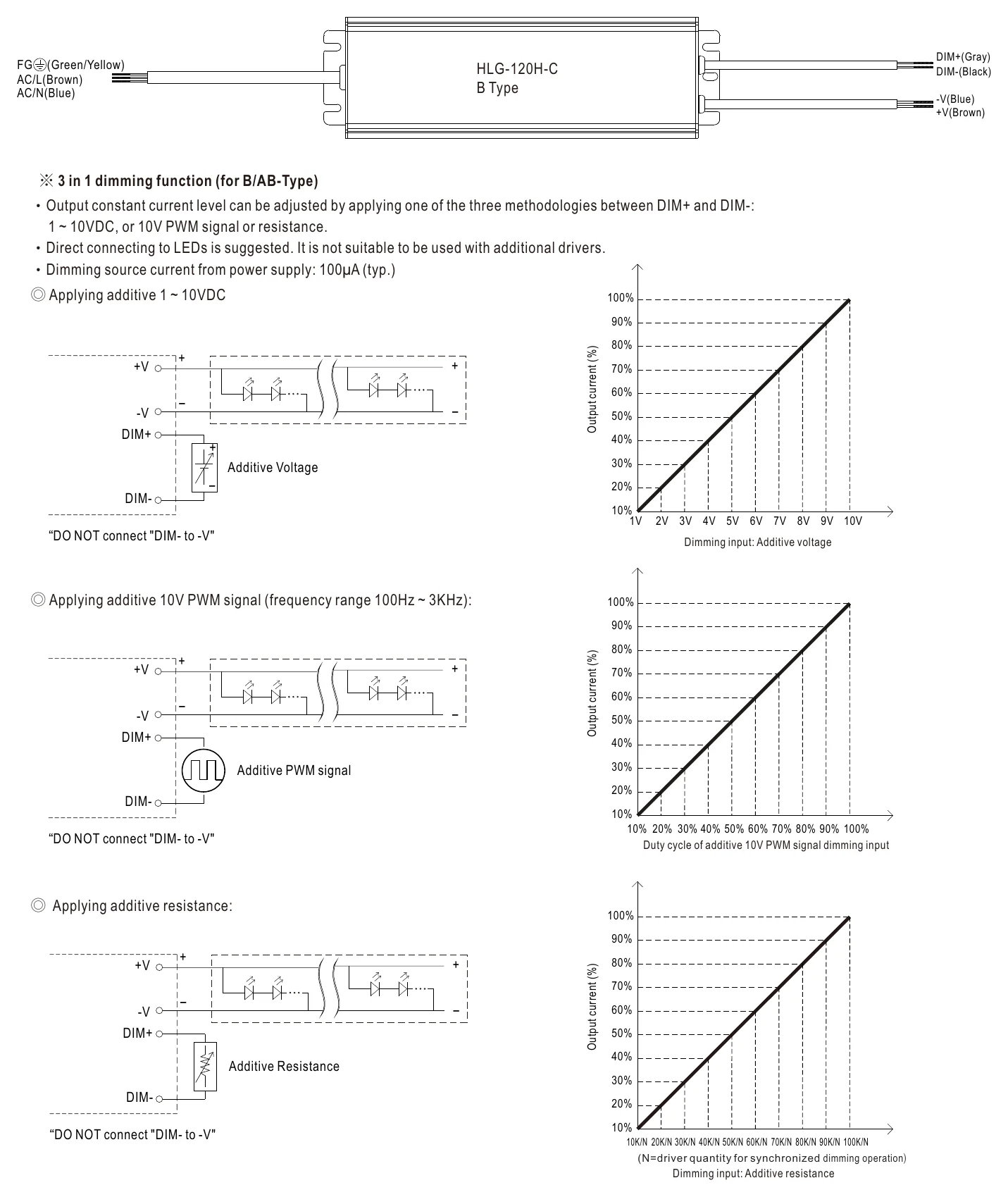

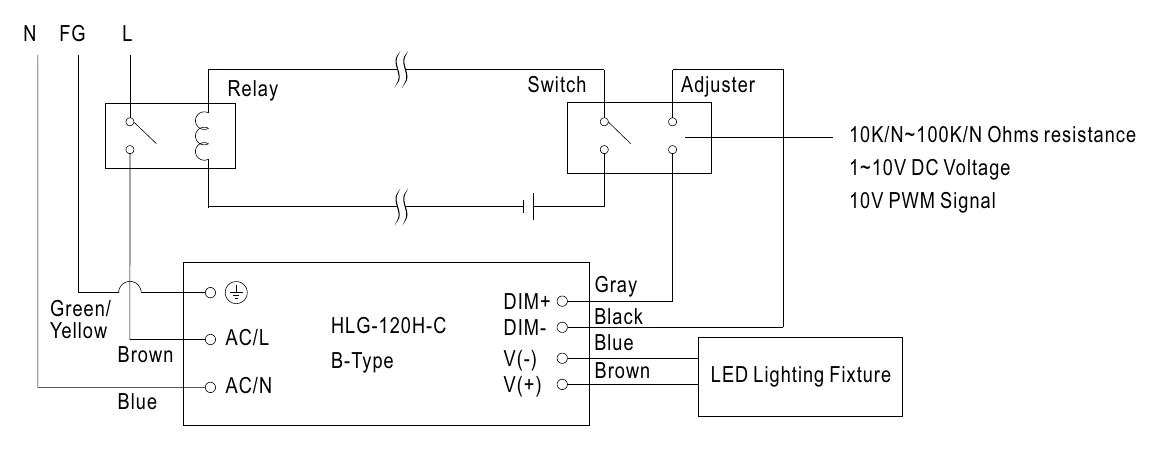

- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer Dimming
- Typical Lifet ime>62000 hours
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- RATED POWER
- 150.5W
- CONSTANT CURRENT REGIONNote.2
- 107V ~ 215V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 350 ~ 700mA
- CURRENT RIPPLE
- 8.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 1000ms / 115VAC 500ms / 230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)

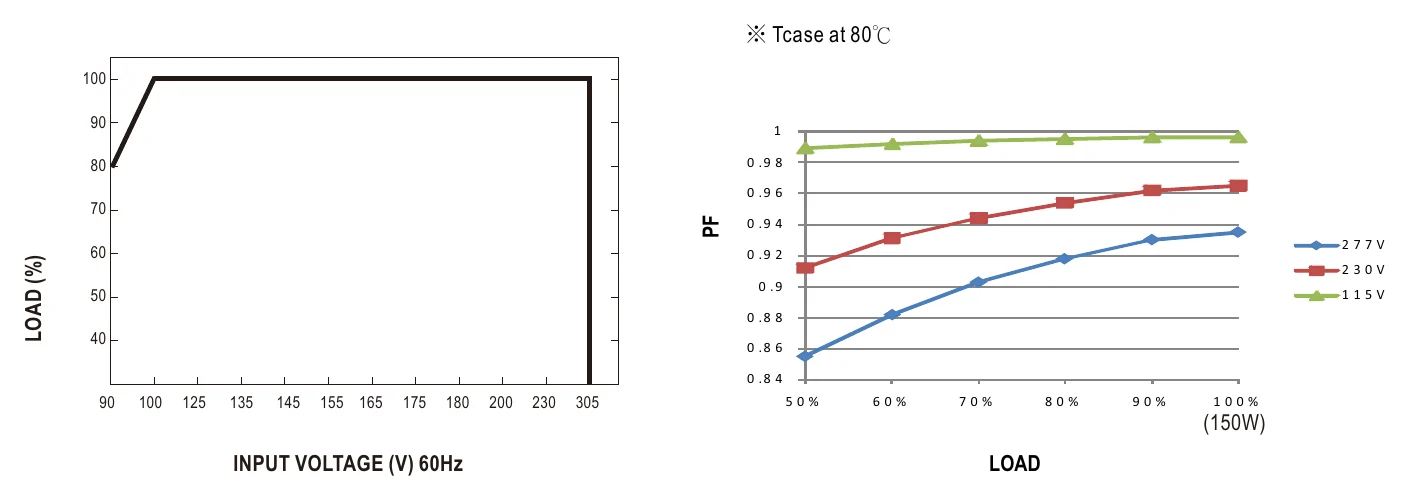

- PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION

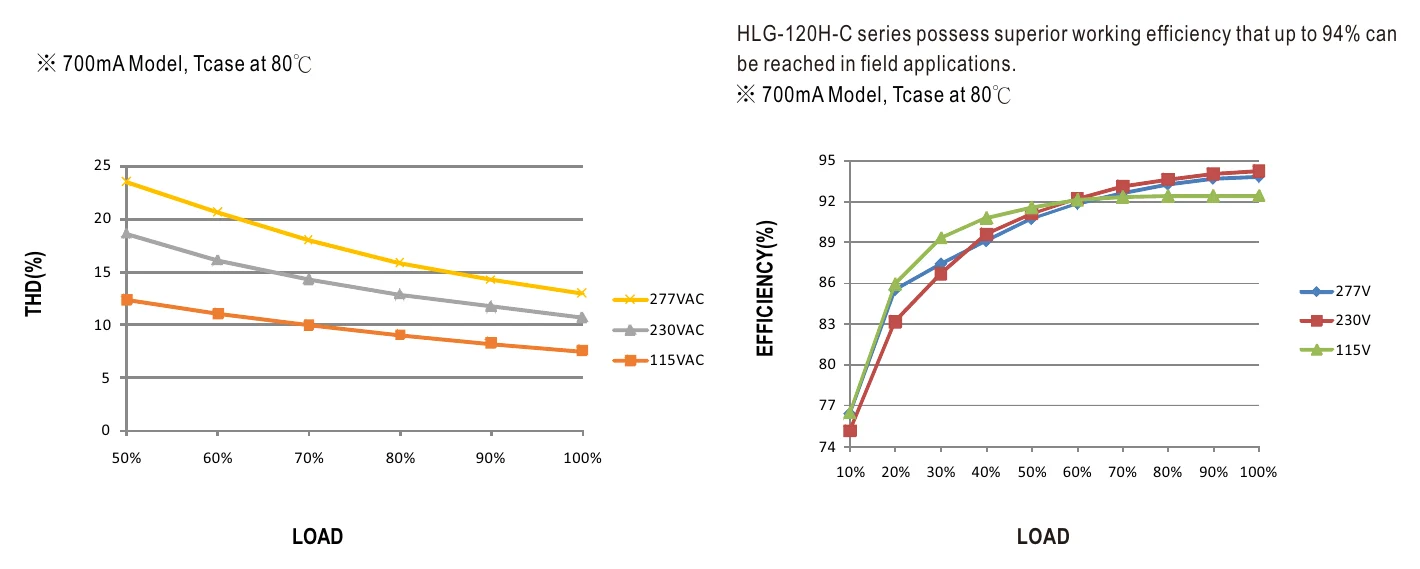

- THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 240 ~ 260V
- OVER VOLTAGE
- Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.

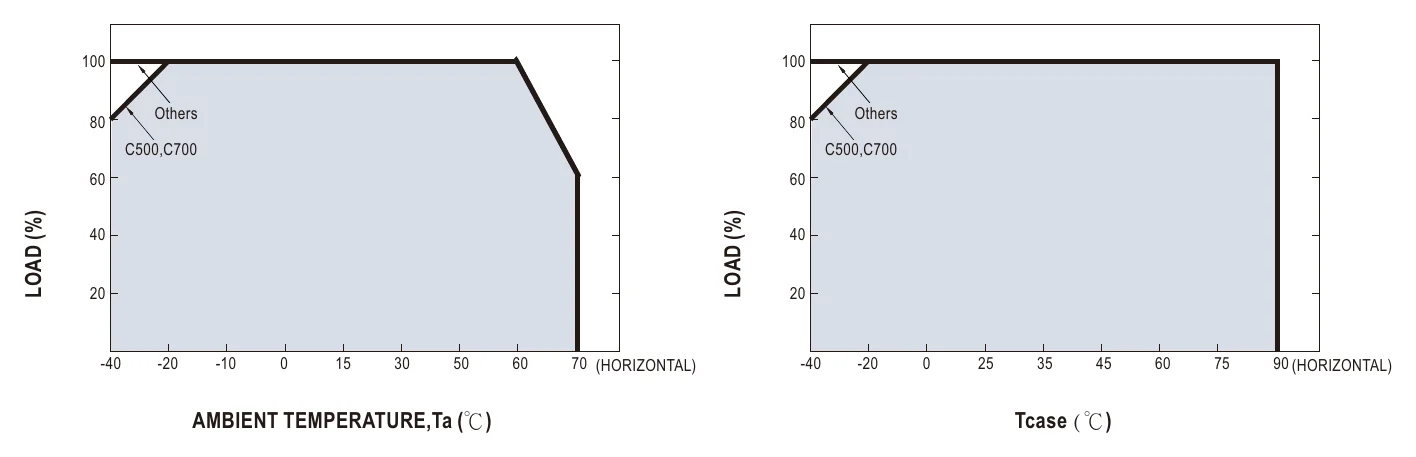

- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 10 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.6
- UL8750, CSA C22.2 No. 250.13-12, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent,GB19510.1,GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.6
- Compliance to EN55015, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 652.2K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 220*68*38.8mm (L*W*H)
- PACKING
- 1.04Kg; 12pcs/13.5Kg/0.8CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly point (or TMP, per DLC), is about 80℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

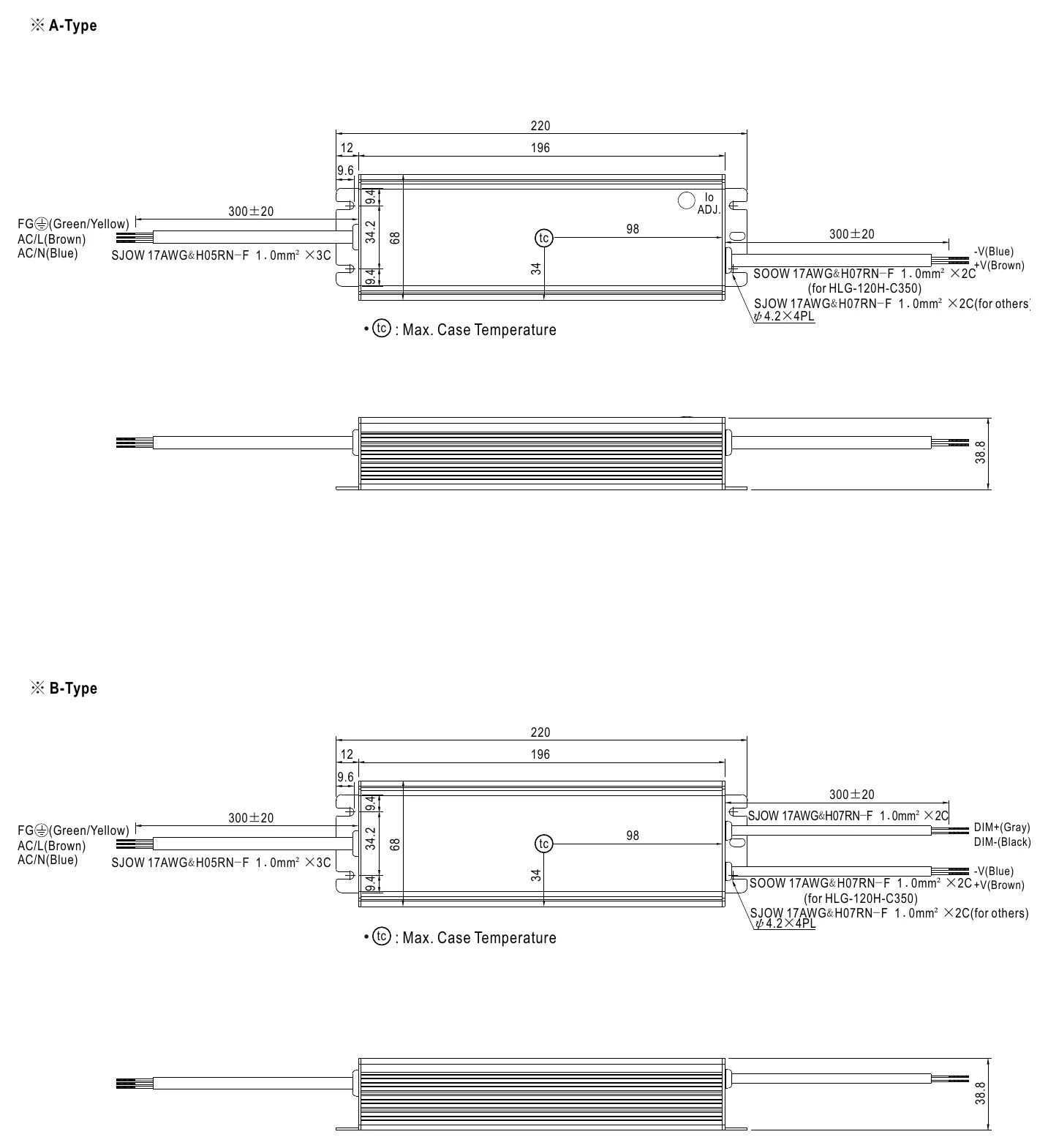

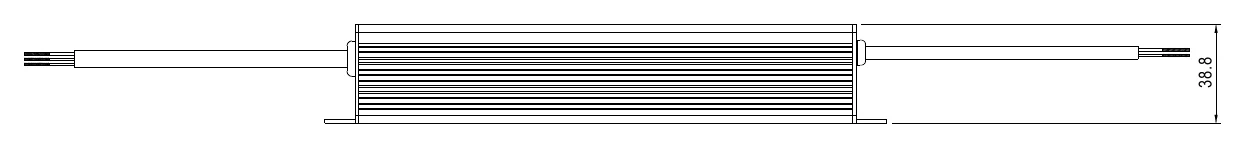

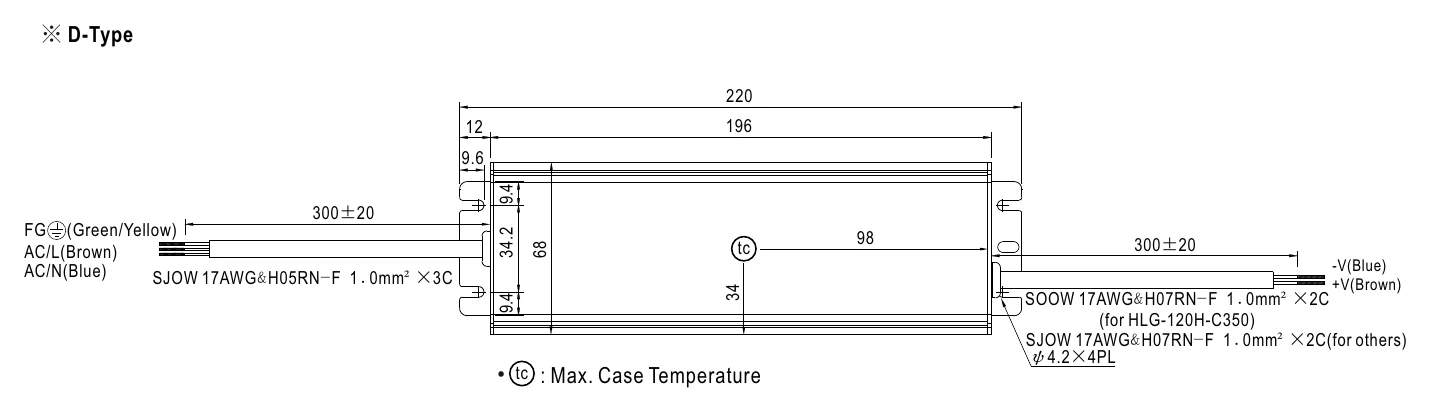

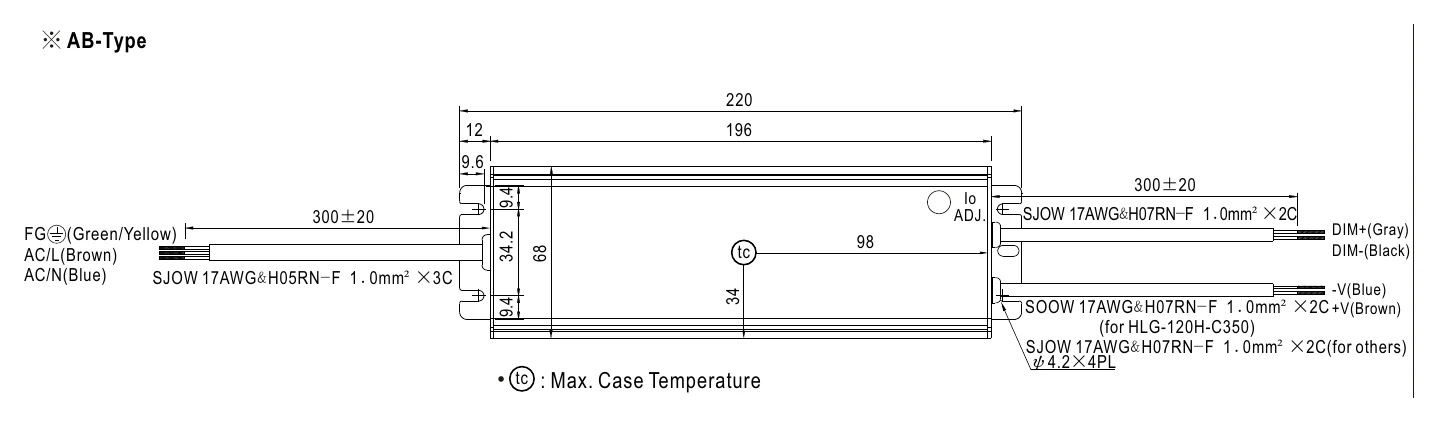

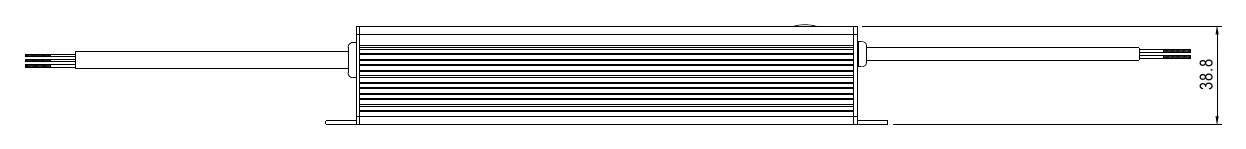

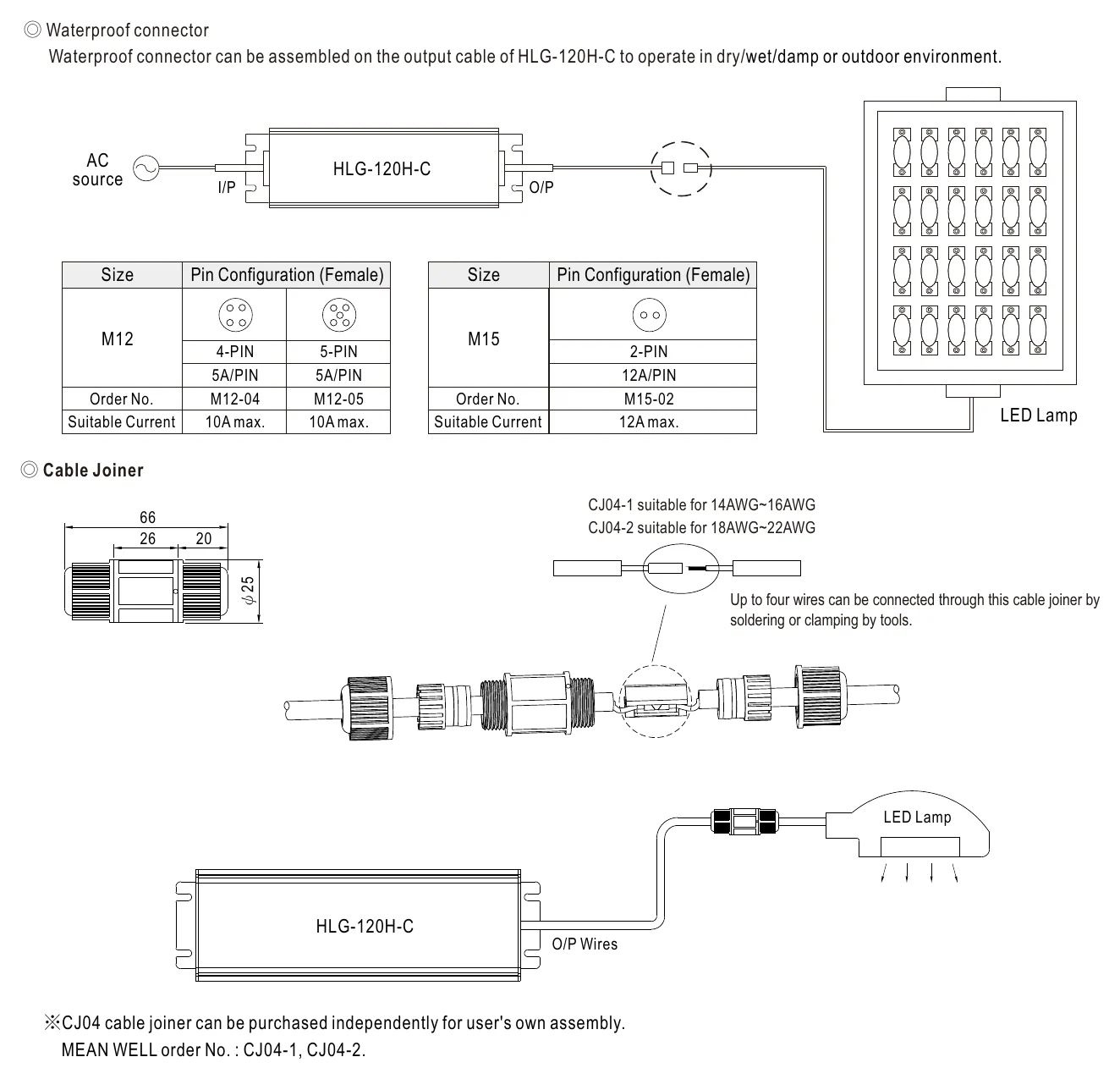

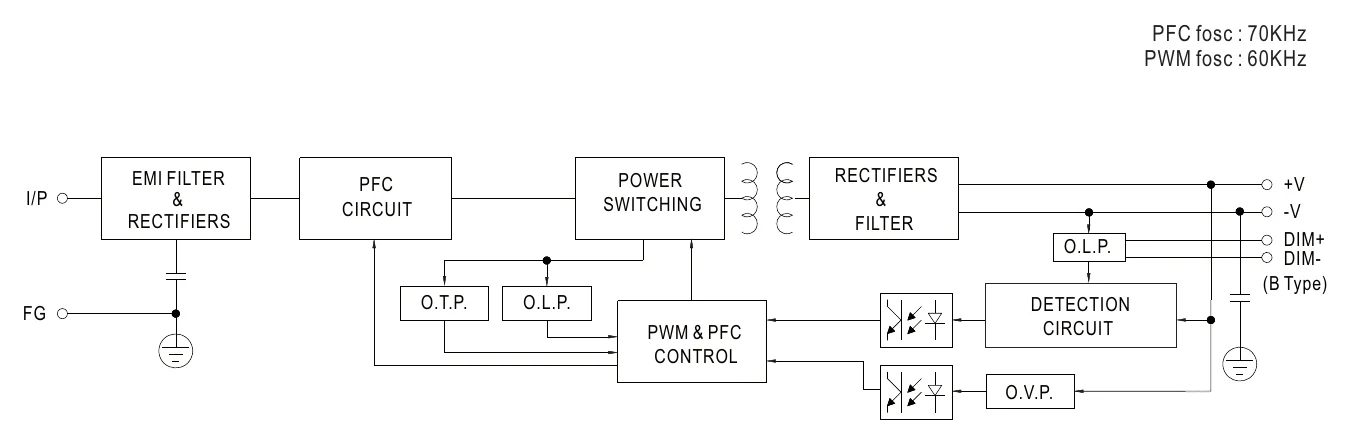

Technical drawings
Typical applications
- LED Street Lighting
- LED Fishing Lamp
- LED Harbor Lighting
- LED Building Architectural Lighting
- LED Greenhouse Lighting
- LED Bay Lighting
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HLG-120H-C700AB for dimmable LED downlights in an office or retail environment?
Yes. The HLG-120H-C700AB delivers 700mA constant current at up to 150.5W with a CC voltage range of 107-215V. The AB suffix means it has both output adjustment and a 1-10V/PWM dimming input, so you can tune the baseline current to your LED modules and control brightness through a building automation system or wall dimmer.
Is the HLG-120H-C700AB suitable for powering adjustable LED panel lights in a conference room?
Yes. At 700mA constant current with a 107-215V range and built-in dimming, it is a strong match for conference room LED panels where brightness adjustment is important. The potentiometer lets you set the maximum current to match the panel's rating, while the 1-10V/PWM dimming input allows smooth brightness transitions during presentations.
Can the HLG-120H-C700AB drive dimmable LED modules in architectural accent lighting?
Yes. With 150.5W at 700mA and a CC voltage range of 107-215V, it can power series-connected LED modules for cove lighting, wall washing, or facade accents. The dimming input supports dynamic lighting scenes, and the adjustable output lets you optimize the current for your specific LED modules. The IP65 rating covers indoor and sheltered outdoor installations.
What control options does the HLG-120H-C700AB offer for LED brightness?
The HLG-120H-C700AB provides two levels of control. The built-in potentiometer allows manual output current adjustment to set the baseline drive level. The 1-10V/PWM dimming input allows remote, dynamic brightness control via compatible dimmers, lighting controllers, or building management systems. Both features work together to give precise control over LED output.
Can the HLG-120H-C700AB be installed in a damp indoor location such as a natatorium or pool area?
The HLG-120H-C700AB is rated IP65, which provides protection against dust and low-pressure water jets. This is generally suitable for damp indoor environments like pool deck areas or covered natatorium ceilings, provided the driver is not submerged or subject to direct high-pressure cleaning. The -40°C to +90°C operating range handles the warm, humid conditions typical of pool areas.
What is the difference between the HLG-120H-C700A, C700AB, and C700B?
All three share the same 150.5W, 700mA, 107-215V constant current output and IP65 rating. The C700A has output adjustment only via potentiometer. The C700AB combines output adjustment with a 1-10V/PWM dimming input. The C700B has dimming input only, without output adjustment. Pick the variant that matches your need for manual tuning, remote dimming, or both.
