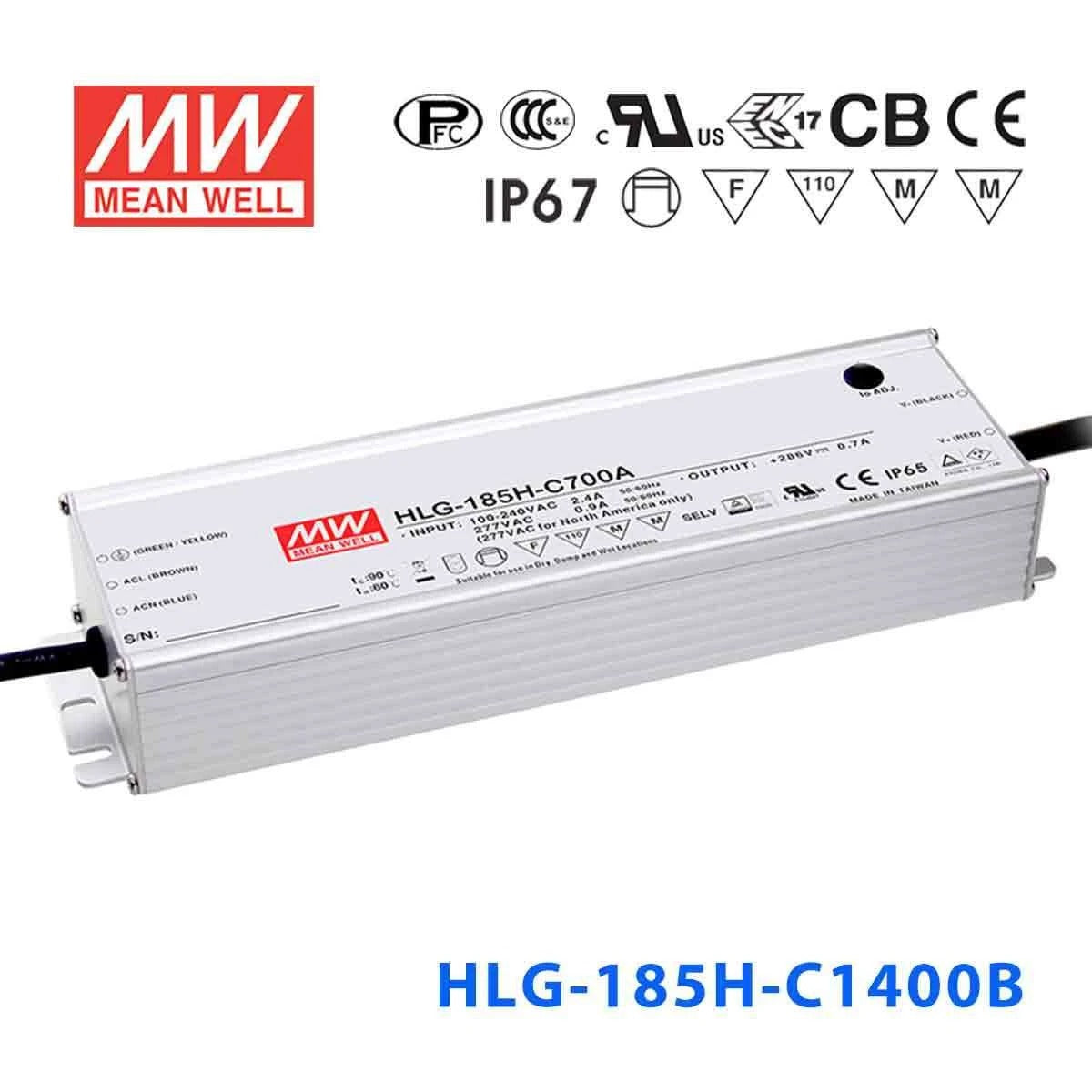

Mean Well HLG-185H-C1400B Power Supply 200.2W 1400mA - Dimmable
Please Login for Pricing
Description
Description
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating200.2 Watt
-
Output Voltage143 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length22.8 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.15 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-185H-C1400B for dimmable LED high-bay fixtures?
Yes. The HLG-185H-C1400B delivers 1400mA constant current with a 71-143V compliance range and includes a 1-10V/PWM dimming interface. It can drive high-bay LED fixtures wired in series, with smooth dimming for occupancy-based or daylight-harvesting control in warehouses and factories.
Is the HLG-185H-C1400B suitable for dimmable LED street light or area light projects?
Yes, when installed in a suitable enclosure. At 200.2W and 1400mA, it powers high-output LED modules used in street and area lighting. The dimming input allows midnight dimming schedules to reduce energy use. The IP65 rating protects against dust and rain in covered pole-top enclosures.
Can this driver power series-connected LED panel lights with brightness control?
Yes, provided the panel LEDs are rated for 1400mA and the combined forward voltage of panels wired in series falls between 71V and 143V. The built-in dimming interface connects to standard 1-10V or PWM controllers for smooth brightness adjustment across the panel array.
What is the difference between the HLG-185H-C1400B and the HLG-185H-C1050B?
Both are dimmable constant-current drivers in the HLG-185H family. The C1400B outputs 1400mA at 71-143V (200.2W), while the C1050B outputs 1050mA at 95-190V (199.5W). The C1400B suits LEDs requiring higher drive current in shorter series strings, whereas the C1050B is better for lower-current LEDs in longer strings.
Can the HLG-185H-C1400B withstand high-temperature environments like factory ceilings?
The driver operates from -40°C to +90°C, which covers most factory ceiling temperatures. The aluminium casing aids heat dissipation. However, if ambient temperatures routinely approach the upper limit, ensure adequate airflow around the driver to prevent thermal derating under full 200.2W load.
How do I determine if the HLG-185H-C1400B matches my LED module configuration?
Check that your LED modules are rated for 1400mA drive current and calculate the total forward voltage of all modules wired in series. The total must fall within the 71-143V compliance range. The number of modules you can connect depends on each module's individual forward voltage at 1400mA.
