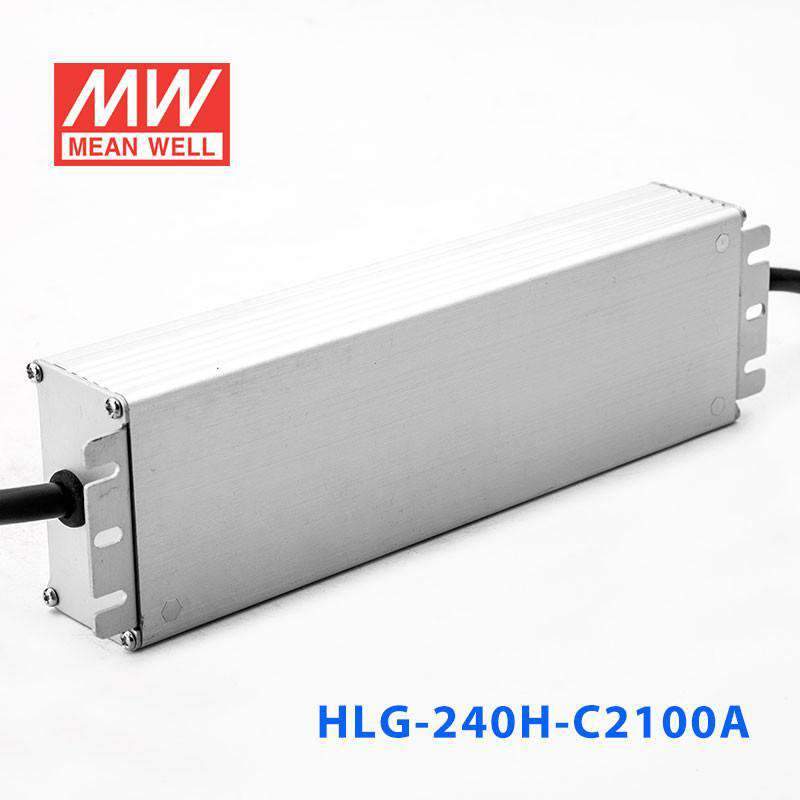

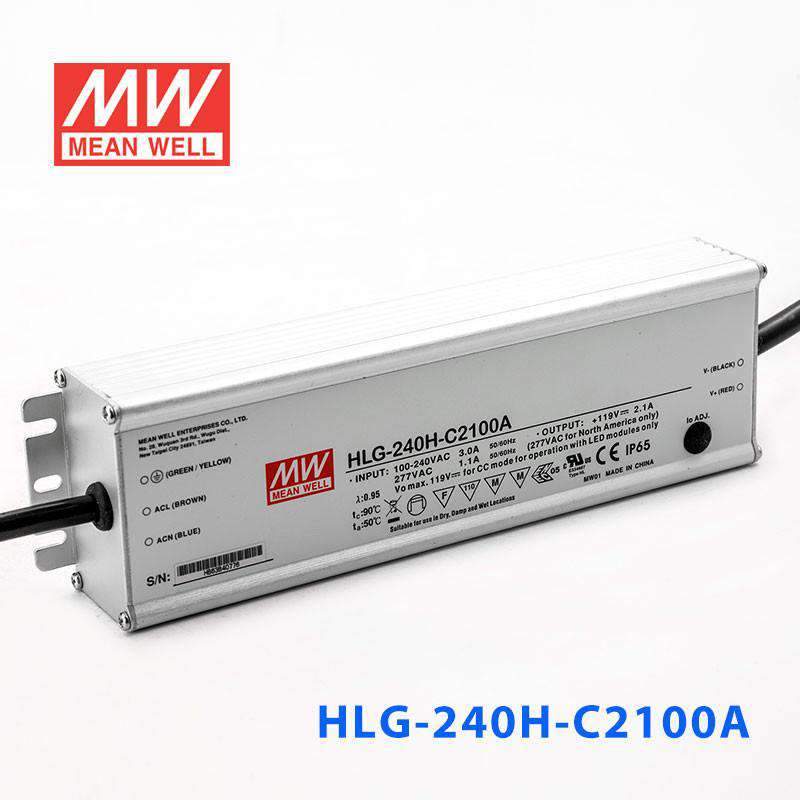

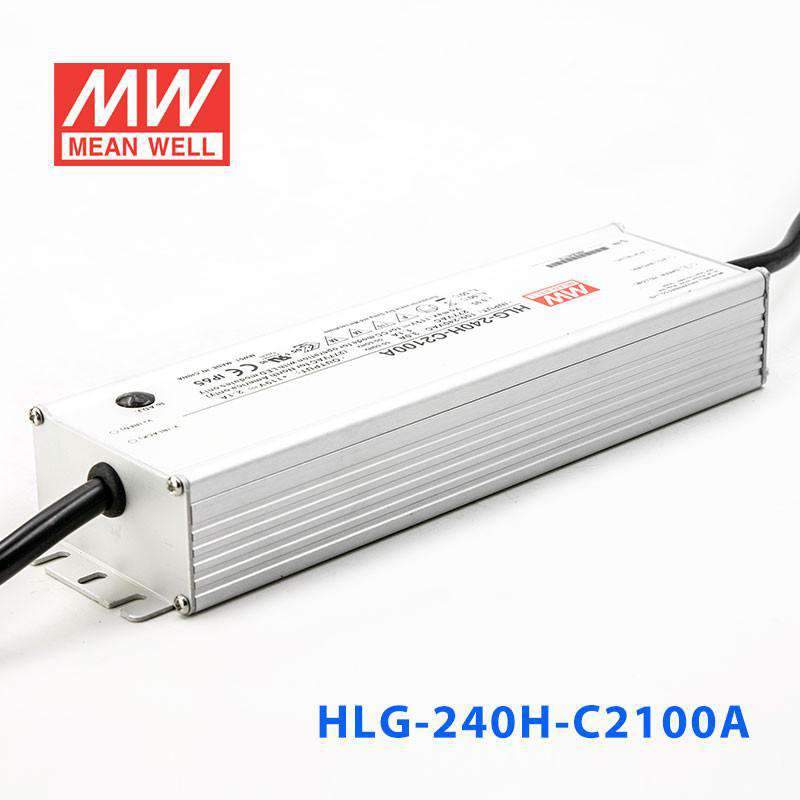

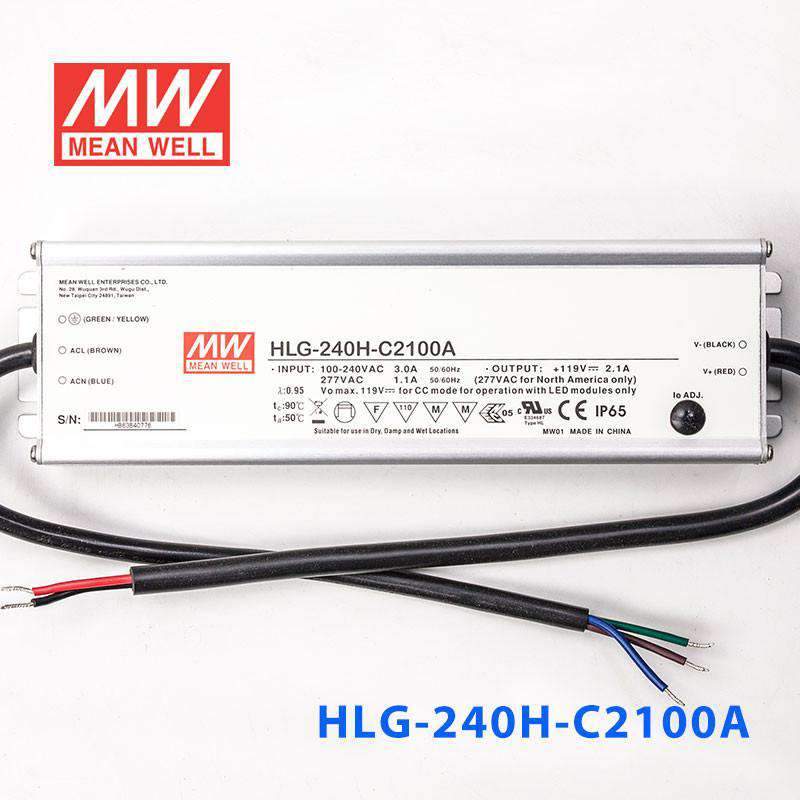

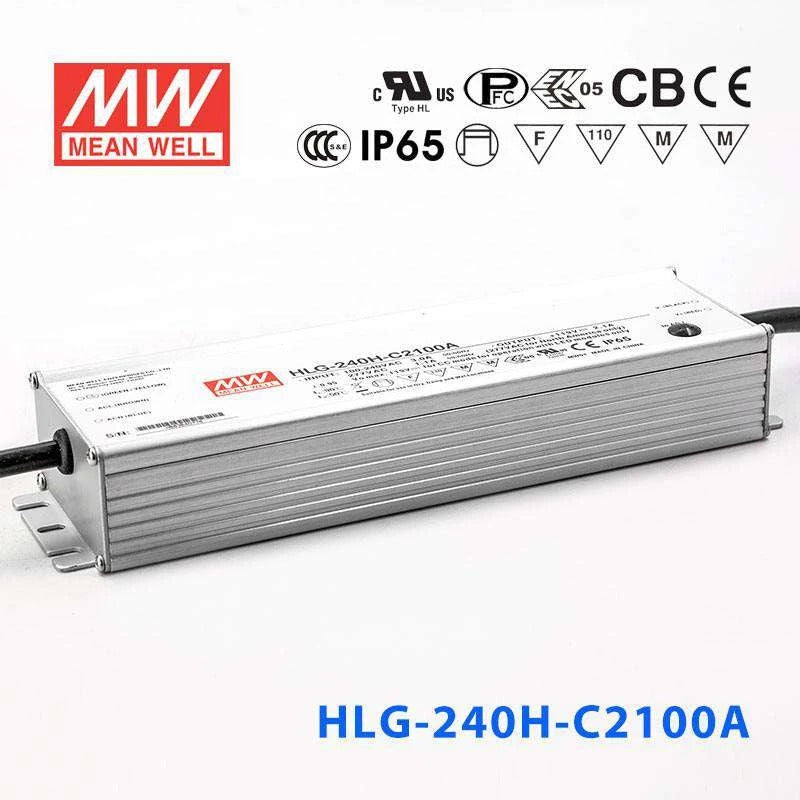

Mean Well HLG-240H-C2100A Power Supply 249.9W 2100mA - Adjustable | HLG-C Series | Constant Current LED Driver

Overview

HLG-240H-C2100A is the model of this series: rated current 2100mA, rated power 249.9W, typical efficiency 93.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-240H-C series is a 250W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-240H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>62000 hours
7 years warranty

Specifications

HLG-240H-C2100ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER: 249.9W
CONSTANT CURRENT REGION^Note.2: 59 ~ 119V
OPEN CIRCUIT VOLTAGE (max.): 122V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer
CURRENT ADJ. RANGE: 1050 ~ 2100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 125 ~ 137V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2513.7K hrs min. Telcordia SR-332 (Bellcore) ; 228.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-240H-C2100A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-C2100A Illustration (page 5) — Illustration (page 5)

HLG-240H-C2100A 250W Constant Current Mode LED Driver — 250W Constant Current Mode LED Driver

HLG-240H-C2100A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-240H-C2100A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-240H-C2100A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-C2100A LIFETIME(Kh) — LIFETIME(Kh)

HLG-240H-C2100A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-C2100A datasheetHLG-240H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate (HLG-240H-C)(EN) PDF Download

CB Certificate (HLG-240H-C)(EN) PDF Download

EMC Certificate (HLG-240H-C)(EN) PDF Download

ENEC Certificate (HLG-240H-C)(EN) PDF Download

Test reports1

Test Report(HLG-240H-C2100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-240H-C2100A to drive high-current LED downlight modules?

Yes. The HLG-240H-C2100A delivers a constant 2100mA across a CC voltage range of 59-119V, providing up to 249.9W. It is designed for LED modules that require a high drive current, such as COB LED downlights or multi-chip arrays. The adjustable output potentiometer lets you reduce the current below 2100mA if your LEDs need less.

Is the HLG-240H-C2100A suitable for powering LED grow light panels?

Yes. At 2100mA and 249.9W, it can drive a significant array of high-power LEDs for horticultural lighting. The CC voltage range of 59-119V accommodates various series configurations of grow light COBs. The adjustable output lets you tune the current for optimal light intensity and LED lifespan during different growth phases.

Can I use the HLG-240H-C2100A for high-brightness LED signage modules?

Yes, as long as the modules' total series forward voltage falls within 59-119V at 2100mA. The 249.9W capacity supports high-brightness sign modules that demand substantial current. The adjustable output potentiometer allows you to reduce brightness at installation without needing an external dimmer.

How does the output adjustment work on the HLG-240H-C2100A?

The A suffix indicates a built-in potentiometer that lets you reduce the output current below the rated 2100mA. This is useful for fine-tuning LED brightness at installation or matching the driver to LEDs with a lower optimal drive current. The adjustment is manual and does not provide remote dimming. For remote dimming, use the -C2100AB or -C2100B variant.

Can the HLG-240H-C2100A operate in a hot indoor environment like a factory ceiling?

Yes, with care. The driver's case temperature (Tcase) is rated up to +90°C, but output must be derated at elevated ambient temperatures per the derating curve, and the typical life expectancy of >62,000 hours applies when the tc point is about 75°C or less. Ensure airflow around the driver is not blocked so it can shed heat at full 249.9W load.
