Mean Well

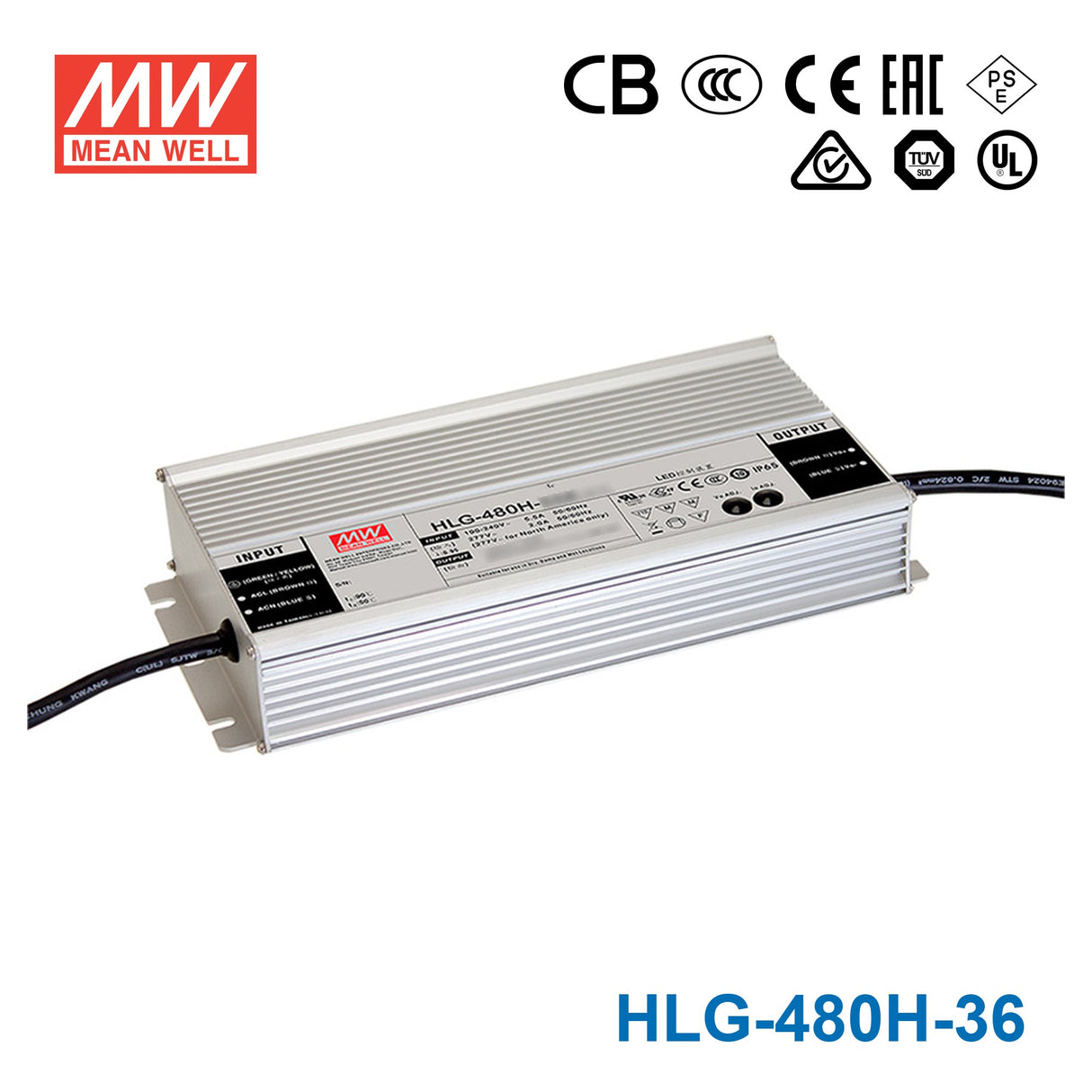

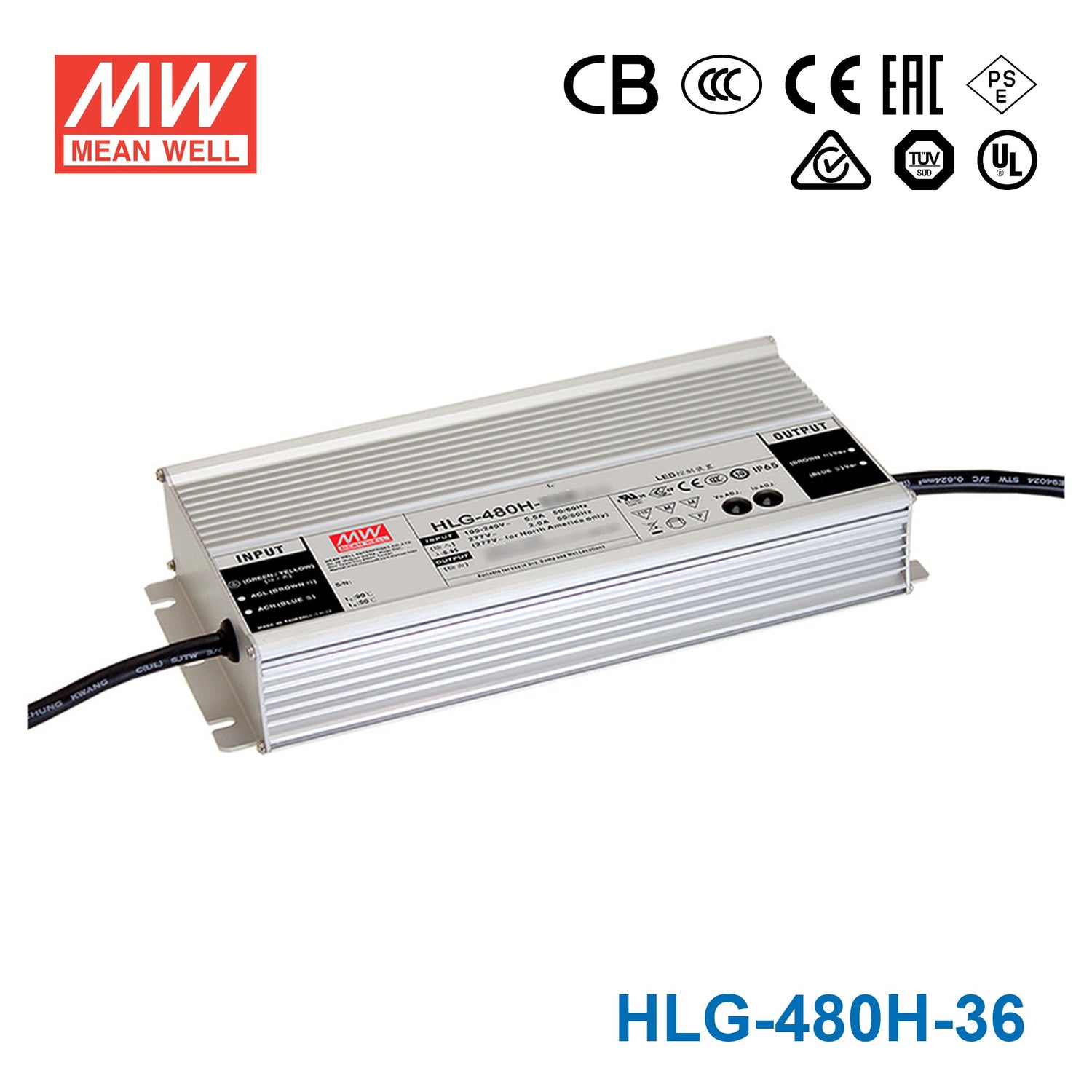

Mean Well HLG-480H-36 Power Supply 480W 36V 13.3A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-480H-36
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 20 in this family

HLG-480H-36
Available to order
|

Overview

HLG-480H-36 is the 36V output model of this series: rated current 13.3A, rated power 478.8W, typical efficiency 95%. Type Blank: Io and Vo fixed (IP67).

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box
  • Typical lifettime > 62000 hours
  • 7 years warranty (Note.9)

Specifications

HLG-480H-36Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.4
18 ~ 36V
RATED CURRENT
13.3A
RATED POWER
478.8W
RIPPLE & NOISE (max.)Note.2
250mVp-p
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms, 80ms 115VAC/230VAC
HOLD UP TIME (Typ.)
16ms 115VAC/230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧40% / 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.) 230VAC
95%
EFFICIENCY (Typ.) 277VAC
95.5%
AC CURRENT (Typ.)
5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
LEAKAGE CURRENT
<0.75mA / 277VAC
MAX. NO. of PSUs on 16A CIRCUIT BREAKER
2unit(circuit breaker of type B) / 3units(circuit breaker of type C) at 230VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
40 ~ 50V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE
Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.02%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx type), J61347-1(H29), J61347-2-13(H29)(except for Dx type)approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx type),J55015(H29)(for Blank/A-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 ;KC KN15,KN61547( except for AB,Dx type ),J55015(H29)(for Blank/A-type)

OTHERS

MTBF
1185.9K hrs min. Telcordia SR-332(Bellcore) ; 95.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
262*125*43.8mm (L*W*H)
PACKING
2.8Kg;4pcs/12.2Kg/0.55CUFT

MODEL ENCODING

Blank (this model)
Io and Vo fixed; IP67
A
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (0~10VDC，10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc，10V PWM signal and resistance); IP65
DX
Built-in Smart timer dimming function by user request; IP67
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-480H-36 BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-480H-36 Outputcurrent(%)
Outputcurrent(%)
HLG-480H-36 ◎ Applying additive resistance
◎ Applying additive resistance
HLG-480H-36 OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HLG-480H-36 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-480H-36 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-480H-36 LIFETIME(Kh)
LIFETIME(Kh)
HLG-480H-36 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-480H-36 For 48V,54V
For 48V,54V
HLG-480H-36 For 48V,54V
For 48V,54V

Typical applications

  • LED Harboure
  • LED greenhouse lighting
  • LED statium lighting
  • LED mining lighting
  • Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

FAQ

Can I use the HLG-480H-36 for a large outdoor 36V LED lighting project?

Yes. The HLG-480H-36 delivers 478.8W at 36V (13.3A) with an IP67 rating, so it can be mounted outdoors exposed to rain, snow, and dust. This makes it suitable for large-scale 36V LED strip installations, outdoor commercial signage, or industrial area lighting where weather protection of the driver is a concern.

Is the HLG-480H-36 a good choice for 36V LED high-bay fixtures in a factory or warehouse?

Yes. At 478.8W and 36V it can drive multiple high-bay LED fixtures up to its rated capacity. The wide 90-305VAC input handles industrial power supplies worldwide. The constant-current range of 18-36V accommodates slight voltage variations across parallel fixture strings in large open spaces.

Can the HLG-480H-36 power 36V LED panels in a large-format outdoor advertising display?

Yes, as long as the total panel load does not exceed 478.8W. The HLG-480H-36 provides a fixed 36V output with a constant-current range of 18-36V, which handles voltage drops across large LED panel arrays. IP67 waterproofing ensures reliable operation in outdoor billboard or transit shelter installations.

How many meters of 36V LED strip can the HLG-480H-36 support?

Divide the 478.8W rated power by your strip's rated power per meter. For example, a 36V strip at 14W/m could run up to about 34 meters (478.8W / 14W per meter = 34.2m). A strip at 24W/m would allow about 20 meters. Always check your strip's rated power per meter and keep total consumption at or below 478.8W.

Can the HLG-480H-36 be installed in a location subject to flooding or submersion?

The IP67 rating means it can withstand temporary immersion in water up to 1 meter deep for 30 minutes. It is not designed for permanent underwater installation or locations where it sits in standing water, but it tolerates brief temporary immersion and severe weather exposure. The metal housing and -40°C to +90°C case temperature (Tcase) range add durability in harsh conditions.

What are the differences between the HLG-480H-36 and HLG-480H-36A?

Both share the same 478.8W / 36V / 13.3A core specs with a CC range of 18-36V. The base HLG-480H-36 has fixed output and IP67 waterproofing, making it better for fully exposed outdoor locations. The HLG-480H-36A adds output voltage/current adjustment via a built-in potentiometer but is rated IP65, so it needs sheltered mounting.
