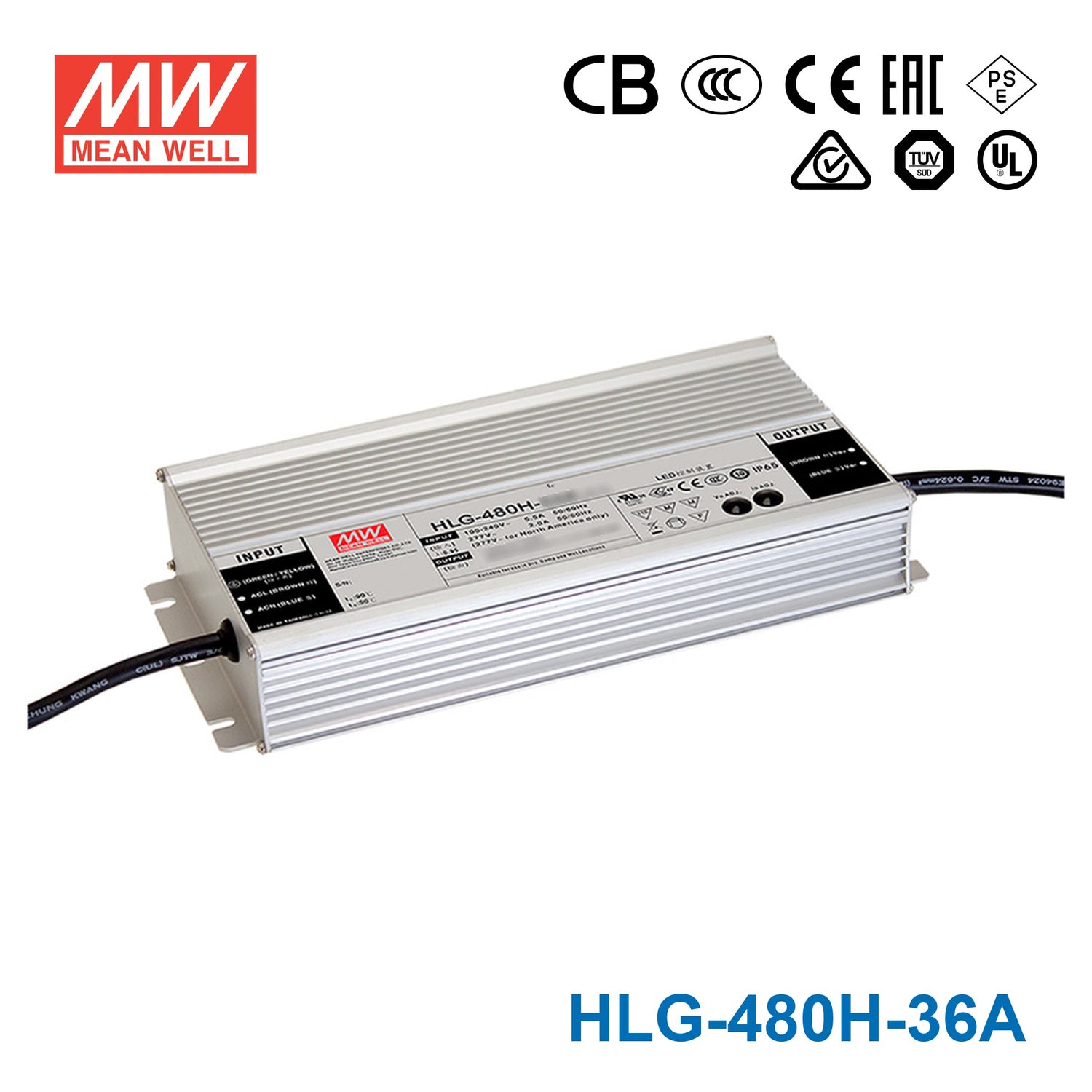

Buy Mean Well HLG-480H-36A Power Supply | Constant Voltage + Constant Current LED Driver

The HLG-480H is a 480W Mean Well AC-DC LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 36V
✓ Rated output current: 13.3A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-480H-36A for a large 36V LED strip project where I need to adjust the output voltage?

Yes. The HLG-480H-36A provides 480W at 36V (13.3A) with a built-in potentiometer for output voltage and current adjustment. This lets you dial in the precise voltage your 36V LED strips need within the 18-36V constant-current range, which is helpful for compensating voltage drop in long cable runs.

Is the HLG-480H-36A suitable for 36V LED grow light panels in a greenhouse?

Yes. At 480W it can power high-output 36V LED grow-light arrays. The adjustable output lets you match the driver voltage to your panel's exact forward voltage requirement, maximizing electrical efficiency. The -40°C to +90°C operating range and IP65 rating handle typical greenhouse humidity and temperature fluctuations.

Can the HLG-480H-36A drive 36V LED fixtures in a retail display or showroom?

Yes. With 480W at 36V and adjustable output, it can power extensive 36V LED track lighting, cove lighting, or display case illumination. The ability to fine-tune voltage ensures optimal brightness and efficiency for each fixture string. Its compact 262 x 125 x 43.8 mm size allows installation in ceiling voids or equipment rooms.

How many meters of 36V LED strip can the HLG-480H-36A power?

Divide 480W by your strip's wattage per meter. A 36V strip rated at 12W/m could run up to 40 meters (480W / 12W per meter = 40m). A strip at 20W/m would allow 24 meters. Always check your strip's rated power per meter and keep total draw at or below 480W.

Is the HLG-480H-36A appropriate for a fully exposed outdoor rooftop installation?

Not recommended without additional protection. The HLG-480H-36A is rated IP65, which guards against dust and low-pressure water spray but is not designed for direct rain exposure, submersion, or standing water. For exposed rooftop installations, mount it inside a weatherproof enclosure or choose the IP67-rated HLG-480H-36 instead.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-480H-24 Power Supply 480W 24V with AU/NZ plug 20A	480W	24V	20A	IP67	View
Mean Well HLG-480H-48 Power Supply 480W 48V 10A	480W	48V	10A	IP67	View
Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable 20A	480W	24V	20A	IP65	View
Mean Well HLG-480H-24 Power Supply 480W 24V 20A	480W	24V	20A	IP67	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
