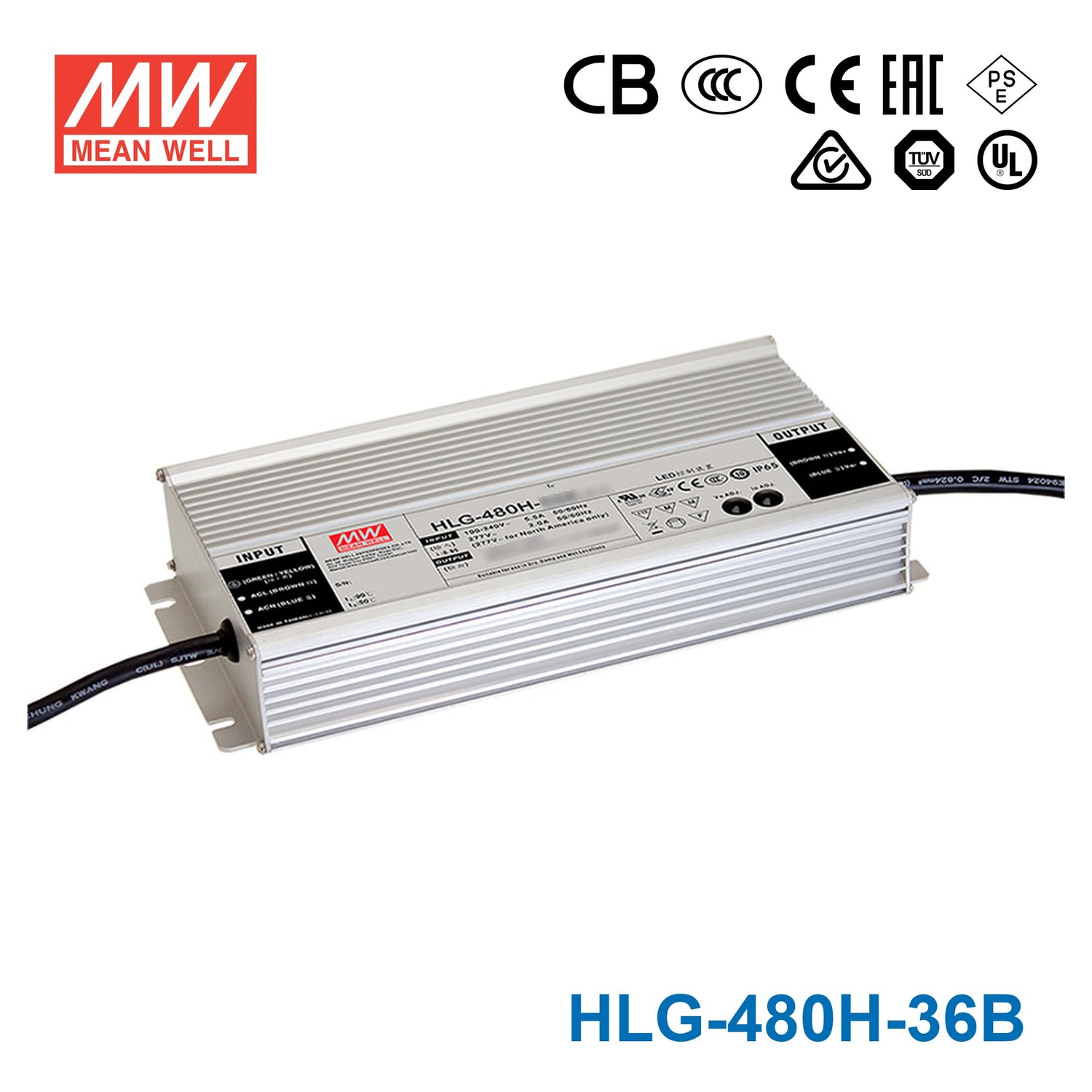

Mean Well HLG-480H-36B 480W 36V Constant Voltage + Constant Current LED Driver

The HLG-480H is a 480W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE
✓ 3 years warranty

Frequently Asked Questions

Can I use the HLG-480H-36B for outdoor 36V LED strip lighting exposed to rain?

Yes. The HLG-480H-36B delivers 480W at 36V and carries an IP67 waterproof rating, meaning it can withstand temporary submersion up to 1 meter. It is well suited for fully exposed outdoor LED strip installations where rain, snow, or washdown conditions are expected.

Is the HLG-480H-36B suitable for powering dimmable 36V LED flood lights?

Yes. The B suffix indicates a dimming signal input (1-10V, PWM, or resistance), so you can control brightness externally. With 480W available at 36V and 13.3A, it can drive high-power 36V LED flood light arrays while allowing scene-level dimming through a compatible controller.

Can the HLG-480H-36B power 36V LED modules in an outdoor commercial sign?

Yes. At 480W and 36V output, it handles large signage loads. The IP67 waterproof enclosure means you can mount it outdoors without an additional weatherproof box. Its wide 90-305VAC input also accommodates varying mains voltages found at commercial sites around the world.

How many meters of 36V LED strip can the HLG-480H-36B drive?

That depends on the strip's power consumption per meter. The HLG-480H-36B provides up to 480W at 36V. For instance, if your strip uses 20W/m, you could run up to 24 meters (480W / 20W per meter = 24m). Always check your strip's rated power per meter and keep total load at or below 480W.

Can the HLG-480H-36B operate in extreme cold or hot environments?

Yes. It is rated for an operating temperature range of -40°C to +90°C, which covers extreme winter cold and high-ambient industrial or desert environments. Combined with its IP67 waterproof aluminium casing, it is designed for harsh outdoor conditions year-round.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-480H-24 Power Supply 480W 24V with AU/NZ plug 20A	480W	24V	20A	IP67	View
Mean Well HLG-480H-48 Power Supply 480W 48V 10A	480W	48V	10A	IP67	View

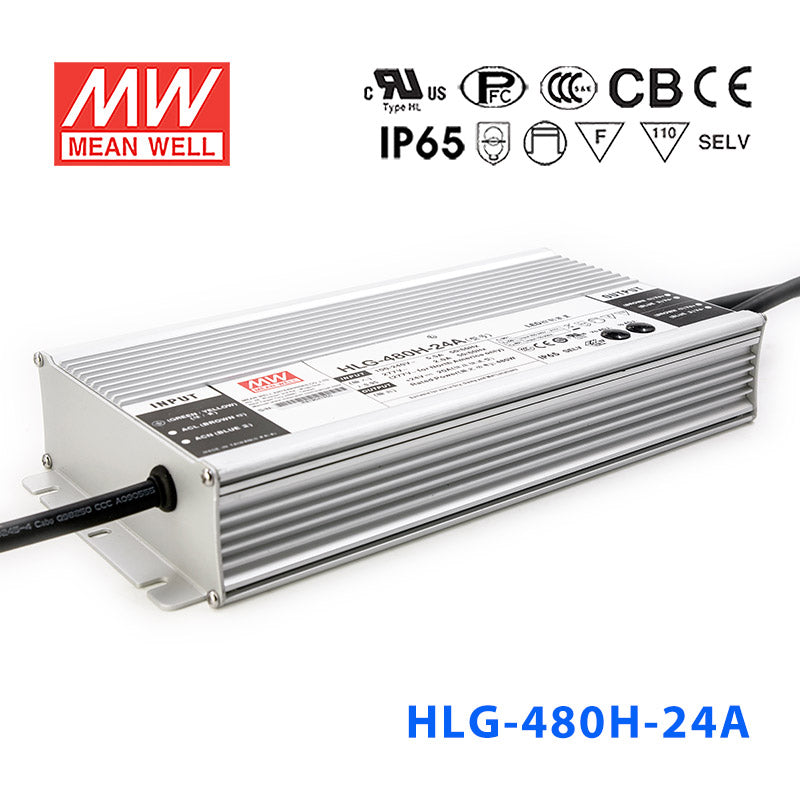

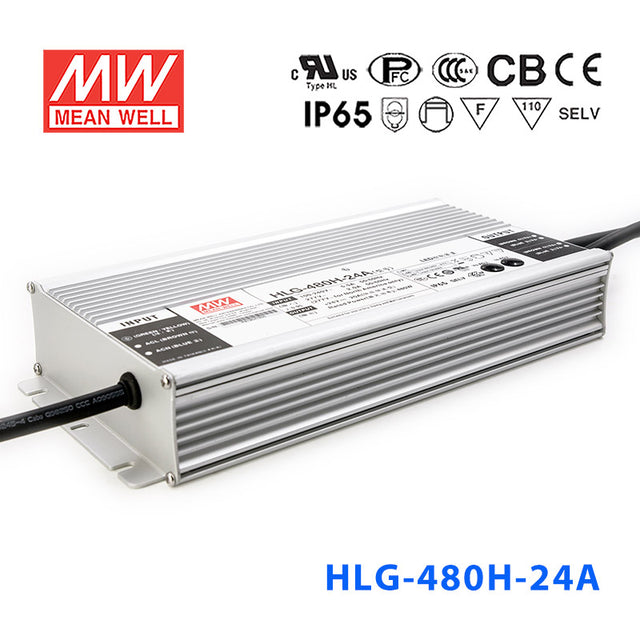

Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable 20A	480W	24V	20A	IP65	View
Mean Well HLG-480H-24 Power Supply 480W 24V 20A	480W	24V	20A	IP67	View
