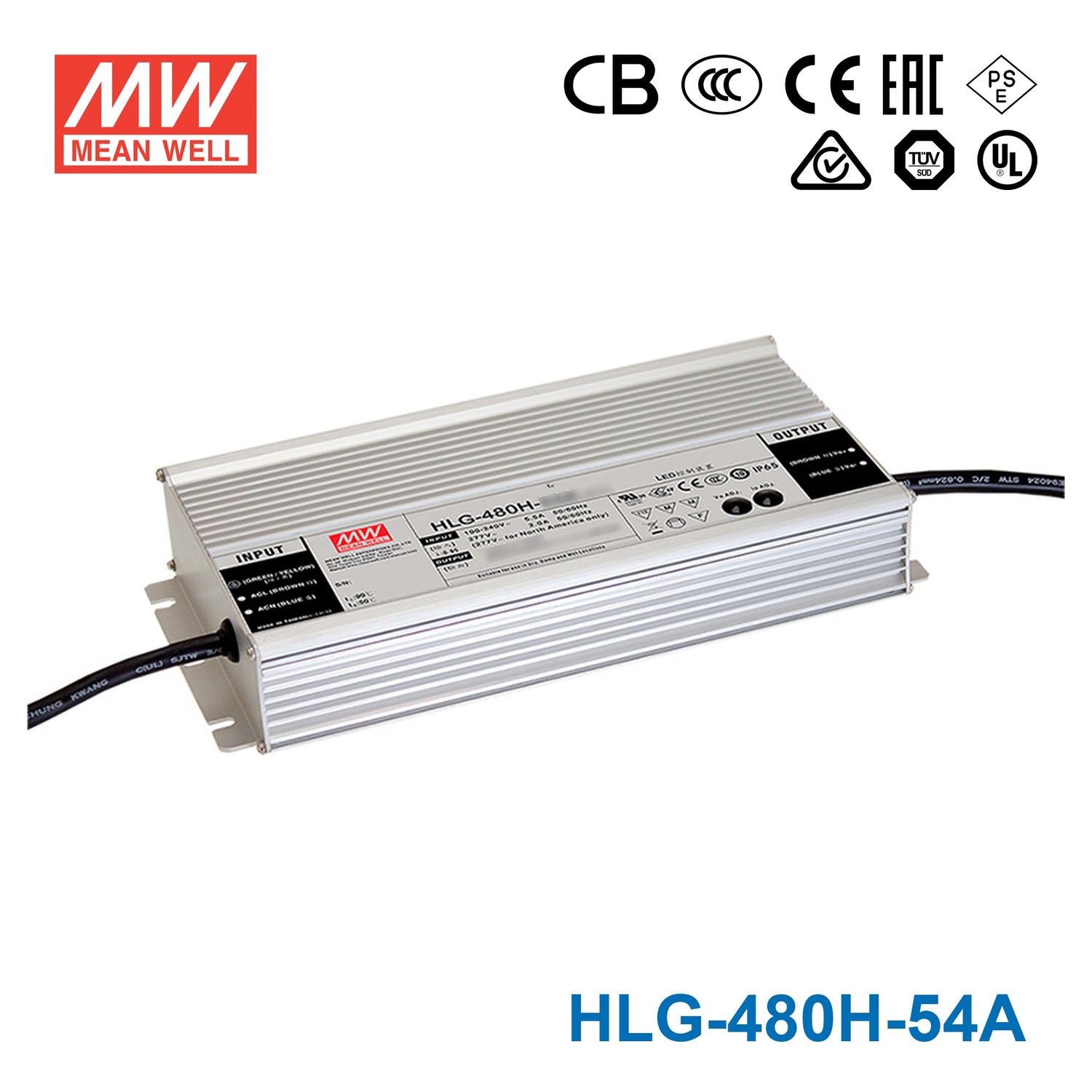

Mean Well HLG-480H-54A Power Supply 480W 54V - Adjustable 8.9A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-480H-54A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 20 in this family

HLG-480H-54A
Available to order
|

Overview

HLG-480H-54A is the 54V output model of this series: rated current 8.9A, rated power 480.6W, typical efficiency 95%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; junction box
  • Typical lifettime > 62000 hours
  • 7 years warranty (Note.9)

Specifications

HLG-480H-54ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE
54V
CONSTANT CURRENT REGIONNote.4
27 ~ 54V
RATED CURRENT
8.9A
RATED POWER
480.6W
RIPPLE & NOISE (max.)Note.2
350mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 45.9 ~ 56.7V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 4.4 ~ 8.9A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms, 80ms 115VAC/230VAC
HOLD UP TIME (Typ.)
16ms 115VAC/230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧40% / 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.) 230VAC
95%
EFFICIENCY (Typ.) 277VAC
95%
AC CURRENT (Typ.)
5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
LEAKAGE CURRENT
<0.75mA / 277VAC
MAX. NO. of PSUs on 16A CIRCUIT BREAKER
2unit(circuit breaker of type B) / 3units(circuit breaker of type C) at 230VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
60 ~ 70V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE
Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.02%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx type), J61347-1(H29), J61347-2-13(H29)(except for Dx type)approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx type),J55015(H29)(for Blank/A-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 ;KC KN15,KN61547( except for AB,Dx type ),J55015(H29)(for Blank/A-type)

OTHERS

MTBF
1185.9K hrs min. Telcordia SR-332(Bellcore) ; 95.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
262*125*43.8mm (L*W*H)
PACKING
2.8Kg;4pcs/12.2Kg/0.55CUFT

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A (this model)
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (0~10VDC，10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc，10V PWM signal and resistance); IP65
DX
Built-in Smart timer dimming function by user request; IP67
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  13. 13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-480H-54A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-480H-54A Outputcurrent(%)
Outputcurrent(%)
HLG-480H-54A ◎ Applying additive resistance
◎ Applying additive resistance
HLG-480H-54A OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HLG-480H-54A STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-480H-54A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-480H-54A LIFETIME(Kh)
LIFETIME(Kh)
HLG-480H-54A MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-480H-54A ※A-Type
※A-Type
HLG-480H-54A For 48V,54V
For 48V,54V
HLG-480H-54A For 48V,54V
For 48V,54V

Typical applications

  • LED Harboure
  • LED greenhouse lighting
  • LED statium lighting
  • LED mining lighting
  • Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

FAQ

Can I use the HLG-480H-54A to power adjustable 54V LED lighting in a commercial space?

Yes. The HLG-480H-54A delivers 480W at 54V and includes a built-in potentiometer for output voltage and current adjustment. This lets you trim the output to precisely match your 54V LED fixtures, which is useful in commercial retrofit projects where exact voltage tuning is needed.

Is the HLG-480H-54A suitable for 54V LED grow light systems?

Yes. Its 480W output at 54V with adjustable voltage and current can drive high-power 54V LED grow panels. The built-in potentiometer lets you adjust light intensity without an external dimmer, and the fanless metal housing cools by free air convection in grow tent or greenhouse environments.

Can the HLG-480H-54A power long runs of 54V LED strip for architectural lighting?

Yes. At 480W and 8.9A, this driver handles substantial 54V LED strip installations. The higher 54V rail reduces voltage drop over distance, and the adjustable output lets you fine-tune to the optimal voltage for your specific strip, which helps maintain even brightness along the run.

How many meters of 54V LED strip can the HLG-480H-54A handle?

That depends on the strip's rated power per meter. The HLG-480H-54A supplies up to 480W at 54V. For a strip rated at 16W/m, you could run up to 30 meters (480W / 16W per meter = 30m). Always check your strip's rated power per meter and keep total load at or below 480W.

Can the HLG-480H-54A be used in a semi-exposed outdoor installation?

Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for under-eave, canopy, or covered patio mounting. For fully exposed installations or a risk of temporary immersion, consider the IP67-rated HLG-480H-54 or HLG-480H-54B.

What is the difference between the HLG-480H-54A and HLG-480H-54AB?

Both are 480W / 54V / 8.9A and IP65 rated. The HLG-480H-54A has an output adjustment potentiometer but no dimming input. The HLG-480H-54AB adds a 0-10V/PWM/resistance dimming input in addition to the adjustment potentiometer, giving you external brightness control from a wall dimmer or automation system.
