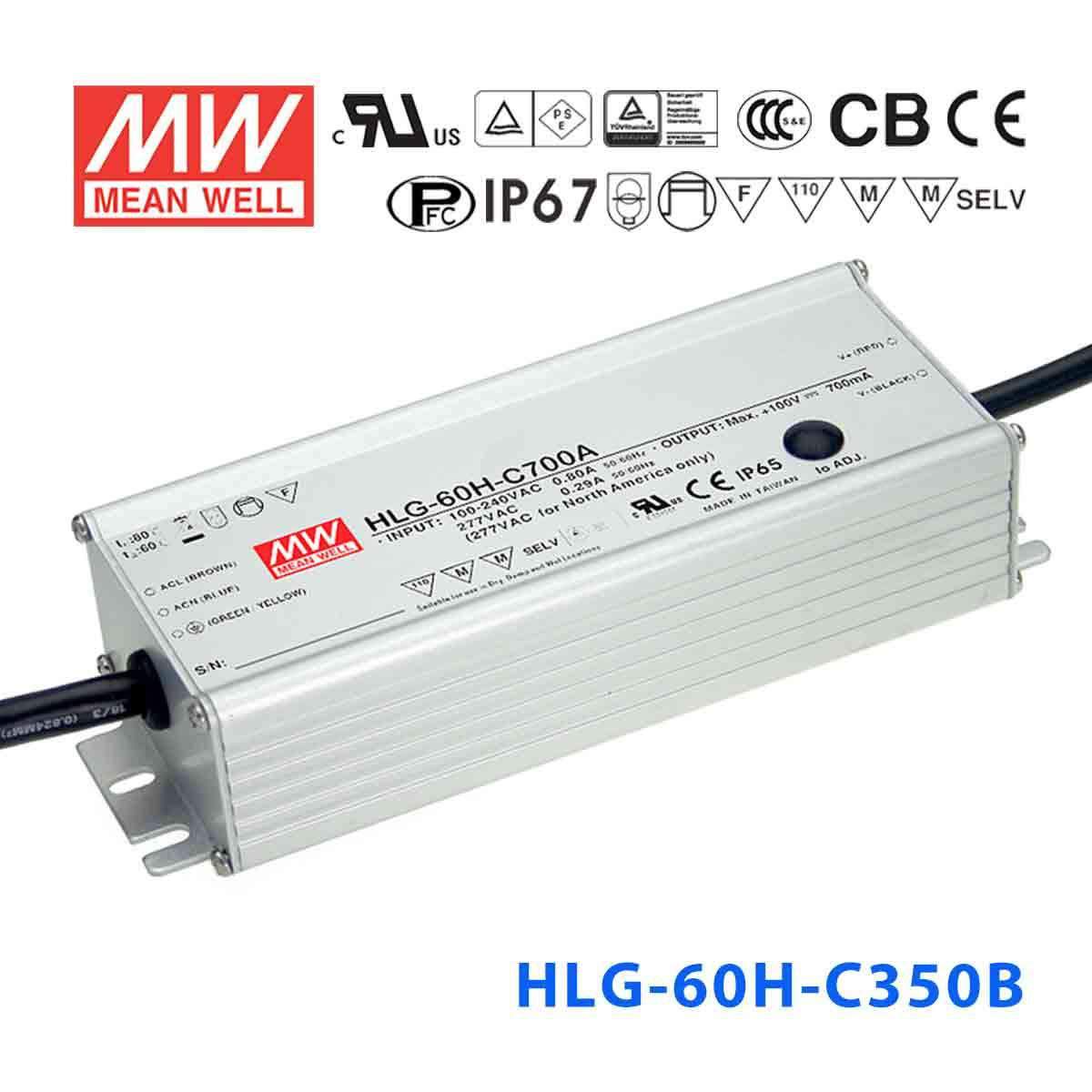

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLG-60H-C350B Power Supply 70W 350mA - Dimmable
Please Login for Pricing
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating70 Watt
-
Output Voltage200 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length17.1 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.73 kg
