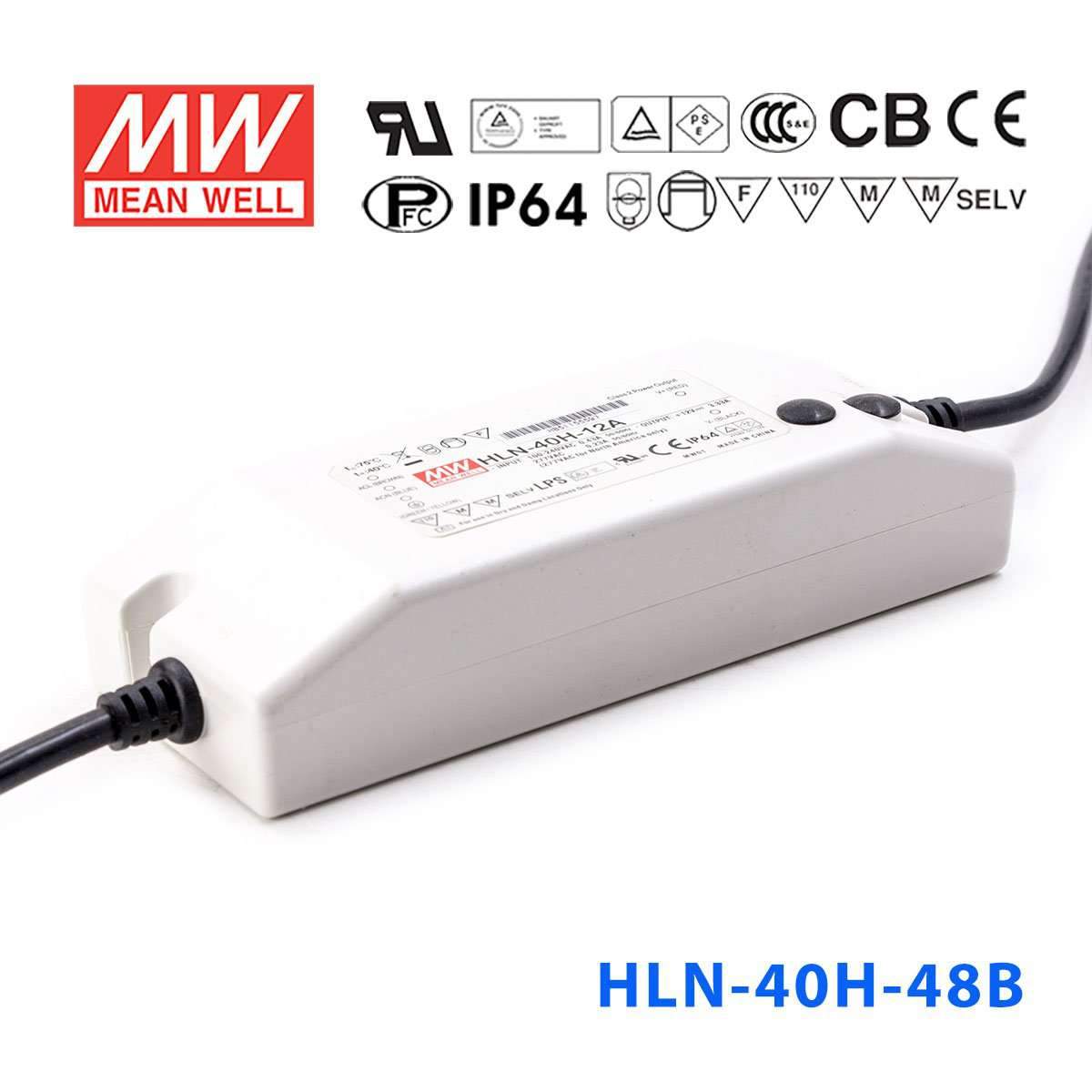

Mean Well HLN-40H-48B Power Supply 40W 48V - IP64, Dimmable 840mA

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit

SKU:

HLN-40H-48B

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LPF-40-48

Notify me when it's back in stock

The HLN-40H is a 40W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+50℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
✓ 3 years warranty

Frequently Asked Questions

Can the HLN-40H-48B be used for 48V sign or channel-letter lighting?

Yes, it is suitable for 48V constant-current sign lighting loads within the 28-48V CC range. It provides up to 0.84A and 40.3W, and the listed features specifically mention signage applications.

Is this driver a fit for 48V accent or display lighting?

It can be used for 48V constant-current accent or display lighting fixtures that require up to 0.84A. The load also needs to stay within the driver's 28-48V constant-current range and 40.3W maximum output.

Can I use the HLN-40H-48B with a 48V constant-current LED strip?

Yes, if the strip is a 48V constant-current type designed for 0.84A operation. This driver is not a general constant-voltage supply, so the strip must match the 28-48V range and constant-current output.

Will the HLN-40H-48B hold up in damp or dusty locations?

The IP64 enclosure is intended for protection against dust and splashing water, which makes it suitable for many damp and sheltered outdoor environments. It is also rated for operation from -40°C to +50°C.

How much 48V LED strip wattage can this driver support?

The maximum available output is 40.3W. To estimate strip length, divide 40.3W by your strip's rated watts per meter, and verify the strip is a 48V constant-current product compatible with 0.84A and the 28-48V CC range.

How does the HLN-40H-48B compare with the other high-voltage HLN-40H options?

Among the higher-voltage HLN-40H models, 36V is rated at 1.12A, 42V at 0.96A, 48V at 0.84A, and 54V at 0.75A, all around 40W output. The HLN-40H-48B is the 48V dimmable version with 40.3W maximum power.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLN-40H-30B Power Supply 40W 30V - IP64, Dimmable 1.34A	40.2W	30V	1.34A	IP64	View
Mean Well HLN-40H-54B Power Supply 40W 54V - IP64, Dimmable 750mA	40.5W	54V	0.75A	IP64	View
Mean Well HLN-40H-54A Power Supply 40W 54V - IP64, Adjustable 750mA	40.5W	54V	0.75A	IP64	View
Mean Well HLN-40H-48A Power Supply 40W 48V - IP64, Adjustable 840mA	40.3W	48V	0.84A	IP64	View
Mean Well HLN-40H-42B Power Supply 40W 42V - IP64, Dimmable 960mA	40.3W	42V	0.96A	IP64	View
Mean Well HLN-40H-42A Power Supply 40W 42V - IP64, Adjustable 960mA	40.3W	42V	0.96A	IP64	View
Mean Well HLN-40H-36B Power Supply 40W 36V - IP64, Dimmable 1.12A	40.3W	36V	1.12A	IP64	View
Mean Well HLN-40H-36A Power Supply 40W 36V - IP64, Adjustable 1.12A	40.3W	36V	1.12A	IP64	View
Mean Well HLN-40H-30A Power Supply 40W 30V - IP64, Adjustable 1.34A	40.2W	30V	1.34A	IP64	View
Mean Well HLN-40H-24B Power Supply 40W 24V - IP64, Dimmable 1.67A	40.1W	24V	1.67A	IP64	View
Mean Well HLN-40H-24A Power Supply 40W 24V - IP64, Adjustable 1.67A	40.1W	24V	1.67A	IP64	View
Mean Well HLN-40H-20B Power Supply 40W 20V - IP64, Dimmable 2A	40W	20V	2A	IP64	View
Mean Well HLN-40H-20A Power Supply 40W 20V - IP64, Adjustable 2A	40W	20V	2A	IP64	View
Mean Well HLN-40H-15B Power Supply 40W 15V - IP64, Dimmable 2.67A	40W	15V	2.67A	IP64	View
Mean Well HLN-40H-15A Power Supply 40W 15V - IP64, Adjustable 2.67A	40W	15V	2.67A	IP64	View
Mean Well HLN-40H-12B Power Supply 40W 12V - IP64, Dimmable 3.33A	40W	12V	3.33A	IP64	View
