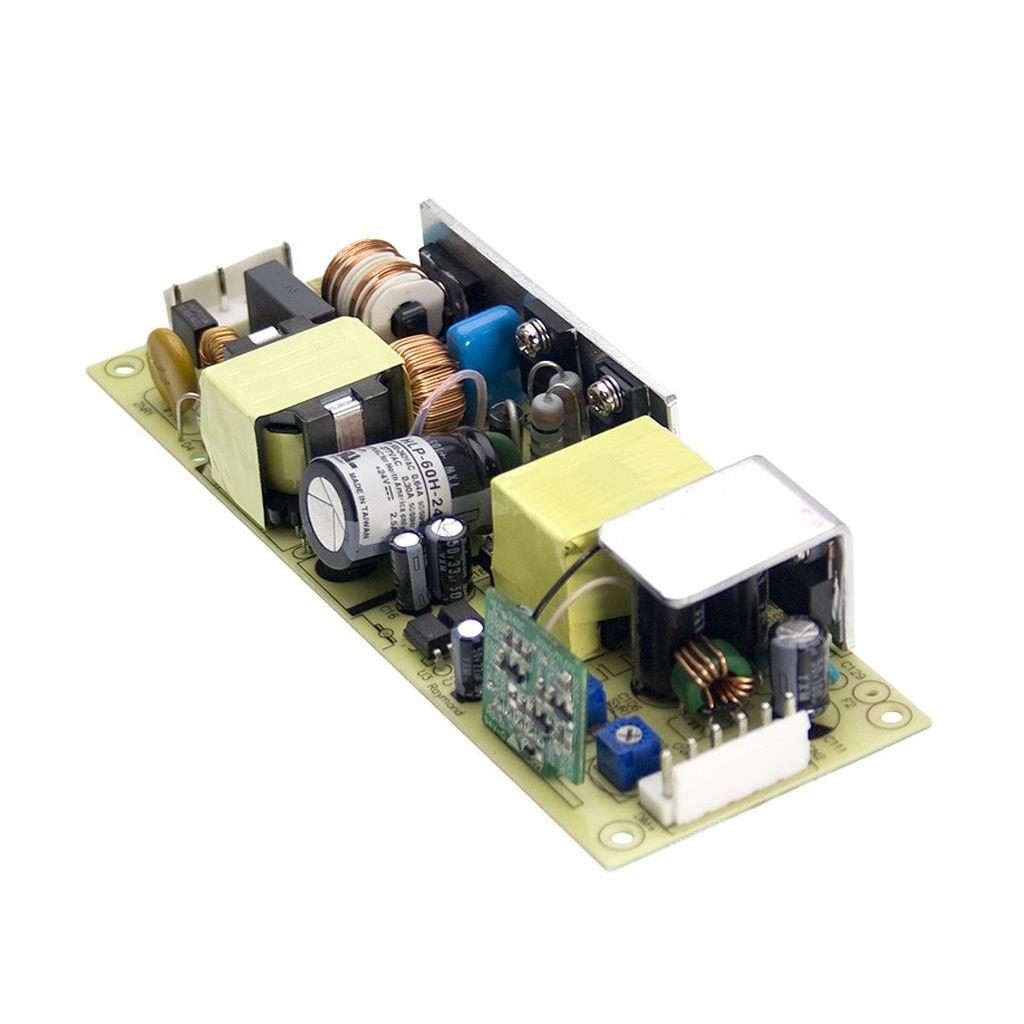

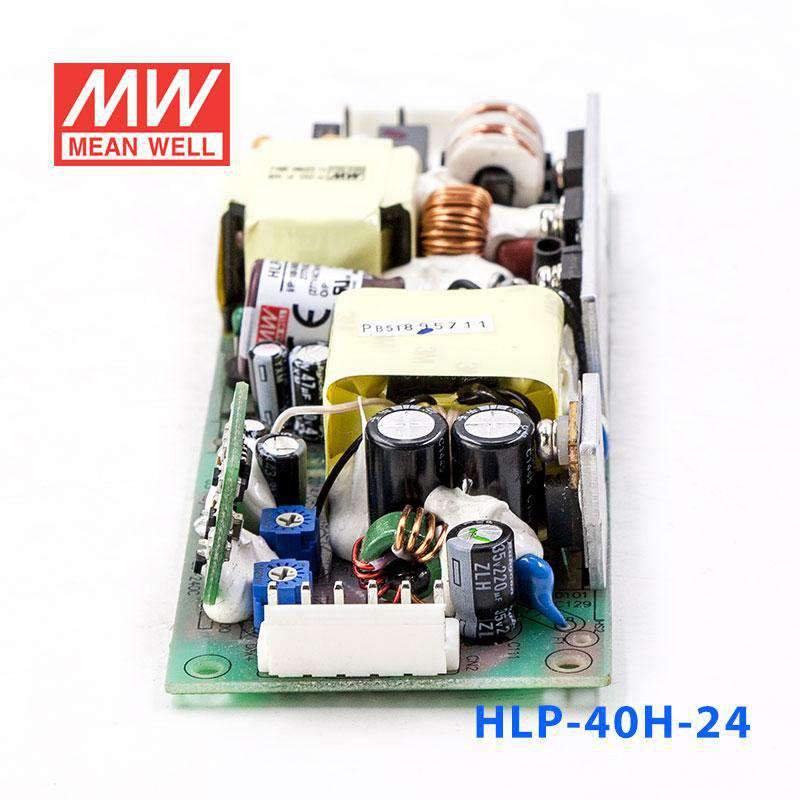

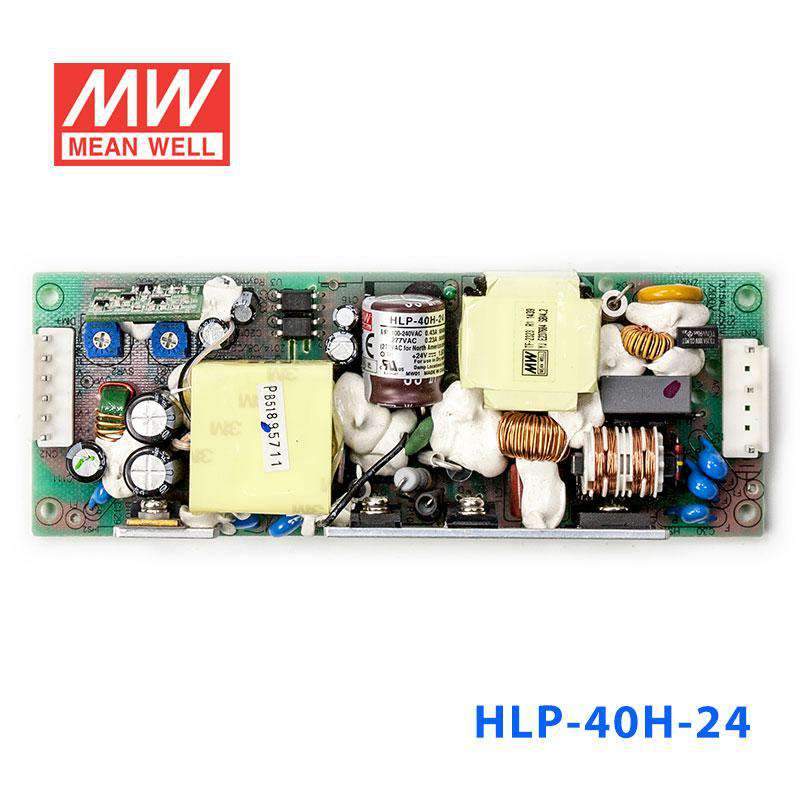

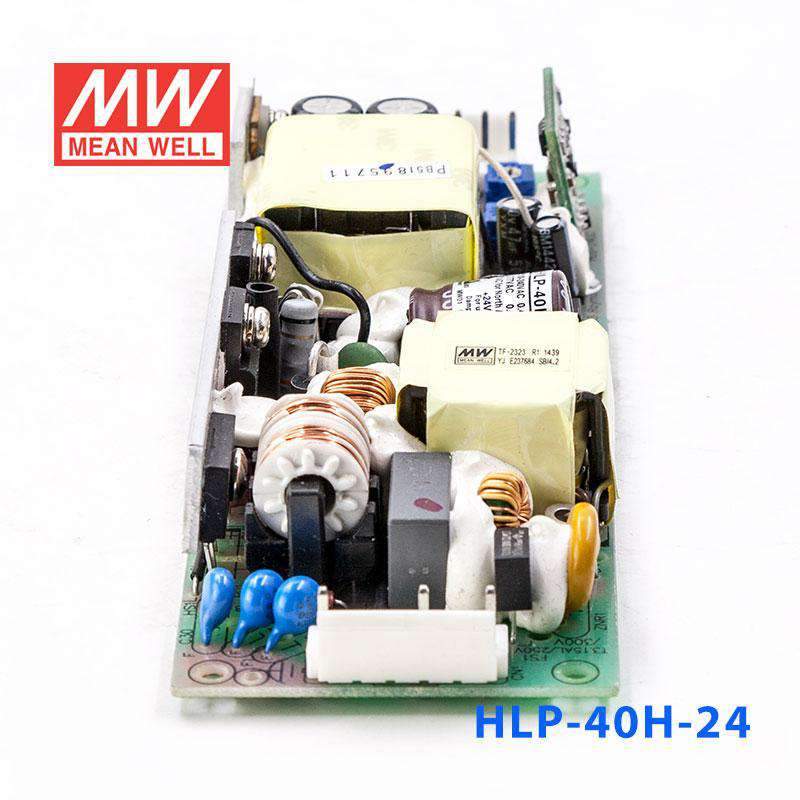

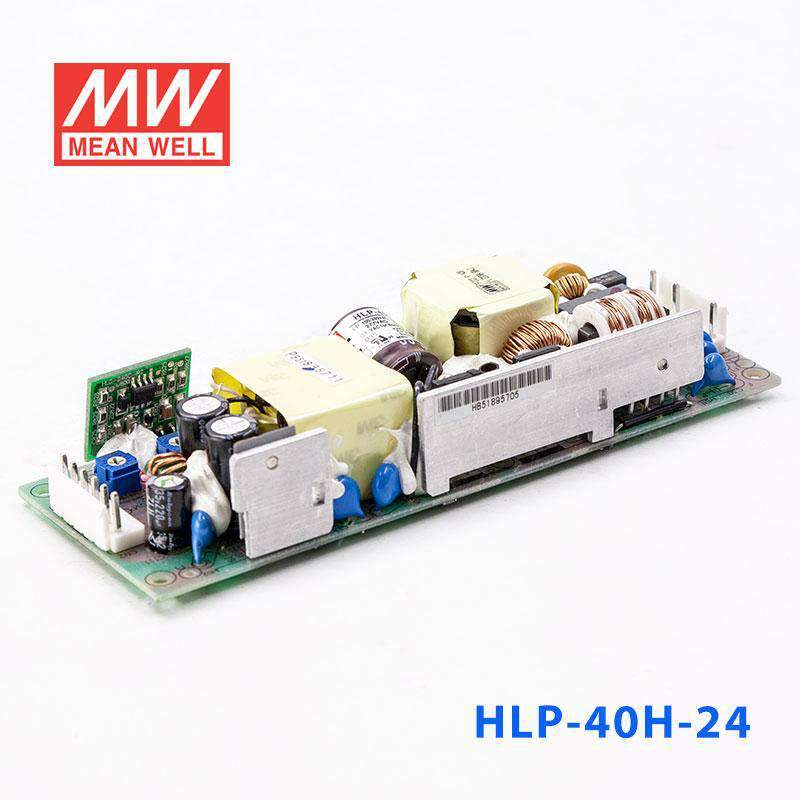

Mean Well HLP-40H-24 AC-DC Single output LED driver 40W

40W, 24V, CC
SKU:
HLP-40H-24

|

Description

Features

Universal AC input (up to 305VAC) / Full range

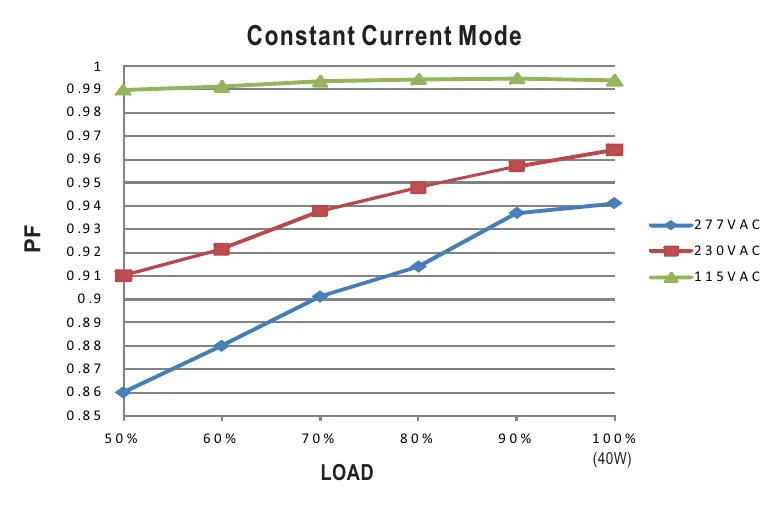

Built-in active PFC, PF>0.95
Output constant current level adjustable
Protections: Short circuit / Over current / Over voltage / Over temperature
Built-in constant current limiting circuit (C.V.+C.C. mode)
Class 2 power unit / Pass LPS
Suitable for built-in LED lighting system
Cooling by free air convection

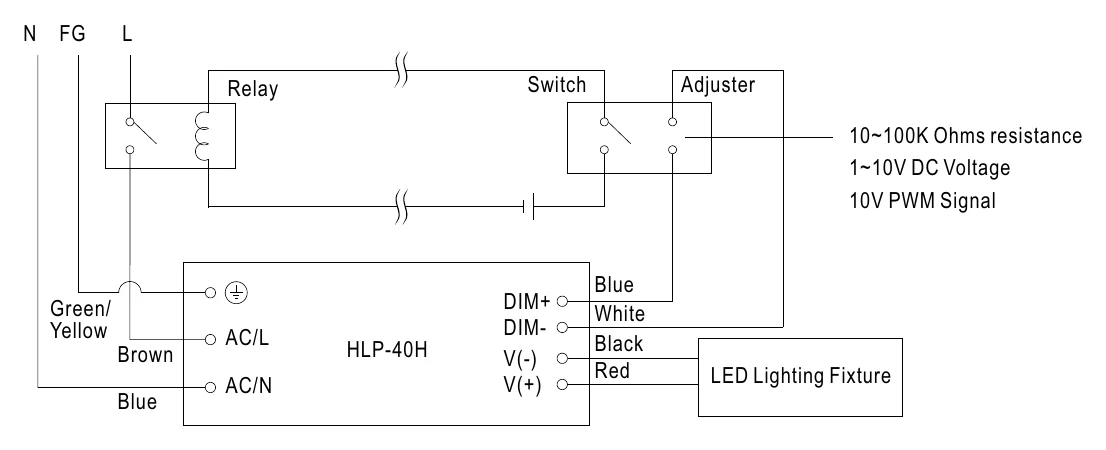

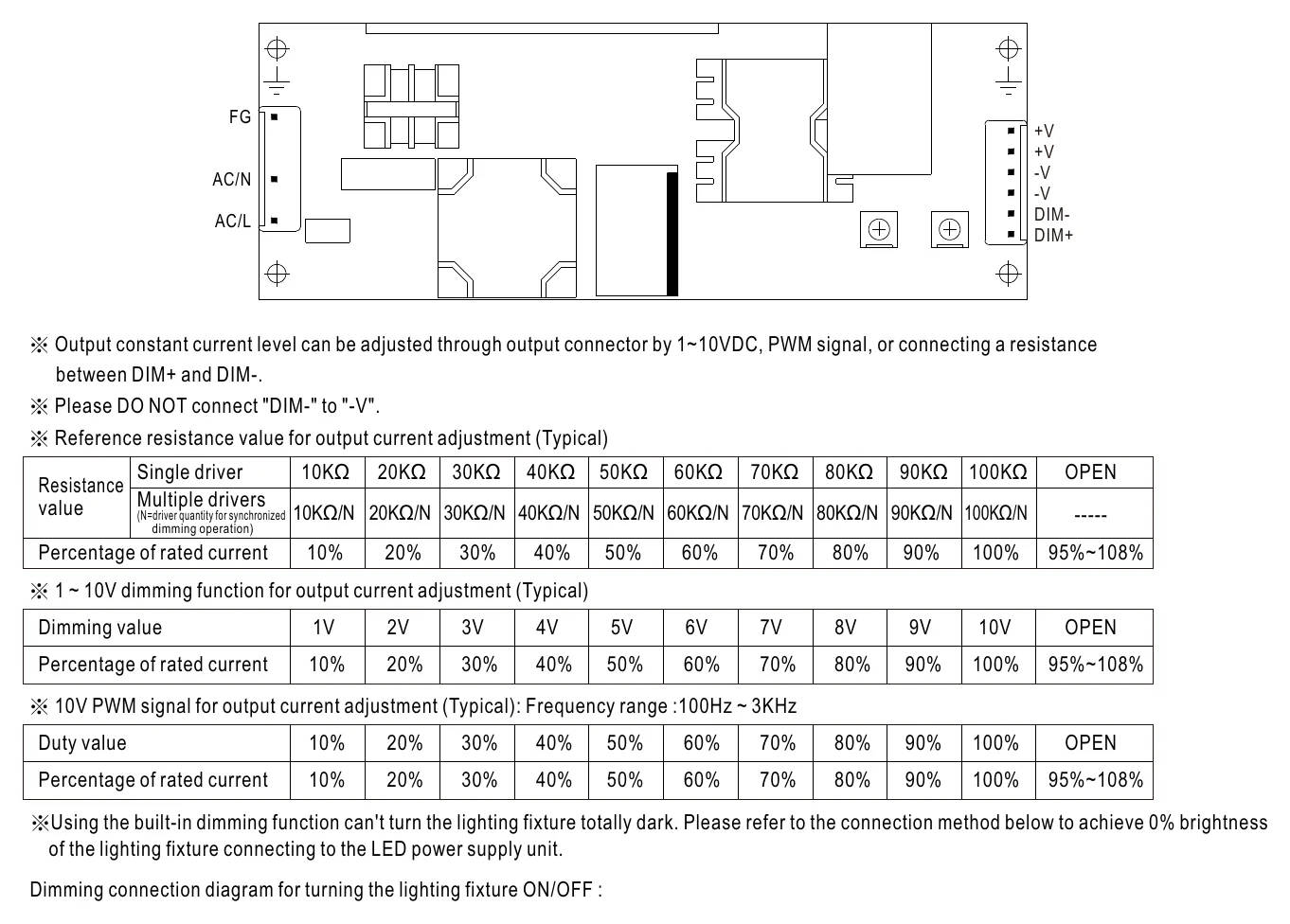

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
3 years warranty

General Specification

AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range ±10% rated output voltage
Current adjustment range 60%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 109%~145% rated output voltage
Setup, rise, hold up time 1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC

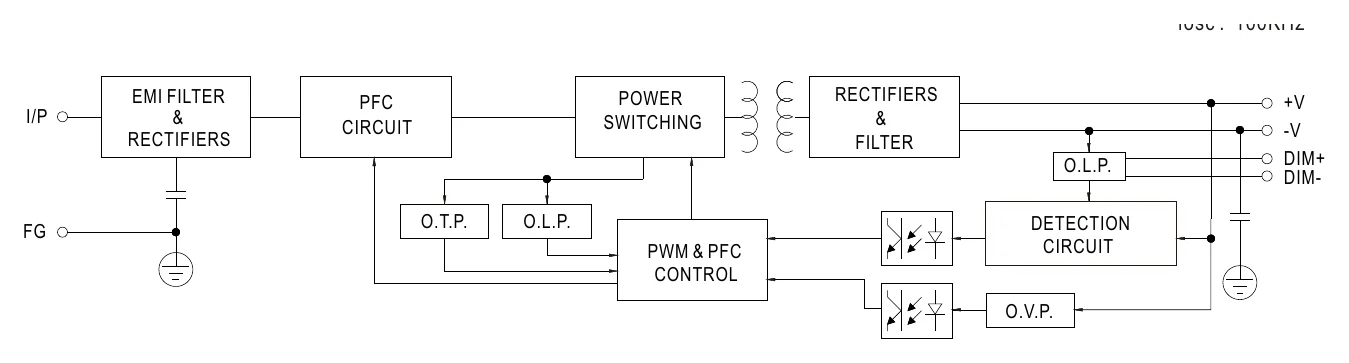

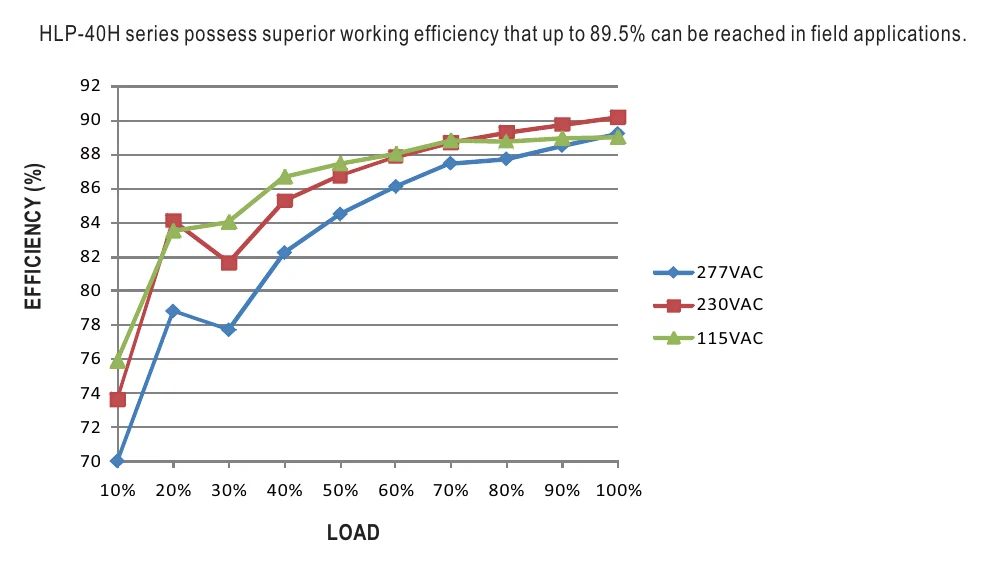

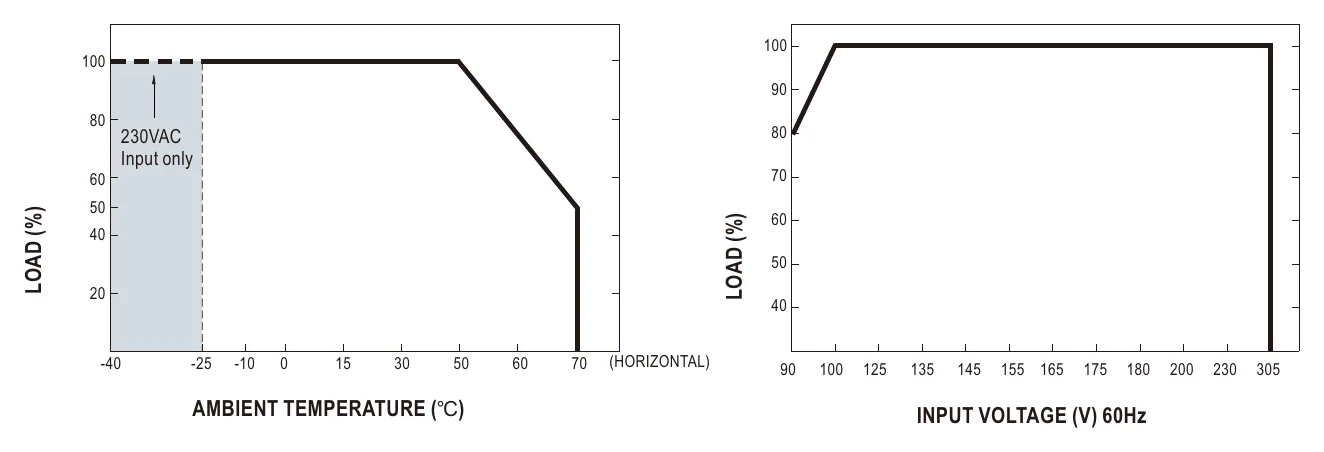

Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to EN60335-1, UL60950-1, EN60950-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input 6+6P/3.96mm pitch, JST P/N: B6P-VH
Connection Output 6+6P/3.96mm pitch, JST P/N: B6P-VH

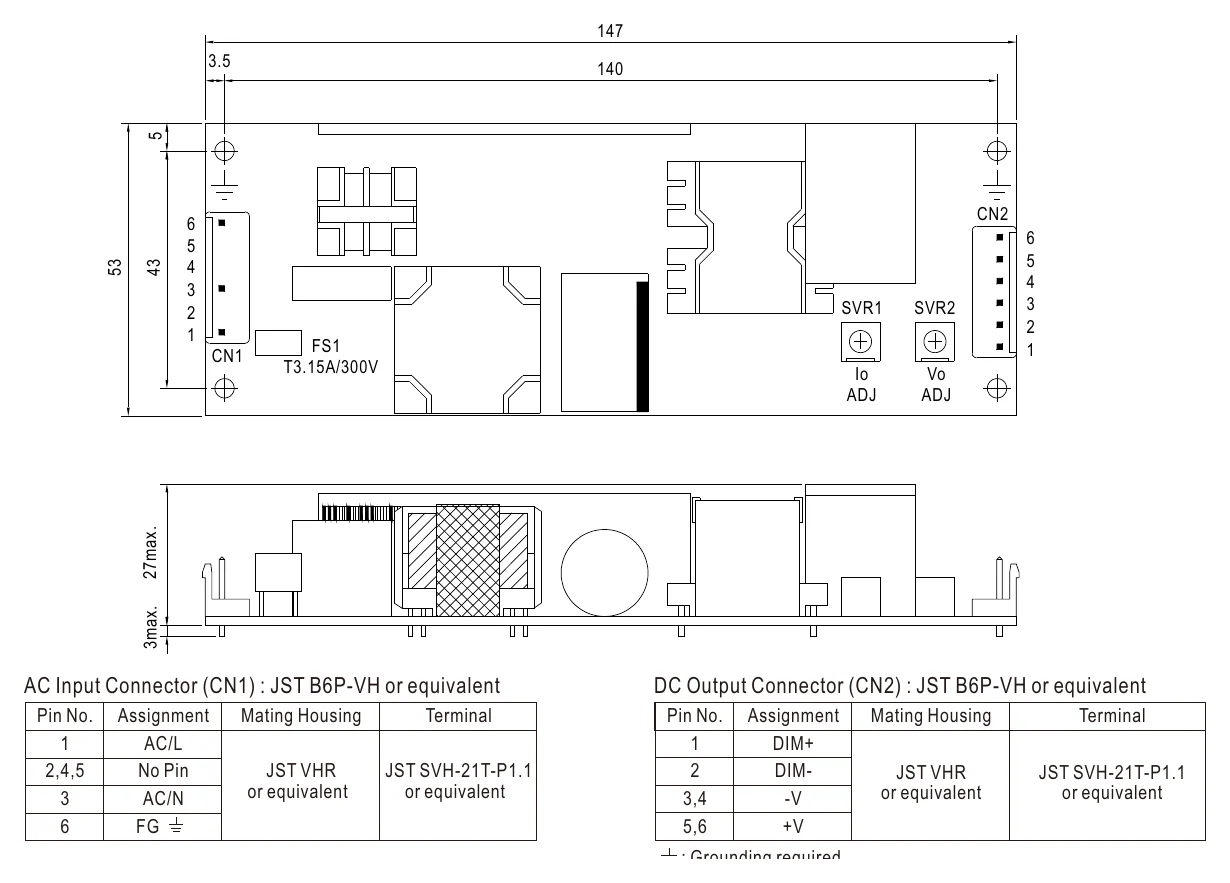

Dimension (LxWxH) (mm) 147x 53x 27

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well HLP Series
  • Power Rating
    40 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.67 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    3 Year
  • Length
    14.7 cm
  • Width
    5.3 cm
  • Height
    2.7 cm
  • Weight
    0.2 kg
