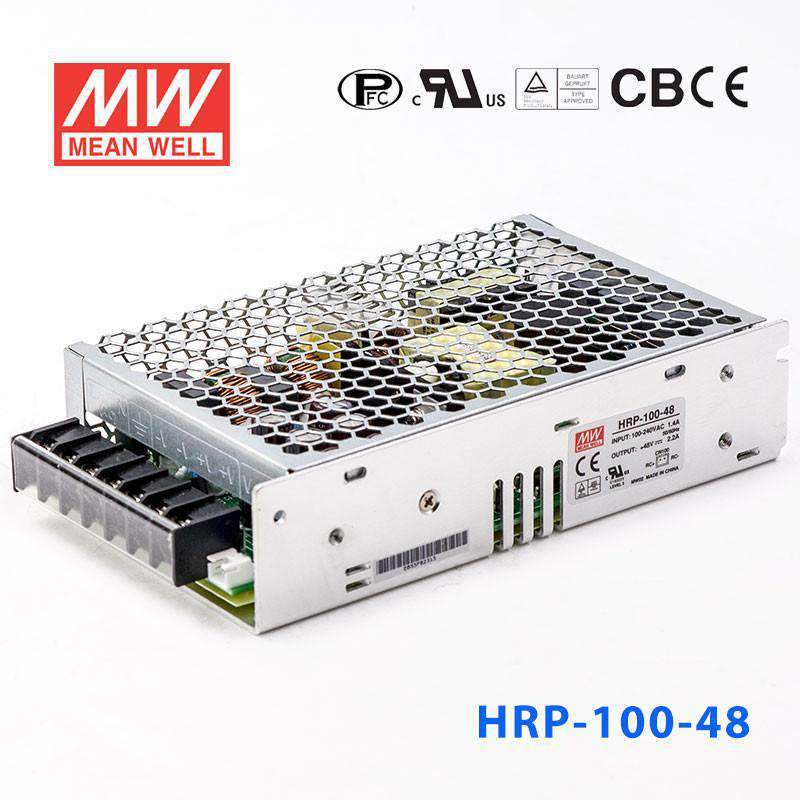

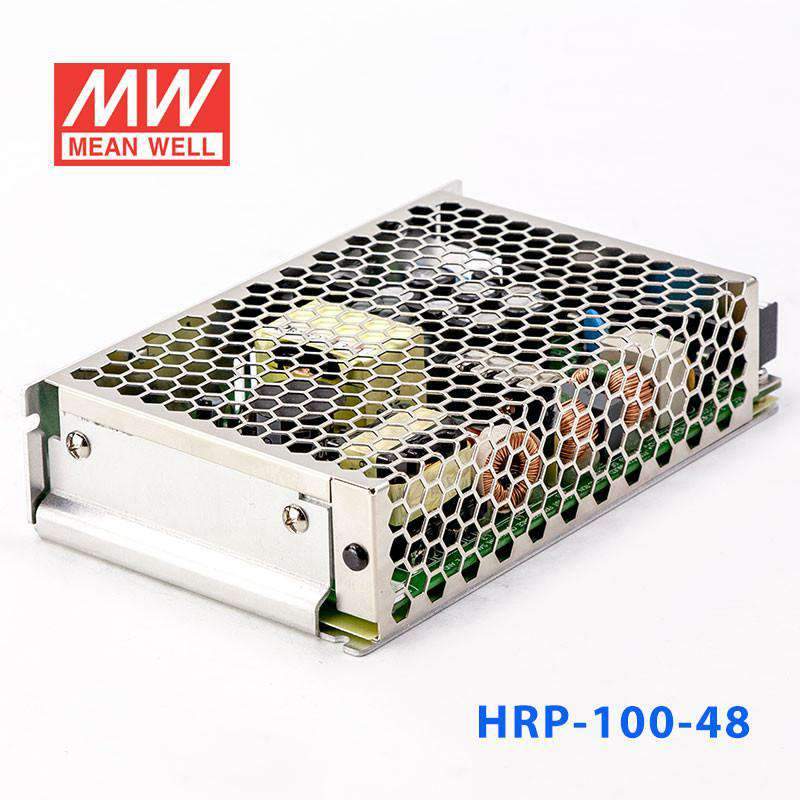

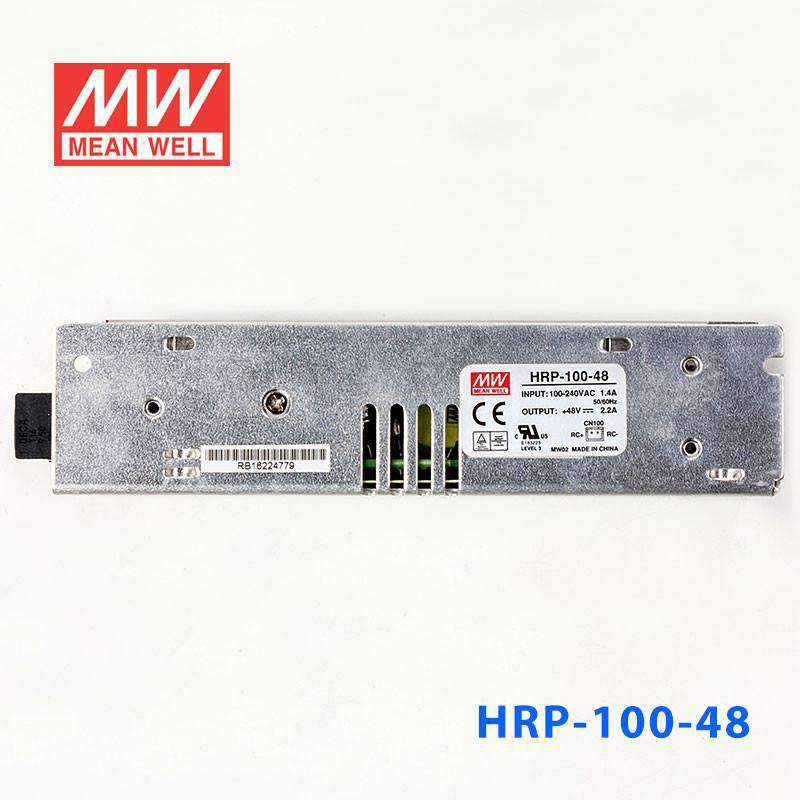

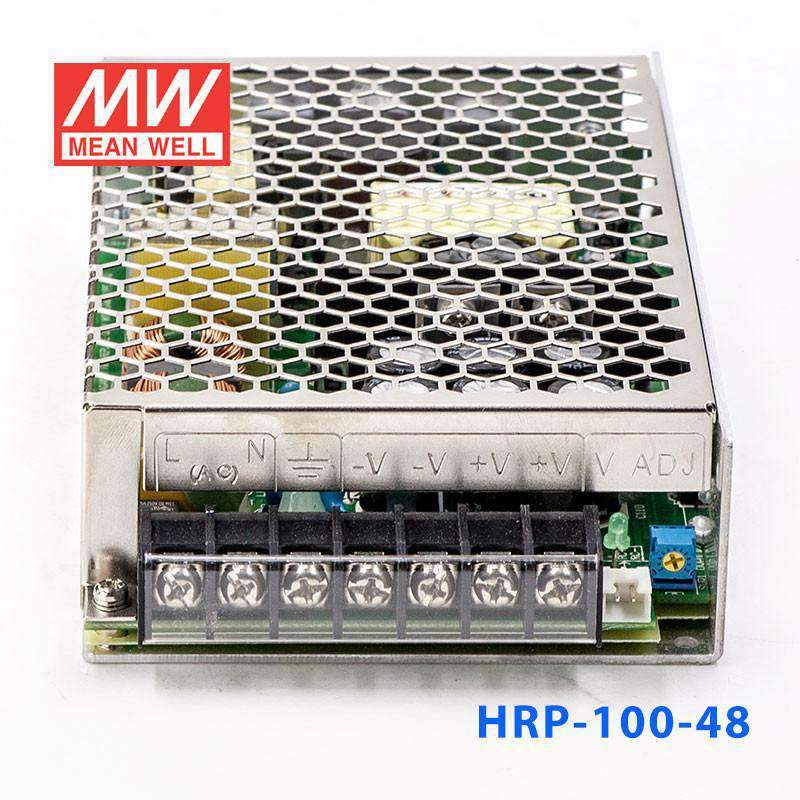

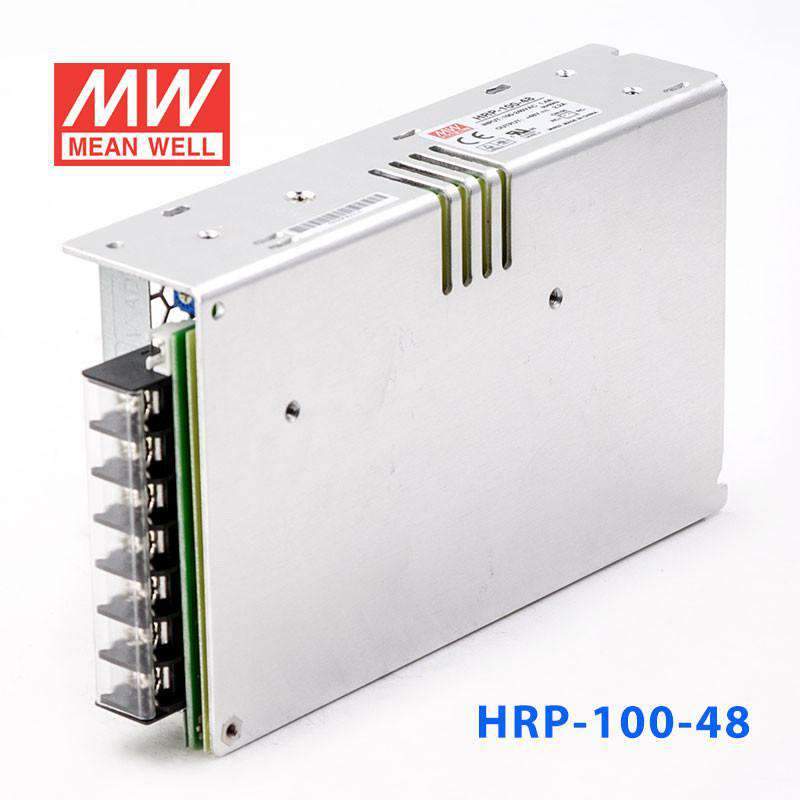

Mean Well HRP-100-48 Power Supply 105.6W 48V 2.2A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-100-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-100-48

HRP-75-48 75W 48V Backorder

HRP-100-48 100W 48V Backorder

HRP-150-48 150W 48V Backorder

HRP-200-48 200W 48V Backorder

HRP-300-48 300W 48V Backorder

HRP-450-48 450W 48V Low stock

HRP-600-48 600W 48V Low stock

Product variants

Available to order

Overview

HRP-100-48 is the 48V output model of this series: rated current 2.2A, rated power 105.6W, typical efficiency 90%.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
5 years warranty

Specifications

HRP-100-48Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 2.2A
CURRENT RANGE: 0 ~ 2.2A
RATED POWER: 105.6W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~ 55.2V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.1A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 65A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2344.3K hrs min. Telcordia SR-332 (Bellcore) ; 295.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.56Kg; 24pcs/15Kg/0.9CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-100-48 Mechanical Specification — Mechanical Specification

HRP-100-48 Block Diagram — Block Diagram

HRP-100-48 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (HRP-100)(EN) PDF Download

TUV Certificate (HRP-100)(EN) PDF Download

EMC Certificate (HRP-100)(EN) PDF Download

Test reports1

Test Report (HRP-100-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-100-48 for a 48V industrial control or communications load?

Yes, if the equipment requires a constant 48V DC source and draws no more than 2.2A or 105.6W. It is intended for 48V systems, so voltage matching is the key requirement.

Is the HRP-100-48 appropriate for a compact 48V embedded system?

It can be a fit for embedded 48V electronics that stay within 2.2A output current and 105.6W total power. The 159.0 × 97.0 × 38.0 mm form factor is also suitable where a compact power supply is needed.

Can this model power a 48V automation device from a wide AC input range?

Yes. The unit accepts 85-264VAC input and converts it to a constant 48V DC output, with up to 2.2A available on the output side.

Is the HRP-100-48 better for lower-current 48V loads than for high-current 48V equipment?

Yes. Its output is limited to 2.2A at 48V, so it is suited to lower-current 48V loads within 105.6W rather than heavier 48V systems that need more output current.

How does the HRP-100-48 compare with the other HRP-100 models?

The HRP-100 series includes 3.3V at 20A and 66W, 5V at 17A and 85W, 7.5V at 13.5A and 101.3W, 12V at 8.5A and 102W, 15V at 7A and 105W, 24V at 4.5A and 108W, 36V at 2.9A and 104.4W, and 48V at 2.2A and 105.6W. The HRP-100-48 is the highest-voltage listed version in the 100W family.

Can the HRP-100-48 be used outdoors or in harsh ambient temperatures?

The specified operating temperature range is -40°C to +60°C, which supports use across a broad temperature range. No IP rating is listed in the provided specs, so exposure to rain, dust, or washdown conditions should not be assumed.
