Mean Well

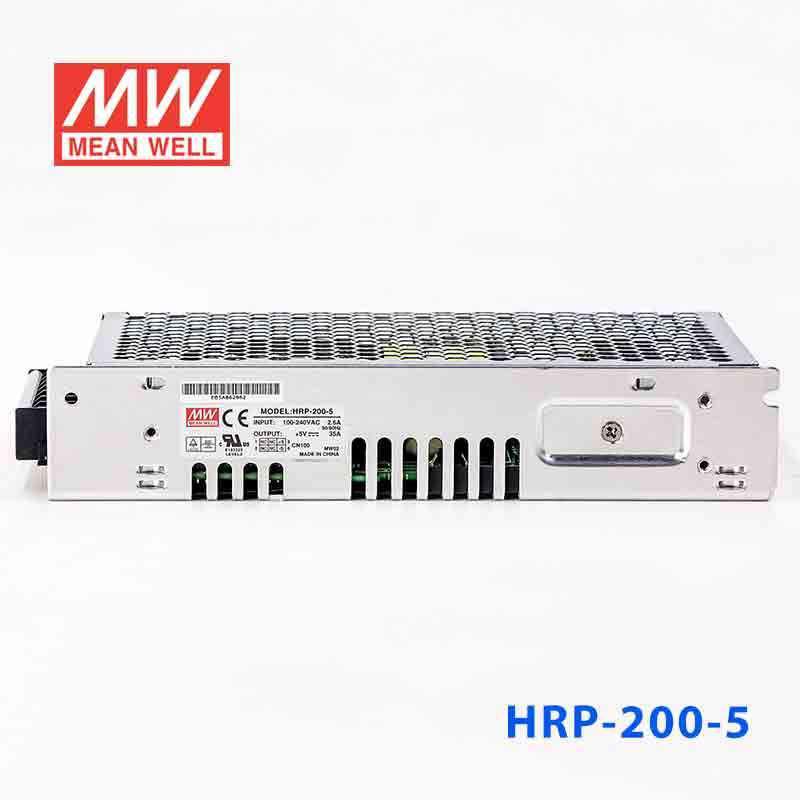

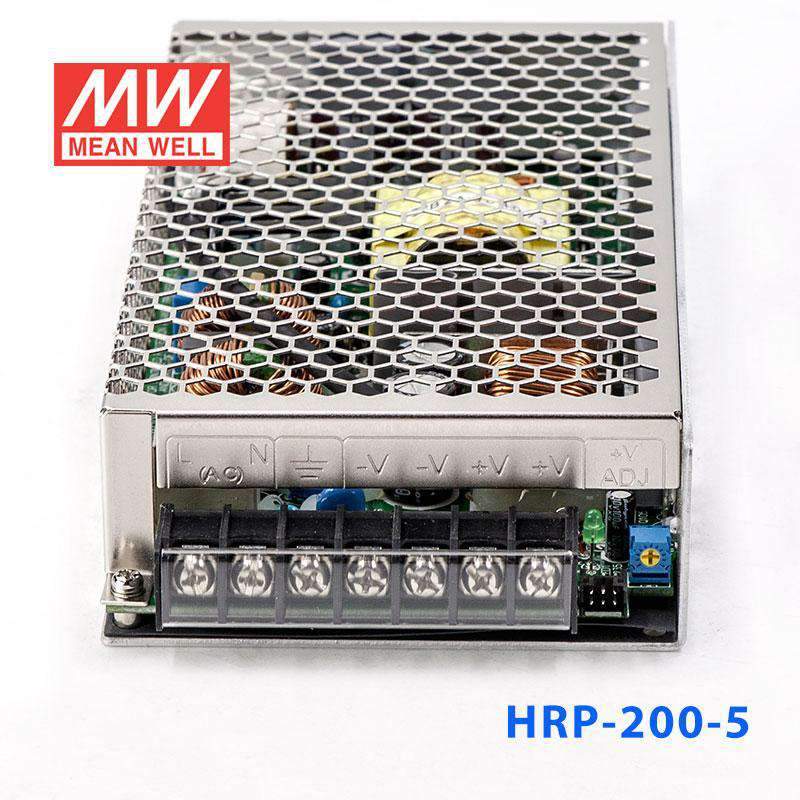

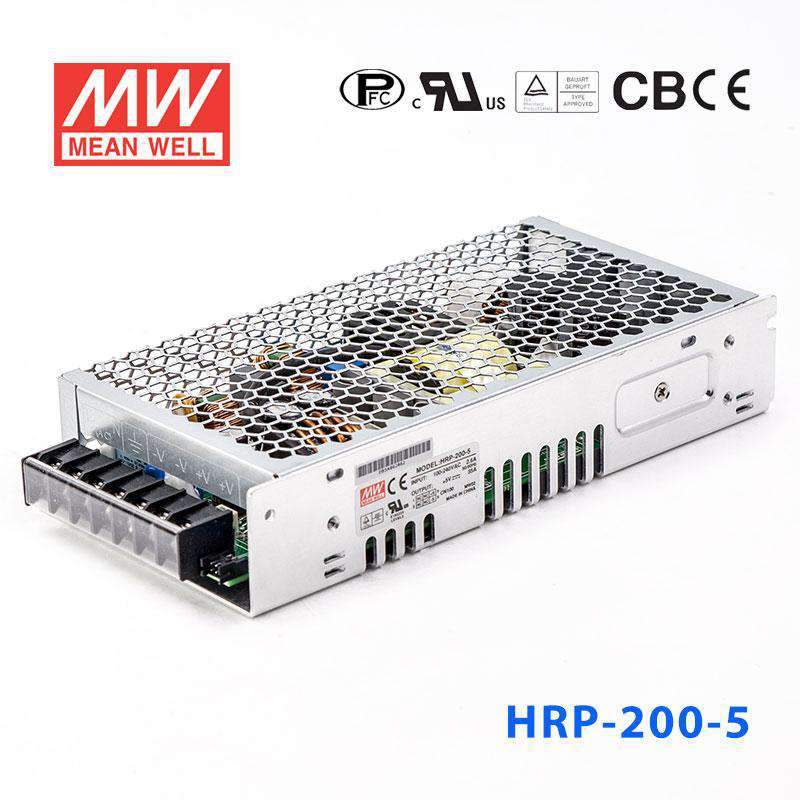

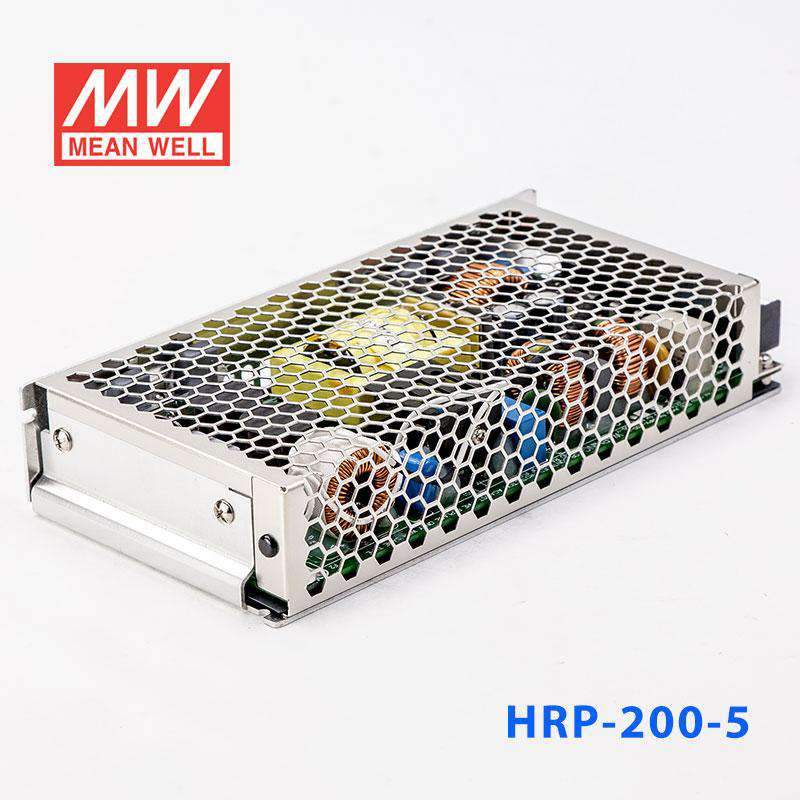

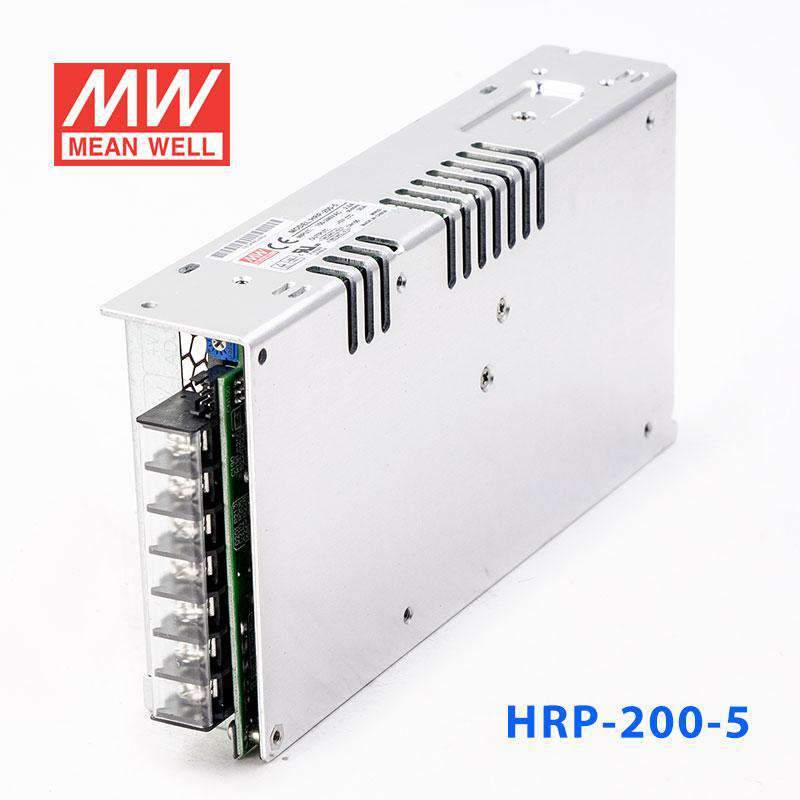

Mean Well HRP-200-5 Power Supply 175W 5V 35A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-200-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-200-5
Available to order
|

Overview

HRP-200-5 is the 5V output model of this series: rated current 35A, rated power 175W, typical efficiency 84%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function
  • 5 years warranty

Specifications

HRP-200-5Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
35A
CURRENT RANGE
0 ~ 35A
RATED POWER
175W
RIPPLE & NOISE (max.)Note.2
90mVp-p
VOLTAGE ADJ. RANGE
4.3 ~ 5.8V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035,heavy industry level, EAC TP TC 020

OTHERS

MTBF
1830.6K hrs min. Telcordia SR-332 (Bellcore) ; 209.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-200-5 Mechanical Specification
Mechanical Specification
HRP-200-5 Block Diagram
Block Diagram
HRP-200-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-200-5 for a 5V industrial controller or PLC accessory load?

Yes, if the equipment needs 5V DC constant voltage and the total load stays within 35A and 175W. That makes it relevant for high-current 5V industrial control electronics and supporting logic loads.

Is the HRP-200-5 suitable for 5V embedded computing or single-board systems?

It can fit embedded computing applications that require a regulated 5V supply with substantial current available. The output rating is 5V at 35A with total power of 175W, so the full system load needs to stay inside those limits.

Can this power supply run multiple 5V digital devices in an industrial or IT enclosure?

This model is intended for constant voltage 5V DC loads, so it can support grouped 5V devices when their combined demand does not exceed 35A or 175W. It is better suited to high-current 5V electronics than to equipment that requires 12V, 24V, 36V, or 48V.

How does the HRP-200-5 compare with other HRP-200 outputs?

The HRP-200 versions listed are 3.3V at 40A and 132W, 5V at 35A and 175W, 7.5V at 26.7A and 200.3W, 12V at 16.7A and 200.4W, 15V at 13.4A and 201W, 24V at 8.4A and 201.6W, 36V at 5.7A and 205.2W, and 48V at 4.3A and 206.4W. Compared with the others, the HRP-200-5 is the dedicated 5V constant voltage option with one of the highest current outputs in the family.

Can the HRP-200-5 be used in cold or high-heat industrial environments?

The specified operating temperature is -40°C to +70°C, so the temperature range is broad for enclosed industrial use. No IP rating is listed in these specs, so outdoor or hose-down exposure should not be assumed from this product data.
