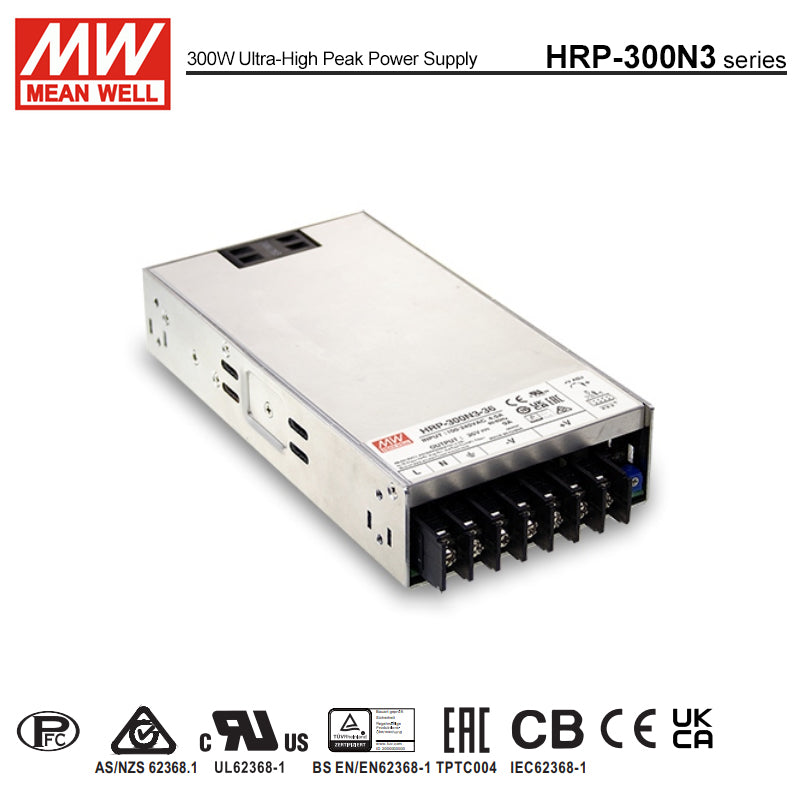

Mean Well HRP-300N3-36 Power Supply 324W 36V, 350% peak power model 9A
Please Login for Pricing
Description
Description
The HRP-300N3 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage36 Volt
-
Rated Current9 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length19.9 cm
-
Width10.5 cm
-
Height4.1 cm
-
Weight0.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output ratings of the Mean Well HRP-300N3-36?
This model is a 324W enclosed AC-DC power supply with a 36V DC output and 9A rated current. It is part of the HRP-300N3 series and includes output voltage adjustment of about ±15%.
What kind of applications is the HRP-300N3-36 suited for?
The HRP-300N3-36 is aimed at industrial and high-reliability equipment that needs a regulated 36V DC supply in a compact enclosed format. Its low 41mm profile, DC OK signal, remote sense function, and peak power capability make it a stronger fit for demanding control and industrial power applications than a basic general-purpose PSU.
Can the HRP-300N3-36 be used in demanding industrial environments?
Yes. This model is specified for operation from -40°C to +70°C, supports operating altitude up to 5000 meters, and withstands 5G vibration. It also meets heavy-industry EMC standards and includes protection for short circuit, overload, over voltage, and over temperature.
What input range does the HRP-300N3-36 accept?
The HRP-300N3-36 has a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. The unit is designed to withstand a 300VAC surge input for 5 seconds.
What makes the HRP-300N3-36 different from a standard enclosed 36V power supply?
This model is designed for higher-demand applications with features such as peak power capability, built-in constant current limiting, DC OK signal, remote sense, and fan on-off control. It also combines a 1U low-profile 41mm chassis with industrial approvals and a 5-year warranty.
What certifications and compliance standards does the HRP-300N3-36 meet?
The HRP-300N3-36 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it lists EN55022 Class B, EN61000-4-2/3/4/5/6/8/11, EN61000-3-2/3, and EN61000-6-2 heavy industry level.
