Mean Well

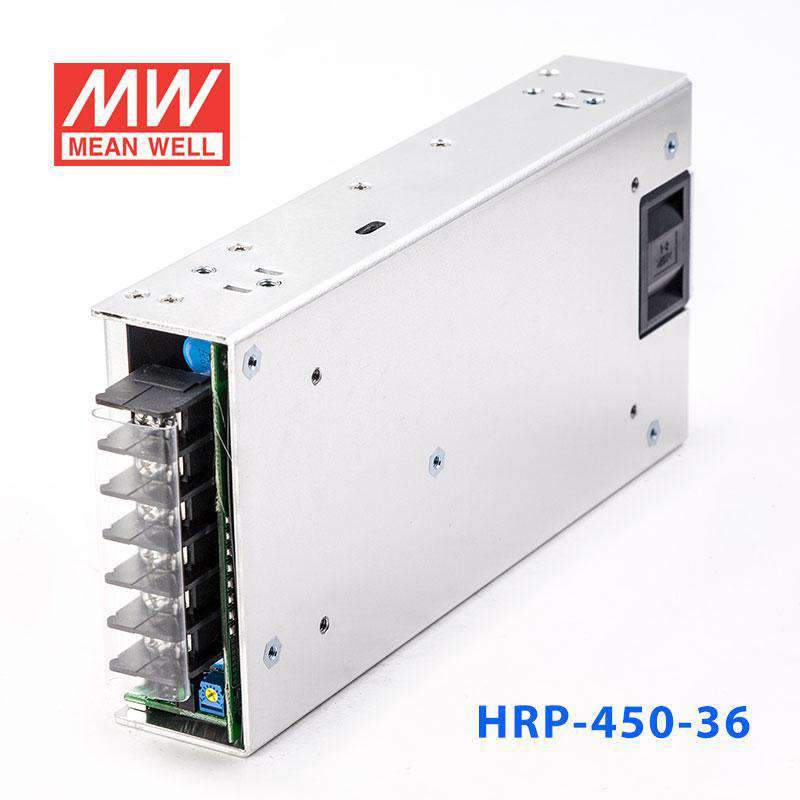

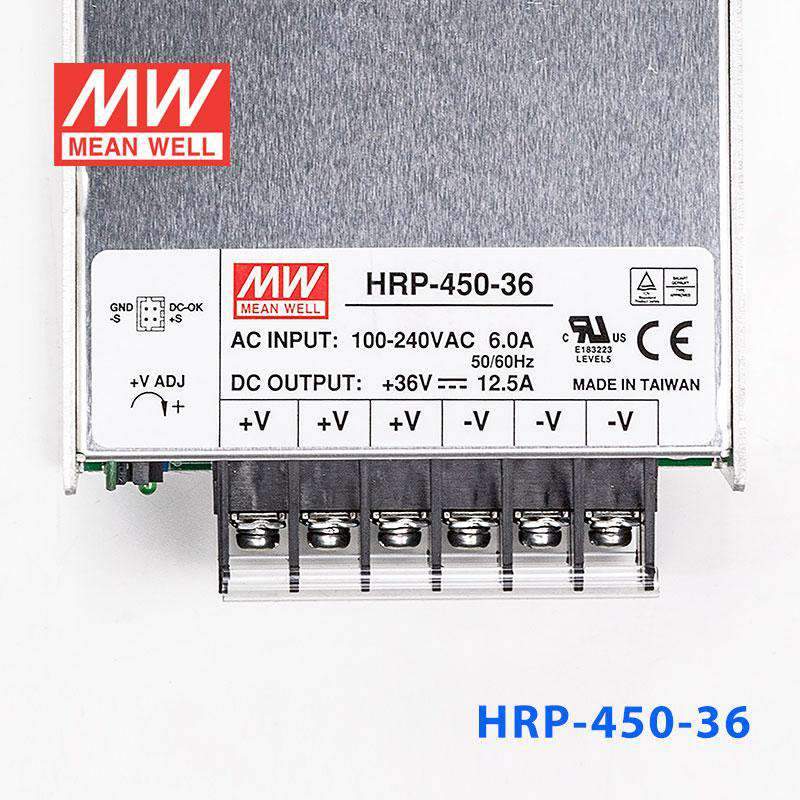

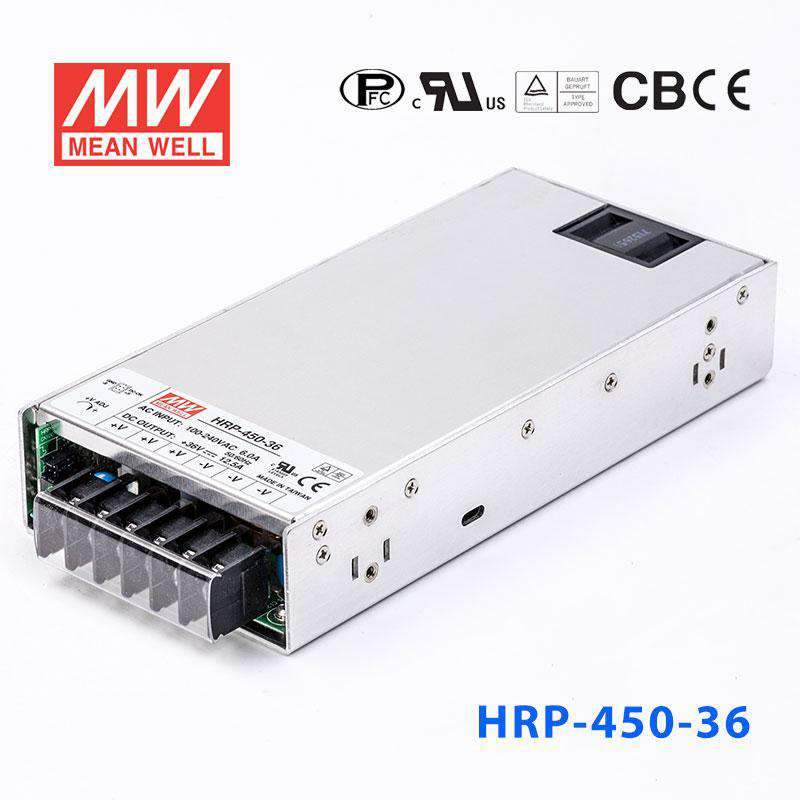

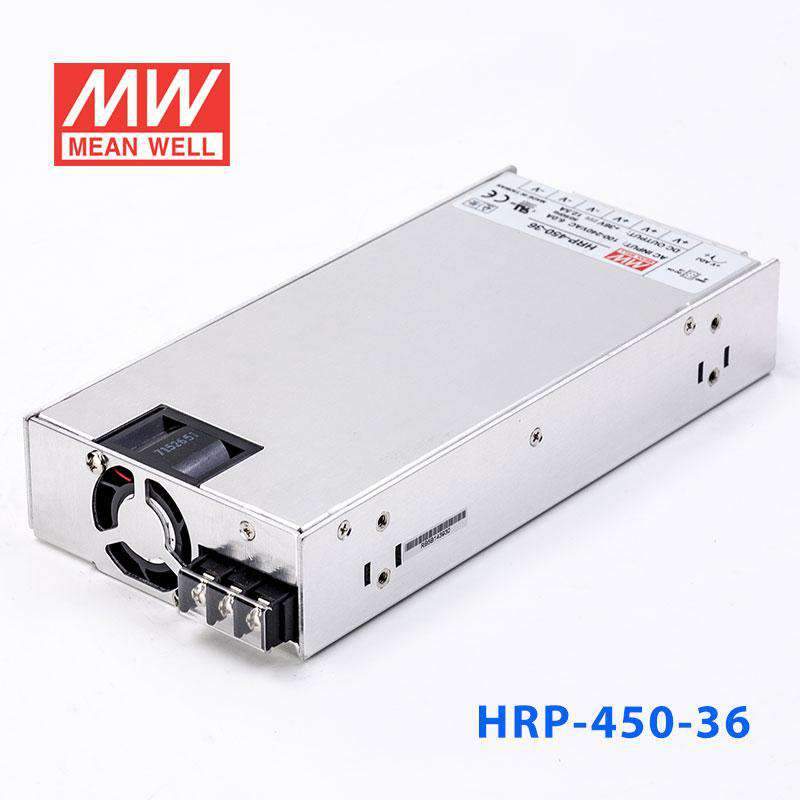

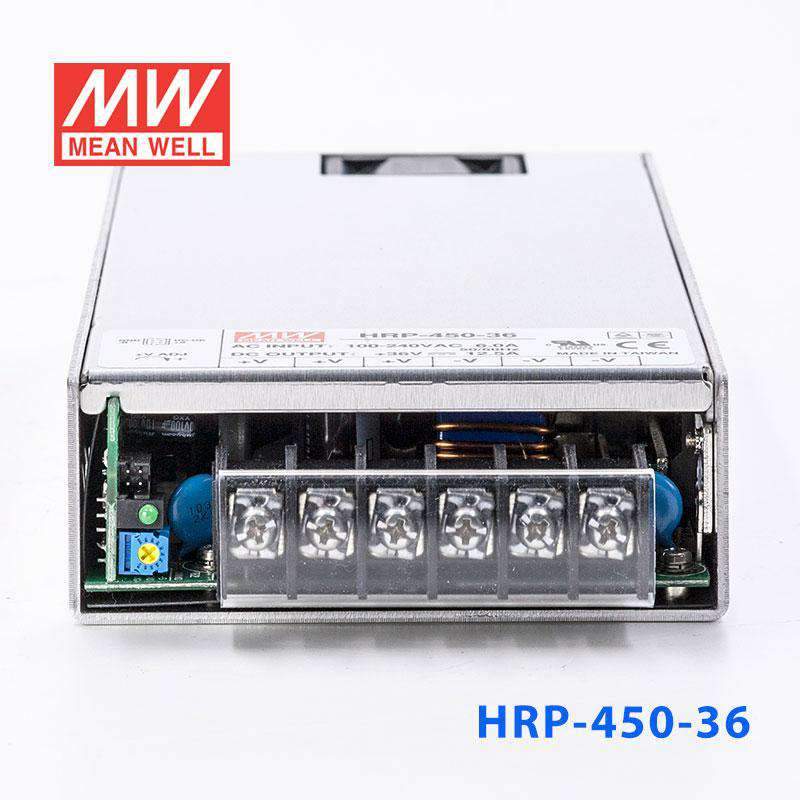

Mean Well HRP-450-36 Power Supply 450W 36V 12.5A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-450-36
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-450-36
Available to order
|

Overview

HRP-450-36 is the 36V output model of this series: rated current 12.5A, rated power 450W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89.5%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in cooling Fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote sense function
  • 5 years warranty

Specifications

HRP-450-36Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
450W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
28.8 ~ 39.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1800ms, 100ms/230VAC 3600ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
5A/115VAC 2.4A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.)
Load 20±10% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1323.6K hrs min. Telcordia SR-332 (Bellcore) ; 139.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*41mm (L*W*H)
PACKING
1.19Kg; 12pcs/15.3Kg/0.82CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-450-36 Mechanical Specification
Mechanical Specification
HRP-450-36 Block Diagram
Block Diagram
HRP-450-36 Derating Curve
Derating Curve
HRP-450-36 Function Manual
Function Manual

Downloads

FAQ

Can I use the HRP-450-36 for a 36V industrial automation system?

Yes, this model is a constant-voltage 36V power supply rated for 450W and 12.5A. That makes it appropriate for 36V automation loads that require a regulated 36V DC bus and stay within 12.5A total draw.

Is the HRP-450-36 suitable for 36V motors, actuators, or motion-control accessories?

It can be used for 36V DC equipment when the load expects constant-voltage input and the combined demand does not exceed 450W or 12.5A. Buyers should match it only to 36V hardware, since this unit does not provide 24V or 48V output.

Can this 36V power supply run a larger 36V embedded or test bench setup?

For centralized 36V DC bench or embedded power, the 450W output at up to 12.5A gives substantial headroom. It is a good fit when a 36V system needs up to 450W from a single supply.

Would the HRP-450-36 fit a 36V industrial control cabinet with wide AC input?

Yes, it accepts 85-264VAC input and delivers 36V DC in constant-voltage mode. That wide input range can simplify use across facilities with different AC mains while keeping the DC side at 36V and 12.5A maximum.

Is the HRP-450-36 suitable for outdoor or harsh-temperature environments?

The operating temperature range is -40°C to +70°C, with load derating at higher ambient temperatures per the derating curve, so check the curve before running full load in hot locations. No IP rating is provided in the specs, so indoor or outdoor exposure should be judged based on the enclosure used around the power supply rather than the unit alone.
