Mean Well

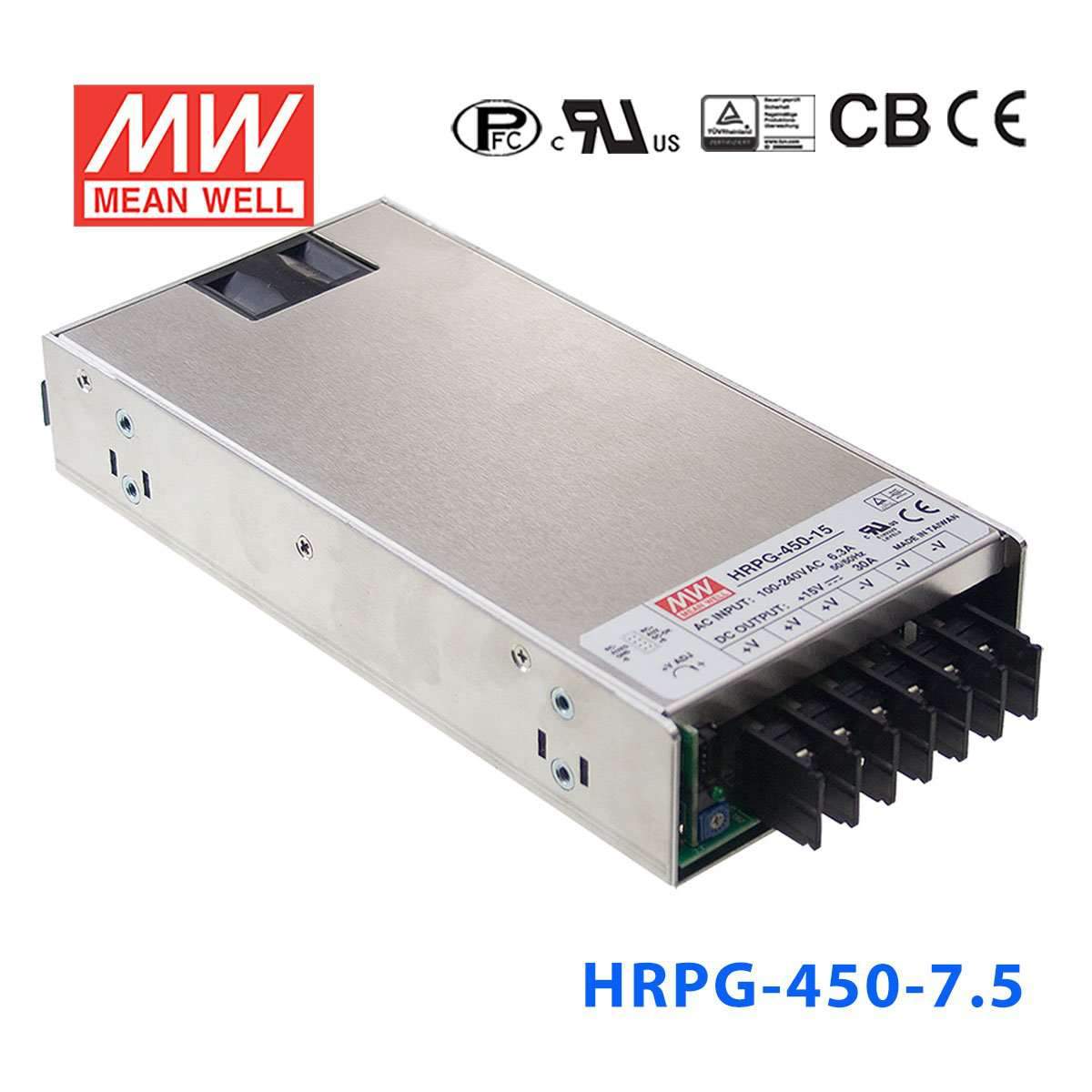

Mean Well HRPG-450-7.5 Power Supply 450W 7.5V 60A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile
SKU HRPG-450-7.5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

HRPG-450-7.5 is the 7.5V output model of this series: rated current 60A, rated power 450W, typical efficiency 86.5%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89.5%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in cooling Fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Stand by 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.7)
  • 5 years warranty

Specifications

HRPG-450-7.5Specifications from the official datasheet (2025-12-05 edition)

OUTPUT

DC VOLTAGE
7.5V
RATED CURRENT
60A
CURRENT RANGE
0 ~ 60A
RATED POWER
450W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
6.8 ~ 9V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1800ms, 100ms/230VAC 3600ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
86.5%
AC CURRENT (Typ.)
5A/115VAC 2.4A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.)
Load 20±10% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1180.3K hrs min. Telcordia SR-332 (Bellcore) ; 130.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*41mm (L*W*H)
PACKING
1.19Kg; 12pcs/15.3Kg/0.81CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. No load power consumption<0.5W when RC- & RC+ (CN100 pin1,2) 0 ~ 0.8V or short.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-450-7.5 Mechanical Specification
Mechanical Specification
HRPG-450-7.5 Block Diagram
Block Diagram
HRPG-450-7.5 Derating Curve
Derating Curve
HRPG-450-7.5 Function Manual
Function Manual

Downloads

FAQ

Can I use the HRPG-450-7.5 for 7.5V industrial or embedded equipment?

Yes, if the equipment is designed for a constant 7.5V DC input and needs up to 60A. This supply delivers 450W at 7.5V, which fits specialized low-voltage industrial or embedded systems that do not run on the more common 5V, 12V, or 24V rails.

Is the HRPG-450-7.5 suitable for high-current 7.5V test benches or production fixtures?

It can be a good match for fixed 7.5V loads in manufacturing or validation setups because it provides a constant voltage output with substantial current capacity. With 60A available, it is sized for heavier 7.5V demand than smaller supplies in the same voltage class.

Would this power supply work for a custom 7.5V control assembly in a compact enclosure?

It measures 218 × 105 × 41 mm, only 41 mm high, which can help in compact cabinets or rack-adjacent assemblies. The unit also provides 450W, so it suits builds that need both 7.5V output and higher current overhead.

Is the HRPG-450-7.5 appropriate for outdoor or unsealed environments?

The operating temperature spec is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve, so it covers a broad industrial temperature range. However, there is no IP rating in the provided data, so the listing does not establish exposed outdoor suitability without a protective enclosure.

How does the HRPG-450-7.5 compare with the rest of the HRPG-450 family?

The HRPG-450 family includes HRPG-450-3.3 at 297W, 3.3V, 90A; HRPG-450-5 at 450W, 5V, 90A; HRPG-450-7.5 at 450W, 7.5V, 60A; HRPG-450-12 at 450W, 12V, 37.5A; HRPG-450-15 at 450W, 15V, 30A; HRPG-450-24 at 451.2W, 24V, 18.8A; HRPG-450-36 at 450W, 36V, 12.5A; and HRPG-450-48 at 456W, 48V, 9.5A. This model sits between the 5V and 12V versions, with 7.5V output and 60A current capacity.
