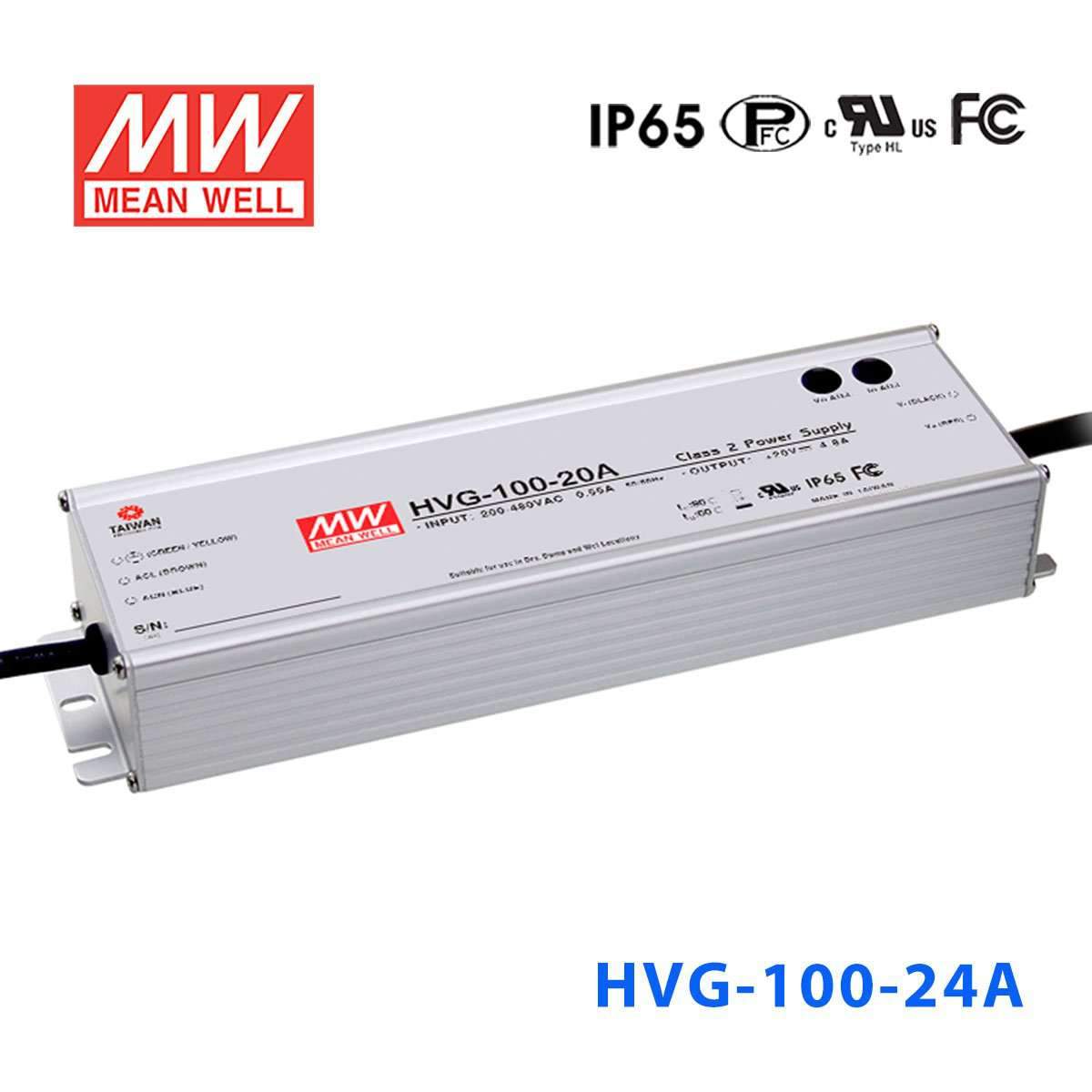

Mean Well HVG-100-24A Constant Voltage + Constant Current LED Driver

Overview

HVG-100-24A is the 24V output model of this series: rated current 4A, rated power 96W, typical efficiency 91%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-100-24ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.4: 12~24V
RATED CURRENT: 4A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 22 ~ 27V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2.2 ~ 4A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 30ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Built-in Smart timer dimming function by user request; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-100-24A Block Diagram — Block Diagram

HVG-100-24A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-100-24A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-100-24A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HVG-100-24A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-100-24A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-100-24A datasheetHVG-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

EMC Certificate(HVG-100)(EN) PDF Download

FCC Certificate(HVG-100)(EN) PDF Download

UL Certificate(HVG-100)(EN) PDF Download

Test reports1

Test Report(HVG-100-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-100-24A for 24V LED strip lighting in commercial spaces?

Yes, if the 24V load stays within 96W and 4A. It is intended for 24V lighting products operating within a 12-24V constant current range, so the connected load needs to match that specification.

Is this driver suitable for 24V sign or display lighting?

It can be used for 24V sign and display lighting loads up to 96W and 4A. The series' IP65/IP67 approval also helps in locations where the driver may be exposed to dust or water spray.

Can the HVG-100-24A power 24V architectural accent lighting?

It is suitable for 24V accent lighting systems that fit within the driver's 96W maximum output and 4A current rating. With a case temperature (Tcase) rating of -40°C to +90°C, it is built for a wide range of indoor and semi-exposed lighting environments.

How much 24V LED strip can I run from the HVG-100-24A?

Estimate the run length with maximum length = 96W ÷ strip watts per meter. You also need to keep total current within 4A, so check your strip rated power per meter before final sizing.

Is the HVG-100-24A appropriate for outdoor use?

The HVG-100 series is IP65 or IP67 approved, and the sheet says that with a waterproof connector on the output cable it can operate in damp, wet or outdoor locations. Check the IP rating marked for this version against how exposed the installation will be.
